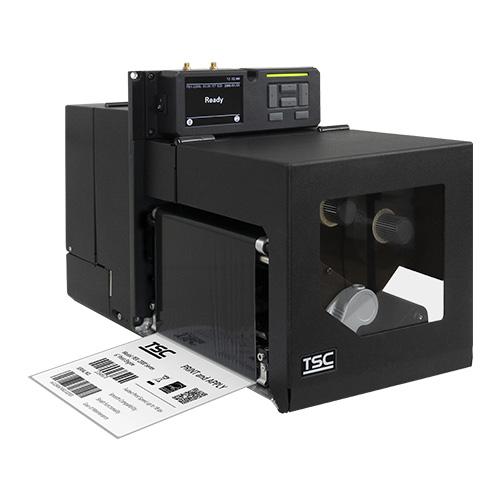

TSC PEX-2000 Series prindimoodul

TSC PEX-2000 Series on prindimoodul prindi-ja-kleebi süsteemidele ja automaatsetele märgistusliinidele, mis paigaldatakse aplikaatorisse või tootmismasinasse, mitte lauale. See prindib termosiirde- ja otsetermomeetodil, sellel on 3,5-tolline värviline LCD, USB, RS232, Ethernet, paralleelport ja GPIO (DB15F) port liini juhtimiseks ning see on saadaval 4- ja 6-tollise laiusega kuni 600 dpi eraldusvõimega, vasak- või parempoolse versioonina.

Prindimoodul prindi-ja-kleebi süsteemidele ja automaatsetele märgistusliinidele
4-tollised 203, 300 või 600 dpi; 6-tollised 203 või 300 dpi
Termosiire ja otsetermo, 3,5-tolline värviline LCD
USB, RS232, Ethernet, paralleelport ja GPIO (DB15F) igal versioonil
Vasak- (L) või parempoolsed (R) versioonid integraatoritele ja masinaehitajatele

Thermal transfer203 / 300 / 600 dpiMax prindilaius 168 mm

Hind alates 3.833,74 €+KM

● LaosVersioone: 10

Vali versioon Hulgi- / projektihind

Eraldusvõime

Ainult laos

TSC PEX-2000 · Thermal transfer · 600 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, left-hand

Tootekood PEX-2640L-A001-0002

Thermal transfer600 dpiLCD4-inch, left-handUSBRS232EthernetParallel

Laost otsas

5.129,40 €+KM

Vaata

TSC PEX-2000 · Thermal transfer · 600 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, right-hand

Tootekood PEX-2640R-A001-0002

Thermal transfer600 dpiLCD4-inch, right-handUSBRS232EthernetParallel

Laost otsas

5.129,40 €+KM

Vaata

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, right-hand

Tootekood PEX-2360R-A001-0002

Thermal transfer300 dpiLCD6-inch, right-handUSBRS232EthernetParallel

Laost otsas

4.513,51 €+KM

Vaata

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, left-hand

Tootekood PEX-2360L-A001-0002

Thermal transfer300 dpiLCD6-inch, left-handUSBRS232EthernetParallel

Laost otsas

4.513,51 €+KM

Vaata

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, right-hand

Tootekood PEX-2340R-A001-0002

Thermal transfer300 dpiLCD4-inch, right-handUSBRS232EthernetParallel

Laost otsas

3.963,96 €+KM

Vaata

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, left-hand

Tootekood PEX-2340L-A001-0002

Thermal transfer300 dpiLCD4-inch, left-handUSBRS232EthernetParallel

Laost otsas

3.963,96 €+KM

Vaata

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, right-hand

Tootekood PEX-2260R-A001-0002

Thermal transfer203 dpiLCD6-inch, right-handUSBRS232EthernetParallel

Laos

4.357,08 €+KM

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, left-hand

Tootekood PEX-2260L-A001-0002

Thermal transfer203 dpiLCD6-inch, left-handUSBRS232EthernetParallel

Laos

4.357,08 €+KM

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, right-hand

Tootekood PEX-2240R-A001-0002

Thermal transfer203 dpiLCD4-inch, right-handUSBRS232EthernetParallel

Laost otsas

3.833,74 €+KM

Vaata

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, left-hand

Tootekood PEX-2240L-A001-0002

Thermal transfer203 dpiLCD4-inch, left-handUSBRS232EthernetParallel

Laost otsas

3.833,74 €+KM

Vaata

In stock only

Product	Size (W × H)	Material	Labels / roll	Core	Price
Tsc W: 148 mm38-G148210-11LF	148 × 210 mm	Normal Paper	800	76 mm	33,66 €+KMLaos
Tsc W: 102 mm38-T102102-10LF	102 × 102 mm	Thermal Paper	1700	76 mm	25,00 €+KMLaos
Tsc W: 148 mm38-T148210-11LF	148 × 210 mm	Thermal Paper	800	76 mm	42,57 €+KMLaos
Tsc W: 102 mm38-G102076-10LF	102 × 76 mm	Normal Paper	2300	76 mm	24,43 €+KMLaost otsas	View
Tsc W: 148 mm38-G148210-10LF	148 × 210 mm	Normal Paper	800	76 mm	31,26 €+KMLaost otsas	View
Tsc W: 55 mm38-G055070-10LF	55 × 70 mm	Normal Paper	2400	76 mm	14,62 €+KMLaost otsas	View
Tsc W: 75 mm38-G075050-10LF	75 × 50 mm	Normal Paper	3000	76 mm	19,03 €+KMLaost otsas	View
Tsc W: 90 mm38-G090036-10LF	90 × 36 mm	Normal Paper	4000	76 mm	23,74 €+KMLaost otsas	View
Tsc W: 115 mm38-G115170-10LF	115 × 170 mm	Normal Paper	1000	76 mm	28,80 €+KMLaost otsas	View
Tsc W: 130 mm38-G130100-10LF	130 × 100 mm	Normal Paper	1700	76 mm	30,59 €+KMLaost otsas	View
Tsc W: 135 mm38-G135083-10LF	135 × 83 mm	Normal Paper	2000	76 mm	31,16 €+KMLaost otsas	View
Tsc W: 165 mm38-G165214-10LF	165 × 214 mm	Normal Paper	750	76 mm	39,87 €+KMLaost otsas	View
Zebra Z-Perform 1000T76524	148 × 210 mm	Normal Paper	700	76 mm	31,49 €+KMLaos
Zebra Z-Perform 1000T76180	101.6 × 152.4 mm	Normal Paper	950	76 mm	22,53 €+KMLaos
Zebra Z-Ultimate 3000T valge880350-152	101.6 × 152.4 mm	Synthetic	950	76 mm	133,81 €+KMLaos
Zebra PolyE 3100T Gloss3011714	148 × 210 mm	Synthetic	650	76 mm	53,98 €+KMLaos
Zebra Z-Perform 1000T3005091	100 × 150 mm	Normal Paper	1000	76 mm	25,34 €+KMLaos
Zebra Z-Perform 1000T3001699	148 × 210 mm	Normal Paper	800	76 mm	34,64 €+KMLaos
Zebra Z-Ultimate 3000T880350-050	101.6 × 50.8 mm	Synthetic	2740	76 mm	133,81 €+KMLaos
Zebra Z-Select 2000T3006326	101.6 × 76.2 mm	Normal Paper	2238	76 mm	37,16 €+KMLaos
Zebra Z-Select 2000T76089	148 × 209.55 mm	Normal Paper	700	76 mm	43,32 €+KMLaos
Zebra Z-Ultimate 3000T valge880350-101	101.6 × 101.6 mm	Synthetic	1432	76 mm	133,81 €+KMLaos
Zebra Z-Select 2000T76060	101.6 × 152.4 mm	Normal Paper	950	76 mm	32,27 €+KMLaos
Zebra Z-Perform 1000T3004645	100 × 100 mm	Normal Paper	1670	76 mm	22,53 €+KMLaos
Zebra Z-Perform 1000T87985	101.6 × 152.4 mm	Normal Paper	950	76 mm	23,07 €+KMLaos
Zebra Z-Select 2000T76059	101.6 × 63.5 mm	Normal Paper	2220	76 mm	32,27 €+KMLaos
Zebra Z-Perform 1000T200957	105 × 148 mm	Normal Paper	1127	76 mm	24,01 €+KMLaos
Zebra Z-Perform 1000T87394	100 × 50 mm	Normal Paper	2820	76 mm	22,53 €+KMLaos
Zebra Z-Perform 1000T76179	101.6 × 63.5 mm	Normal Paper	2220	76 mm	22,53 €+KMLaos
Zebra Z-Select 2000T800640-605	101.6 × 152.4 mm	Normal Paper	1142	76 mm	36,22 €+KMLaos

In stock only

Product	Width	Length	Type	Ink side	Core	Price
TSC 8050-SWX vahalint 110 mm × 300 mP159049-001	110 mm	300 m	Wax	Outside	25.4 mm	4,69 €+KMLaos
TSC 8050-SWX vahalint 110 mm × 450 mP159079-001	110 mm	450 m	Wax	Outside	25.4 mm	7,04 €+KMLaos
TSC 8580-PWR vaha-vaiklint 60 mm × 450 mP159064-001	60 mm	450 m	Wax/Resin	Outside	25.4 mm	13,23 €+KMLaos
TSC 8550-SWR vaha-vaiklint 83 mm × 450 mP159069-001	83 mm	450 m	Wax/Resin	Outside	25.4 mm	13,90 €+KMLaost otsas	View
TSC 8600-SRE vaiklint 110 mm × 300 mP159053-001	110 mm	300 m	Resin	Outside	25.4 mm	24,09 €+KMLaost otsas	View
TSC 8580-PWR vaha-vaiklint 110 mm × 450 mP159082-001	110 mm	450 m	Wax/Resin	Outside	25.4 mm	24,26 €+KMLaost otsas	View
TSC 8550-SWR vaha-vaiklint 110 mm × 300 mP159051-001	110 mm	300 m	Wax/Resin	Outside	25.4 mm	12,29 €+KMLaost otsas	View
TSC 8300-PWX vahalint 110 mm × 300 mP159050-001	110 mm	300 m	Wax	Outside	25.4 mm	10,19 €+KMLaost otsas	View
TSC 8300-PWX vahalint 110 mm × 450 mP159080-001	110 mm	450 m	Wax	Outside	25.4 mm	15,27 €+KMLaost otsas	View
TSC 8600-SRE vaiklint 110 mm × 450 mP159083-001	110 mm	450 m	Resin	Outside	25.4 mm	36,15 €+KMLaost otsas	View
TSC 8050-SWX vahalint 110 mm × 600 mP159130-001	110 mm	600 m	Wax	Outside	25.4 mm	9,38 €+KMLaost otsas	View
TSC 8550-SWR vaha-vaiklint 110 mm × 600 mP159133-001	110 mm	600 m	Wax/Resin	Outside	25.4 mm	24,58 €+KMLaost otsas	View
Zebra 2300 vahalint 110 mm × 450 m02300BK11045	110 mm	450 m	Wax	Outside	25.4 mm	12,19 €+KMLaos
Zebra 2300 vahalint 110 mm × 300 m02300BK11030	110 mm	300 m	Wax	Outside	25.4 mm	8,30 €+KMLaos
Zebra 3200 vaha-vaiklint 110 mm × 450 m03200BK11045	110 mm	450 m	Wax/Resin	Outside	25.4 mm	25,19 €+KMLaos
Zebra 2100 vahalint 106 mm × 450 m02100BK10645	106 mm	450 m	Wax	Outside	25.4 mm	13,66 €+KMLaos
Zebra 5095 vaiklint 110 mm × 450 m05095BK11045	110 mm	450 m	Resin	Outside	25.4 mm	51,67 €+KMLaos
Zebra 3200 vaha-vaiklint 110 mm × 300 m03200BK11030	110 mm	300 m	Wax/Resin	Outside	25.4 mm	16,98 €+KMLaos
Zebra 5095 vaiklint 110 mm × 300 m05095BK11030	110 mm	300 m	Resin	Outside	25.4 mm	34,59 €+KMLaos
Zebra 2100 vahalint 110 mm × 450 m02100BK11045	110 mm	450 m	Wax	Outside	25.4 mm	14,18 €+KMLaos
Zebra 4800 vaiklint 110 mm × 450 m04800BK11045	110 mm	450 m	Resin	Outside	25.4 mm	35,90 €+KMLaos
Zebra 3400 vaha-vaiklint 110 mm × 450 m03400BK11045	110 mm	450 m	Wax/Resin	Outside	25.4 mm	19,98 €+KMLaos
Zebra 2300 vahalint 110 mm × 300 m02300GT11030	110 mm	300 m	Wax	Outside	25.4 mm	8,72 €+KMLaos
Zebra 2300 vahalint 102 mm × 450 m02300BK10245	102 mm	450 m	Wax	Outside	25.4 mm	11,30 €+KMLaos
Zebra 2300 vahalint 60 mm × 450 m02300BK06045	60 mm	450 m	Wax	Outside	25.4 mm	6,65 €+KMLaos

In stock only

Product	Price
TSC Lint SaverRS-PEX-2000-0002	928,94 €+KMLaos
TSC RFID AssyRFID-PEX-2240R-0001	2.006,24 €+KMLaost otsas	View
TSC Printhead AssyPH-PEX-2240-0001	494,79 €+KMLaost otsas	View
Cleaning Kits36-0000010-00LF	24,38 €+KMLaos

Milline versioon?

Tootekood koosneb osadest PEX-2 + eraldusvõime + laius + 0 + pool: eraldusvõime 2 = 203 dpi, 3 = 300 dpi, 6 = 600 dpi; laius 4 = 4 tolli (104 mm), 6 = 6 tolli (168 mm); pool L = vasakpoolne, R = parempoolne.

Eraldusvõime	4 tolli (104 mm)	6 tolli (168 mm)
203 dpi	PEX-2240L / PEX-2240R	PEX-2260L / PEX-2260R
300 dpi	PEX-2340L / PEX-2340R	PEX-2360L / PEX-2360R
600 dpi	PEX-2640L / PEX-2640R	—

Vasak- ja parempoolsed versioonid on teineteise peegelpildid, nii et moodulit saab paigaldada liini mõlemale poolele. Tarvikutena on saadaval RFID-moodulid 203 dpi mudelitele, lindisäästjad ja varuprindipead.

PEX-2000 või PEX-1000?

Vali PEX-2000 Series, kui vajad 300 või 600 dpi eraldusvõimet või 6-tollist prindilaiust. Meie pakutavad TSC PEX-1000 Series versioonid on 4-tollised 203 dpi moodulid, samuti vasak- või parempoolsena.

Kõik allolevad PEX-2000 Series prindimoodulid on CE-sertifitseeritud ja tootjagarantiiga. Vali lint vastavalt etiketi materjalile — vaata meie linte ja etikette.

Otsid teisi prindimooduleid? Vaata kõiki prindimooduleid → Vajad hoopis eraldiseisvat printerit? Vaata tööstuslikke etiketiprintereid →
