TSC TDP-225W Wristband Printer (99-039A002-0302)

The TSC TDP-225W (99-039A002-0302) is a compact 2-inch direct-thermal wristband printer for patient identification in hospitals and admission control in leisure and hospitality. It prints wristbands and labels up to 52 mm wide at 203 dpi and up to 127 mm/s (5 ips), holds full-size 165 mm (6.5") wristband rolls from any supplier and connects via USB 2.0 and 10/100 Ethernet. At 203 dpi it prints up to 127 mm/s and labels up to 2,286 mm long. A backlit LCD, real-time clock and stand-alone operation without a PC are standard. Supplied with power supply, EU power cord and USB cable – ready to print.

Key Features

• Direct thermal at 203 dpi – up to 127 mm/s (5 ips), max. print width 52 mm, max. print length 2,286 mm
• Holds full-size wristband rolls up to 165 mm (6.5") OD on a 1" core – use wristbands from any supplier and save up to 50% on wristband costs

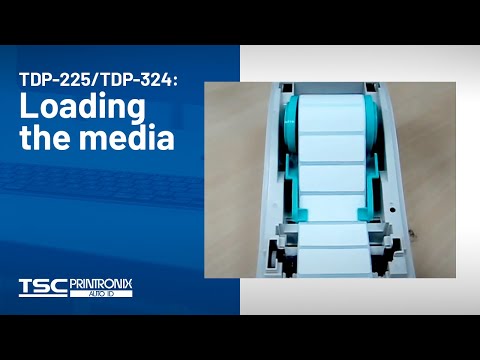

• Media 15–52 mm wide, 0.06–0.19 mm thick: wristbands, die-cut and continuous labels, black-mark, fanfold and notched media
• Backlit graphic LCD (128 × 64), feed button and three-colour status LED
• USB 2.0 and 10/100 Ethernet as standard for network printing at nurses' stations and admission desks
• Cerner certified – works with common hospital information systems
• TSPL-EZ printer language, 4 MB Flash, 8 MB SDRAM, microSD slot (up to 4 GB) and real-time clock
• Can be programmed to run stand-alone without a computer attached
• Compact double-walled clamshell (109 mm wide, 1.2 kg) with easy media loading and a wall-mount hole in the bottom cover
• Optional peel-off module and guillotine cutter (full and partial cut)

Ideal Applications

• Healthcare – patient ID wristbands, hospital admissions and nursery/infant bands
• Entertainment and hospitality – amusement and water parks, events and age verification
• Access control – restricted areas, crowd control and law enforcement
• Small labels – specimen, animal ID and asset labels up to 52 mm wide

All TDP-324W Series Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Need the other resolution? Both TDP-324W Series versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
