Zebra ZT231 Label Printer (ZT23142-T0EC00FZ)

Introducing the ZT231 Industrial Printer | Zebra Technologies

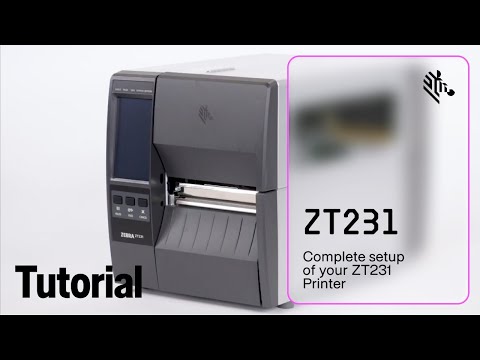

Complete Setup of your ZT231 Printer | Zebra

Zebra ZT231 Label Printer (ZT23142-T0EC00FZ)

Name: Zebra ZT231 Label Printer (ZT23142-T0EC00FZ)
Brand: ZEBRA
SKU: ettzt23142-8
Availability: InStock

848,58 € +VAT

Product variants

Resolution (dpi)

203300

Print Method

Direct thermalThermal transfer

Wireless

Bluetooth LE (setup only)Wi-Fi 5 + Bluetooth

RFID

NoYes (writer)

Series

Cutter Peeler + liner take-up Peeler / dispenserTear-off

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: In Stock
Vendor: ZEBRA
Type: Midrange Printers
Barcode: ZT23142-T0EC00FZ
Collections: GHS / CLP Chemical Label Printers , Label Printers , Midrange Label Printers , Zebra ZT231

📄 Download Product Brochure (PDF)

ZEBRA

Zebra ZT231 Label Printer (ZT23142-T0EC00FZ)

848,58 € +VAT

Description

Description

The Zebra ZT231 is a compact 4-inch industrial label printer for manufacturing, warehousing, transport and logistics, healthcare and retail – the successor to the popular ZT230. Its metal frame and enclosure, bi-fold media door and large 4.3-inch colour touchscreen make it ideal for light-industrial use. As a thermal transfer model it uses ribbons up to 450 m long for durable, smudge-proof labels on paper and synthetic materials – and it also prints on direct thermal labels without a ribbon. It prints sharp 203 dpi labels up to 104 mm wide at up to 305 mm/s, takes label rolls up to 203 mm in diameter on 76 mm cores and connects via USB, RS-232 serial, Ethernet, USB Host and Bluetooth LE as standard. This version, ZT23142-T0EC00FZ, comes with the standard tear-off bar and a factory-installed Wi-Fi 5 (802.11ac) + Bluetooth 4.2 card for wireless network printing.

📦 What's in the box – ZT23142-T0EC00FZ

✅ Zebra ZT231 printer – metal enclosure, built-in power supply 100–240 V, tear-off, Wi-Fi + Bluetooth
✅ Power cords – EU (Schuko) and UK (type G) plugs – use the one for your country
✅ Empty ribbon core – on the ribbon take-up spindle, ready for your first ribbon
✅ Setup guide – drivers, ZebraDesigner Essentials and manuals are a free download from Zebra
❌ USB cable – NOT included
❌ Labels – NOT included
❌ Thermal transfer ribbon – NOT included

✅ Ready for network printing out of the box – the power cords are included and the printer connects to your network via the built-in Wi-Fi or Ethernet. A USB cable is not included – if you prefer USB, order e.g. the M3 UNIV-CABL-UBA or TSC SP-COM-0002.

💡 Useful extras: matching Zebra labels (Zebra Z-Perform 1000T 102 × 152 mm or Zebra Z-Ultimate 3000T 102 × 152 mm); genuine Zebra ribbons (Zebra 2300 110 mm × 450 m or Zebra 3200 110 mm × 450 m); the Zebra P1123335-042 peeler upgrade kit; the Zebra P1123335-041 cutter upgrade kit; the Zebra P1123335-026C UHF RFID kit; the Zebra 79830M ribbon supply spindle for coated-inside ribbons; the Zebra ZKDU-001-00 keyboard display unit for stand-alone printing.

Interactive 3D Model

Drag to rotate, scroll or pinch to zoom. Official Zebra 3D viewer – open in full screen ↗

Key Features

Built for light-industrial use – metal frame and metal enclosure, a bi-fold media door that needs little headroom and a side-loading media path with colour-coded touch points.
4.3-inch colour touchscreen – see the printer status at a glance, use set-up wizards and on-screen how-to videos, and operate it even with gloves.
Thermal transfer with 450 m ribbons – up to 305 mm/s at 203 dpi; long ribbons (25.4 mm core, ink side out) mean fewer changes, and direct thermal labels work too.
Large media capacity – label rolls up to 203 mm in diameter on 76 mm cores (152 mm on 25 mm cores) or fanfold media through the rear slot, 19.4–114 mm wide, with movable gap and black-mark sensors.
Wi-Fi 5 + Bluetooth 4.2 built in – a factory-installed dual-radio card for wireless network printing, on top of USB 2.0, RS-232 serial, 10/100 Ethernet, USB Host and Bluetooth LE.
Fits into your existing fleet – ZPL and ZPL II (EPL on 203 dpi models), Print DNA printer emulations for other brands and compatibility with existing Zebra label formats.
Secure and remotely manageable – Print DNA with Printer Profile Manager Enterprise and PrintSecure, onboard analytics and printhead element-out detection; tool-less printhead and platen replacement.
Grows with your business – field-installable peeler, cutter, UHF RFID kit, Wi-Fi card, second Ethernet port and applicator interface; ZKDU keyboard display for stand-alone printing.

Ideal Applications

Manufacturing – work-in-process, product ID and serial number, packaging and receiving labels
Transport and logistics – order picking and packing, shipping and receiving, cross-docking and compliance labels
Healthcare – laboratory, blood bank, unit-dose, pharmacy and asset tracking labels
Retail – click-and-collect, return tags, price and shipping labels

All ZT231 Versions

The highlighted row is the version you are currently viewing.

Part Number	Print Method	Resolution	Media Handling	Options
ZT23142-T0E000FZ	Thermal transfer	203 dpi	Tear-off	–	View product
ZT23142-T0E00CFZ	Thermal transfer	203 dpi	Tear-off	UHF RFID	View product
ZT23142-T0EC00FZ (this version)	Thermal transfer	203 dpi	Tear-off	Wi-Fi + Bluetooth	Viewing
ZT23142-T1E000FZ	Thermal transfer	203 dpi	Peeler	–	View product
ZT23142-T2E000FZ	Thermal transfer	203 dpi	Cutter	–	View product
ZT23142-T3E000FZ	Thermal transfer	203 dpi	Peeler + liner take-up	–	View product
ZT23143-T0E000FZ	Thermal transfer	300 dpi	Tear-off	–	View product
ZT23143-T0E00CFZ	Thermal transfer	300 dpi	Tear-off	UHF RFID	View product
ZT23143-T0EC00FZ	Thermal transfer	300 dpi	Tear-off	Wi-Fi + Bluetooth	View product
ZT23143-T1E000FZ	Thermal transfer	300 dpi	Peeler	–	View product
ZT23143-T2E000FZ	Thermal transfer	300 dpi	Cutter	–	View product
ZT23143-T3E000FZ	Thermal transfer	300 dpi	Peeler + liner take-up	–	View product
ZT23142-D0E000FZ	Direct thermal	203 dpi	Tear-off	–	View product
ZT23142-D0EC00FZ	Direct thermal	203 dpi	Tear-off	Wi-Fi + Bluetooth	View product
ZT23142-D1E000FZ	Direct thermal	203 dpi	Peeler	–	View product
ZT23142-D2E000FZ	Direct thermal	203 dpi	Cutter	–	View product
ZT23142-D3E000FZ	Direct thermal	203 dpi	Peeler + liner take-up	–	View product
ZT23143-D0E000FZ	Direct thermal	300 dpi	Tear-off	–	View product
ZT23143-D3E000FZ	Direct thermal	300 dpi	Peeler + liner take-up	–	View product

Technical Specifications

Part Number	ZT23142-T0EC00FZ
Model	Zebra ZT231
Printer Type	4-inch midrange industrial label printer (ZT200 Series)
Construction	Metal frame and metal enclosure; bi-fold media door with large clear window
Print Method	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 305 mm/s (12 ips)
Max. Print Width	104 mm (4.09 in)
Max. Print Length	3988 mm (157 in)
Min. Label Length	Tear-off 18 mm, peel 13 mm, cutter 25 mm
Media Width	19.4 mm to 114 mm (0.75–4.5 in)
Roll Diameter	Max. 203 mm (8 in) OD on a 76 mm (3 in) core; max. 152 mm (6 in) OD on a 25 mm (1 in) core
Core Size	76.2 mm (3 in) and 25.4 mm (1 in)
Media Thickness	0.076 mm to 0.25 mm
Media Type	Continuous, die-cut, notched and black-mark labels and tags; roll-fed or fanfold (rear feed)
Sensors	Movable transmissive (gap) and reflective (black-mark) sensors
Ribbon	Up to 450 m, 51–110 mm wide, 25.4 mm (1 in) core, ink side out (coated-inside ribbons only with the optional 79830M ribbon supply spindle)
Media Handling	Tear-off (standard); field upgrades: peeler or cutter
Interfaces	USB 2.0, RS-232 serial (DB-9), Ethernet 10/100 (RJ-45), USB Host; optional second Ethernet card, applicator interface
Wireless	Bluetooth Low Energy + factory-installed Wi-Fi 5 (802.11ac) + Bluetooth 4.2 card
NFC	Print Touch (NFC) tag – tap to pair
Memory	256 MB SDRAM, 256 MB flash (64 MB user flash, 32 MB user SDRAM); real-time clock
Printer Languages	ZPL, ZPL II, EPL / EPL2, ZBI 2.0 (optional); Print DNA printer emulations
Fonts / Character Sets	7 bitmap fonts, 1 scalable font (CG Triumvirate Bold Condensed), Unicode-compliant scalable fonts for EMEA character sets
Barcodes	1D: Code 11, 39, 93, 128, ISBT-128, UPC-A/E, EAN-8/13 (+2/+5), Plessey, Postnet, 2-of-5 variants, Logmars, MSI, Codabar, Planet; 2D: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, GS1 DataBar
Display	4.3-inch colour resistive touchscreen, three-colour status LEDs
Options	Field-installable peeler, cutter, UHF RFID kit, Wi-Fi 5 + Bluetooth card, second Ethernet card, applicator interface; ZKDU keyboard display unit
Drivers & Software	Print DNA (Printer Profile Manager Enterprise, PrintSecure), ZebraDesigner Essentials, Zebra Setup Utilities, Windows drivers
Power Supply	Internal universal auto-ranging power supply 100–240 V AC, 50–60 Hz, PFC; ENERGY STAR
Dimensions (W × D × H)	241 × 432 × 279 mm
Weight	9.1 kg
Operating Temperature	Thermal transfer 5 °C to 40 °C; direct thermal 0 °C to 40 °C
Storage Temperature	−40 °C to 60 °C
Humidity	20–85% non-condensing (storage 5–85%)
Certifications	IEC 62368-1, EN 55032 Class B, EN 55035, EN 61000-3-2/-3-3, EN 300 328, EN 301 893, EN 62311, CE, UKCA, ENERGY STAR
Warranty	24 months
In the Box	Zebra ZT231 printer (thermal transfer, 203 dpi, tear-off, factory-installed Wi-Fi 5 (802.11ac) + Bluetooth 4.2 card, built-in power supply), power cords EU + UK, empty ribbon core (on the take-up spindle), quick start guide – USB cable, labels and ribbon NOT included

Which ZT231 should you choose? Direct thermal models need no ribbon and suit shipping and warehouse labels; thermal transfer models with 450 m ribbons produce durable labels on paper and synthetics. 203 dpi is ideal for barcodes and shipping labels at up to 305 mm/s, 300 dpi for small text and fine 2D codes. Then pick tear-off, peeler, peeler with liner take-up or cutter for your workflow – and Wi-Fi or UHF RFID if you need it. Compare other models in our Midrange Label Printers collection or contact our team for volume pricing.
