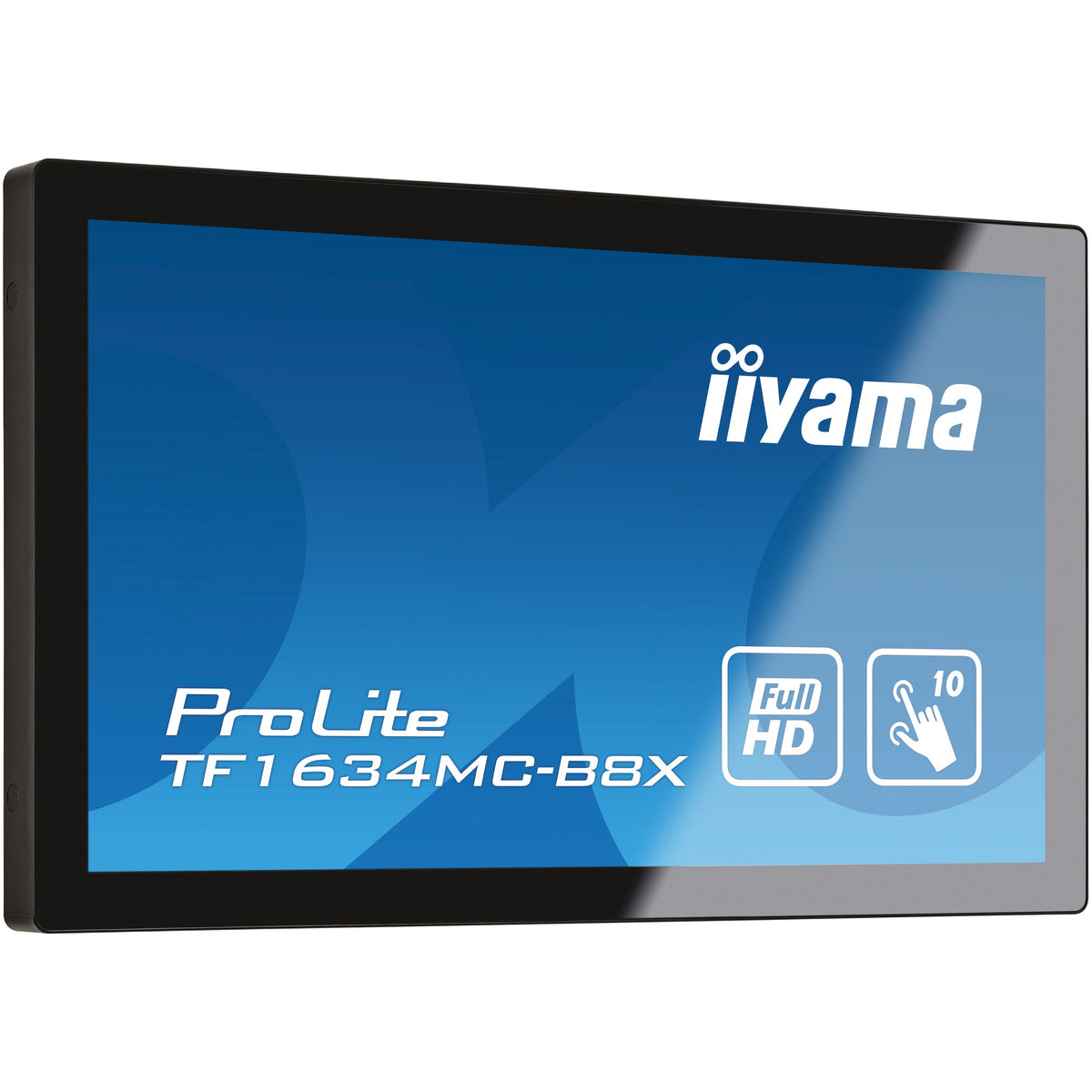

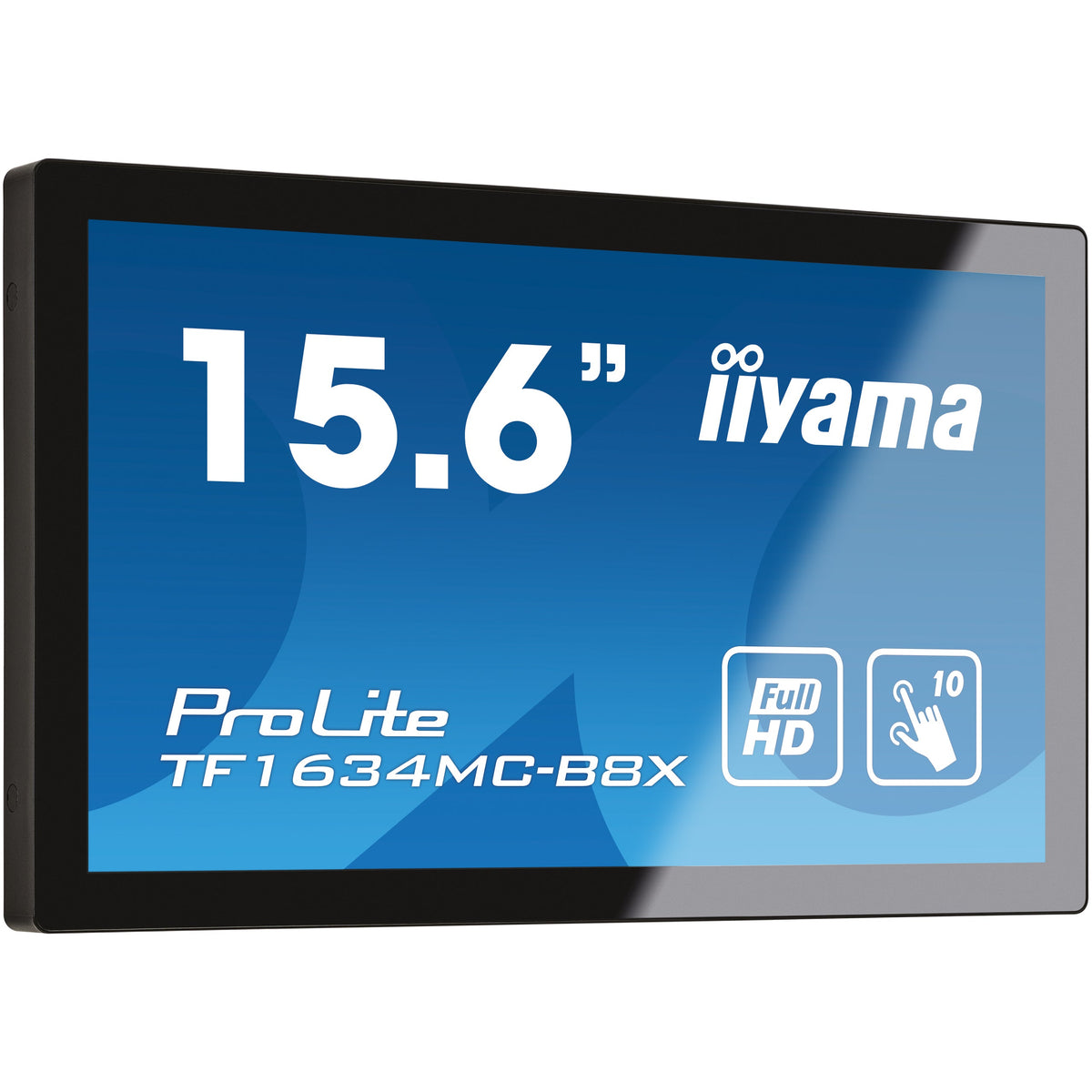

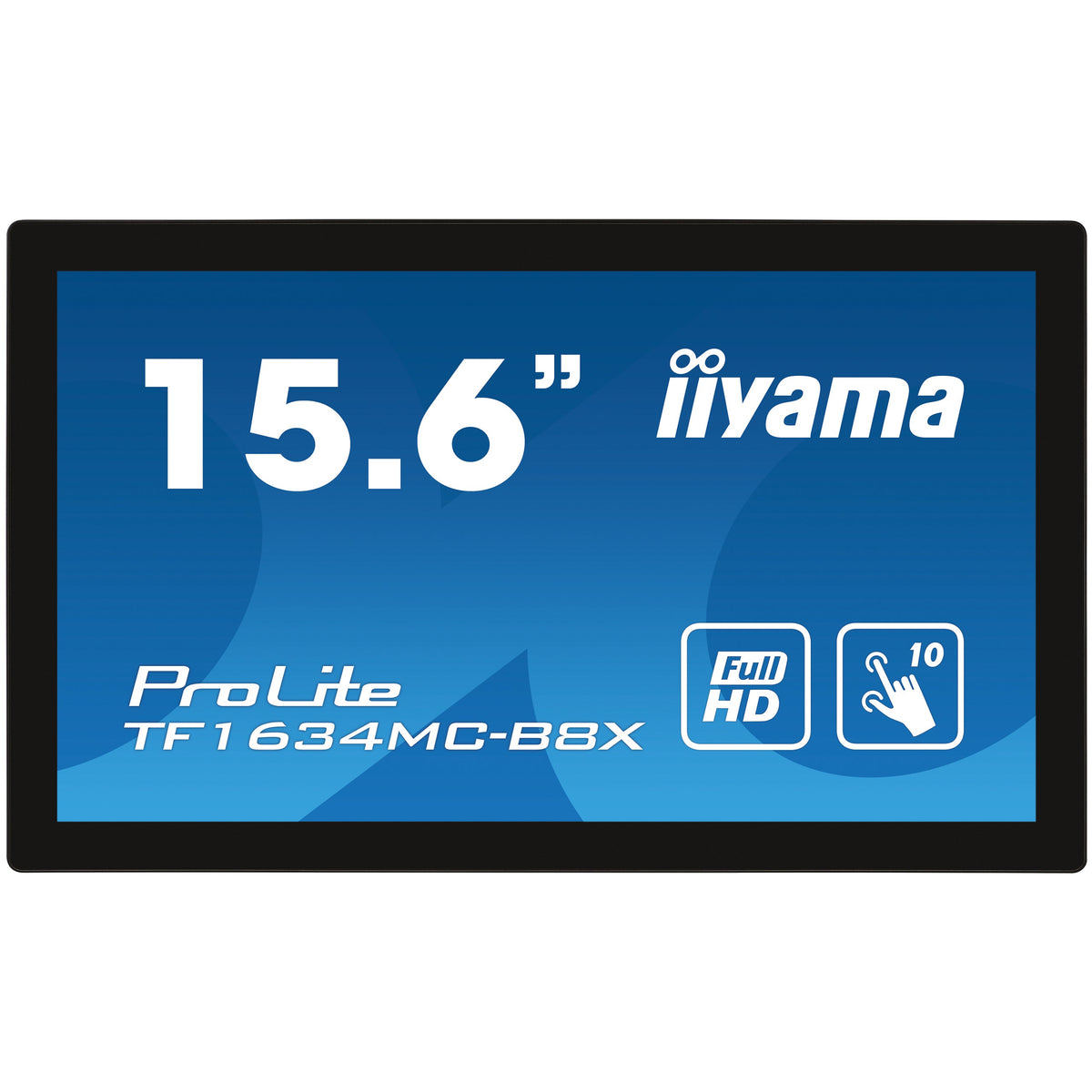

iiyama ProLite TF1634MC-B8X 15.6" Open-Frame Touch Monitor, PCAP 10-touch, FHD (TF1634MC-B8X)

The iiyama ProLite TF1634MC-B8X is a 15.6" open-frame touch monitor with projected-capacitive (PCAP) 10-point touch, built for integration into kiosks, ticket and vending machines, pick-up lockers and custom enclosures. Its Full HD IPS panel sits behind toughened glass with an IP65 sealed front, and the touch even works through an additional protective glass layer up to 6 mm thick. VGA, HDMI and DisplayPort inputs plus USB touch make it plug-and-play with Windows and Linux systems. This version, TF1634MC-B8X, is the 15.6" Full HD model with an IP65 front. It ships with an external 12 V power adapter and USB/HDMI/DisplayPort cables.

Key Features

• Projected-capacitive touch – 10-point HID multi-touch, driver-free under Windows and Linux, works through glass up to 6 mm
• IP65 sealed front – dust- and splash-proof once built into a kiosk or machine front
• Full HD IPS panel – 450 cd/m² (405 cd/m² with touch), contrast 700:1, viewing angle 178°/178°
• Flexible integration – landscape, portrait or face-up installation, VESA 100×100 mm
• Universal connectivity – VGA ×1, HDMI ×1, DisplayPort ×1, touch via USB
• Toughened glass – Edge-to-edge 2.4 mm glass, 7H hardness, anti-fingerprint coating, touch through glass up to 6 mm

Ideal Applications

• Self-service kiosks – ticketing, check-in and ordering terminals
• Vending & pick-up points – parcel lockers, vending and reverse-vending machines
• Industrial HMI – machine panels and control stations
• Wayfinding & information points – shopping centres, hospitals, transport hubs
• Gaming & amusement – cabinet integration with sealed touch front

Technical Specifications

Versions in this open-frame line differ in screen size and resolution, touch points, glass finish (standard or anti-glare) and whether an external OSD control pad is supplied. Browse all models in our Monitors collection, and contact us for volume pricing, project quotes and availability.
