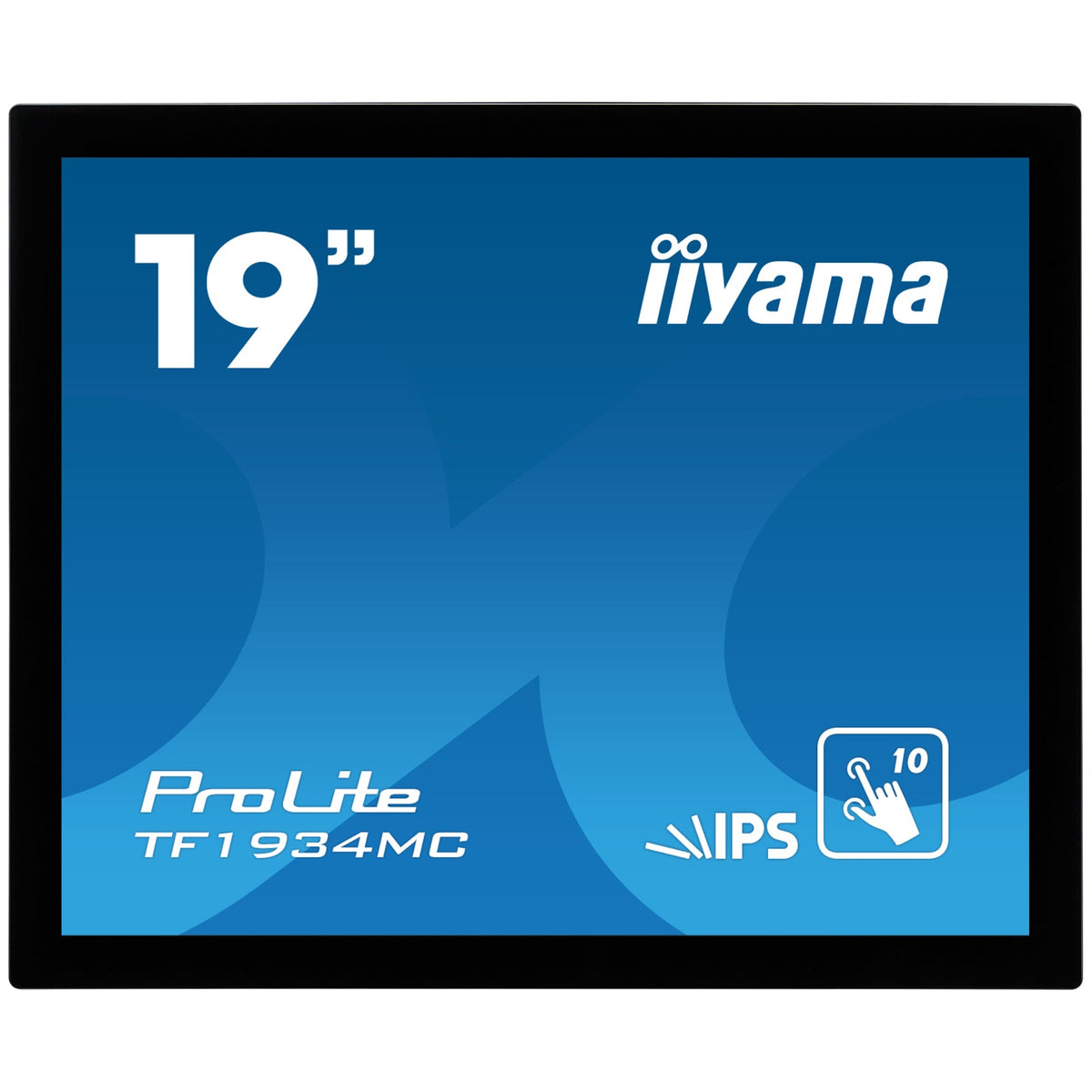

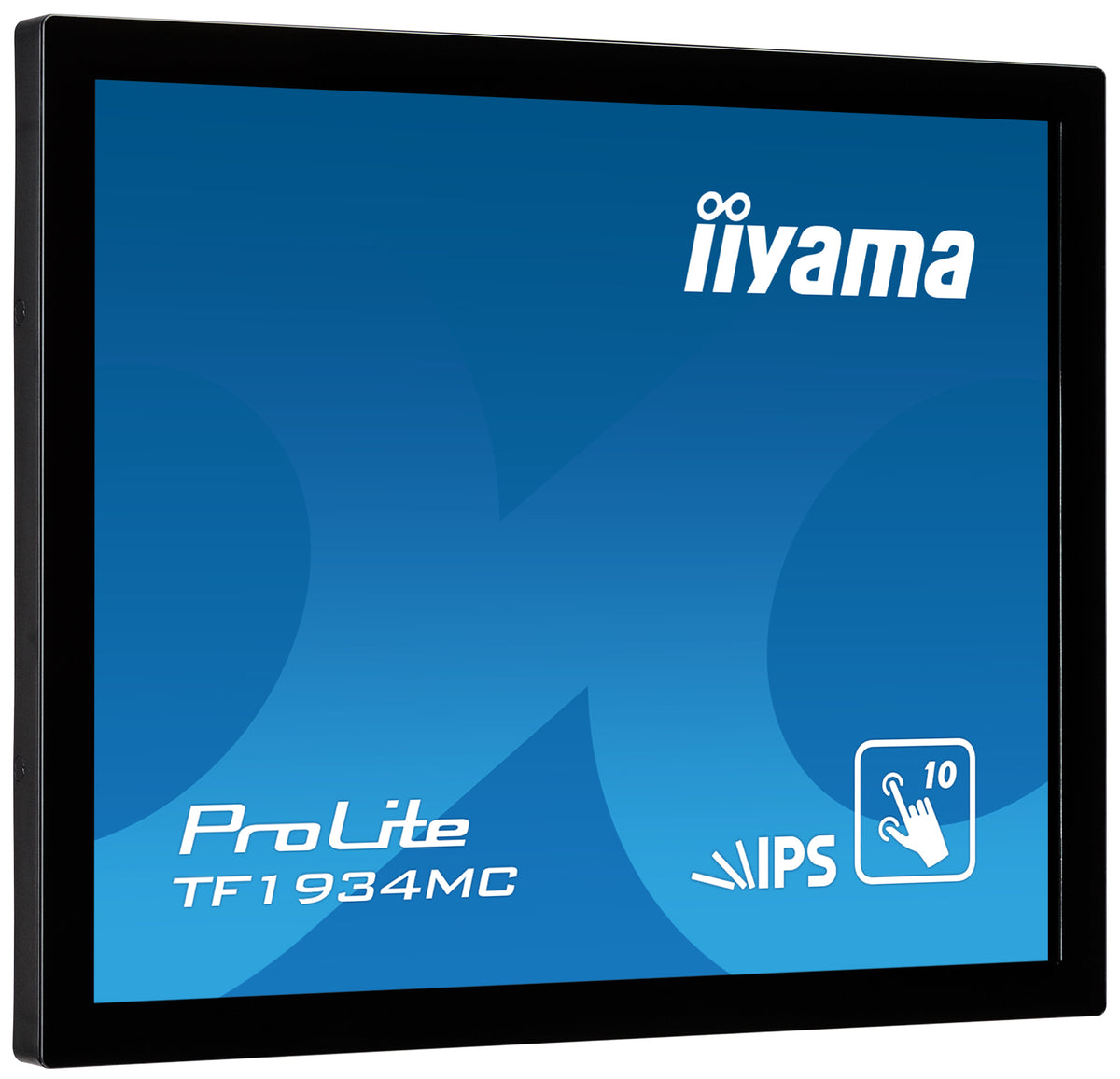

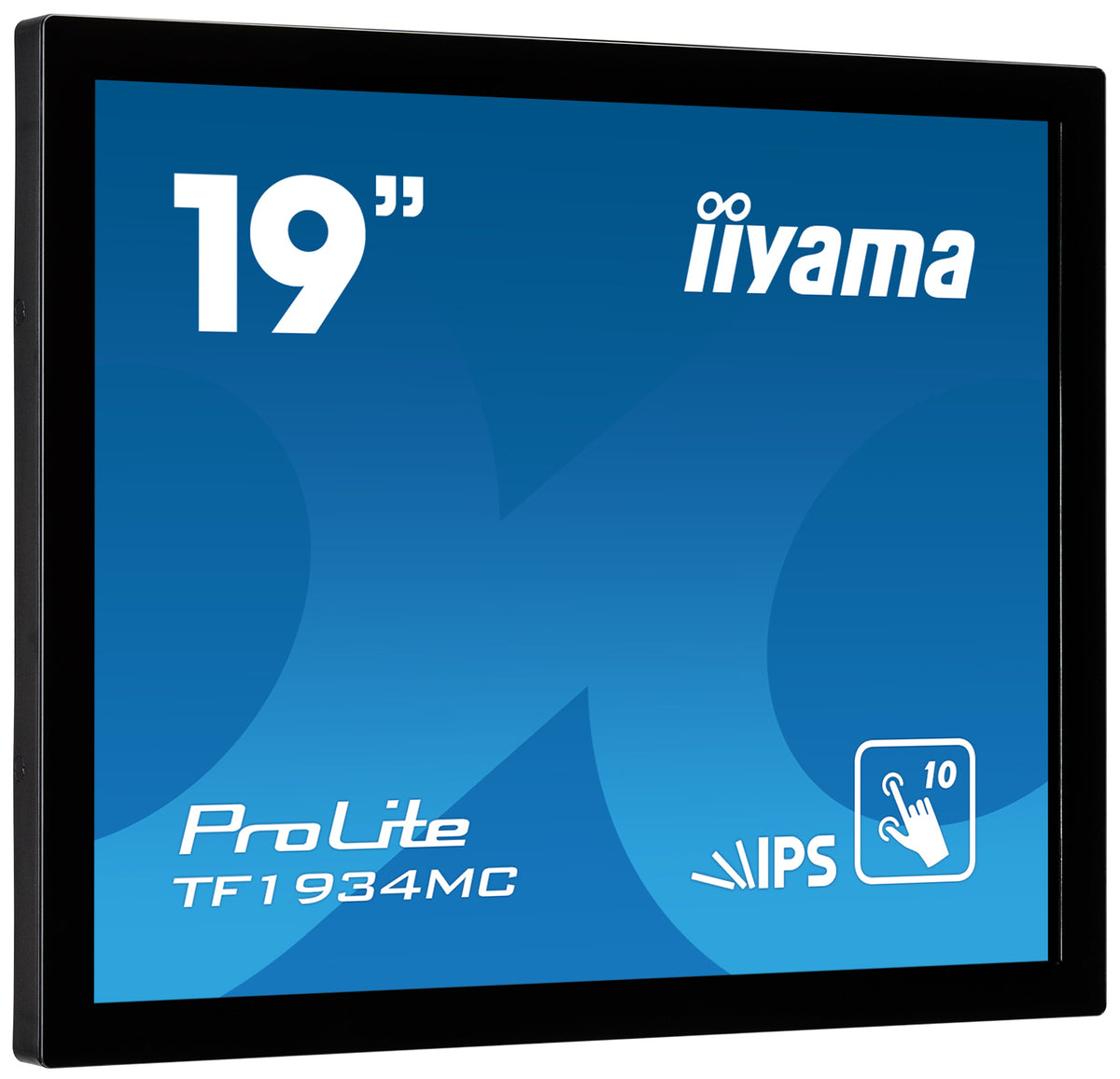

iiyama ProLite TF1934MC-B7X 19" Open-Frame Touch Monitor, PCAP 10-touch, SXGA (TF1934MC-B7X)

The iiyama ProLite TF1934MC-B7X is a 19" open-frame touch monitor with projected-capacitive (PCAP) 10-point touch, built for integration into kiosks, ticket and vending machines, pick-up lockers and custom enclosures. Its SXGA IPS panel sits behind toughened glass with an IP65 sealed front, and the touch even works through an additional protective glass layer up to 6 mm thick. VGA, HDMI and DisplayPort inputs plus USB touch make it plug-and-play with Windows and Linux systems. This version, TF1934MC-B7X, is the 19" SXGA model with an IP65 front. It ships with an external 12 V power adapter, USB/HDMI/DisplayPort cables and a cable cover.

Key Features

• Projected-capacitive touch – 10-point HID multi-touch, driver-free under Windows and Linux, works through glass up to 6 mm
• IP65 sealed front – dust- and splash-proof once built into a kiosk or machine front
• SXGA IPS panel – 350 cd/m² (315 cd/m² with touch), contrast 1000:1, viewing angle 178°/178°
• Flexible integration – landscape, portrait or face-up installation, VESA 100×100 mm
• Universal connectivity – VGA ×1, HDMI ×1, DisplayPort ×1, touch via USB
• Toughened glass – Protective glass with anti-fingerprint nano coating, touch through glass up to 6 mm

Ideal Applications

• Self-service kiosks – ticketing, check-in and ordering terminals
• Vending & pick-up points – parcel lockers, vending and reverse-vending machines
• Industrial HMI – machine panels and control stations
• Wayfinding & information points – shopping centres, hospitals, transport hubs
• Gaming & amusement – cabinet integration with sealed touch front

Technical Specifications

Versions in this open-frame line differ in screen size and resolution, touch points, glass finish (standard or anti-glare) and whether an external OSD control pad is supplied. Browse all models in our Monitors collection, and contact us for volume pricing, project quotes and availability.
