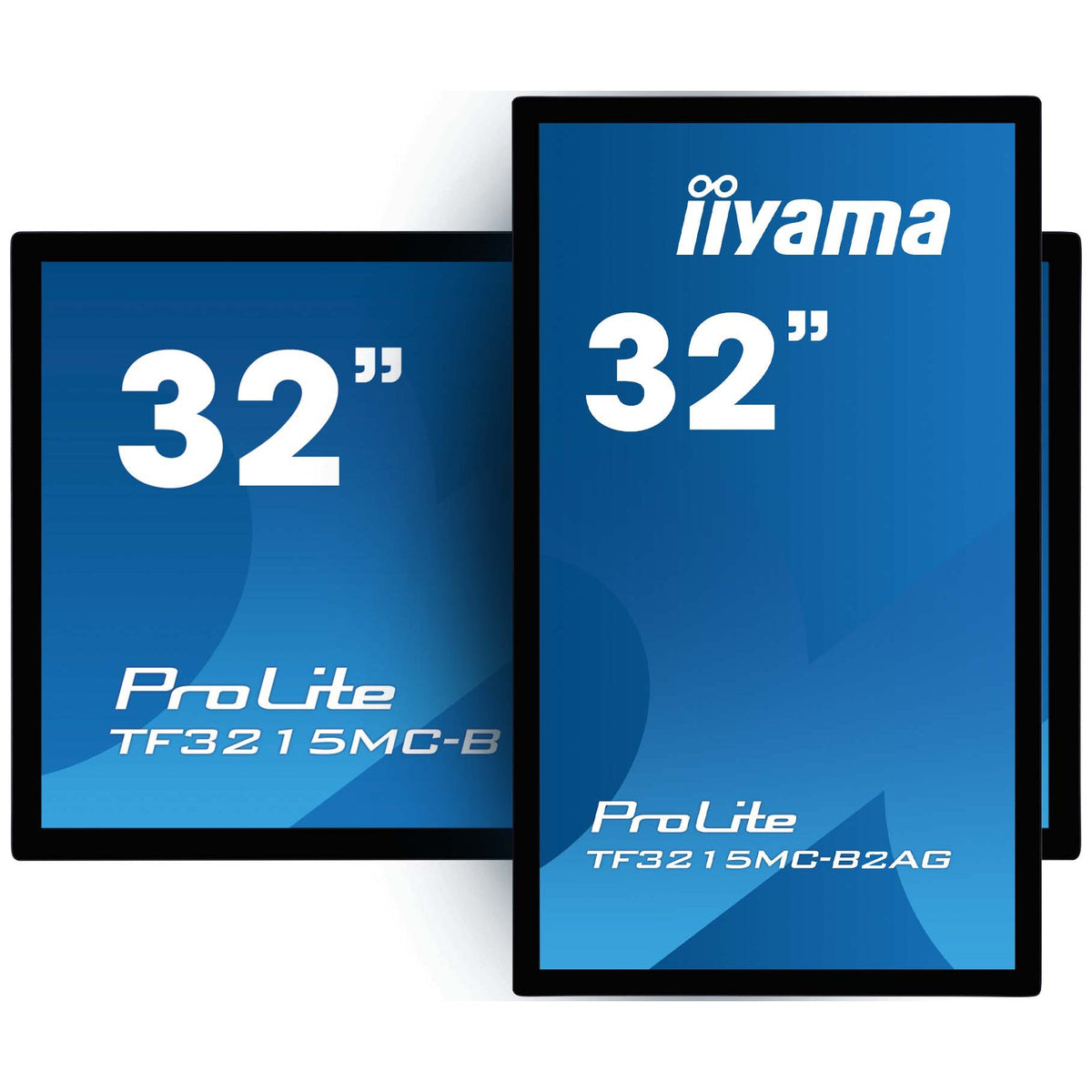

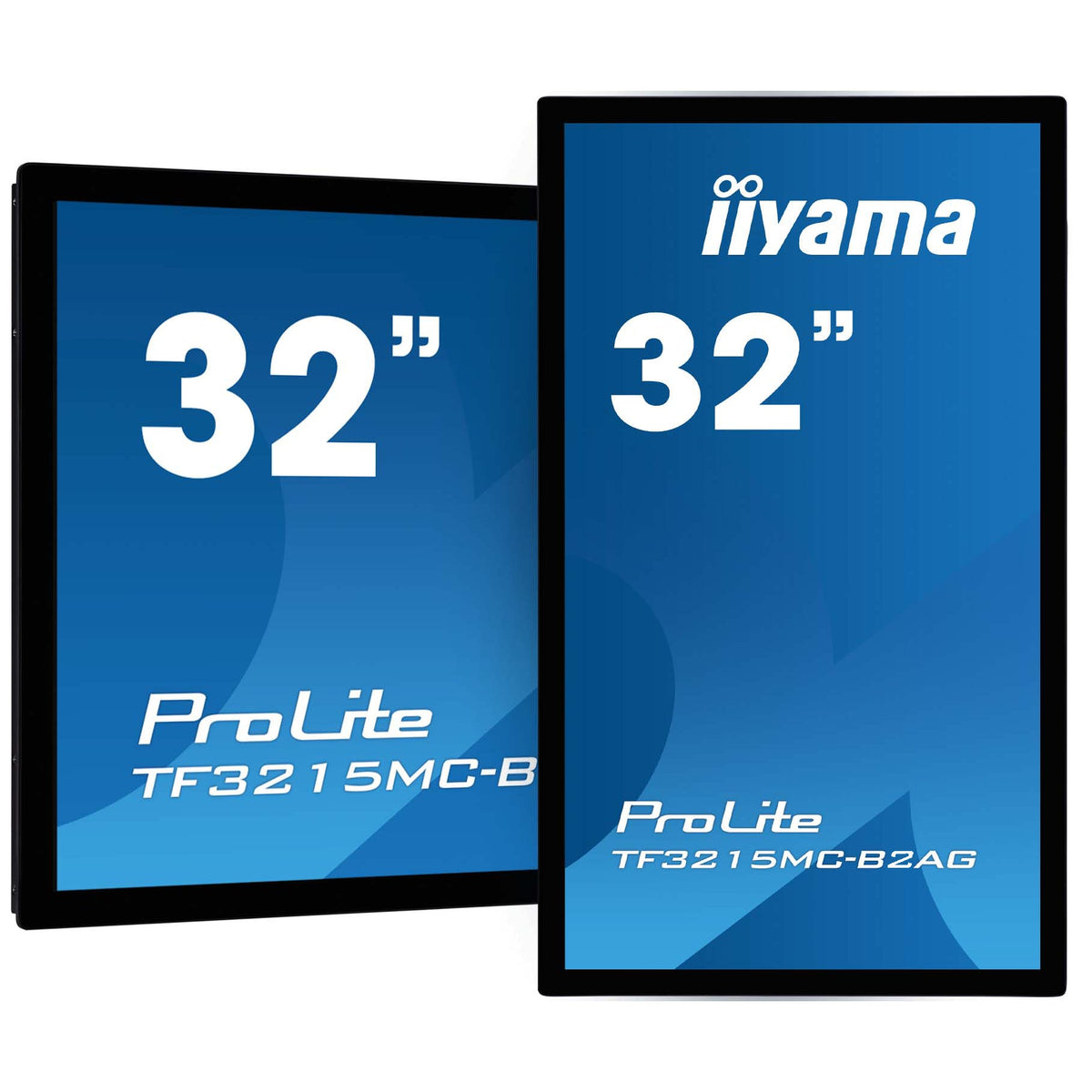

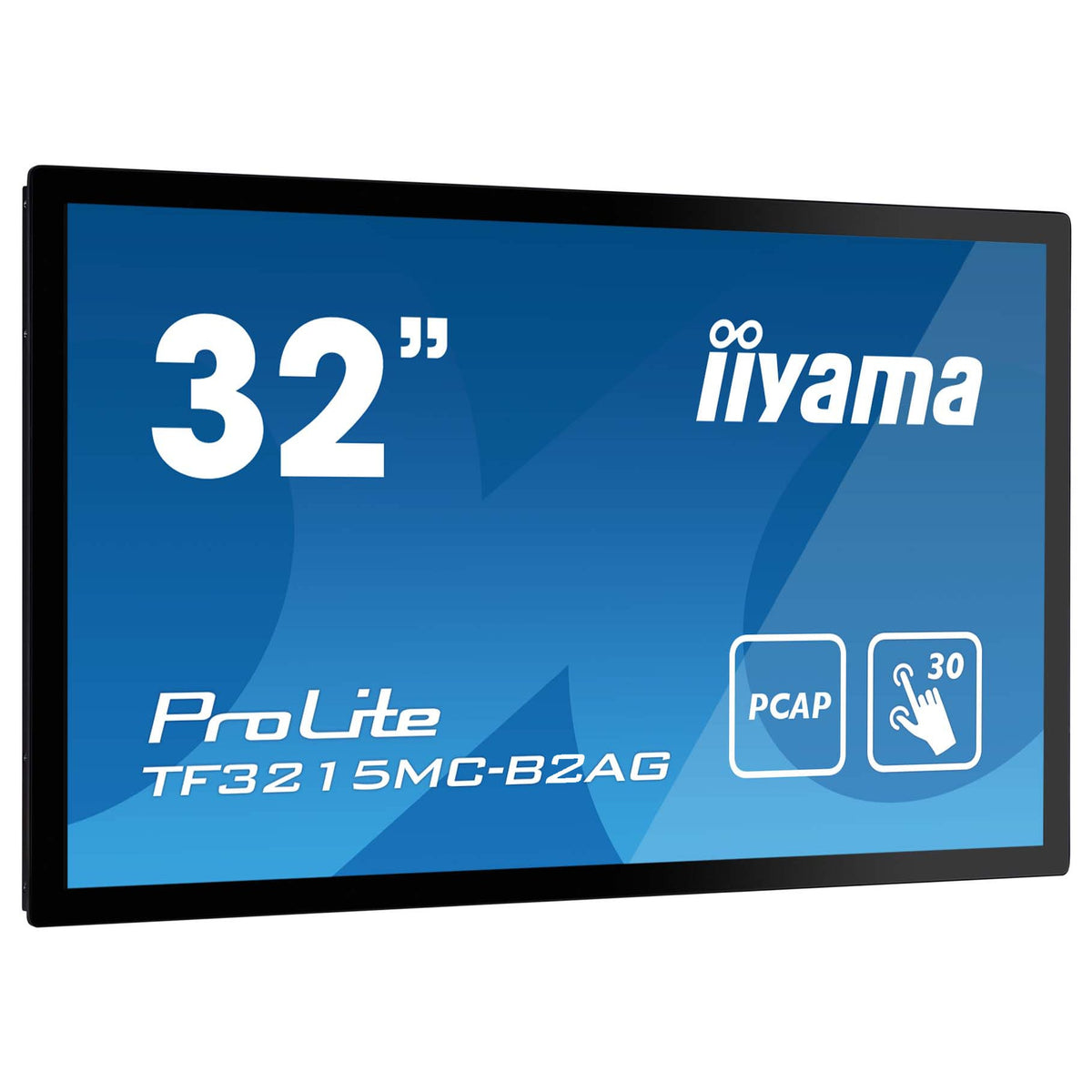

iiyama ProLite TF3215MC-B2AG 32" Open-Frame Touch Monitor, PCAP 30-touch, FHD, Anti-Glare (TF3215MC-B2AG)
Regular price
927,05 € +VAT
The iiyama ProLite TF3215MC-B2AG is a 32" open-frame touch monitor with projected-capacitive (PCAP) 30-point touch, built for integration into kiosks, ticket and vending machines, pick-up lockers and custom enclosures. Its Full HD VA panel sits behind toughened glass with an IP65 sealed front, and the touch even works through an additional protective glass layer up to 6 mm thick. VGA, HDMI and DisplayPort inputs plus USB touch make it plug-and-play with Windows and Linux systems. This version, TF3215MC-B2AG, is the 32" Full HD model with anti-glare glass, 30-point touch and 24/7 rating. It ships with a power cable, USB/HDMI cables and a cable cover.
📦 What's in the box – TF3215MC-B2AG
- ProLite TF3215MC-B2AG 32" display – Full HD VA panel, PCAP 30-point touch
- Power cable – the power supply is built in – no external brick
- Cables – USB and HDMI
- Cable cover – for tidy cable routing
- Documentation – quick start guide and safety guide
💡 To get started, you might also consider a kiosk housing or enclosure for building in this open-frame monitor, using its VESA 200×200 or side mounting points.
Key Features
- Projected-capacitive touch – 30-point HID multi-touch, driver-free under Windows and Linux, works through glass up to 6 mm
- IP65 sealed front – dust- and splash-proof once built into a kiosk or machine front
- Full HD VA panel – 500 cd/m² (425 cd/m² with touch), contrast 3000:1, viewing angle 178°/178°
- Flexible integration – landscape, portrait or face-up installation, VESA 200×200 mm
- Universal connectivity – VGA ×1, HDMI ×1, DisplayPort ×1, touch via USB
- Toughened glass – Anti-glare (AG) glass, 6H hardness, IK07 impact rating, foam seal, touch through glass up to 6 mm
- 24/7 rated – designed for non-stop operation in public installations
Ideal Applications
- Self-service kiosks – ticketing, check-in and ordering terminals
- Vending & pick-up points – parcel lockers, vending and reverse-vending machines
- Industrial HMI – machine panels and control stations
- Wayfinding & information points – shopping centres, hospitals, transport hubs
- Gaming & amusement – cabinet integration with sealed touch front
Technical Specifications
| Part Number | TF3215MC-B2AG |
|---|---|
| Model | iiyama ProLite TF3215MC-B2AG |
| Screen Size | 31.5" (80 cm) |
| Panel Type | VA |
| Resolution | 1920×1080 (FHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/m² (425 cd/m² with touch) |
| Contrast (static) | 3000:1 |
| Response Time | 8 ms |
| Viewing Angle (H/V) | 178°/178° |
| Touch Technology / Touch Points | PCAP, 30 touch points |
| Glass / Surface | Anti-glare (AG) glass, 6H hardness, IK07 impact rating, foam seal, touch through glass up to 6 mm |
| Inputs (video) | VGA ×1, HDMI ×1, DisplayPort ×1 |
| USB / other ports | USB (touch interface) |
| 24/7 operation | Yes (24/7) |
| Orientation | Landscape, portrait |
| Mounting (VESA) | 200×200 mm |
| Power | Internal power supply (100–240 V AC); 32 W typical |
| Dimensions (W×H×D) | 743 × 437 × 61 mm |
| Weight | 10 kg |
| Colour | Black |
| Sealing (IP) | IP65 (front) |
| Operating Temperature | 0–40 °C |
| Certifications | CE, TÜV |
| Warranty | 36 months |
| In the Box | Power cable; USB/HDMI cables; Cable cover |
Versions in this open-frame line differ in screen size and resolution, touch points, glass finish (standard or anti-glare) and whether an external OSD control pad is supplied. Browse all models in our Monitors collection, and contact us for volume pricing, project quotes and availability.
Available Versions
| Part Number | Glass | Price | ||
|---|---|---|---|---|
 |
TF3215MC-B2 | Clear glass | 875,63 €+VATIn Stock | |
 |
TF3215MC-B2AGViewing | Anti-glare | 927,05 €+VATIn Stock |
