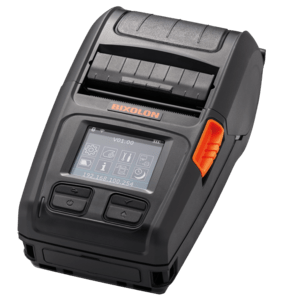

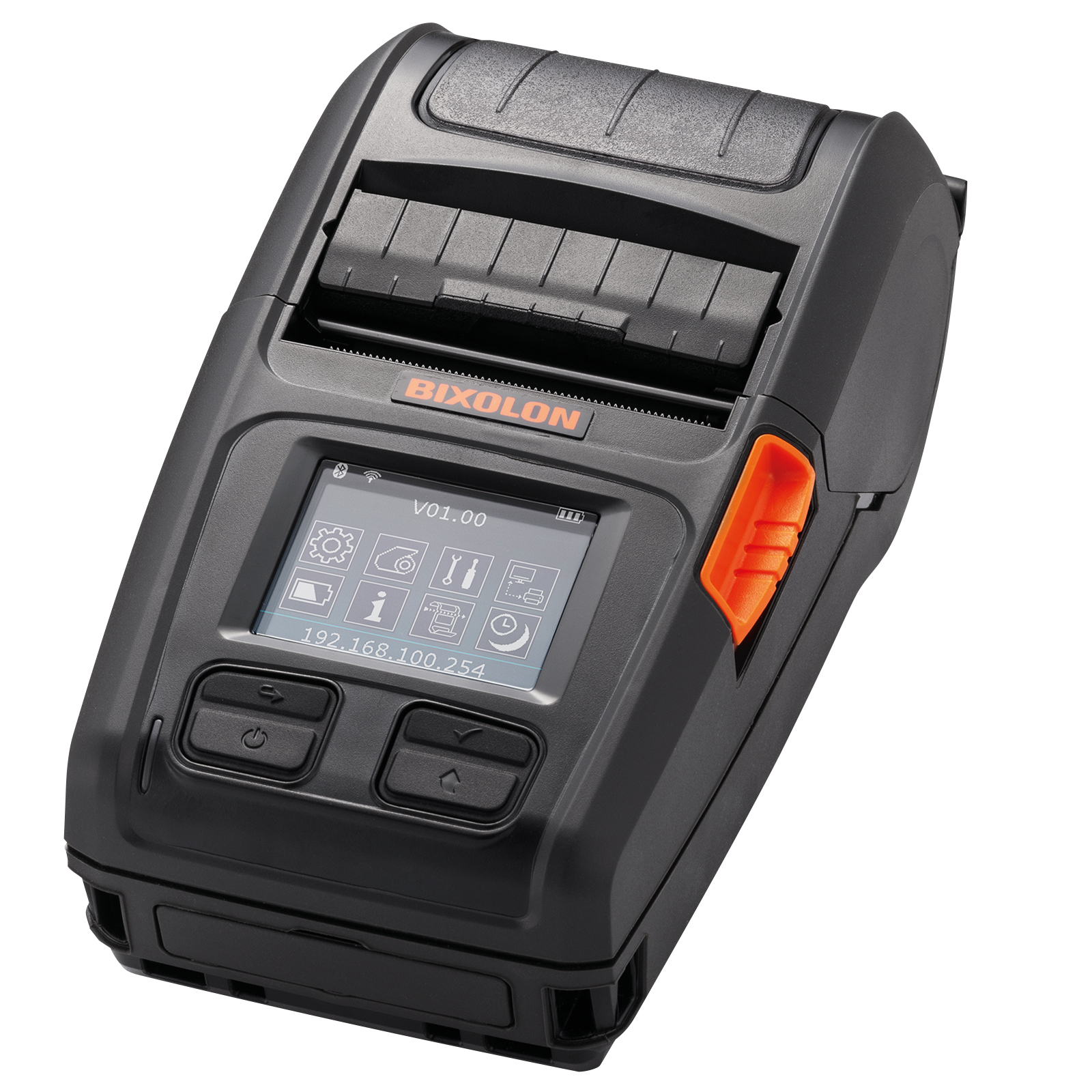

BIXOLON XM7-20 Mobile Printer (XM7-20IWK/BEG)

The BIXOLON XM7-20 is a rugged 2-inch mobile label printer for logistics, warehousing, field service, retail and healthcare. It prints 203 dpi direct thermal labels, tags and receipts on media 25–58 mm wide (print width up to 48 mm) at up to 152 mm/s, and combines a large colour display, a built-in peeler, IP54 sealing and a 2.1 m drop rating in a compact housing. This version, XM7-20IWK/BEG, connects via Bluetooth 5.0 (Apple MFi, NFC pairing) and dual-band Wi-Fi 802.11a/b/g/n (2.4 + 5 GHz) working simultaneously, plus USB Type-C and RS-232. In the box: battery, AC/DC adapter with power cord, belt strap and media disks – ready to print.

Key Features

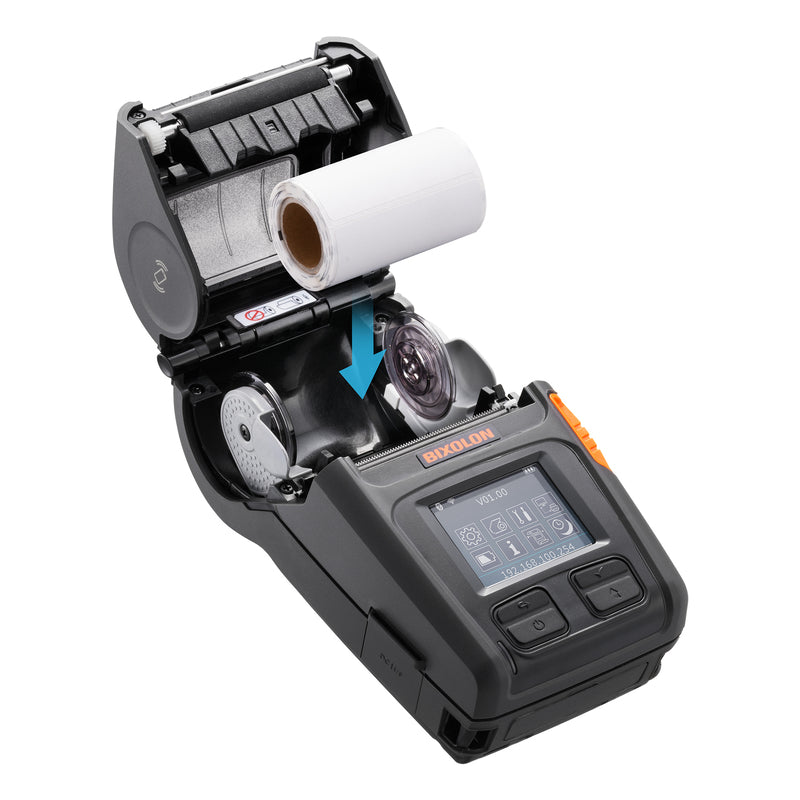

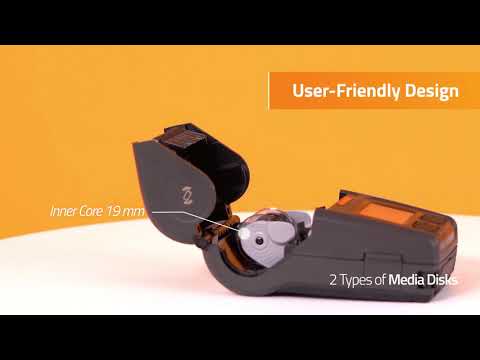

• Labels, tags and receipts – 48 mm print width on 25–58 mm media, rolls up to Ø 57 mm on 19 mm cores (12 mm cores with the supplied media disks); gap and black-mark sensing with Smart Media Detection™.
• Fast, sharp output – up to 152 mm/s at 203 dpi for crisp, scannable barcodes, on liner and linerless media.
• Works with your existing labels – SLCS, BPL-Z™ (ZPL II compatible), BPL-C™ (CPCL compatible) and BXL/POS are switched automatically without changing modes; Anywhere Anyfont™ Unicode support.
• Smart power – the 7.3 V 2850 mAh Li-ion battery can be swapped for the optional 3400 mAh Smart Battery; charge inside the printer with the supplied AC/DC adapter or via USB Type-C Power Delivery, plus optional battery chargers and a vehicle adapter.
• Connected your way – Bluetooth (Apple MFi, Easy Bluetooth Pairing™ via NFC) and dual-band Wi-Fi 802.11a/b/g/n, simultaneously on dual versions; SoftAP for simple Wi-Fi setup; USB Type-C and RS-232 on board.
• Rugged and easy to use – IP54 dust and splash protection, 2.1 m drop rating, −15 °C to +50 °C; 240 × 320 colour IPS display for setup and battery status, built-in peeler and easy paper loading.
• Easy to deploy and manage – BIXOLON Profile Manager (XPM™, XCM™) and SOTI Connect, direct printing from SAP® Smart Forms, SDKs for Android, iOS, Windows, Linux, Web, Xamarin and Cordova, plus the Label Artist™ and mPrint apps.

Ideal Applications

• Warehouse picking, put-away, shelf and bin labelling
• Shipping, parcel and delivery labels on the route
• Retail price markdowns, shelf-edge labels and mobile point of sale
• Field service – asset tags, service reports and receipts on site
• Healthcare – specimen, medication and asset labels at the point of care

All XM7-20 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Need a different width? The BIXOLON XM7-30 (3-inch, 80 mm) and BIXOLON XM7-40 (4-inch, 112 mm) share the same platform, software and many accessories. Compare other models in our Mobile Label Printers collection or contact our team for volume pricing.
