| Part Number |
PM2-0001-E |
| Model |

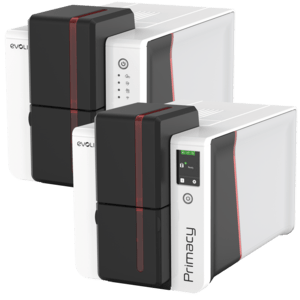

Evolis Primacy 2 Simplex Expert |
| Printer Type |
Desktop plastic card printer (ID badges, CR80 cards) |
| Print Technology |
Colour dye sublimation and monochrome resin thermal transfer, direct-to-card; rewritable card printing |
| Printing |
Single-sided, edge-to-edge (field-upgradable to dual-sided with kit PMY2-KTDS) |
| Resolution |
300 × 300 dpi (11.8 dots/mm); 300 × 600 dpi colour / mono; 300 × 1200 dpi mono |
| Print Speed |
Up to 280 cards/hour single-sided colour (YMCKO); up to 215 cards/hour with lamination module |
| Card Types |
PVC, composite PVC, PET, ABS and rewritable cards |
| Card Thickness |
0.25–1.25 mm (10–50 mil) |
| Card Format |
ISO CR80 – ISO 7810 (85.6 × 54 mm) |
| Card Feeder / Hopper |
Feeder 100 cards, output hopper 100 cards (0.76 mm); rear reject tray 50 cards; optional 200-card feeder (S10388, fitted on site) |
| Encoding |
None fitted – magnetic stripe, contact, contactless and dual encoders available as factory options; SpringCard Crazy Writer HSP kit (S10170) for on-site upgrade |
| Ribbons |
Evolis High Trust ribbons for Primacy 2 (automatic recognition; cassette or Easy4Pro refill): YMCKO 300 / 200 prints, YMCKO-K 200, YMCKOO 250, ½ YMCKO 400, ½ YMCKO-KO 250, KO 600, black 2,000, colour / metallic / white 1,000 prints |
| Lamination |
Optional Card Lamination Module (S10212): clear or holographic patches and varnish, single- and dual-sided |
| Security |
Kensington® lock slot; print-head protection during maintenance; erasing of sensitive data from the printer memory |
| Display |
LED control panel; graphical notifications on the PC |
| Interfaces |
USB 2.0 (cable supplied), Ethernet 10/100 (TCP/IP) |
| Wireless |
None |
| Drivers & Software |
Evolis Premium Suite (Windows, macOS, Linux), Evolis SDK; card design software licence included (ID-All Starter on current production, cardPresso on earlier stock); printing from smartphones and tablets |
| Power Supply |
External power supply 100–240 V AC, 50/60 Hz, 24 V DC output (spare: Evolis A5008) |
| Dimensions |
W 205 × D 382 × H 247 mm |
| Weight |
Approx. 4.1 kg |
| Operating Temperature |
+15 °C to +30 °C |
| Warranty |
3 years (printer) with Evolis High Trust ribbons; optional extension |
| In the Box |
Evolis Primacy 2 card printer (single-sided, 300 dpi, LED panel, USB + Ethernet), external power supply + power cord, USB cable (1.8 m), output hopper + reject tray, starter cleaning kit, card design software licence, quick installation guide – ribbon and blank cards NOT included (order separately) |
