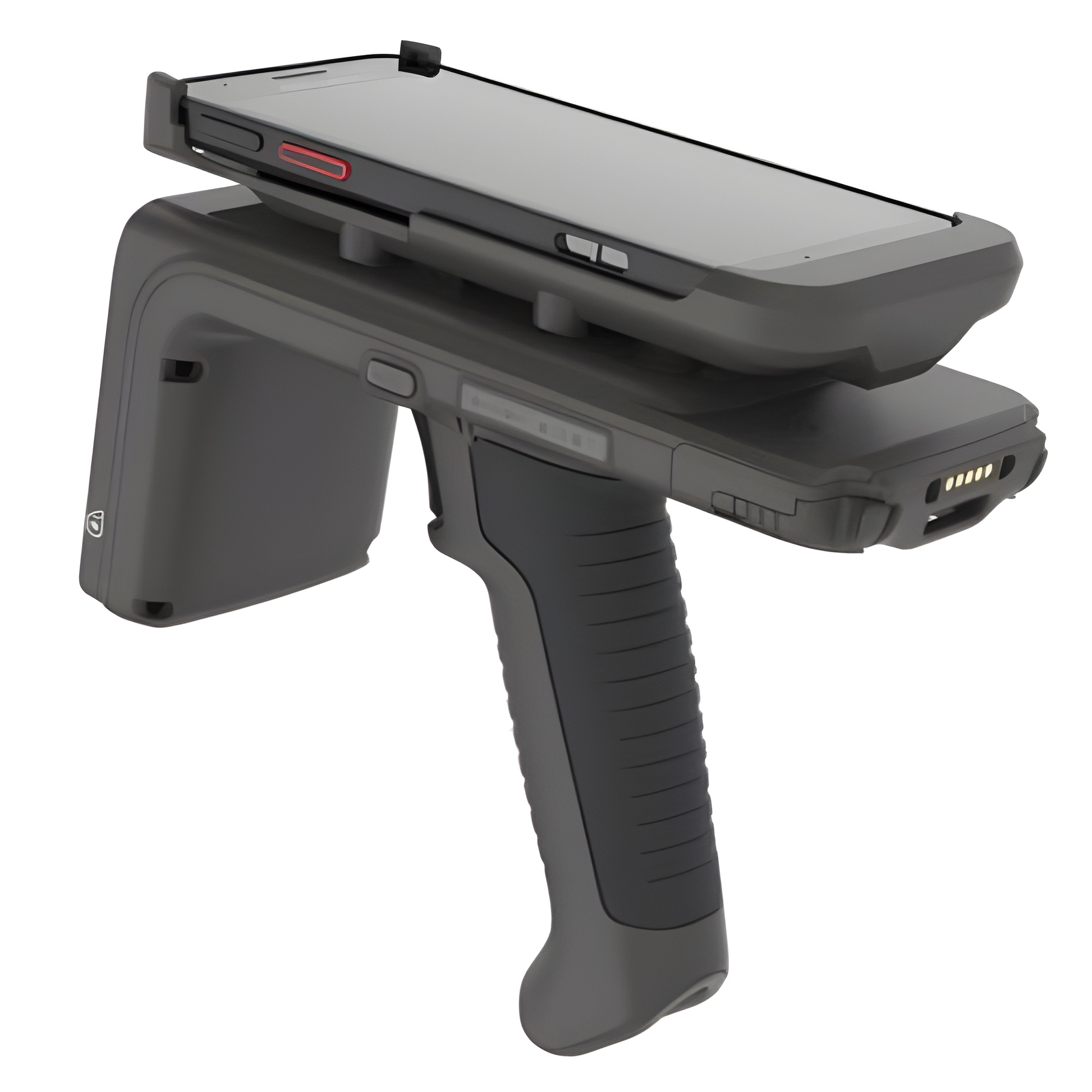

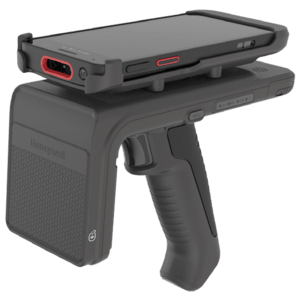

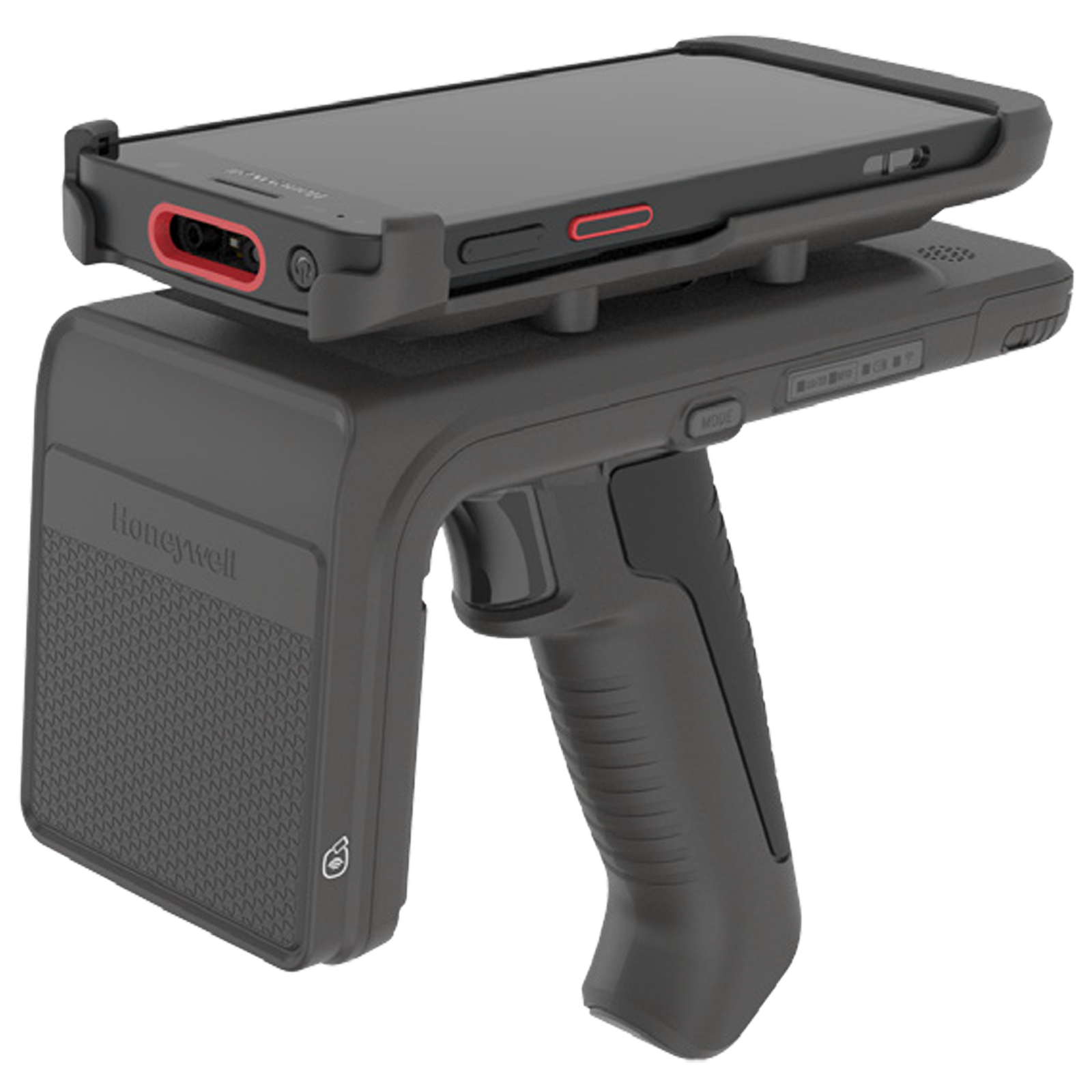

The Honeywell IH45 is a handheld UHF RFID reader with a pistol grip that attaches to a Honeywell mobile computer (CT40, CT45, CT47, CT60, EDA51, EDA52 and more) and turns it into an all-in-one RFID and barcode tool: it reads RFID tags at up to 6 m, writes them at up to 3 m, and its trigger also fires the mobile computer's 1D/2D scan engine. It connects directly via USB through the device bracket or wirelessly via Bluetooth 5.0, and has its own removable 4000 mAh battery. This version, IH45-0-N001S00OK, is the EU version for the 865–868 MHz UHF band – the correct frequency for Estonia, Latvia, Lithuania, Finland, Poland, Czechia and other EU countries.
📦 What's in the box – IH45-0-N001S00OK
- ✅ Honeywell IH45 UHF RFID reader – EU version, 865–868 MHz UHF – trigger, mode button, NFC pairing tag
- ✅ Rechargeable battery – 3.8 V Li-ion, 4000 mAh, removable without tools (charge fully before first use)
- ✅ Product documentation
- ❌ Mounting bracket for your mobile computer – NOT included (required to attach the reader)
- ❌ Charging dock and power supply – not included
- ❌ Mobile computer – not included
- ℹ️ No interface cable needed – the IH45 connects to the mobile computer through the bracket (USB) or via Bluetooth
⚠️ Please note: the bracket for your mobile computer is not included. The IH45 is attached to the mobile computer with a device-specific bracket (the mounting screws come with the bracket), so please order the one that matches your device:
- CT40 / CT40 XP (non-booted) – IH25-BR-2
- CT60 / CT60 XP (non-booted) – IH25-BR-3
- EDA51 (non-booted) – IH25-BR-1
- EDA52 / EDA56 / EDA57 (non-booted) – IH25-BR-5
- CT30 XP (non-booted) – CT30P-IH40-BR
For CT37, CT45/CT45 XP, CT47, EDA51K or devices with a protective boot, the matching Honeywell bracket is available on request – please contact us.
📡 Frequency band: IH45-0-N001S00OK is Honeywell's EU version (865–868 MHz) – suitable for use in the EU. The US version (IH45-0-N001S00UK, 902–928 MHz) is a different product and is not intended for use in Europe.

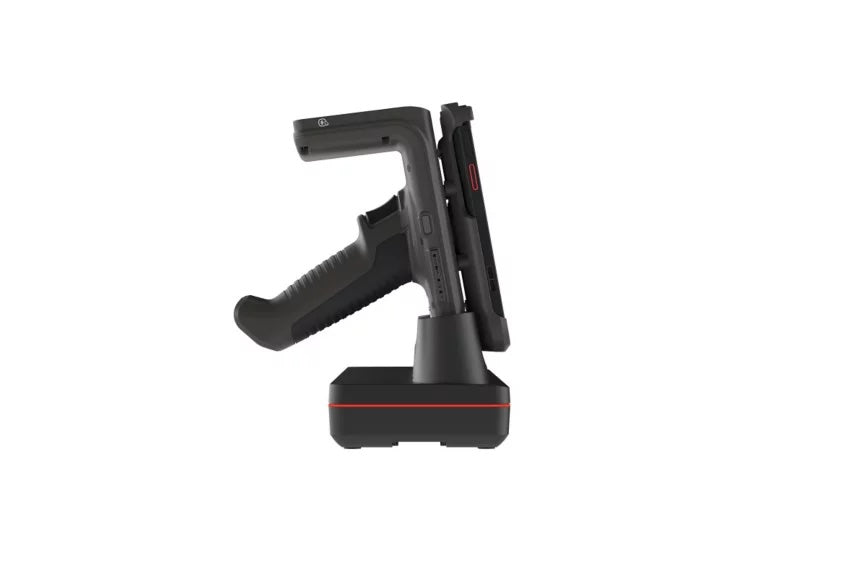

💡 Charging: the IH45 charges through its charging contacts in any Honeywell CT40 dock with a non-booted cup – on its own or together with the attached mobile computer – e.g. the charging/communication dock CT40-HB-UVN-2 or the 4-slot charging station CT40-CB-UVN-2 (both EU versions with power supply and mains cord). Docks for booted devices need the adapter sleeve IH40-ADP-SLV. For multi-shift use, add a spare battery 50181029-001 and the 4-bay battery charger EDA50-QBC-2.
💡 Connecting: attach the IH45 to the mobile computer with its bracket to work in USB mode, or pair it via Bluetooth – tap the mobile computer's NFC antenna to the reader's NFC tag, scan the pairing QR code or use Auto Connect. Barcode scanning with the IH45 trigger is supported with Honeywell mobile computers.
Key Features
- Fast UHF RFID inventory – reads EPC Class 1 Gen2 tags at up to 6 m (20 ft) and writes them at up to 3 m (10 ft) with a circular-polarized antenna and a 120° forward-facing field, turning hours of manual or barcode counting into minutes.
- RFID and barcode in one device – use the trigger and the mode button to switch between RFID reading and 1D/2D barcode scanning with the attached Honeywell mobile computer's scan engine.
- Tag Finder mode – pinpoint the location of a specific item, package, box or pallet, e.g. to find the pallet that has to be unloaded from an incoming truck.
- USB or Bluetooth – connects directly to the mobile computer via USB through the bracket, or wirelessly via Bluetooth 5.0 / BLE with Simple Secure Pairing and an integrated NFC tag for tap-to-pair.
- Hot-swappable 4000 mAh battery – the reader has its own 3.8 V battery, so it does not drain the mobile computer; it can be changed without tools and without removing the mobile computer.
- One charging station for reader and computer – the IH45 fits all Honeywell CT40 charging docks (non-booted cups; booted cups with an adapter sleeve) and charges together with the attached mobile computer; spare batteries charge in EDA50/EDA51 battery chargers.
- Ergonomic and balanced – a pistol-grip design weighing 450 g (without mobile computer) for comfortable all-day use.
- Built for daily use – IP54 sealing against dust and splashing water, multiple 1.2 m drops to concrete and 1,000 tumbles at 0.5 m.
- Easy integration – Honeywell's Android SDK, technical documentation and demo apps make it quick to integrate the reader into your inventory or warehouse application.
Ideal Applications
- Retail – cycle counts, stock replenishment, item location and accurate inventory for omnichannel services
- Transport and logistics – capturing incoming shipments, identifying the right destination dock and handling exceptions instantly
- Warehouse and supply chain inventory management
- Manufacturing – tracking of work in progress, tools and assets
- Aerospace and maintenance – tracking of parts, tools and equipment
Technical Specifications
| Part Number | IH45-0-N001S00OK |
|---|---|
| Model | Honeywell IH45 |
| Device Type | Handheld UHF RFID reader/writer (pistol grip) for Honeywell mobile computers |
| RFID Standards | EPC Class 1 Gen2, ISO 18000-6C, ISO 18000-63 |
| Frequency Range | 865–868 MHz (EU version); the US version IH45-0-N001S00UK uses 902–928 MHz |
| Antenna | Circular polarized; 120° forward-facing field |
| Nominal Read Range | Up to 6 m (20 ft) |
| Nominal Write Range | Up to 3 m (10 ft) |
| Barcode Scanning | No built-in imager – 1D/2D barcodes are scanned with the attached Honeywell mobile computer's scan engine via the IH45 trigger (barcode mode) |
| Host Interfaces | Direct USB connection to the mobile computer through the device bracket; Bluetooth |
| Wireless | Bluetooth 5.0 (Classic + BLE; DIS and BAS profiles), Simple Secure Pairing; integrated NFC tag for tap-to-pair |
| Compatible Mobile Computers | Honeywell CT30 XP, CT37, CT40/CT40 XP, CT45/CT45 XP, CT47, CT60/CT60 XP, EDA51/EDA51K, EDA52, EDA56, EDA57 (device-specific bracket required) |
| User Indicators | 4 LEDs (incl. RFID and 1D/2D mode indicators), beeper |
| Trigger / Buttons | Trigger, mode button, power button |
| Battery | Rechargeable 3.8 V lithium battery, 4000 mAh, removable without tools and without removing the mobile computer (spare: Honeywell 50181029-001) |
| Charging | In Honeywell CT40 charging docks (non-booted cups; booted cups with IH40-ADP-SLV adapter sleeve), alone or together with the attached mobile computer; spare batteries in EDA50/EDA51 4-bay battery chargers |
| Dimensions | 190 × 79 × 154 mm (without mobile computer) |
| Weight | 450 g (without mobile computer) |
| Environmental Sealing | IP54 |
| Drop / Tumble | Multiple 1.2 m (4 ft) drops to concrete; 1,000 tumbles at 0.5 m (1.6 ft) |
| Electrostatic Discharge | ±15 kV air, ±8 kV contact discharge |
| Operating Temperature | −10 °C to 40 °C (charging: 0 °C to 40 °C) |
| Storage Temperature | −20 °C to 60 °C |
| Humidity | 5–95% RH, non-condensing |
| Software & Management | Honeywell RFID demo apps (Android APK), Android SDK and technical documentation |
| Warranty | 12 months |
| In the Box | IH45 UHF RFID reader (EU version, 865–868 MHz), rechargeable Li-ion battery (3.8 V, 4000 mAh), product documentation – mobile computer bracket, charging dock/power supply and mobile computer NOT included (order separately); no cable needed |
The IH45 needs a compatible Honeywell mobile computer, the matching bracket and a CT40 charging dock – all available separately in our store. Looking for an all-in-one device instead? See our RFID Handheld Terminals or compare other cordless models in our Cordless / Wireless Barcode Scanners collection, and contact our team for volume pricing and integration advice.
