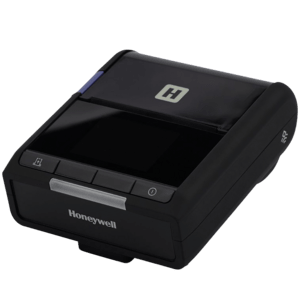

The Honeywell LNX3 is a durable, lightweight 3-inch mobile label and receipt printer for retail, warehouse, field service and delivery teams. It prints 203 dpi direct thermal labels and receipts on 43–80 mm media at up to 127 mm/s, weighs just 0.5 kg with battery and paper, and its 2800 mAh battery can be hot-swapped in under a minute without losing the connection. A 2.4-inch colour screen, single-hand media loading, IP54 sealing and broad command-language support (ZPL II, CPCL, ESC/POS, ESC/P, XSim) make it easy to deploy. This version, LNX3-1-N00B101, connects via dual-band Wi-Fi 802.11a/b/g/n and Bluetooth 5.0 (dual radio), USB-C and NFC tap-to-pair; battery, USB charger and belt clip are included.
📦 What's in the box – LNX3-1-N00B101
- ✅ Honeywell LNX3 printer – Black, Wi-Fi + Bluetooth 5.0 + USB-C + NFC
- ✅ Battery – 2800 mAh, 7.4 V Li-ion – removable, hot-swap within 1 minute without losing the connection
- ✅ Universal AC charger with USB cable – 5 V / 2 A, EU plug – charges the printer via USB-C
- ✅ Belt clip – for hands-free carrying
- ✅ Quick start guide
- ✅ Driver CD – printer drivers and configuration utility
- ❌ Labels / paper rolls – NOT included
- ❌ Protective case – NOT included – optional IP54 carrying case
✅ Ready to print: the battery and a way to charge it are included – charge the printer, pair it with your smartphone, tablet or mobile computer and start printing. Only labels or paper rolls need to be ordered separately.
💡 Useful extras: a spare battery (Honeywell LNX3-BAT); the Honeywell LNX3-CAS carrying case; a vehicle power adapter (Honeywell LNX-VAC).
Key Features
- 3-inch labels and receipts – 203 dpi direct thermal printing on 43–80 mm media, label lengths from 20 to 1016 mm and media up to 0.18 mm thick.
- Wi-Fi + Bluetooth – dual-band 802.11 a/b/g/n Wi-Fi and Bluetooth 5.0 in dual-radio mode, MFi certified, with NFC tap-to-pair; USB-C for set-up.
- Hot-swap battery – the 2800 mAh, 7.4 V Li-ion battery swaps in under a minute without losing connectivity or settings; integrated fuel gauge and recharging in 3.5 hours or less.
- Durable and light – IP54 dust and water rating, 1000 tumbles from 0.5 m and 1.8 m drops with the protective case; only 0.5 kg with battery and paper.
- Colour screen, easy loading – 2.4-inch colour display and a single-hand media loading door simplify set-up and roll changes.
- Broad language support – ZPL II, CPCL, ESC/POS, ESC/P (line print and easy print) and XSim, so existing label and receipt formats keep working.
- Fast processor – Arm Cortex-A7 up to 792 MHz with 256 MB RAM and 256 MB Flash for print speeds of 50–127 mm/s.
Ideal Applications
- Retail price and shelf labels, mobile POS receipts
- Warehouse picking and inventory labels
- Direct store delivery and proof of delivery
- Field service invoices and receipts
- Parcel and courier labelling
All Honeywell LNX3 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Connectivity | |
|---|---|---|
| LNX3-1-N00B101 (this version) | Wi-Fi + Bluetooth 5.0 + NFC | Viewing |
| LNX3-0-N00B101 | Bluetooth 5.0 + NFC | View product |
Technical Specifications
| Part Number | LNX3-1-N00B101 |
|---|---|
| Model | Honeywell LNX3 |
| Printer Type | Mobile label and receipt printer, 3-inch |
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 50–127 mm/s (2–5 in/s) |
| Media Width | 43–80 mm (1.7–3 in) |
| Label Length | 20–1016 mm (0.78–40 in) |
| Roll Diameter | Max. 43 mm (1.69 in) outer diameter |
| Paper Thickness | 0.06–0.18 mm (2–7 mil) |
| Media Types | Direct thermal labels and receipt paper |
| Interfaces | USB 2.0 Type-C (incl. virtual COM port for diagnostics) |
| Wireless | Wi-Fi 802.11 a/b/g/n (dual band) + Bluetooth 5.0 + BLE, dual-radio mode, MFi certified |
| NFC | NFC tag for quick pairing |
| Printer Languages | ESC/P (line print and easy print modes), ZPL II, CPCL, ESC/POS, XSim |
| Fonts / Character Sets | ESC/P: Arabic, Cyrillic, Greek, Thai and Hebrew; CPCL / ZPL II / XSim: Latin (Simplified / Traditional Chinese, Japanese, Korean, Arabic and Thai optional) |
| Barcodes | 1D: Code 39, Code 93, Code 128, Code 11, Codabar, Interleaved / Industrial / Standard 2 of 5, EAN-8, EAN-13, UPC-A, UPC-E, UPC/EAN extensions, MSI, Plessey, LOGMARS; 2D: Aztec, PDF417, MaxiCode, QR Code, Data Matrix |
| Memory | 256 MB RAM, 256 MB Flash; Arm Cortex-A7 up to 792 MHz |
| Display | 2.4-inch (6.1 cm) colour screen |
| Drivers & Software | Yushi printer tool configuration utility, SDKs for Android, iOS and Windows, InterDriver printer drivers for Windows PCs |
| Mobile Printing | Android, iOS (MFi), Windows |
| Battery | 2800 mAh, 7.4 V Li-ion, removable, 1-minute hot swap, integrated fuel gauge (included); spare battery LNX3-BAT |
| Printing per Charge | Approx. 96 m of printed media per charge (Wi-Fi + Bluetooth version) |
| Charging | Universal AC charger 100–240 V AC to 5 V DC / 2 A via USB-C (included), recharging in ≤ 3.5 h; single charge base, quad battery charger and 12–24 V vehicle adapter (LNX-VAC) optional |
| Environmental Sealing | IP54 |
| Drop Specification | 1.8 m (6 ft) with protective case; 1000 tumbles from 0.5 m |
| Dimensions (W × D × H) | 137 mm (L) × 117 mm (W) × 55 mm (H) |
| Weight | 0.5 kg (with paper roll and battery) |
| Color | Black |
| Operating Temperature | −15 °C to 55 °C, 10–90% non-condensing (charging 0–45 °C) |
| Storage Temperature | −20 °C to 70 °C |
| Warranty | 12 months |
| In the Box | Honeywell LNX3 printer (Wi-Fi + Bluetooth 5.0 + USB-C + NFC, black), 2800 mAh 7.4 V Li-ion hot-swap battery, universal AC charger (EU plug) with USB cable, belt clip, quick start guide, driver CD, regulatory sheet – labels / paper rolls and carrying case NOT included (order separately) |
Which version should you choose? LNX3-0-N00B101 is the Bluetooth + NFC version for printing from a paired smartphone or handheld; LNX3-1-N00B101 adds dual-band Wi-Fi for network printing from several devices. Compare other models in our Mobile Label Printers collection or contact our team for volume pricing.
