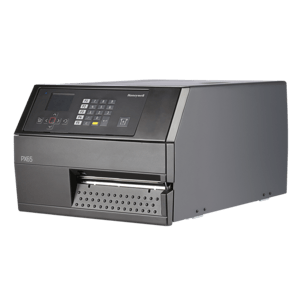

Honeywell PX65 Industrial Label Printer (PX65A00010000300)

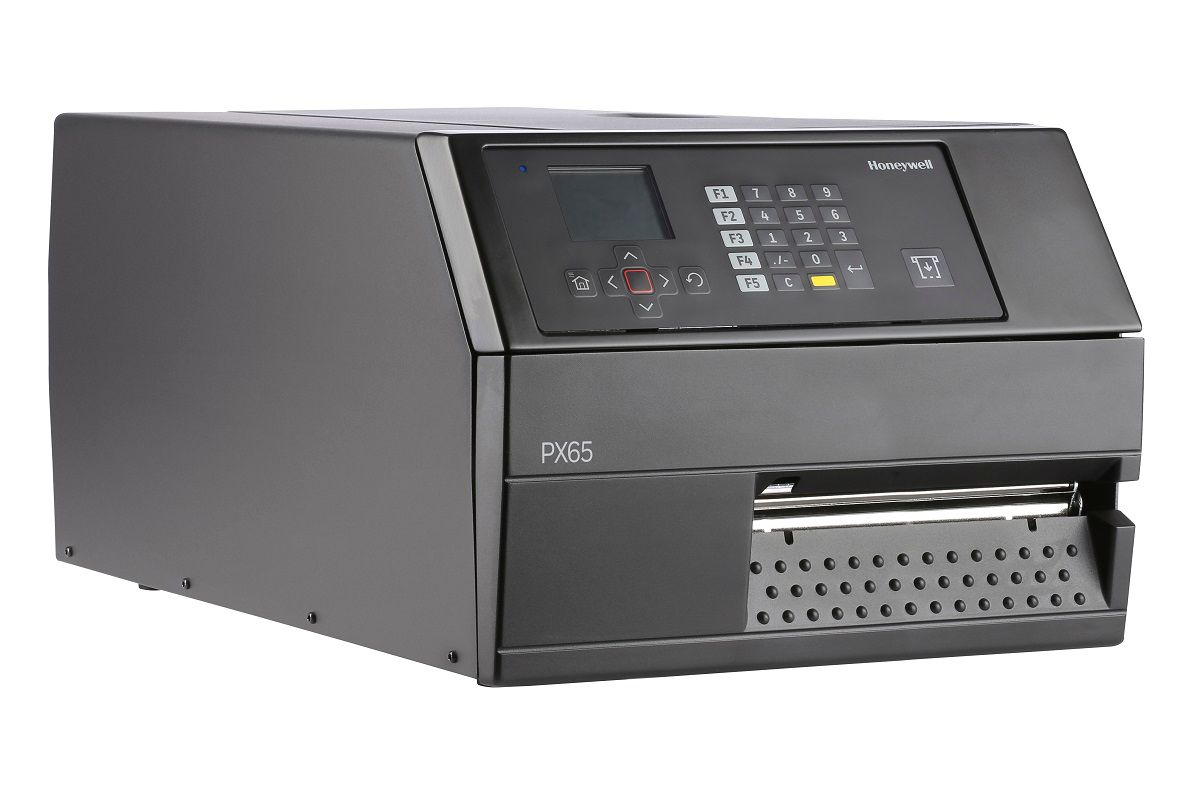

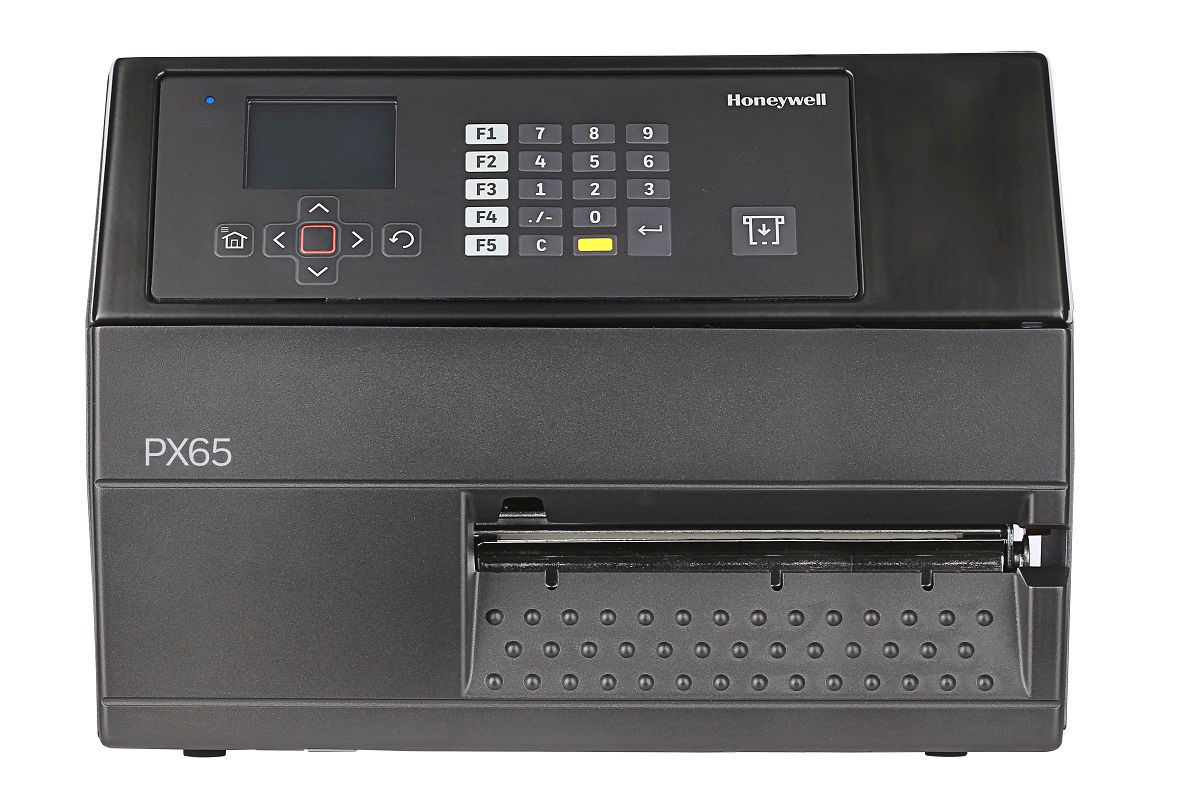

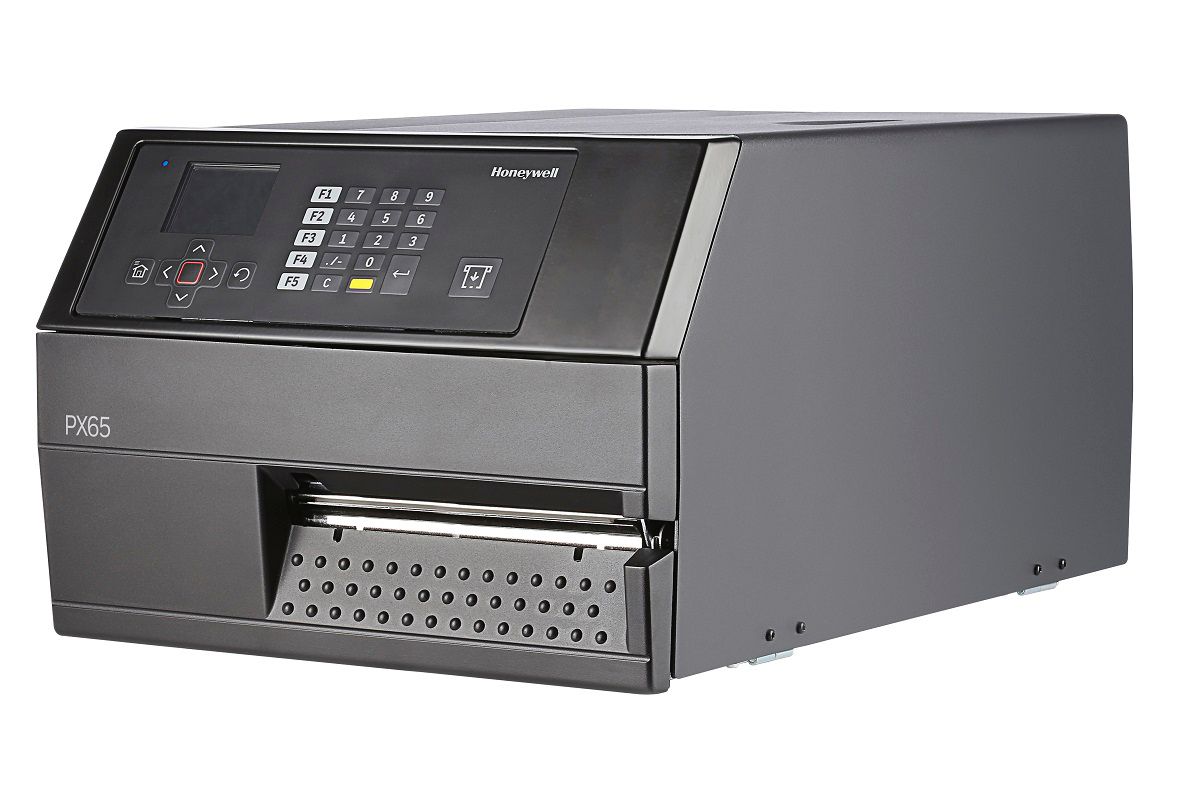

The Honeywell PX65 is the 6-inch version of Honeywell's PX industrial printer series: a rugged all-metal printer with a 167.4 mm print width for wide labels such as A5 shipping, pallet, drum and GHS chemical labels. It prints thermal transfer and direct thermal at up to 9 ips (225 mm/s) in 203 or 300 dpi, takes 213 mm label rolls and 450 m ribbons, and comes with Ethernet, high-speed USB and RS-232 as standard. This version, PX65A00010000300, comes with: thermal transfer and direct thermal printing, 300 dpi print head, colour LCD display with keypad, tear bar, USB, RS-232 and Ethernet plus parallel port.

Key Features

• Thermal transfer and direct thermal – print durable labels with wax, wax/resin or resin ribbons (ink in or out, 1-inch core, up to 450 m) or use direct thermal media without a ribbon.
• 6-inch print width – 167.4 mm print width and media up to 170 mm wide for A5 shipping, pallet, drum and GHS chemical labels.
• Built for 24/7 operation – rugged all-metal construction and print mechanism for round-the-clock, mission-critical labelling.
• QuickMount™ print head – the magnetic print head design makes print head replacement fast and easy and minimises downtime.
• High throughput – up to 9 ips (225 mm/s), 213 mm label rolls and 450 m ribbons mean fewer media changes.
• Drop-in replacement – user-selectable Fingerprint / Direct Protocol, IPL, ZSim2 (ZPL II) and DPL let it replace existing Honeywell, Intermec or Zebra printers without changing your label formats.
• Connected and scalable – 10/100 Ethernet, high-speed USB 2.0 device and host and RS-232 on every printer; field-upgradable with Wi-Fi, parallel, dual serial, industrial or applicator interfaces, UHF RFID and a cutter.
• Smart printing – Fingerprint and C# for Printers applications let the printer run stand-alone and control scanners, scales or applicators without a PC.
• Easy management – PrintSet 5, the Print Set MC mobile app, the web interface and Operational Intelligence simplify configuration, monitoring and updates.

Ideal Applications

• Manufacturing – product, carton, compliance and work-in-progress labels
• Warehousing and distribution – shipping, pallet, bin and inventory labels
• Transport and logistics – high-volume shipping and cross-dock labelling
• Automotive and electronics – AIAG / Odette part labels and small component labels
• Chemicals, pharmaceuticals and food – batch, traceability, date and GHS labels
• Wide labels – A5 shipping labels, drum and pallet labels, GHS chemical labels up to 6 inches

All PX65 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which version should you choose? Pick 203 dpi for large shipping and pallet labels or 300 dpi for fine text and small barcodes on wide labels; choose the integrated rewinder for peel-off or rewound output, the cutter for cut labels and tags, and the Wi-Fi, parallel or RFID versions to match your integration. All versions ship with EU and US power cords; the USB cable is ordered separately. For 4-inch labels, see the Honeywell PX45 (PX45A00000000300). Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.
