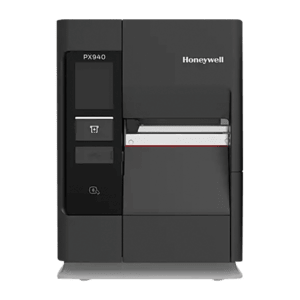

The Honeywell PX940 is a high-performance 4-inch industrial printer for error-free labelling where unreadable barcodes lead to fines, chargebacks or returned shipments. It prints with a registration of up to ±0.2 mm at up to 14 ips (350 mm/s), takes 213 mm label rolls and 450 m ink-in or ink-out ribbons, and is operated via a 3.5-inch colour touchscreen. The PX940V adds an integrated barcode verifier that grades every barcode and automatically voids and reprints bad labels. This version, PX940V30100060200, comes with: integrated barcode verifier (ISO/ANSI grading), thermal transfer and direct thermal printing, 203 dpi print head, colour touch display, integrated rewinder with label-taken sensor (rewind or peel-off), 3-inch (76 mm) media core, USB, RS-232 and Ethernet.

📦 What's in the box – PX940V30100060200

✅ Honeywell PX940 printer – 203 dpi, thermal transfer, touch display, integrated verifier, rewinder + LTS
✅ Power supply – built in, 100–240 V AC
❌ Power cord – NOT included – please order a C13 mains cable (EU or UK plug)
❌ USB cable – NOT included – order a USB A-to-B cable or connect via Ethernet (LAN cable not included)
❌ Labels and ribbon – not included – please order labels and a ribbon separately
✅ Documentation – product documentation; drivers, utilities and manuals are a free download from Honeywell

⚠️ Please note: no power cord and no USB cable are included. Please order a C13 power cord, e.g. the Zebra 450044 (EU plug) or the Honeywell 77900507E (UK plug), and a USB cable such as the Honeywell 321-576-004, or connect the printer to your network with a standard Ethernet patch cable.

💡 Useful extras: the Honeywell 50151893-001 Wi-Fi card for wireless printing; the Honeywell 50144663-001 verifier calibration card; Honeywell cleaning cards 1-110501-00 for regular print-head cleaning.

Key Features

Integrated barcode verifier – every barcode is checked as it is printed: pass/fail and ANSI grades from 0.0 (F) to 4.0 (A) to ISO/IEC 15416 (1D) and 15415 (2D); labels below your threshold are voided and reprinted automatically.
Precision printing – print registration of up to ±0.2 mm and dual label-stop sensors for accurate, edge-to-edge printing on very small labels.
Fast and high capacity – up to 14 ips (350 mm/s), 213 mm label rolls and 450 m ribbons (ink in or out, 1-inch core).
Rugged and easy to service – all-metal print mechanism, easy print head and tool-free platen roller replacement and a predictive maintenance system.
Easy to use – 3.5-inch colour multilingual touchscreen, foldable clear media door and quick side-loading design.
Drop-in replacement – Fingerprint, Direct Protocol, IPL (203/300 dpi), ZSim2 (ZPL II), DPL and XML for SAP AII / Oracle WMS.
Connected – Ethernet, 2 × USB host, USB device, RS-232 and Bluetooth LE for the Print Set MC app; Wi-Fi, parallel, industrial and applicator boards available as options.

Ideal Applications

Transport and logistics – compliance shipping labels with guaranteed readable barcodes
Shipping and distribution centres – avoid chargebacks and returns caused by unreadable labels
Pharmaceuticals and healthcare – small, high-precision and regulated labels
Automotive suppliers – AIAG / Odette part labels with verified barcodes
Industrial manufacturing – error-free product and carton labelling

All PX940 Versions

The highlighted row is the version you are currently viewing.

Part Number	Verifier	Resolution	Media handling
PX940A00100000200	—	203 dpi	Tear-off	View product
PX940A00100000300	—	300 dpi	Tear-off	View product
PX940A00100000600	—	600 dpi	Tear-off	View product
PX940A00100060600	—	600 dpi	Rewinder + LTS	View product
PX940V30100000200	Yes	203 dpi	Tear-off	View product
PX940V30100060200 (this version)	Yes	203 dpi	Rewinder + LTS	Viewing
PX940V30100000300	Yes	300 dpi	Tear-off	View product
PX940V30100060300	Yes	300 dpi	Rewinder + LTS	View product
PX940V30100060600	Yes	600 dpi	Rewinder + LTS	View product

Technical Specifications

Part Number	PX940V30100060200
Model	Honeywell PX940 (with integrated verifier – PX940V)
Printer Type	4-inch industrial label printer (thermal transfer and direct thermal)
Print Method	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	50–350 mm/s (2–14 ips)
Max Print Width	108 mm (4.25 in)
Label Length	Max. continuous 4.8 m (15.75 ft); min. 3.0 mm tear-off, 6.0 mm rewind, 12.7 mm self-strip
Media Width	20–114 mm (0.79–4.5 in), label and liner
Paper Thickness	0.076–0.254 mm (3–10 mil)
Roll Diameter	Max. 212.7 mm (8.375 in) outer diameter; roll-fed (wound out only) or fanfold
Core Size	76 mm (3 in) – 3-inch core configuration
Media Types	Gap, black mark, tag, hole, notch or continuous media – thermal transfer and direct thermal
Sensors	Gap, black mark, dual label-stop sensor, ribbon, head lift, label taken (LTS)
Ribbon	Wax, mid-range (wax/resin) and resin; ink side IN and OUT; 25 mm (1 in) core; width 51–110 mm; max. 80 mm roll diameter (approx. 450 m)
Interfaces	Ethernet 10/100 Mbps, USB 2.0 device, 2 × USB 2.0 host, RS-232 (up to 115.2 kbit/s), Bluetooth LE (Print Set MC only), static NFC tag; optional: Wi-Fi (50151893-001), parallel IEEE 1284 (50151883-001), industrial interface (50151884-001), applicator interface (50151885-001)
Wireless	Bluetooth LE for configuration with Print Set MC only; Wi-Fi 802.11 a/b/g/n/ac optional (50151893-001)
Memory	256 MB Flash, 1 GB DDR3 SDRAM, dual-core ARM Cortex-A9 processor; USB memory devices supported; real-time clock
Printer Languages	Fingerprint (FP), Direct Protocol (DP), IPL (203 / 300 dpi only), ZSim2 (ZPL II), DPL, XML for SAP AII and Oracle WMS, C# for Printers (verification disabled when running C#)
User Interface	3.5-inch colour touch LCD; web interface; 13 UI languages incl. English, German, French, Spanish, Italian, Portuguese, Russian
Media Options	Peel-off (self-strip) and rewinder module with label-taken sensor – factory configured; 1.5 in non-collapsible core on supply and take-up
Barcode Verifier	Integrated – 600 dpi scan resolution, 660 nm light source, max. scan width 108 mm; ISO/IEC 15416 (1D) and 15415 (2D) grading, read/no-read; min. bar width / 2D cell 0.254 mm (10 mil); up to 32 barcodes per label; verification up to 250 mm/s (150 mm/s at 600 dpi); reports via web page, USB, VII or FTP/SFTP
Construction	Rugged all-metal print mechanism; foldable clear media door; print registration up to ±0.2 mm; tool-free platen roller replacement
Barcodes	All major 1D and 2D symbologies; standards incl. UPC/EAN shipping container, UCC/EAN 128, SSCC, MH10.8, AIAG, OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS and Global Transport Label
Fonts / Character Sets	Monotype font engine; non-Latin fonts via WTLE; graphics PCX, PNG, GIF, BMP
Drivers & Software	InterDriver Windows driver, CUPS driver (Linux), Honeywell Device Types for SAP, PrintSet 5, Print Set MC (Android/iOS), Smart Printing Developer Resource Kit (C#), Honeywell label design and print package; optional Operational Intelligence
Power Supply	Built-in 200 W power supply with PFC, 100–240 V AC, 50–60 Hz – power cord (C13) not included
Dimensions (W × D × H)	261 × 506 × 399 mm (10.3 × 19.9 × 15.7 in)
Weight	Approx. 23.5 kg (51.8 lb)
Operating Temperature	5 °C to 40 °C
Storage Temperature	−20 °C to 60 °C
Humidity	20–85% RH, non-condensing
Certifications	RoHS, CE (EN 55032 Class B), FCC Class B, ENERGY STAR 2.0
Warranty	12 months
In the Box	Honeywell PX940 printer (with integrated barcode verifier, 203 dpi, thermal transfer, integrated rewinder + label-taken sensor), built-in power supply, product documentation – power cord (C13) NOT included; USB / interface cable NOT included; labels and ribbon not included (order separately)

Which version should you choose? The PX940V with integrated verifier checks and grades every barcode – ideal wherever chargebacks or compliance fines are a risk; the PX940A is the same precision printer without verifier. Pick 203 dpi for logistics labels, 300 dpi for small barcodes and 600 dpi for tiny, high-precision labels, and the rewinder / peel-off version for peel-and-apply or rewound output. All versions have a built-in power supply; the C13 power cord and the USB cable are ordered separately. Don't need integrated verification or ±0.2 mm registration? See the Honeywell PX45 (PX45A00000020200). Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.
