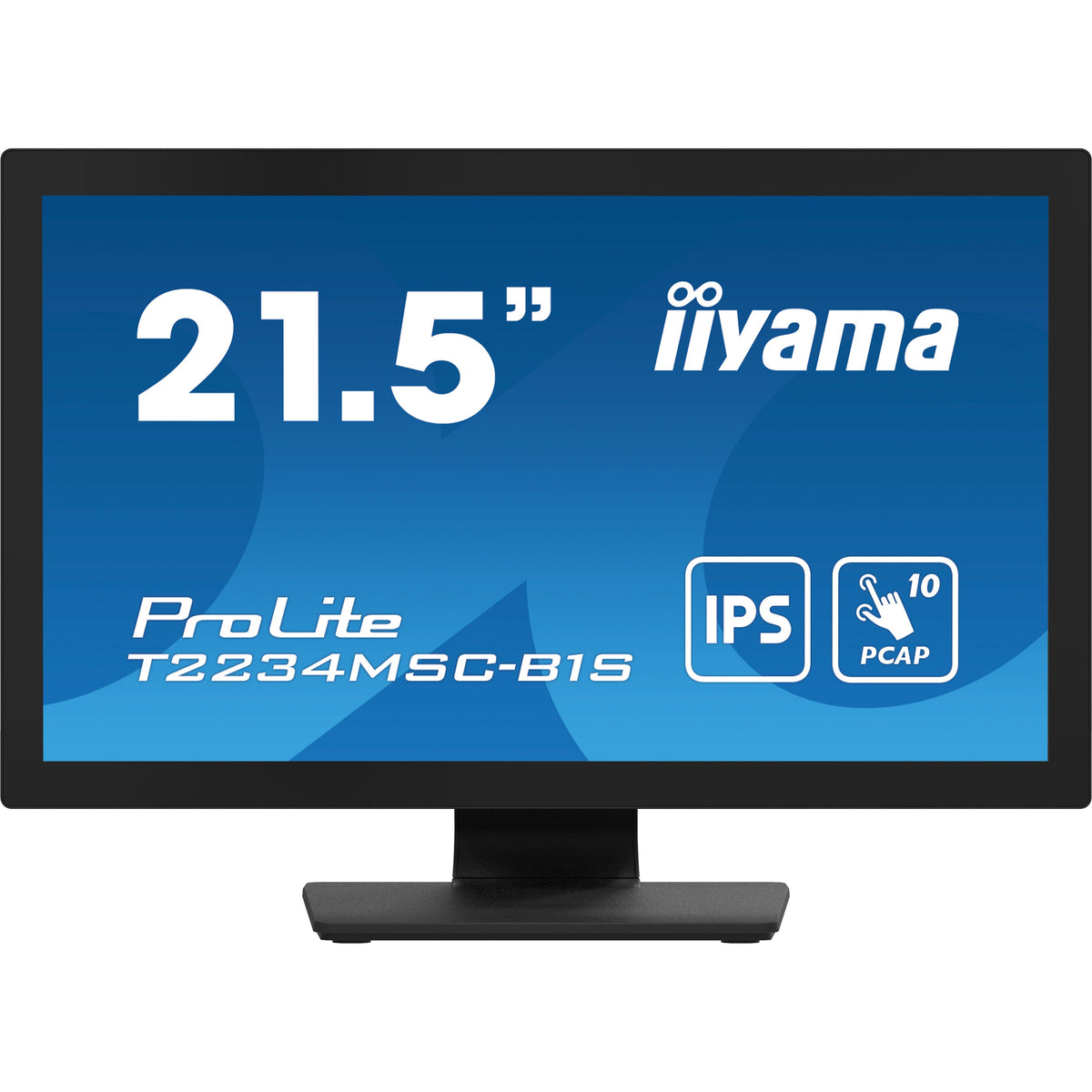

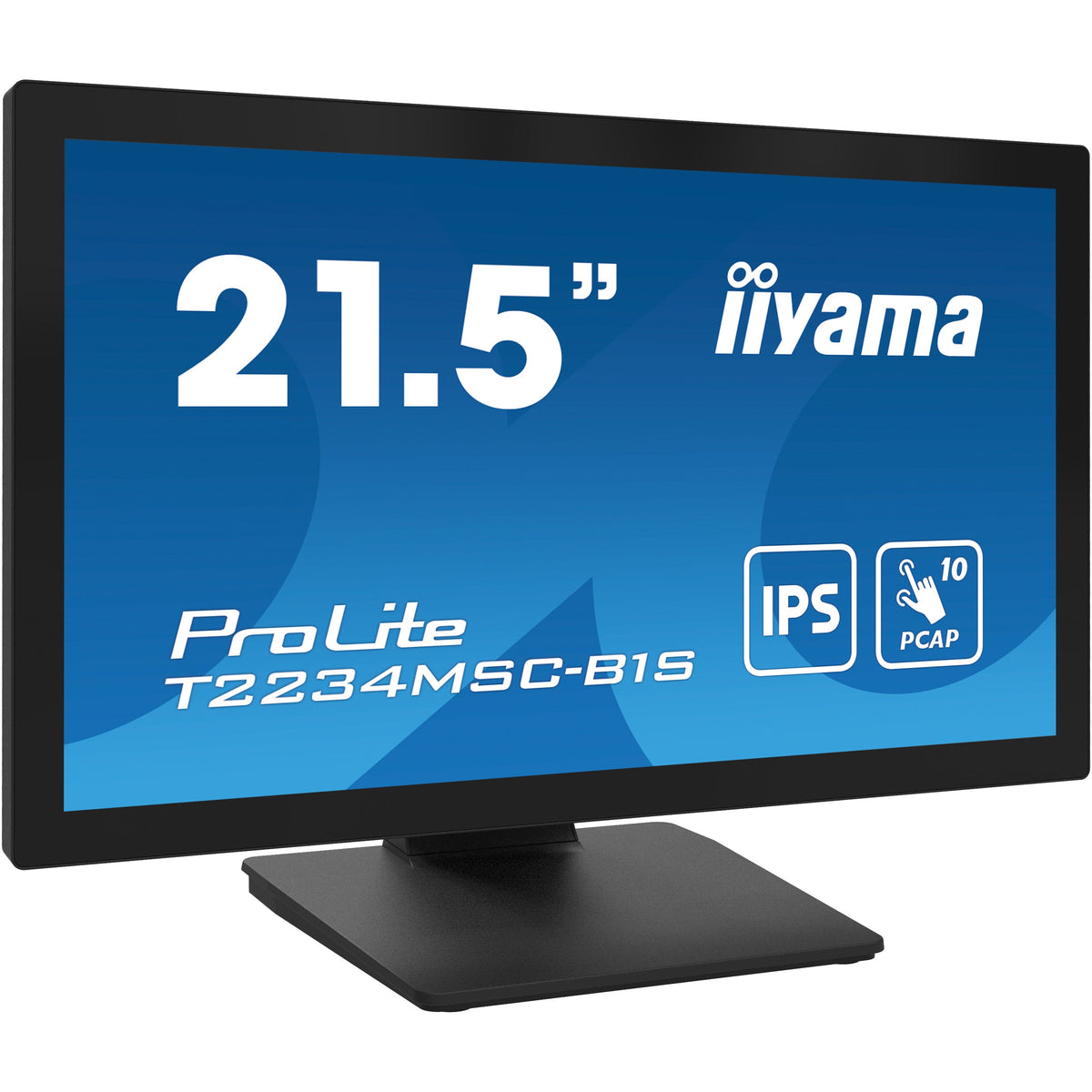

iiyama ProLite T2234MSC-B1S 22" Touch Monitor, PCAP 10-touch, FHD, IP65 (T2234MSC-B1S)

The iiyama ProLite T2234MSC-B1S is a 22" professional touch monitor with 10-point projected capacitive (PCAP) touch and Full HD (1920 × 1080) resolution, built for self-service kiosks, reception desks and interactive workstations. Key specs at a glance – brightness 350 cd/m², contrast 1000:1, response time 8 ms (GTG), video inputs VGA, HDMI, DisplayPort. This version, T2234MSC-B1S, comes in the following configuration: black housing, flexible stand (tilt 90° up / 5° down) and external power adapter. In the box: stand, power cable, USB cable, HDMI cable, audio cable, DisplayPort cable, power adapter, cable cover and quick start/safety guides. A computer is not included – connect any PC, POS system or thin client via a video cable plus USB for touch.

Key Features

• 10-point PCAP touch – Projected capacitive touch reacts precisely to fingers, a capacitive stylus or latex gloves and supports Windows multi-touch gestures (HID, no driver needed on supported operating systems).
• IP65-rated front – The front is dust-tight and protected against water jets, making the monitor suitable for wet-cleaned, demanding environments such as food service, production halls or hygiene-critical areas.
• Touch through glass up to 6 mm – The PCAP sensor works through additional protective glass up to 6 mm thick, so the monitor can be built in behind a kiosk front or protective screen.
• Full HD IPS panel – A sharp image with wide 178° viewing angles keeps content legible for staff and customers from any side.

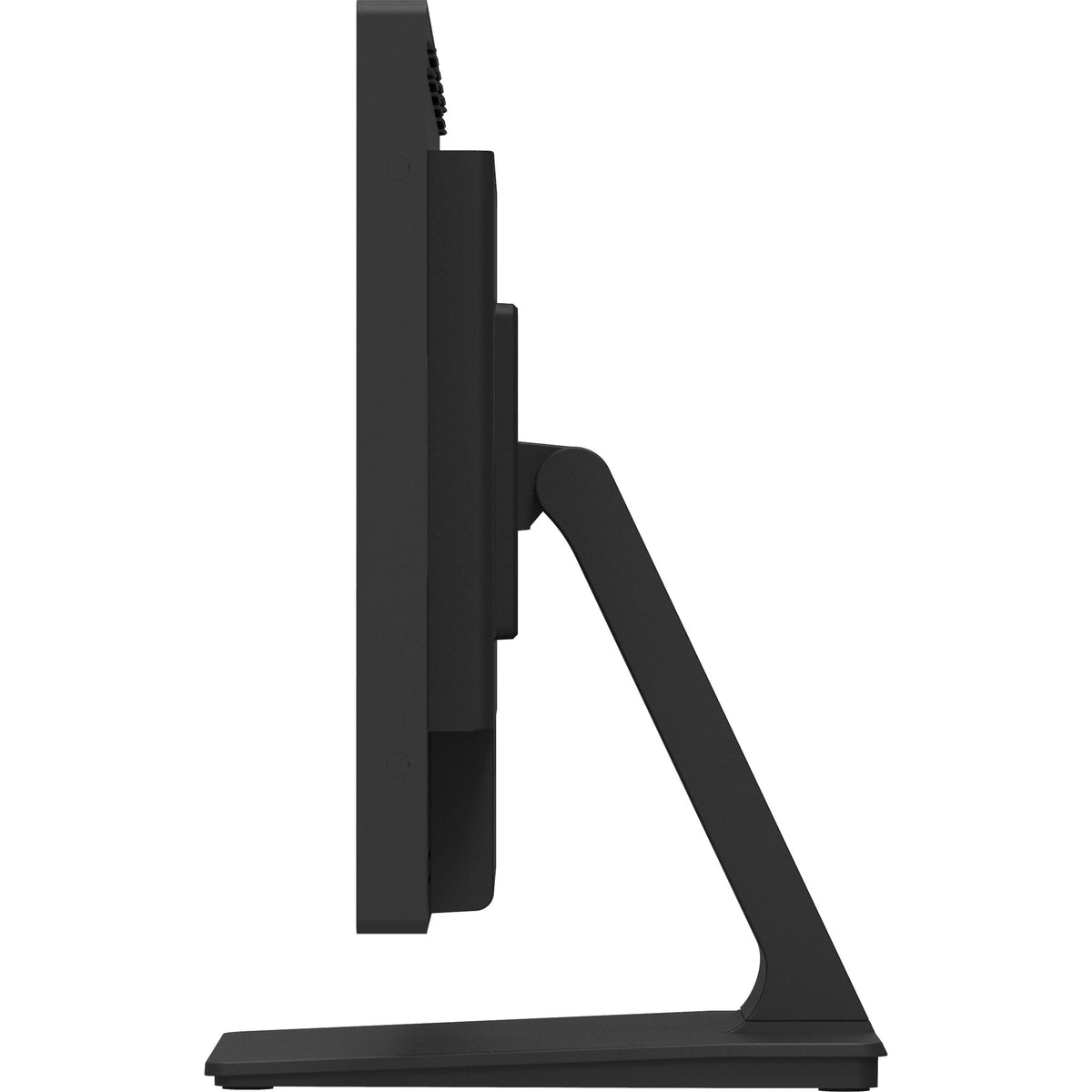

• Flexible stand, up to 90° tilt – The stand tilts from upright to almost flat (90° up / 5° down), so the monitor works at the counter, as a customer-facing screen or face-up on a desk; VESA 100 × 100 mm for mounting.
• Built-in speakers – 2 × 3 W speakers and a headphone jack – sound for presentations and video calls without extra devices.
• Built for public use – OSD key lock and a Kensington lock slot prevent unauthorised changes and theft, while integrated cable management keeps the installation tidy.

Ideal Applications

• Self-service & information kiosks – wayfinding, ordering, ticketing and product information
• Reception & front desk – check-in, visitor management and customer-facing signature capture
• Retail & hospitality – large POS screens, menu ordering and endless-aisle product browsing
• Healthcare – patient check-in, consultation and documentation workstations
• Education & meeting rooms – interactive teaching, collaboration and presentations

Technical Specifications

How to choose: the ProLite T-series spans 15" to 27". Pick a 4:3 or 5:4 model for existing POS software and Full HD or WQHD for modern applications; choose an IP54/IP65 front for daily wet cleaning, anti-glare (AG) glass for bright locations, and a height-adjustable or low-profile stand for signing and consultation. Browse the full range: Monitors – or contact us for volume pricing and project quotes.
