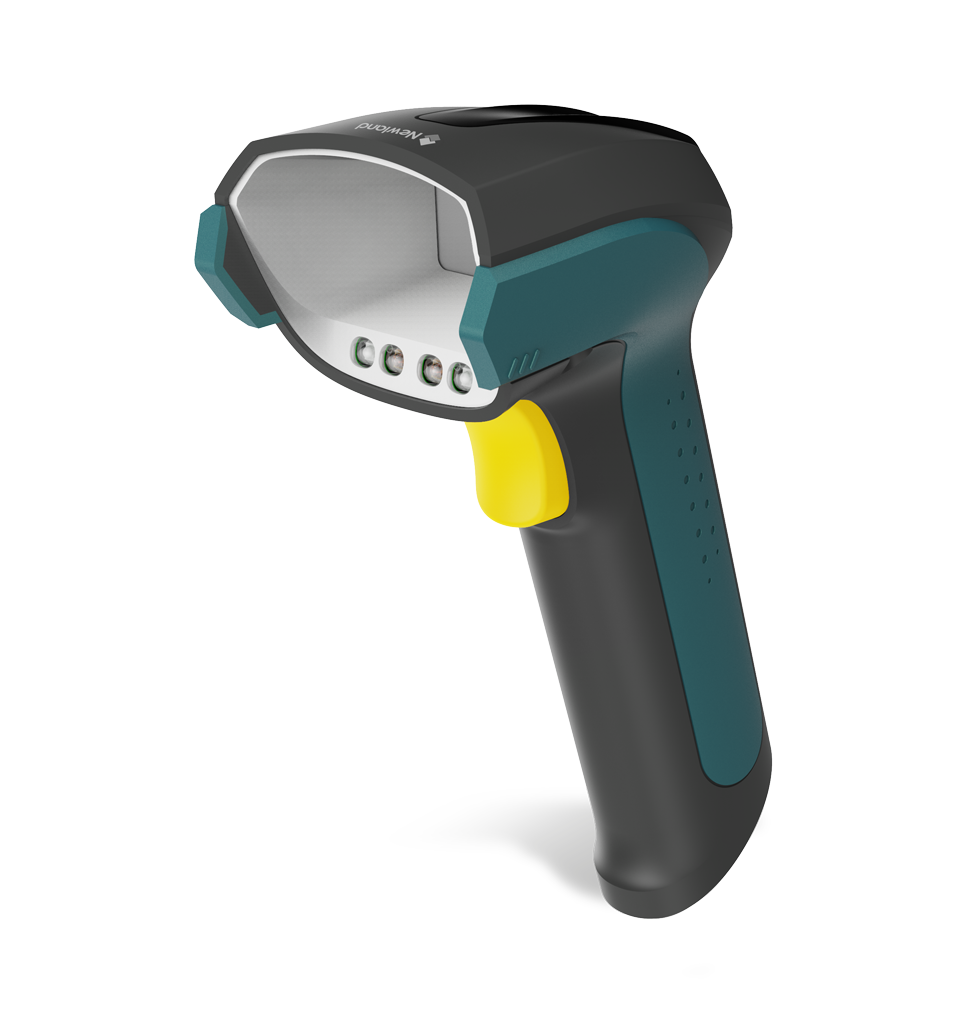

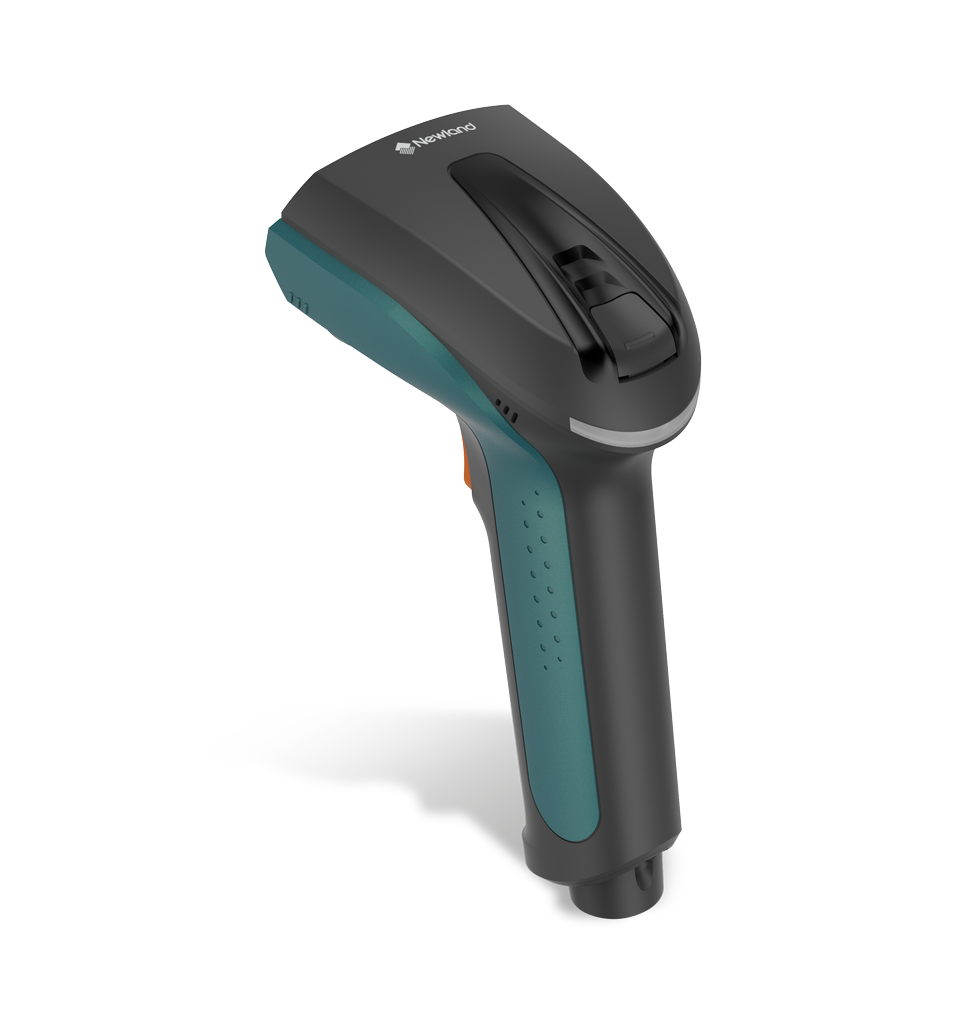

Newland NVH220 AI DPM Barcode Scanner (NLS-NVH220-V2-XD)

The Newland NVH220 Lophius is an industrial 2D handheld scanner built for direct part marking (DPM): it reads laser-etched and dot-peened Data Matrix codes as well as ordinary printed 1D and 2D barcodes. AI-powered decoding locates and reconstructs damaged, distorted or poorly marked codes, even on reflective and curved surfaces, a versatile multi-light illumination system adapts to every material, and IP64 sealing with 1.8 m drop resistance makes it ready for the production floor and the warehouse. This version, NLS-NVH220-V2-XD, is the NVH220 Lophius AI Corded (second generation, V2) with USB, RS-232 and Ethernet support: it is supplied with a 2 m USB cable and a 5 V power supply – plug it into a USB port and scan right away.

Key Features

• Reads DPM codes – decodes direct part marks such as laser-etched and dot-peened Data Matrix codes on metal, plastic and other materials, as well as printed 1D and 2D barcodes.
• AI-powered decoding – Newland's AI barcode detection locates and reconstructs damaged, distorted or poorly marked codes, even on reflective and curved surfaces; intelligent learning adjusts brightness and light source to each scene.
• Built for industry – IP64 sealing against dust and splashing water and resistance to repeated 1.8 m drops; beep, LED and vibration feedback confirm every read.
• Megapixel imager with laser aimer – 1280 × 800 sensor, 650 nm crosshair laser aimer, direct red and blue LEDs and diffuse white light, switchable with the auto-learning button on top of the scanner.
• Three interfaces: USB, RS-232 and Ethernet – the interface is set by the cable; the included 5 V power supply powers RS-232 and Ethernet connections. Easy setup with Newland EasySet.
• 5-year warranty – Newland's standard warranty for the NVH220 Lophius AI Corded is 5 years.

Ideal Applications

• Automotive and metalworking – laser-etched and dot-peened DPM codes for part traceability
• Electronics manufacturing – Data Matrix codes on components and circuit boards
• Production lines and work-in-process tracking – integration with PLC and MES systems
• Warehousing and logistics – goods receiving, picking and inventory
• Transportation and maintenance – identification of assets and spare parts

All NVH220 Lophius Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a fixed workstation, the corded NLS-NVH220-V2-XD connects via USB, RS-232 or Ethernet and comes with a 5-year warranty. To move freely around the production line or warehouse, choose the Bluetooth NLS-NVH220B-V2-XD with charging and communication cradle and up to 150 m range. The first-generation NLS-NVH220-BT has been discontinued by Newland and is succeeded by the NLS-NVH220B-V2-XD. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
