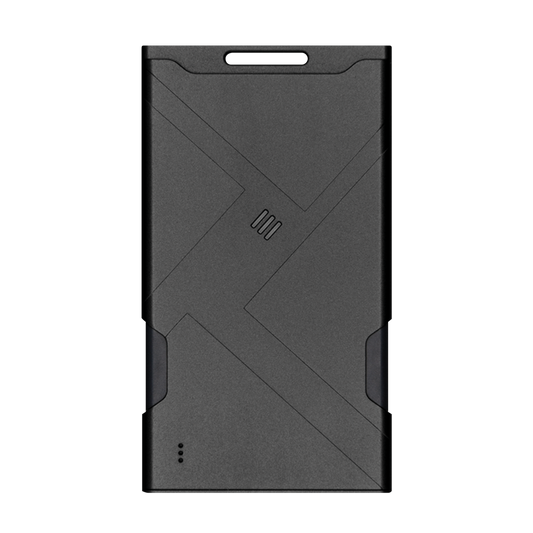

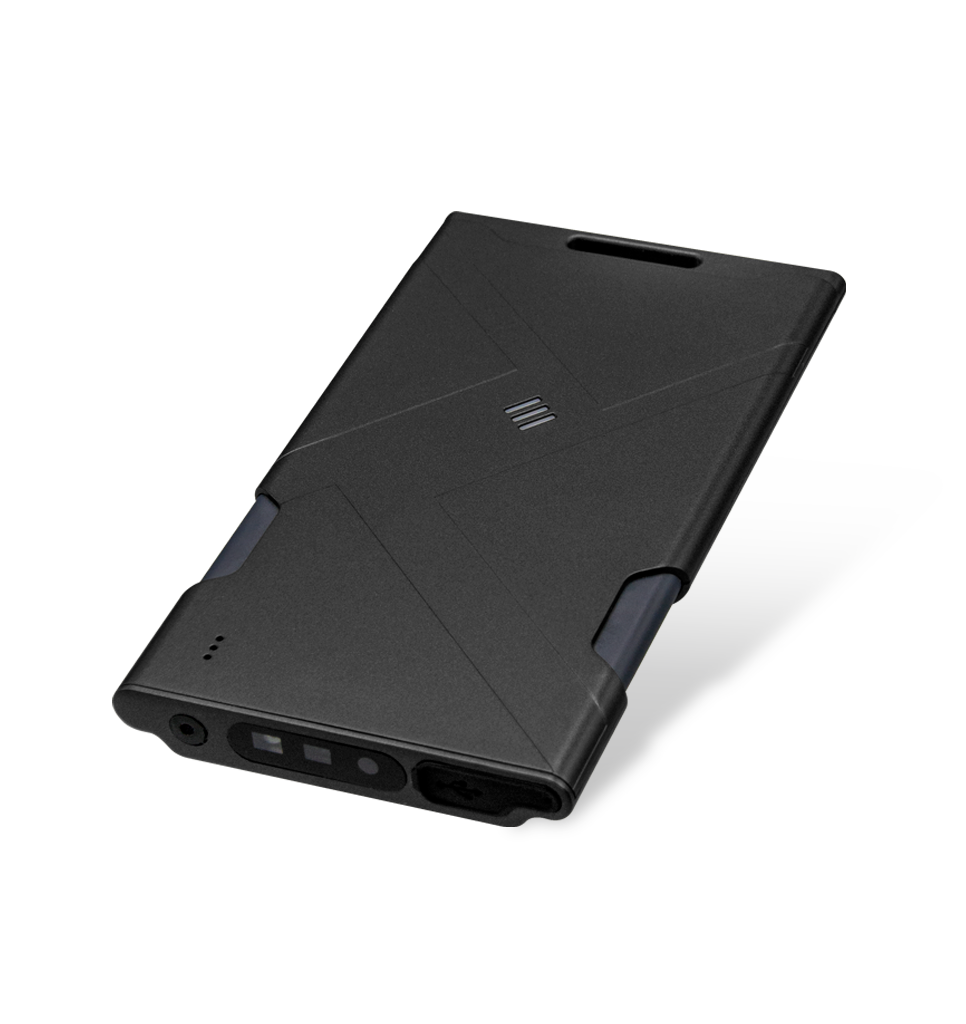

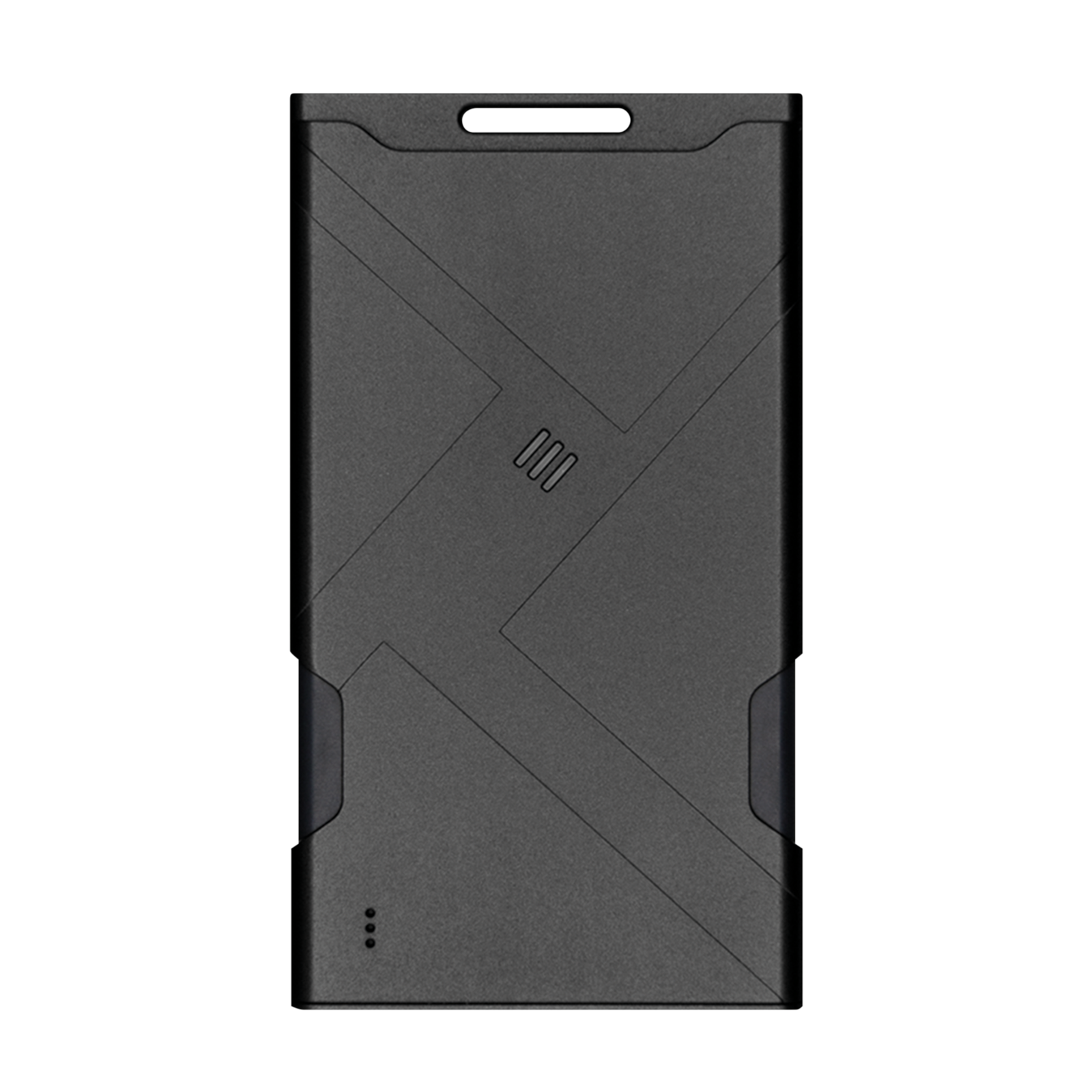

The Newland WD3 Badge Scanner (Nwear by Newland) is a flat, wearable Bluetooth® 2D barcode scanner the size of an ID badge: just 10.6 mm thin and 53 g, it hangs from the supplied neck lanyard or retractable belt clip and is always within reach – leaving both hands free between scans. A megapixel imager reads 1D and 2D codes from labels and screens, the red laser cross aimer picks exactly the code you want on a crowded pick list, and the IP65 housing withstands rain, dust and 1.2 m drops. This version, WD3-BS30, comes complete with a USB-C cable, neck lanyard and retractable belt clip – ready to charge, pair and scan.
📦 What's in the box – WD3-BS30
- ✅ Newland WD3 Badge Scanner – black, flat wearable 2D imager (reads 1D and 2D codes), Bluetooth 5.0
- ✅ Rechargeable battery – Li-ion, 300 mAh, built in – up to 8 hours per charge, fully charged in under 2 hours
- ✅ USB-C cable – charges the scanner from a USB port on your PC, laptop or a USB charger; also works as a wired USB connection and for EasySet configuration

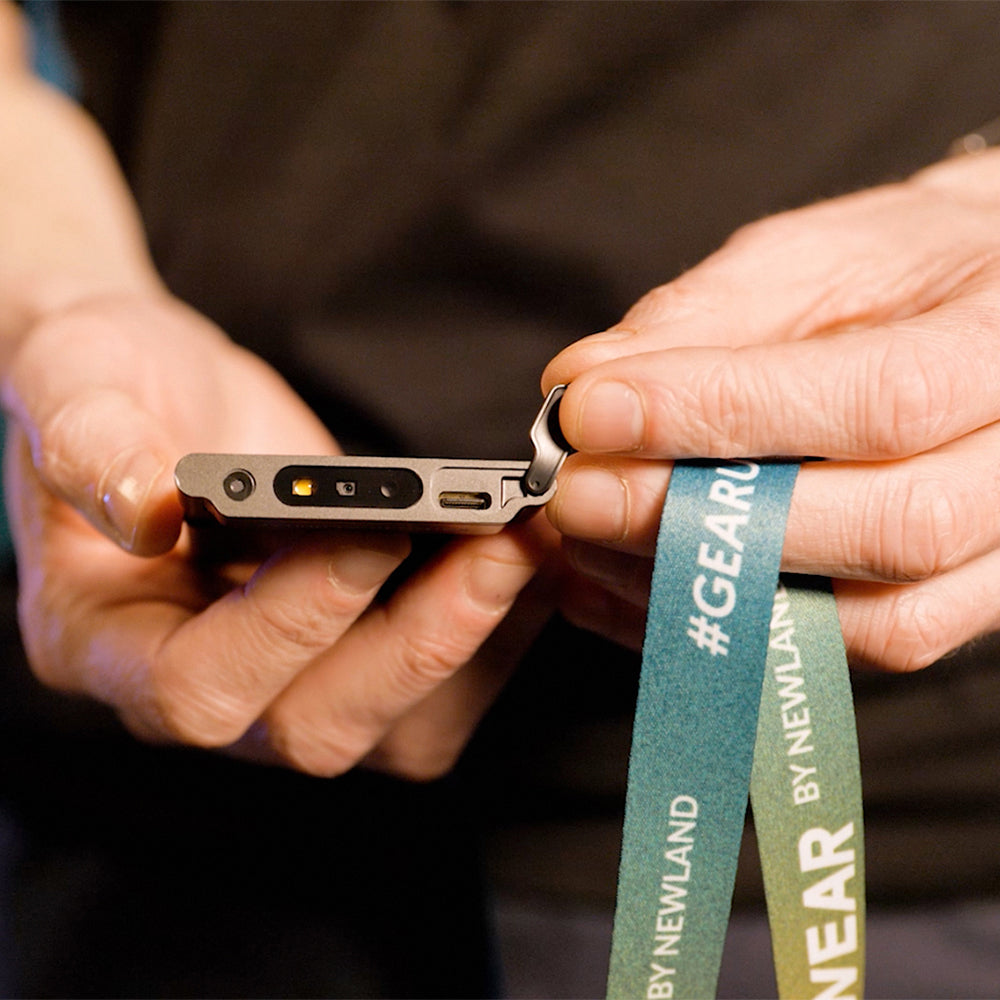

- ✅ Neck lanyard – wear the scanner like an ID badge
- ✅ Retractable belt clip – keeps the scanner on your belt or waistband – pull it out to scan, it retracts when you let go
- ❌ Charging cradle – not needed – the WD3 has no cradle: it charges via the USB-C cable and pairs directly with your device via Bluetooth
- ❌ Power supply – not included – not needed, as the scanner charges from any USB port; a 5 V USB wall charger also works
- ❌ USB Bluetooth dongle – not included – optional (NLS-DG-R), only needed for PCs without built-in Bluetooth
💡 How it connects: the WD3 pairs directly with your smartphone, tablet or PC via Bluetooth 5.0 – as a keyboard (HID, no driver needed) or as a Bluetooth Low Energy (BLE) device, with up to 30 m range in open space. Newland Android devices pair through Newland's pairing app, and other Android devices simply by scanning a QR code with the free EasyConnect app. For a PC without Bluetooth, add the Newland NLS-DG-R USB Bluetooth dongle. Out of range, batch mode keeps your scans in memory for later upload via Bluetooth or the USB-C cable.
💡 Wear it your way: on the neck lanyard like a staff badge, or on the retractable belt clip for quick pull-out scanning. For three years of comprehensive service coverage, add the Newland 3-year Comprehensive Coverage service plan (SVCWD3-3Y).
Key Features
- Badge-size and featherlight – 110.8 × 62.3 × 10.6 mm and only 53 g: worn on a lanyard or belt clip, it is always at hand and you hardly notice it.
- Megapixel 2D imager – a 1280 × 800 CMOS sensor with white LED illumination reads 1D and 2D codes (QR Code, Data Matrix, PDF417, Aztec and more) from paper and screens, including high-density and distorted barcodes; EAN-13 (13 mil) from 65 to 550 mm.
- Acuscan precision scanning – the red laser cross aimer can be set to decode only the barcode it points at, so you always pick the right item on crowded pick lists or shelves.
- Bluetooth 5.0 – HID and BLE modes with up to 30 m range; quick pairing with Android devices via the EasyConnect QR code.
- Batch mode – keep scanning out of range: barcodes are stored in memory and uploaded later via Bluetooth or cable.
- All-shift battery – the built-in 300 mAh battery lasts up to 8 hours and recharges in under 2 hours via USB-C.
- Rugged IP65 design – sealed against dust and water jets, survives 1.2 m drops and works from −20 °C to 60 °C, indoors and outdoors.
- Clear feedback, easy setup – beep, LED and vibration confirm every read; configure via EasySet or programming barcodes; 2-year Newland warranty.
Ideal Applications
- Events and entertainment – ticket, badge and wristband checks at entrances
- Retail – stock counts, price checks, click & collect and mobile POS with a tablet or smartphone
- Hospitality – restaurants, cafés, hotels and order pick-up
- Healthcare – patient wristbands, medication and sample labels
- Logistics and deliveries – order picking, proof of delivery and inventory on the move
Technical Specifications
| Part Number | WD3-BS30 |
|---|---|
| Model | Newland (Nwear) WD3 Badge Scanner |
| Scanner Type | Cordless wearable badge scanner – 2D area imager (reads 1D and 2D barcodes on paper and screens) |
| Connectivity | Cordless – Bluetooth 5.0 (HID, BLE); pairs directly with smartphones, tablets and PCs; Android pairing via EasyConnect QR code |
| Image Sensor | 1280 × 800 (megapixel) CMOS |
| Light Source | Red laser cross aimer (650 nm); white LED illumination |
| Field of View | 40° horizontal × 25° vertical |
| Depth of Field (typical) | EAN-13 13 mil: 65–550 mm; Code 39 5 mil: 120–330 mm; PDF417 6.67 mil: 120–240 mm; Data Matrix 10 mil: 125–240 mm; QR Code 15 mil: 40–370 mm |
| Reading Angles | Pitch ±55°, skew ±55°, roll 360° |
| Minimum Print Contrast | 25% |
| 1D Symbologies | Code 128, GS1-128, AIM 128, ISBT 128, EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, ISBN, ISSN, MSI Plessey, Plessey, GS1 DataBar, GS1 Composite and more |
| 2D Symbologies | PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix, MaxiCode, Chinese Sensible Code, GM Code |
| Wireless Communication | Bluetooth 5.0 (BLE and HID modes) |
| Radio Range | Up to 30 m (open space) |
| Batch Mode (Memory) | Supported – barcodes are stored in internal memory and uploaded later via Bluetooth or USB-C cable |
| Host Interfaces | Bluetooth HID, BLE; USB-C – USB HID keyboard, USB CDC (virtual COM), HID POS |
| Base Station | Not required and not available – charges via USB-C cable, pairs directly via Bluetooth; optional USB Bluetooth dongle NLS-DG-R |
| Battery | Rechargeable Li-ion, 300 mAh (built in) |
| Operating Time | Up to 8 hours (depending on scanning intensity) |
| Charging Time | Less than 2 hours (via USB-C) |
| Input Voltage | 5 VDC ±5% (USB-C) |
| Reading Indicators | Beeper, LED, vibration |
| Wearing Options | Neck lanyard or retractable belt clip (both included) |
| Color | Black |

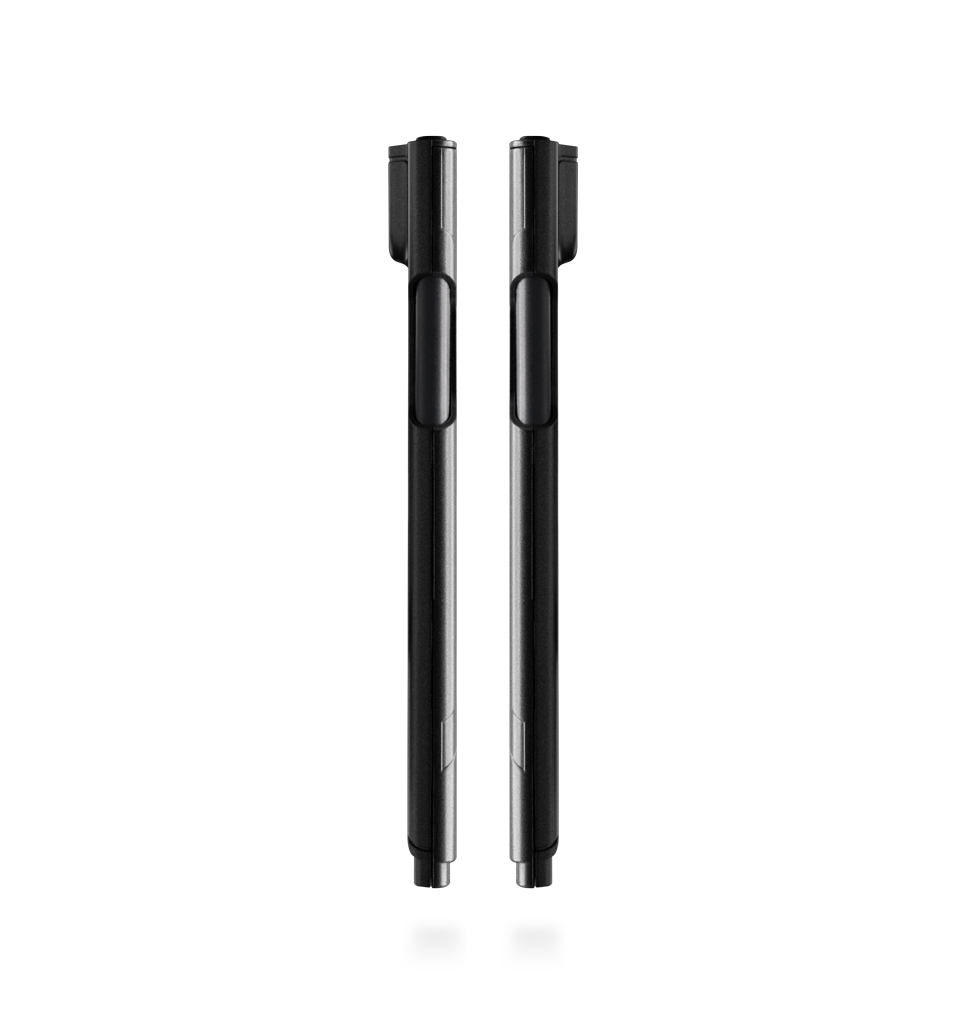

| Dimensions | 110.8 × 62.3 × 10.6 mm |
| Weight | 53 g |
| Environmental Sealing | IP65 |
| Drop Resistance | 1.2 m |
| Electrostatic Discharge | ±10 kV (air discharge), ±6 kV (contact discharge) |
| Operating Temperature | −20 °C to 60 °C |
| Charging Temperature | 0 °C to 45 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% RH, non-condensing |
| Software & Management | Newland EasySet configuration software (Windows); EasyConnect app for Android pairing |
| Certifications | CE RED, FCC, RoHS, SRRC, IEC 62471 |
| Warranty | 24 months |
| In the Box | WD3 badge scanner with built-in rechargeable Li-ion battery (300 mAh), USB-C cable (charging and wired USB connection), neck lanyard, retractable belt clip – no cradle needed: pairs directly with phones, tablets and PCs via Bluetooth; USB Bluetooth dongle (NLS-DG-R) and USB power adapter NOT included (optional) |
Prefer to scan straight from your finger? See the Newland WD4 ring scanner for fully hands-free scanning. Compare all models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
