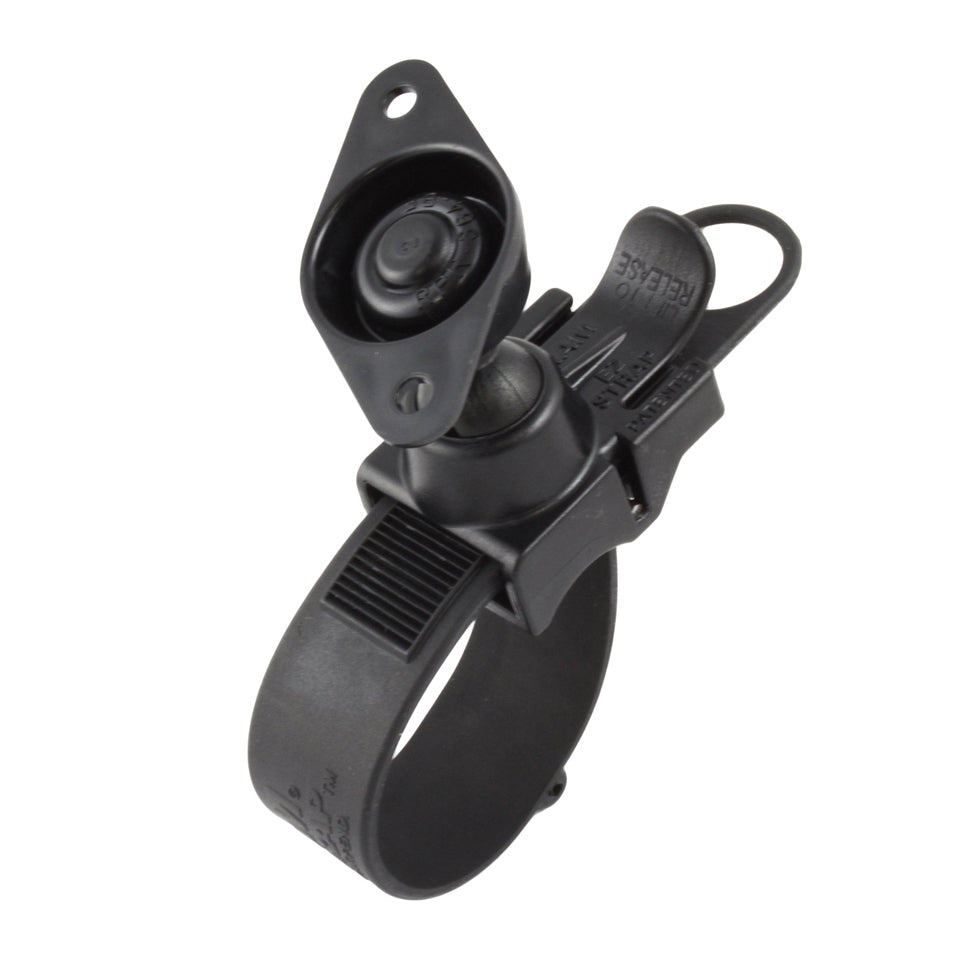

RAM Mounts EZ-Strap Rail Mount with Double Ball and Diamond Base Adapter (RAP-SB-187U)

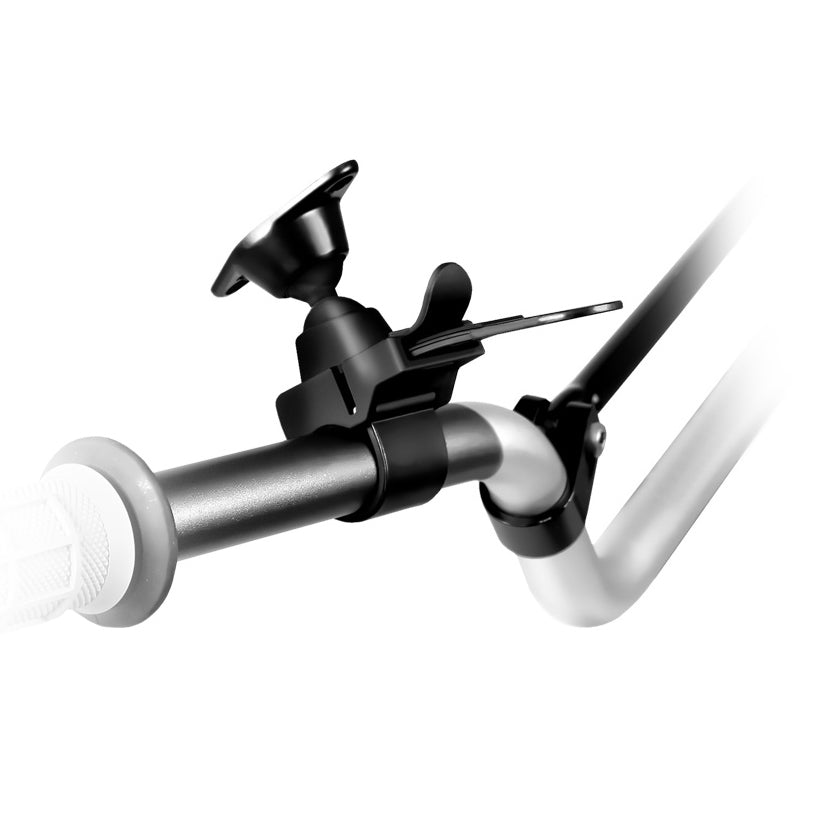

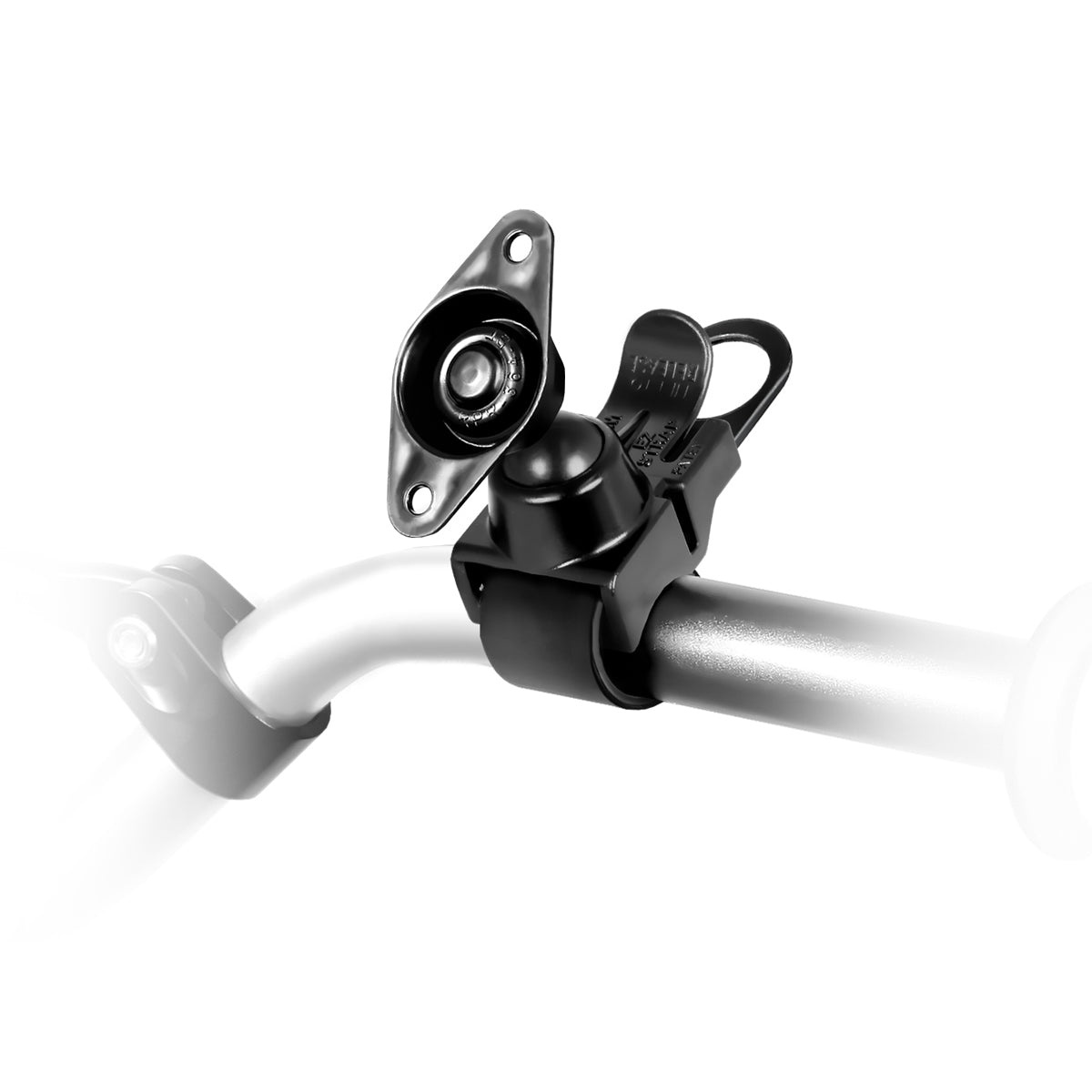

RAM Mounts EZ-Strap Rail Mount (RAP-SB-187U) is a quick, low-cost mount for small electronics such as phones, music players and GPS units on handlebars of motorcycles, bicycles, ATVs, golf carts and similar equipment. The EZ-Strap base installs in moments and grips round tubing, square rails and irregular shapes from 12.7 to 65.5 mm (0.5–2.58") without marking the bar. A short Snap-Link double ball arm – which can be cut to fit – carries a diamond plate that attaches directly to RAM cradles with the matching diamond pattern, and the mount rotates 180°.

Key Features

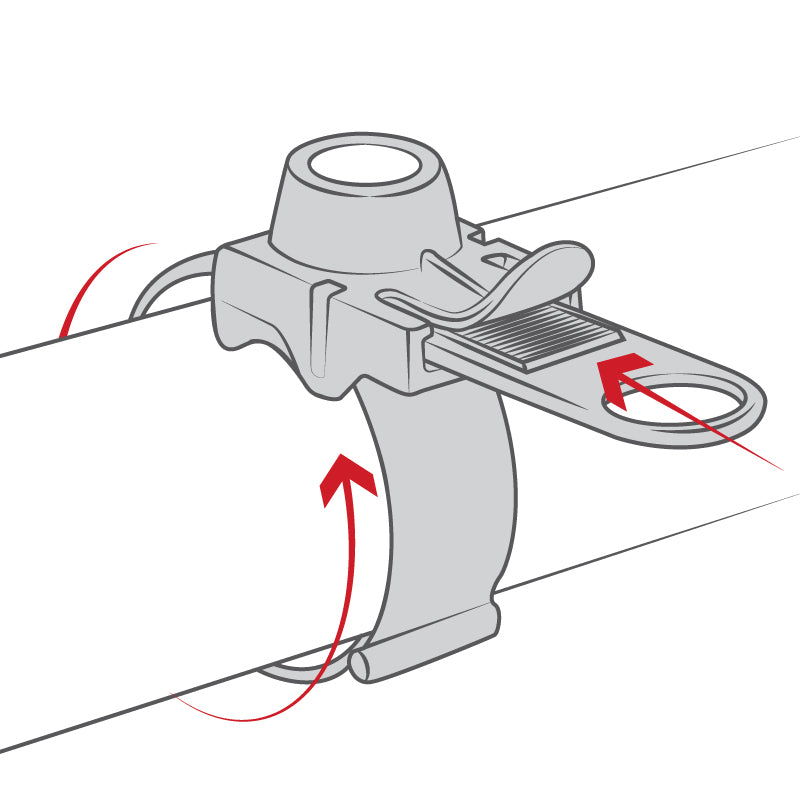

• EZ-Strap clamp – grips tubing, square rails and odd shapes 12.7–65.5 mm (0.5–2.58") without marking the bar

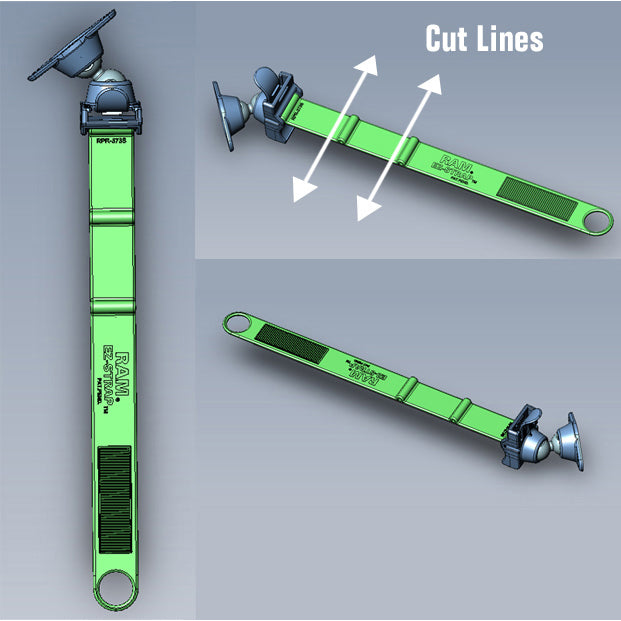

• Snap-Link 3/4" ball system – short double ball arm can be cut to fit; the mount rotates 180°
• Diamond plate – 2-hole diamond (AMPS) pattern 48.6 mm (1.912") for direct connection to RAM cradles
• Load rating – 0.5 lb (0.23 kg), for small electronics
• Lightweight and durable – high-strength composite, backed by RAM's lifetime warranty

Compatibility

• Handlebars, tubing and rails 12.7–65.5 mm (0.5–2.58")
• RAM cradles and holders with the 2-hole diamond pattern (48.6 mm / 1.912")
• Small electronic devices up to 0.5 lb (0.23 kg)

Technical Specifications
