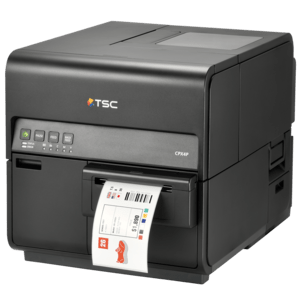

The TSC CPX4P (99-079A001-0002) is a high-speed 4-inch colour inkjet label printer with pigment ink, built for businesses that print short runs of durable full-colour labels in house – food and beverage, chemicals, healthcare, retail, logistics and manufacturing. Its fixed line print head prints in a single pass at up to 300 mm/s (11.8 ips) and 1200 × 1200 dpi, while pigment ink gives UV-, fade-, water- and abrasion-resistant labels – even GHS / BS5609 drum labels on qualified media. It handles media 25.4–120 mm wide on rolls up to 200 mm, connects via USB 2.0 and Gigabit Ethernet and comes with BarTender UltraLite.
📦 What's in the box – 99-079A001-0002
- ✅ TSC CPX4P printer – pigment ink, 1200 dpi, internal power supply
- ✅ Starter ink tanks (CMYK) – pigment ink, 105 ml per colour
- ✅ Power cord – the power supply is built into the printer
- ✅ Labelling software CD (BarTender UltraLite) – design colour labels and start printing right away
- ✅ Quick start guide – drivers and the TSC Color Management tool are a free download from TSC
- ❌ USB / network cable – NOT included – connect via USB 2.0 (type B) or Gigabit Ethernet – no cable in the box
- ❌ Auto-cutter – Optional – 98-0790001-00LF
- ❌ Labels – NOT included – TSC IJP inkjet media – see the compatible labels below
⚠️ Please note: no USB or network cable is in the box. Please order a USB A-to-B cable separately – e.g. the TSC SP-COM-0002 or the Honeywell 321-576-004 – or connect the printer to your network with a standard RJ45 patch cable.
💡 Useful extras: the TSC 98-0790001-00LF auto-cutter; replacement ink: only CPX4P pigment ink tanks (CPX-PK / PC / PM / PY, 240 ml) fit this printer – the CPX4D dye ink tanks are not compatible, so please contact us to order the right tanks; TSC inkjet labels such as the TSC 33-P080040-10AC.
Key Features
- Industry-leading speed – line print head architecture: only the media moves, up to 300 mm/s (11.8 ips) at 1200 × 600 dpi
- 1200 × 1200 dpi colour – crisp images, barcodes and text; TSC Color Management for accurate colour matching
- Durable pigment ink – UV- and fade-resistant, water-, alcohol-, abrasion- and smudge-resistant labels; GHS / BS5609-compliant output on qualified media
- High-yield 240 ml ink tanks – separate CMYK tanks (230 ml usable) mean fewer change-outs and lower cost per label
- Flexible media – 25.4–120 mm wide, labels from 6 mm long; die-cut, continuous and black-mark media on rolls up to 200 mm or fanfold; matte and glossy paper, PET and synthetic
- Gigabit Ethernet and USB 2.0 – fast transfer of full-colour jobs
- BarTender UltraLite included – design and print colour labels out of the box
- Optional auto-cutter (98-0790001-00LF) for cut labels, tags and tickets
Ideal Applications
- GHS-compliant chemical and drum labels (BS5609) on TSC IJP 600 media
- Food and beverage labels: fresh food, nutrition facts, wine and craft drinks
- Healthcare: medication instructions and prescription labels
- Retail product, shelf-edge, promotional and mark-down labels
- Logistics shipping labels with colour coding
- Event passes, tickets, ID badges and name stickers
Technical Specifications
| Part Number | 99-079A001-0002 |
|---|---|
| Model | TSC CPX4P (CPX4 series) |
| Printer Type | 4-inch colour inkjet label printer, pigment ink |
| Print Technology | Fixed line print head – single pass, only the media moves |
| Ink | Pigment ink, CMYK – 240 ml ink tanks (230 ml usable; starter tanks 105 ml); TSC INK TANK CPX-PC / CPX-PM / CPX-PY / CPX-PK (CPX4D dye tanks do not fit) |
| Resolution | 1200 × 1200 dpi |
| Print Speed | Up to 300 mm/s (11.8 ips) at 1200 × 600 dpi |
| Max Print Width | 106 mm (4.17") |
| Max Print Length | 397 mm (15.63") |
| Media Width | 25.4–120 mm |
| Label Length | 6–400 mm |
| Media Thickness | 0.145–0.255 mm |
| Roll Diameter | Max. 200 mm (7.9") outer diameter |
| Core Size | 76.2 mm (3") |
| Media Types | Roll-fed or fanfold; die-cut (gap), black-mark and continuous; matte paper, glossy paper, PET film, synthetic – TSC IJP series inkjet media (IJP 600 for GHS / BS5609) |
| Sensors | Gap and black-mark sensors |
| Media Options | Optional auto-cutter (98-0790001-00LF) |
| Display | 8 LED indicators; 3 buttons (Pause, Feed, Back Feed) |
| Interfaces | USB 2.0 Hi-Speed, Ethernet 10/100/1000BASE-T |
| Wireless | Not available |
| Drivers & Software | BarTender UltraLite (included), Windows driver (Windows 10 / 8.1 / 7 SP1, 32/64-bit), TSC Color Management (colour matching) |
| Power Supply | Internal power supply, 100–240 V AC, 50/60 Hz, 1.4 A, 250 W |
| Dimensions (W × D × H) | 386 × 570 × 394 mm |
| Weight | 25.5 kg |
| Color | Black |
| Operating Temperature | +15 °C to +30 °C, 10–90% RH (non-condensing) |
| Storage Temperature | 0 °C to +35 °C, 5–85% RH (non-condensing) |
| Certifications | CE, FCC, UL |
| Warranty | 12 months (printer; consumables excluded) |
| In the Box | TSC CPX4P colour label printer (pigment ink, internal power supply), starter ink tanks CMYK (105 ml each), power cord, Windows labelling software CD (BarTender UltraLite), quick start guide – USB / Ethernet cable, labels and auto-cutter NOT included |
Comparing colour label printers for your production? Compare other models in our Colour Label Printers collection or contact our team for volume pricing.
