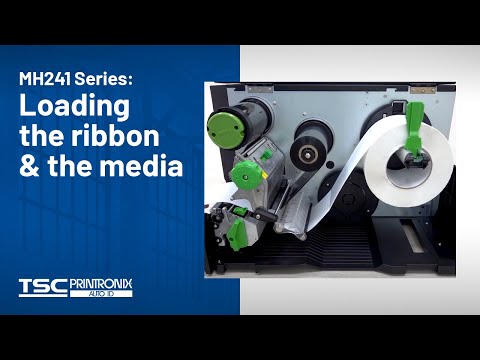

TSC MH241 Series: Loading the ribbon and the media

TSC MH241 Industrial Label Printer (MH241T-A001-0302)

Name: TSC MH241 Industrial Label Printer (MH241T-A001-0302)
Brand: TSC
SKU: tscmh241
Availability: InStock

1.261,26 € +VAT

Product variants

Resolution (dpi)

203300 600

Series

RewinderTear-off

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: In Stock
Vendor: TSC
Type: Industrial Printers
Barcode: MH241T-A001-0302
Collections: Industrial Label Printers , Label Printers

📄 Download Product Brochure (PDF)

TSC

TSC MH241 Industrial Label Printer (MH241T-A001-0302)

1.261,26 € +VAT

Description

Description

The TSC MH241T belongs to the MH241 Series – TSC's mainstream 4-inch industrial barcode label printer and the successor to the popular MH240. A die-cast print mechanism and base, a bi-fold metal cover with a large clear media window and a 4.3-inch colour touchscreen make it a dependable workhorse for production lines, warehouses and logistics centres. It prints in thermal transfer and direct thermal at 203 dpi and up to 356 mm/s, takes 203 mm (8-inch) label rolls and 600 m ribbons, and connects via USB, RS-232, Ethernet and two USB host ports as standard. This version, MH241T-A001-0302, is the Advanced model with the standard tear-off bar – peel-off, cutter and internal rewinder kits can be added later.

📦 What's in the box – MH241T-A001-0302

✅ TSC MH241T label printer – 203 dpi, built-in power supply 100–240 V
✅ Power cords – EU (Schuko) and UK (type G) plugs – use the one for your country
✅ USB cable – USB A to B, for connecting to your PC
✅ Windows labeling software and drivers – on CD – also a free download from TSC
✅ Setup guide – printed quick start guide
❌ Labels – NOT included
❌ Thermal transfer ribbon – NOT included
❌ Ethernet (LAN) cable – NOT included

✅ Ready to print out of the box – the power supply is built in, and the power cord and USB cable are included; you only need labels and a thermal transfer ribbon (direct thermal labels print without a ribbon). For a network connection, use the built-in Ethernet port with a standard RJ45 patch cable (not included).

💡 Useful extras: matching labels (TSC 38-T102102-10LF or Zebra 76180); ribbons up to 600 m (TSC P159049-001 or TSC P159079-001); upgrade options: peel-off kit (TSC PEL-MH241-0001), cutter (TSC CUT-MH241-0001), internal rewinder kit (TSC REW-MH241-0001), Wi-Fi + Bluetooth module (TSC WF-COM-2002), KP-200 Plus keyboard display (TSC KP-200 Plus).

Key Features

Industrial die-cast design – die-cast print mechanism and base, a bi-fold metal cover with a large clear media window and a full mechanism for fine adjustment.
4.3-inch colour touchscreen – intuitive multi-language menus with touch and six-button operation, plus LED status indicators.
Thermal transfer and direct thermal – up to 356 mm/s at 203 dpi with a maximum print width of 104 mm.
Large media capacity – label rolls up to 203 mm in diameter on 38/76 mm cores, media 20–114 mm wide; continuous, die-cut, black-mark, notched and fanfold media.
600 m ribbons – long ribbons on a 1-inch core mean fewer changes; ribbons coated inside or outside both work.
Multi-connectivity – USB 2.0, RS-232, 10/100 Ethernet and two front USB host ports as standard; optional slot-in Wi-Fi 802.11ac + Bluetooth 4.2 module and GPIO interface for applicators.
TSC Sense Care and remote management – self-diagnostic printhead care, near real-time status and warnings, plus SOTI Connect and TSC Console for remote fleet management.
Easy replacement of other brands – TSPL-EZD with EPL, ZPL, ZPL II and DPL emulation runs existing label formats without changes.
Upgrade options – regular, heavy-duty or care label cutter, peel-off kit, internal rewinder kit (5-inch OD), Wi-Fi + Bluetooth module, GPIO + parallel interface and KP-200 Plus keyboard display.

Ideal Applications

Manufacturing – work-in-process, product marking, compliance and industrial-duty labels
Transport and logistics – packing, order fulfilment, shipping and receiving, pallet labels
Warehousing – inventory, location and asset labels
Healthcare and pharma – specimen, pharmaceutical and asset tracking labels

All MH241 Versions

The highlighted row is the version you are currently viewing.

Part Number	Model	Resolution	Media Options
MH241P-A001-0302	TSC MH241P	203 dpi	Internal rewinder	View product
MH241T-A001-0302 (this version)	TSC MH241T	203 dpi	Tear-off	Viewing
MH341P-A001-0302	TSC MH341P	300 dpi	Internal rewinder	View product
MH341T-A001-0302	TSC MH341T	300 dpi	Tear-off	View product
MH641P-A001-0302	TSC MH641P	600 dpi	Internal rewinder	View product
MH641T-A001-0302	TSC MH641T	600 dpi	Tear-off	View product

Technical Specifications

Part Number	MH241T-A001-0302
Model	TSC MH241T (MH241 Series)
Printer Type	4-inch industrial barcode label printer – MH241 Series Advanced
Construction	Die-cast print mechanism and base; bi-fold metal cover with large clear media view window
Print Method	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 356 mm/s (14 ips)
Max Print Width	104 mm (4.09")
Max Print Length	25,400 mm (1,000")
Min. Label Length	5 mm (peel-off: 12.7 mm / 0.5")
Media Width	20–114 mm (0.79"–4.5")
Media Thickness	0.06–0.28 mm (2.36–11 mil)
Roll Diameter	203.2 mm (8") OD
Core Size	38.1 mm (1.5") or 76.2 mm (3"); 25.4 mm (1") with optional 1" core media spindle
Media Types	Continuous, die-cut, black mark (bottom or top), fanfold, notched, perforated, tags, care labels (outside wound)
Sensors	Gap transmissive (position adjustable), black mark reflective (bottom/top switchable, position adjustable), head open, ribbon encoder, ribbon end, media near-end
Ribbon	Max. 600 m, max. OD 90 mm, 1" (25.4 mm) core, ink coated outside or inside; width 25.4–114.3 mm
Media Options	Tear-off (standard); options: regular or heavy-duty guillotine cutter (factory), care label cutter, peel-off kit, internal rewinder kit 5" OD (dealer)
Interfaces	USB 2.0 (high speed), RS-232, internal Ethernet 10/100 Mbps, 2 × USB host (front, for scanner or PC keyboard); factory option: GPIO (DB15F) + Centronics parallel
Wireless	None as standard; options: internal Bluetooth 5.0 MFi (factory), slot-in Wi-Fi 802.11a/b/g/n/ac + Bluetooth 4.2 combo module (dealer)
Processor	32-bit RISC CPU
Memory	512 MB Flash, 256 MB SDRAM; microSD card reader for up to 32 GB
Real-Time Clock	Standard (plus buzzer)
Printer Languages	TSPL-EZD (compatible with EPL, ZPL, ZPL II, DPL)
Fonts / Character Sets	8 alphanumeric bitmap fonts; Monotype Imaging true type font engine with CG Triumvirate Bold Condensed scalable font; 0/90/180/270° rotation
Barcodes	1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC 2/5-digit add-on, MSI, Plessey, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post; 2D: PDF417, MaxiCode, DataMatrix, QR Code, Aztec
Display	4.3" colour LCD (480 × 272 pixels), resistive touchscreen, multi-language; 6 operation buttons; LED (green/red)
Options	Regular / heavy-duty / care label cutters, peel-off kit, internal rewinder kit, 1" core media spindle, cutter trays, Wi-Fi + Bluetooth module, internal Bluetooth 5.0 MFi, GPIO + parallel, KP-200 Plus keyboard display
Drivers & Software	Windows labeling software (CD) and drivers; TSC Console; SOTI Connect support; TSC Sense Care
Power Supply	Internal switching power supply: 100–240 V AC, 4–2 A, 50–60 Hz; output 243 W total
Dimensions (W × D × H)	276 × 502 × 326 mm
Weight	15.7 kg
Operating Temperature	0–40 °C, 25–85% RH non-condensing
Storage Temperature	−40–60 °C, 10–90% RH non-condensing
Certifications	FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC, ENERGY STAR; RoHS, WEEE
Warranty	Printer: 2 years; printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first)
In the Box	TSC MH241T printer (203 dpi, built-in power supply), power cords EU + UK, USB cable, Windows labeling software and drivers (CD), quick start guide – labels, ribbon and Ethernet cable NOT included

Which MH241 should you choose? 203 dpi is the fastest choice for barcodes and shipping labels, 300 dpi gives crisper small text and logos, and 600 dpi is made for micro labels and tiny 2D codes. Choose the Advanced (T) model with tear-off bar or the Premium (P) model with built-in internal rewinder. Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.
