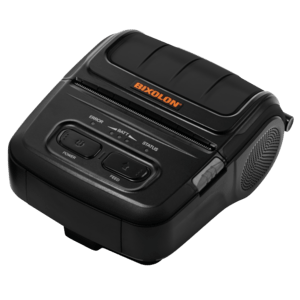

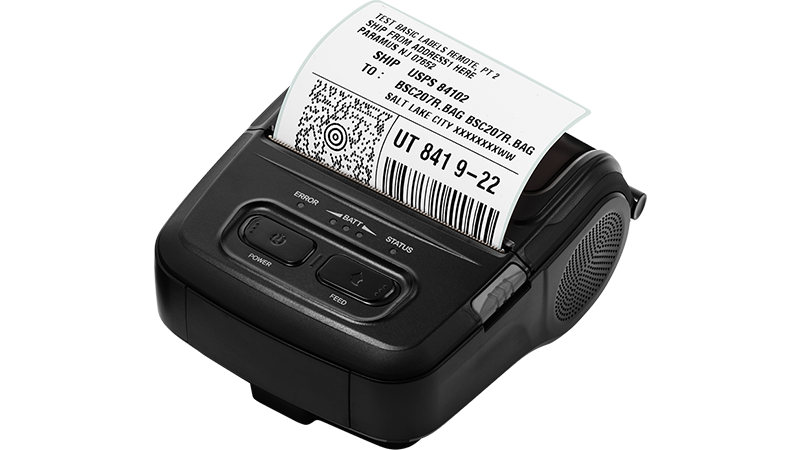

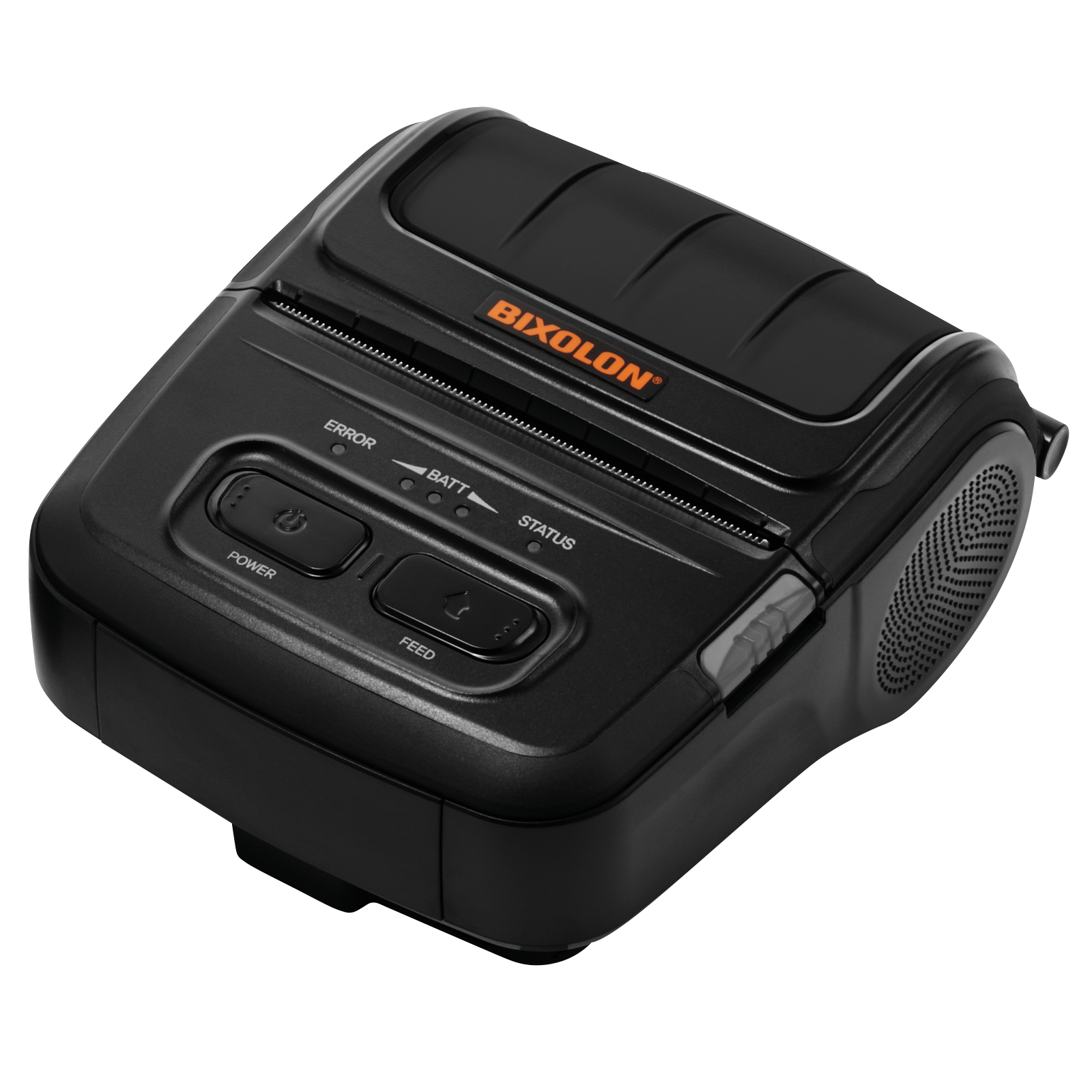

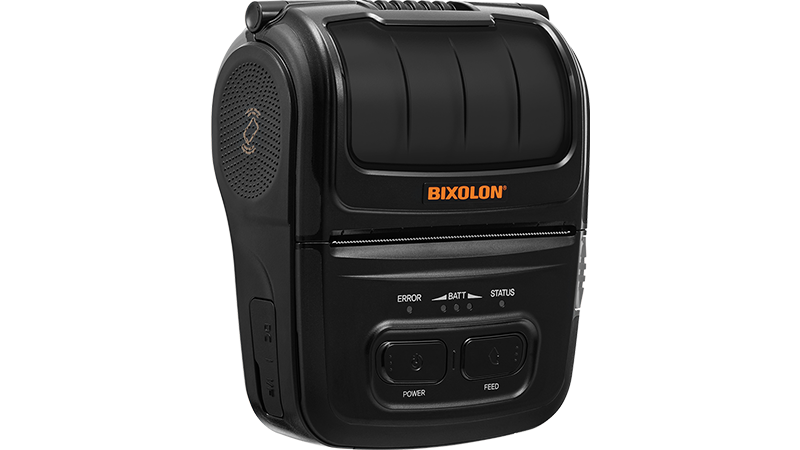

The BIXOLON SPP-L310K5L is a super-compact 3-inch mobile label printer for delivery, warehouse, retail and ticketing work. Weighing just 385 g, it prints 203 dpi direct thermal labels up to 72 mm wide at up to 102 mm/s and speaks BPL-Z™ (ZPL II) and BPL-C™ (CPCL), so existing label formats print as they are; IP54 sealing and a 1.8 m drop rating make it ready for the field. This version connects via USB and RS-232 only (no wireless module), and it has a silicone linerless platen for liner-free labels. Battery, charger with EU power cord and belt clip are in the box.
📦 What's in the box – SPP-L310K5L
- ✅ Printer – BIXOLON SPP-L310 – USB + RS-232 – linerless platen for liner-free labels
- ✅ Battery – Li-ion 7.2 V, 3200 mAh – rechargeable and removable
- ✅ Power supply / battery charger – charges the battery inside the printer (spare unit: PBC-1000)
- ✅ Power cord – EU plug, C7 connector
- ✅ Belt clip – for hands-free carrying on your belt
- ❌ USB cable – NOT included – PIC-R300U/STD
- ❌ Serial (RS-232) cable – NOT included – PIC-R300S/STD
- ❌ Labels – NOT included – no starter roll – order matching labels separately
- ❌ Case – Optional – PLC-R310/STD
- ℹ️ Drivers, SDKs & manuals – free download from BIXOLON (Windows, iOS, Android, mPrint app)
⚠️ Please note: no interface cable is included. This version connects by cable only – please order the BIXOLON USB cable PIC-R300U/STD (USB A to 14-pin) or the BIXOLON RS-232 cable PIC-R300S/STD (D-Sub 9-pin to 14-pin) separately.
🧾 Linerless version: this printer has a linerless platen for liner-free labels 79.5 mm wide (roll diameter up to 49 mm) and prints them at up to 102 mm/s. Linerless rolls in this width are supplied on request – please ask our team.
💡 Useful extras: a single battery cradle (BIXOLON PBD-R300/STD) or the BIXOLON PQC-R300/STD quad battery charger for spare batteries; the BIXOLON PUC-1000/STD USB power supply; the BIXOLON PCC-1000/STD vehicle charger for charging on the road; the BIXOLON PLC-R310/STD case; a vehicle holder (BIXOLON PVH-R310/STD or BIXOLON PVH-R310R/STD); matching labels (Zebra 3013759 (76.2 × 50.8 mm), Zebra 3013758 (54.5 × 38.1 mm)).
Key Features
- 3-inch labels in a pocket-sized printer – 80 mm media (narrower widths with the optional media holder or partition), 72 mm print width, 203 dpi, rolls up to 49 mm on a 19 mm core.
- Fast – up to 127 mm/s (5 ips) on labels, 102 mm/s on linerless media.
- Fits your existing software – BPL-Z™ (ZPL II), BPL-C™ (CPCL) and SLCS emulations, interchangeable without setting the mode.
- Super compact and light – 105 × 126 × 58 mm and only 385 g including battery.
- Built for the field – IP54 water and dust resistance, 1.8 m drop rating, −15 °C to +50 °C operating range.
- Accurate label positioning – transmissive gap sensor and reflective black-mark sensor, cover-open detection and easy drop-in paper loading.
- Easy connection – Easy Bluetooth Pairing™ via NFC on Bluetooth versions; USB 2.0 and RS-232 on every model; 128 MB SDRAM / 256 MB Flash.
- Developer-friendly – SDKs for iOS, Android, Windows, Linux and Chrome, Windows and CUPS drivers, OPOS, web driver, Label Artist™ Mobile and Label Artist™-II.
Ideal Applications
- Parcel and food delivery – address, order and bag labels
- Warehouse picking, bin and shelf labels
- Retail price and markdown labels on the shop floor
- Ticketing, parking enforcement and fines
- Field service – asset, meter and inspection labels
All SPP-L310 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Wireless | Linerless | |
|---|---|---|---|
| SPP-L310IAK5/BEG | Bluetooth 5.0 (MFi) | No | View product |
| SPP-L310IKL5/BEG | Bluetooth (MFi) | Yes | View product |
| SPP-L310K5 | None (wired only) | No | View product |
| SPP-L310K5L (this version) | None (wired only) | Yes | Viewing |
Technical Specifications
| Part Number | SPP-L310K5L |
|---|---|
| Model | BIXOLON SPP-L310 |
| Printer Type | 3-inch mobile direct thermal label printer with linerless platen |
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 102 mm/s (4 ips) on linerless media |
| Max. Print Width | 72 mm |
| Media Width | Linerless media: 79.5 mm |
| Roll Diameter | Max. 49 mm |
| Core Size | 19 mm (min.) |
| Media Thickness | 0.07–0.15 mm |
| Media Type | Linerless labels (silicone linerless platen); die-cut and black-mark labels |
| Sensors | Paper end, gap (transmissive), black mark (reflective), paper cover open |
| Interfaces | USB 2.0 + RS-232 serial (combined 14-pin port) |
| Wireless | None (wired USB + RS-232 only) |
| Memory | 128 MB SDRAM, 256 MB Flash (optional 256 MB SDRAM / 512 MB Flash) |
| Printer Languages | SLCS, BPL-Z (ZPL II compatible), BPL-C (CPCL compatible) – interchangeable without setting the mode |
| Fonts / Character Sets | 10 SLCS bitmap fonts + 1 scalable, 16 BPL-Z bitmap fonts + 1 scalable, 7 BPL-C bitmap fonts, 23 code pages, Unicode (UTF-8, UTF-16LE/BE); user-defined fonts, graphics, formats and logos |
| Barcodes | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2 of 5, UPC-A, UPC-E, UPC/EAN extensions, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Drivers & Software | Windows driver (Europlus / Seagull), Linux / Mac CUPS driver, virtual COM USB driver, OPOS driver, web driver, utility, Label Artist Mobile (Android, iOS), Label Artist-II, BarTender UL; SDKs for iOS, Android, Windows, Linux, Chrome |
| Mobile Printing | iOS (MFi), Android and Windows smartphones, tablets and handheld computers |
| Battery | Li-ion 7.2 V, 3200 mAh (current BIXOLON spec; earlier production: 7.4 V, 2600 mAh), removable; charging time under 4 h |
| Charging | In the printer with the supplied AC/DC charger; optional USB power supply PUC-1000/STD, vehicle (cigarette lighter) charger PCC-1000/STD, single battery cradle PBD-R300/STD, quad battery charger PQC-R300/STD |
| Dimensions (W × D × H) | 105 × 126 × 58 mm (W × D × H) |
| Weight | 385 g including battery |
| Color | Black |
| Operating Temperature | −15 °C to 50 °C |
| Storage Temperature | −30 °C to 70 °C |
| Humidity | 10–80% RH |
| Environmental Sealing | IP54 |
| Drop Specification | 1.8 m (6 ft) |
| Certifications | Energy Star (charger) |
| Warranty | 24 months |
| In the Box | BIXOLON SPP-L310 printer (USB + RS-232 (no wireless), linerless platen), Li-ion battery 7.2 V 3200 mAh (current BIXOLON spec; earlier units 2600–2850 mAh), AC/DC battery charger with EU power cord (C7), belt clip – USB cable (PIC-R300U/STD) and RS-232 cable (PIC-R300S/STD) NOT included – one of them is required, this version has no wireless; labels not included |
Need receipts as well? The BIXOLON SPP-R310 is the receipt-and-label model on the same compact platform and uses the same batteries, chargers, cases and vehicle holders. For larger 66 mm rolls, an LCD and a built-in peeler, see the BIXOLON SPP-L3000; BIXOLON's newer 3-inch generation is the BIXOLON XM7-30. Compare other models in our Mobile Label Printers collection or contact our team for volume pricing.
Available Versions
SPP-L310IAK5/BEG
Wireless
Bluetooth
Linerless
No
label printer, mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 80 mm, print width (max.): 72 mm, roll diameter (max.): 50 mm, speed (max.): 127 mm/s, Black Mark Sensor, Gap Sensor, USB, RS232, Bluetooth (iOS, class 5.0), RAM: 128 MB, Flash: 256 MB, emulation: ZPLII, CPCL, incl.: power supply unit, power cable, belt clip, battery, 2850mAh
SPP-L310IKL5/BEG
Wireless
Bluetooth
Linerless
Yes
label printer, mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 80 mm, print width (max.): 72 mm, roll diameter (max.): 50mm, speed (max.): 102 mm/s, USB, RS232, Bluetooth (iOS), linerless platen, Black Mark Sensor, Gap Sensor, emulation: ZPLII, CPCL, RAM: 128 MB, Flash: 256 MB, incl.: power supply unit, power cable, belt clip, battery, 2850mAh
SPP-L310K5
Wireless
None
Linerless
No
label printer, mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 80 mm, print width (max.): 72 mm, roll diameter (max.): 50mm, speed (max.): 127 mm/s, USB, RS232, Black Mark Sensor, Gap Sensor, emulation: ZPLII, CPCL, RAM: 128 MB, Flash: 256 MB, incl.: power supply unit, power cable, belt clip, battery, 2850mAh
SPP-L310K5L
Selected
Wireless
None
Linerless
Yes
label printer, mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 80 mm, print width (max.): 72 mm, roll diameter (max.): 50mm, speed (max.): 102 mm/s, USB, RS232, linerless platen, Black Mark Sensor, Gap Sensor, emulation: ZPLII, CPCL, RAM: 128 MB, Flash: 256 MB, incl.: power supply unit, power cable, belt clip, battery, 2850mAh
