Datalogic Gryphon GFx4500 Customised Scan Modules (GFS4520-BKK1-RED)

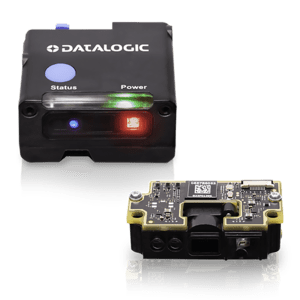

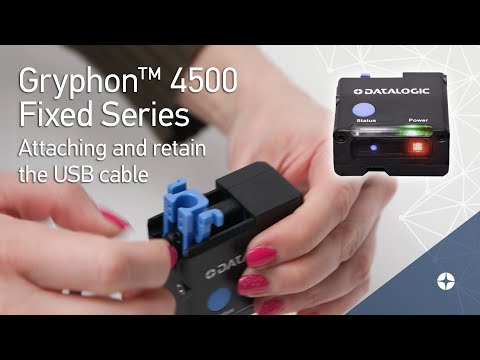

The Datalogic Gryphon GFx4500 scan modules (Gryphon 4500 Fixed Series) bring the reading performance of Datalogic's Gryphon 4500 handheld scanners to kiosks, smart lockers, ticket gates and other machines. A 1 MP sensor with wide-angle optics reads any 1D and 2D barcode – including codes on mobile phone screens – almost from contact, and 60 frames per second ensure first-pass reading of moving codes. Datalogic's ‘Green Spot’, a high-visibility top-front LED and a loud beeper give clear good-read feedback, and the 5-year factory warranty shows how long they are built to last. This version, GFS4520-BKK1-RED, is the USB kit: the compact black IP54 module with red illumination and a micro-USB port with cable locking clip, supplied with a 2 m micro-USB to USB cable – ready to connect to a PC, kiosk computer or POS system.

Key Features

• 1 MP sensor with wide-angle optics (51° × 32°) – reads 1D and 2D codes from almost contact up to 82 cm (EAN/UPC 13 mil)
• 60 frames per second and 70 IPS motion tolerance for first-pass reading of fast-moving codes
• Reads tickets, boarding passes, loyalty cards and coupons from paper and from mobile phone screens
• Red or warm white illumination with adjustable brightness; Blue Dot LED aimer; red illumination models also read Digimarc digital watermarks
• Datalogic ‘Green Spot’, high-visibility top-front LED and loud beeper with adjustable volume
• Compact module (GFS: 2.8 × 4.8 × 5.5 cm) with fixing points on several sides, or the housing-less GFE engine for fully integrated designs
• IP54 sealing, UV-protected scratch-resistant window, disinfectant-ready enclosure and 1.5 m drop rating
• USB, RS-232 or USB/RS-232 models; programmable digital input/output on GFS4550 and GFE4590
• Image capture and document scanning; configuration with Datalogic Aladdin, OPOS/JavaPOS utilities, remote host download
• 5-year factory warranty

Ideal Applications

• Self-service kiosks, totems and info points
• Smart lockers and parcel pick-up stations
• Airline self-check-in, ticket checkers, turnstiles and automatic gates
• Access control and reverse vending machines for recycling
• Auxiliary scanner at POS checkouts and price verifiers
• Print-and-apply label verification on automated equipment
• Chemical and biomedical analysis machines

All Gryphon GFx4500 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a PC or kiosk computer with USB, choose the GFS4520 – the kit GFS4520-BKK1-RED already includes the micro-USB cable. For serial devices, the GFS4550-BKK2-RED has a 2 m RS-232 cable built in, while the GFS4590-BK-RED works with USB or RS-232 depending on the Datalogic cable you plug in. The housing-less GFE4590-RED is meant for OEM designs where the engine is built fully into your own enclosure. Red illumination models also read Digimarc digital watermarks; the white-illumination GFS4520-BK-WHT gives a neutral, warm white light. Compare other models in our In-Counter Barcode Scanners collection or contact our team for volume pricing and custom colour or logo options.
