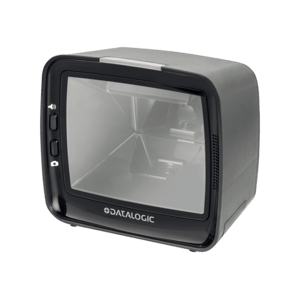

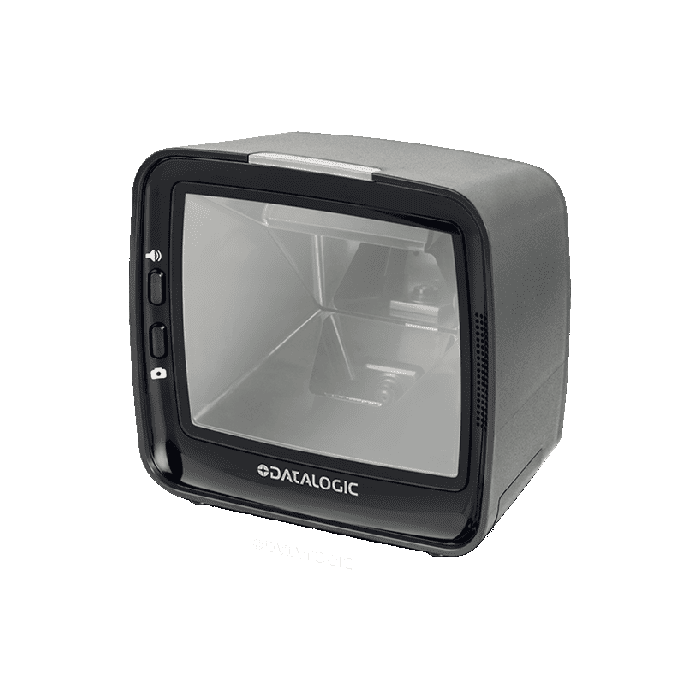

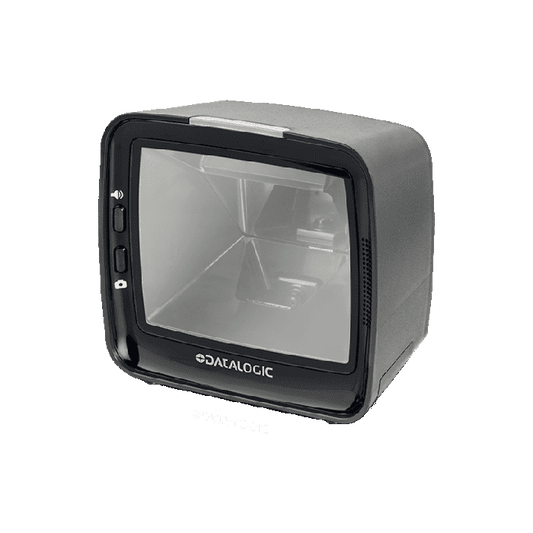

Datalogic Magellan 3410VSi Presentation Scanner (M3410-010200-00604)

The Datalogic Magellan 3410VSi is a compact vertical on-counter presentation scanner that brings high-performance digital imaging to the point of sale at an entry-level price. Its 1 MP imager reads 1D and 2D barcodes from paper labels and phone screens with a large field of view, supporting both fast sweep and presentation scanning. It powers from a single USB port, shares cables, mounts and housing with the Magellan 3450VSi, and comes with a 3-year Datalogic warranty. This version, M3410-010200-00604, comes with a 4.5 m USB Type A cable – ready to plug into a PC or POS system; a mount and power supply are not included.

Key Features

• Advanced digital imaging – a 1 MP (1280 × 800) sensor processes up to 30 million pixels per second, and the large field of view supports both fast sweep and presentation scanning; even truncated, out-of-spec and poorly printed codes are read with ease.
• 1D, 2D and mobile codes – reads all standard 1D codes, GS1 DataBar, PDF417, Data Matrix, QR and Aztec codes from paper and phone screens; support for Digimarc digital watermarks is available as an option.
• Powered by a single USB port – the scanner runs from one 5 V USB Type A connection (max. 2.25 W), so no power supply is needed for USB Keyboard operation.
• Easy to integrate – same cables, mounts and exterior plastics as the Magellan 3450VSi; multiple interfaces in every unit: USB Keyboard, USB COM, USB TEC, OEM (IBM) USB and RS-232.
• Customer Service Scanner ready – a powered USB auxiliary port for the optional Magellan Customer Service Scanner (CSS), so shoppers can scan phone screens, coupons and loyalty cards while the cashier keeps scanning items (the AUX port needs a power supply or 12 V host power; it is not enabled on a 5 V USB Type A host port).
• Loss prevention – compatible with Checkpoint Systems and Tyco Sensormatic EAS systems.
• Comfortable to use – subtle, adaptive illumination is easy on the eyes, solid-state electronics work silently and reliably, and the compact vertical design fits on a counter, on a wall or inside a small self-checkout.
• Enterprise features – image capture (BMP, JPEG), micro SD card slot, diagnostics reporting and remote management via OPOS, JavaPOS, Toshiba Remote Management (IBM Systems Director) and Wavelink Avalanche; configuration with Magellan Scanalyzer.
• Reliable every day – IP52 sealing, 25 kV ESD protection and a 3-year Datalogic factory warranty; EASEOFCARE service plans are available.

Ideal Applications

• Retail checkouts – grocery, convenience and specialty stores and pharmacies
• Small self-checkouts and kiosks
• Mobile coupons, loyalty cards and mobile marketing
• Age verification by reading 2D codes on ID documents
• Hospitality, ticketing and access control

All Magellan 3410VSi Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? All Magellan 3410VSi versions contain the same scanner and come with a cable. Choose a USB Type A version for PCs and most POS systems, the OEM (IBM) USB version for IBM/Toshiba POS terminals, and a version with the Table/Wall Mount for a fixed installation. If you need even higher throughput, also have a look at the Magellan 3450VSi. Compare other models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
