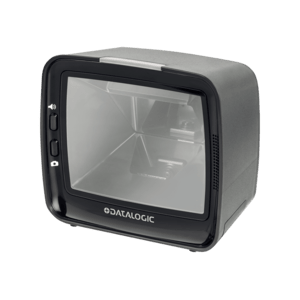

Datalogic Magellan 3450VSi Presentation Scanner (M3450-010200-07104)

The Datalogic Magellan 3450VSi is a high-performance vertical on-counter presentation scanner for busy checkouts. Its 1.3 MP digital imager processes up to 39 million pixels per second and matches the speed and large scan zone of a laser scanner, so cashiers can sweep items quickly or simply present them. It also reads 2D codes, mobile phone screens and – on the Digimarc model – digital watermarks. Outwardly identical to the entry-level Magellan 3410VSi, it delivers Datalogic's highest single-plane scanning performance and comes with a 3-year warranty. This version, M3450-010200-07104, is the RS-232 kit: it comes with a 4.5 m RS-232 cable (9-pin) and a 12 V power supply with EU power cord – ready for POS systems with a serial port; a mount is not included.

Key Features

• Top single-plane performance – a 1.3 MP (1280 × 1024) sensor processes up to 39 million pixels per second and matches the speed and large field of view of a laser scanner; it supports both fast sweep and presentation scanning and reads truncated, out-of-spec and poorly printed codes with ease.
• 1D, 2D, mobile and postal codes – reads all standard 1D codes, GS1 DataBar, PDF417, Data Matrix, QR, Aztec and postal codes from paper labels and phone screens; Digimarc Barcodes (GS1 DW Code) are read by the Digimarc model (M3450-010310-…).
• Multiple interfaces in every unit – OEM (IBM) USB, RS-232, USB Keyboard and USB COM; the interface is selected by the cable, and cables and mounts are shared with the Magellan 3410VSi.
• Customer Service Scanner ready – a powered USB auxiliary port connects the optional Magellan Customer Service Scanner (CSS) with omni-mount, so shoppers can scan phone screens, coupons and loyalty cards while the cashier keeps scanning items.
• Loss prevention – compatible with Checkpoint Systems and Tyco Sensormatic EAS systems.
• Comfortable to use – subtle, adaptive illumination is easy on the eyes, solid-state electronics work silently and reliably, and the audio speaker has adjustable tone and volume (supports .wav files).
• Enterprise features – image capture (BMP, JPEG), micro SD card slot, diagnostics reporting and remote management via OPOS, JavaPOS, Toshiba Remote Management (IBM Systems Director) and Wavelink Avalanche; configuration with Magellan Scanalyzer.
• Reliable every day – IP52 sealing, 25 kV ESD protection and a 3-year Datalogic factory warranty; EASEOFCARE service plans are available.

Ideal Applications

• High-volume retail checkouts – supermarkets, grocery and department stores
• Convenience and specialty stores and pharmacies
• Self-checkouts and kiosks
• Mobile coupons, loyalty cards and mobile marketing
• Age verification by reading 2D codes on ID documents

All Magellan 3450VSi Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? All Magellan 3450VSi versions contain the same high-performance scanner and come with a cable. Choose a USB version for PCs and most POS systems, an RS-232 version for POS systems with a serial port, the OEM (IBM) USB version for IBM/Toshiba POS terminals, a version with the Table/Wall Mount for a fixed installation, and the Digimarc model if your products carry Digimarc Barcodes. For lower volumes, the outwardly identical Magellan 3410VSi is the entry-level alternative. Compare other models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
