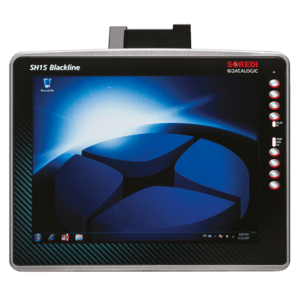

Datalogic SH15 Blackline Vehicle Terminal (94S151243)

The Datalogic SH15 Blackline is a rugged 15" Windows industrial computer for forklifts and other material-handling vehicles that also works as a fixed-mount workstation on the shop floor or at the loading dock. Its large projected-capacitive touchscreen with 3 mm anti-glare armoured glass can be used with gloves, the fan-less coated-aluminium housing is sealed to IP65/IP67, and Wi-Fi, Bluetooth 4.0, Gigabit Ethernet, four USB and two RS-232 ports connect scanners, printers and networks. This version, 94S151243, has a 110/230 V AC internal power supply for fixed installations on mains power, an Intel Core i5-5350U processor with 16 GB RAM and Windows Embedded Standard 7.

Key Features

• Large 15" touchscreen – XGA (1024 × 768) display with 400 nits and LED backlight; projected-capacitive multi-touch on 3 mm anti-glare armoured glass works even with gloves.
• Ready for fixed installations – the internal 110/230 V AC power supply makes it an ideal workstation for loading docks, production lines and packing stations; 12–48 V DC versions are available for vehicles.
• Rugged and sealed – fan-less coated-aluminium housing, IP65/IP67 protection against dust and water and shock and vibration resistance to EN 60721-3-5 class 5M3 for land vehicles; operates from −20 °C to 55 °C.
• Full Windows PC – Intel Core i5-5350U with 16 GB RAM, 32 GB CFast SSD and Windows Embedded Standard 7 run your existing Windows applications, browsers and terminal emulation (VT100, VT220, IBM 5250).
• All the connectivity you need – Wi-Fi 802.11a/b/g/n with Cisco CCX v4, Bluetooth 4.0, Gigabit Ethernet, 2 × RS-232 with 5/12 V for scanners, 1 × USB 3.0 plus 3 × USB 2.0, HDMI and an SDHC slot.
• Flexible mounting – VESA 75 pattern for the 10° vehicle bracket and 130° fixed bracket, the quick-change vehicle mount or RAM mounts; optional right-side 24-key keyboard.
• Protect your data – optional backup battery (UPS) for up to 30 minutes of runtime and optional motion sensor for screen blanking while the vehicle is moving.
• Easy to manage – Datalogic utilities, compatibility with leading MDM solutions and certified software such as SOTI, Wavelink and Topsystem Pick-by-Voice; EASEOFCARE service plans available.

Ideal Applications

• Forklifts and material-handling vehicles: receiving, put-away, picking and shipping
• Inventory, cross-docking and yard logistics
• Cold storage and harsh outdoor areas (−20 °C to 55 °C)
• Manufacturing shop floor: work instructions, technical drawings and videos
• Loading docks and packing stations (fixed mount)
• In-vehicle and truck computing, public safety

All SH15 Blackline Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Need an even larger screen for a fixed workstation? The Datalogic SH21 Blackline offers a 21" Full HD display. For a more compact vehicle computer, see the Datalogic Rhino II with 10.4" or 12.1" display. Compare all models in our Vehicle-Mount Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
