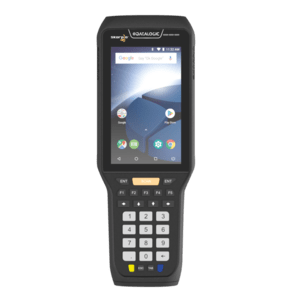

Datalogic Skorpio X5 Terminal (943500049)

The Datalogic Skorpio X5 is a fully rugged Android keypad mobile computer for warehouses, distribution centres, manufacturing and retail back-stores. It combines a 4.3" Gorilla Glass touchscreen – the largest in its class – with a backlit physical keypad, a Qualcomm SDA660 octa-core processor, Android 10 with Google Mobile Services (Android Enterprise Recommended), dual-band Wi-Fi 5, Bluetooth 5.0, IP65 sealing and 1.8 m drop resistance. This version, 943500049, is the pistol-grip model with a 38-key function-numeric keypad, the 2D near-far extra long range imager (XLR, reads up to 20 m) and 15 W wireless charging (no charging contacts); it ships with the high-capacity 6200 mAh battery.

Key Features

• Largest display in its class – 4.3" WVGA (800 × 480) touchscreen with Gorilla Glass 3, high brightness for indoor and outdoor use, works with gloves and stylus.
• Physical keypad for fast data entry – 28-key numeric, 38-key function-numeric or 47-key alphanumeric layouts, all backlit; this version has the 38-key function-numeric keypad.
• 2D near-far extra long range imager (XLR, DE2172-AF) – reads from close range up to 3.2 m on 13 mil EAN and up to 20 m on 100 mil Code 128, even damaged or covered labels on high racking; also reads DotCode and takes pictures.
• 15 W wireless charging – a fully contactless device with no charging pins to clean, corrode or break, for lower maintenance costs; USB-C (USB 3.1) for charging and data.
• Full-shift power – removable, hot-swappable Li-ion battery (standard 3500 mAh or high-capacity 6200 mAh) with the Datalogic Battery Manager app for 24/7 operation.
• Built for tough environments – IP65 sealed, repeated 1.8 m drops to concrete, 2,000 tumbles at 1 m, chemical-resistant housing for frequent cleaning and disinfection, −20 °C to 50 °C operating range.
• Powerful Android platform – Qualcomm SDA660 2.3 GHz, 4 GB RAM / 64 GB Flash, microSD up to 256 GB, Android 10 with GMS and support for two major OS upgrades.
• Fast, reliable wireless – dual-band 2x2 MU-MIMO Wi-Fi 5 (802.11ac) with 802.11r/k/v fast roaming and Bluetooth 5.0 with BLE (NFC is not available on the XLR model).
• Ready for enterprise deployment – Scan2Deploy Studio and Android Zero-Touch staging, pre-licensed 42Gears device and browser lockdown, SoftSpot soft trigger, Zello PTT, StayLinked / Ivanti terminal emulation and all major MDMs.

Ideal Applications

• Warehousing and distribution: receiving, put-away, replenishment, picking and shipping
• Forklift operations, truck loading and unloading, high-rack inventory
• Retail back-store: price checks and updates, store inventory, replenishment and online order fulfilment
• Manufacturing and intralogistics: work orders, kitting, quality control and traceability
• Transport and logistics: returns, parcel and baggage handling
• Healthcare logistics and pharmacy: goods receiving, inventory and batch tracking

All Skorpio X5 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The Skorpio X5 succeeds the Datalogic Skorpio X4. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
