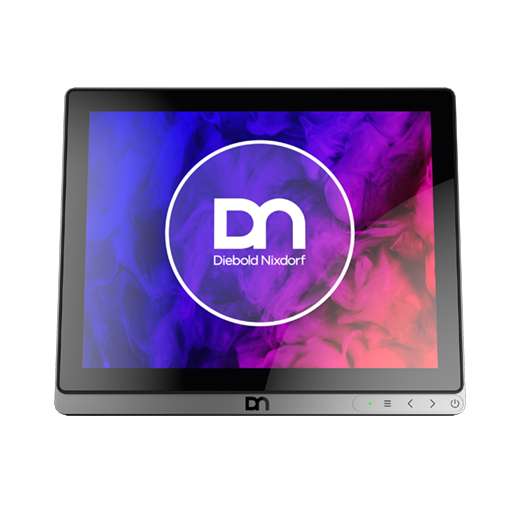

Diebold Nixdorf D1104 10.4" Touch Customer Display, Black (CRBAS-D1104-BPCT)

The Diebold Nixdorf D1104 is a 10.4" POS display from the D1000 family with a slim, frameless aluminium housing and a durable glass surface, designed for checkouts as an operator or customer display. Its 800 × 600 LED-backlit panel (4:3, 350 cd/m², contrast 700:1) with an anti-glare surface presents prices, receipts and promotions clearly. A single USB-C cable carries power, video and data – ideal with DN Series BEETLE systems – and a DVI-D/PanelLink 2 port is available for existing installations. This version, CRBAS-D1104-BPCT, is the 10.4" D1104 in black with 10-point PCAP touch – a compact 4:3 screen that can also be mounted as a second display. It is supplied as the display unit only – the connection cable, power supply, power cord and stand or mount are ordered separately.

Key Features

• USB-C single-cable connection – one USB-C cable carries power, DisplayPort video and data – the successor to PoweredUSB and PanelLink 2
• 800 × 600 LED-backlit panel – 4:3 format, 350 cd/m² brightness and 700:1 contrast for crisp text and graphics
• 10-point PCAP multi-touch – smartphone-like operation for operator and self-service applications
• Robust aluminium housing – slim, frameless design with a durable, non-reflective glass surface that is easy to clean
• DVI-D / PanelLink 2 port – for connection to existing POS systems alongside USB-C
• VESA 75 and second-display mounting – use on a stand or pole, or as a second display – e.g. back-to-back with a DN Series BEETLE A
• Low power, two colours – 4.7 W typical; available in black or silver to match DN Series POS systems

Ideal Applications

• Retail and grocery checkouts – as an operator or customer display
• Restaurants, cafés and hospitality – a robust screen for busy service counters
• Self-service and information terminals – interactive kiosks and service points
• DN Series BEETLE installations – single USB-C cable to the POS system and a unified DN Series design
• Promotions at the point of payment – advertising, loyalty and cross-selling messages at the checkout

Technical Specifications

Choose the D1104 (10.4", 4:3) for compact or second-display installations, the D1150 (15", 4:3) to keep the familiar POS format, or the D1156 (15.6", Full HD) with or without touch for the sharpest picture – each in black or silver. Compare all models in our Customer Screens collection, and contact us for volume pricing and project quotes.
