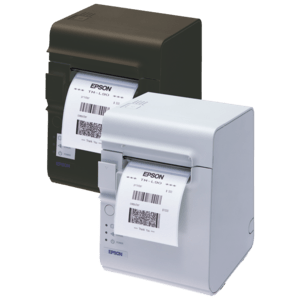

Epson TM-L90/TM-L90LF Desktop Label Printer (C31C412682)

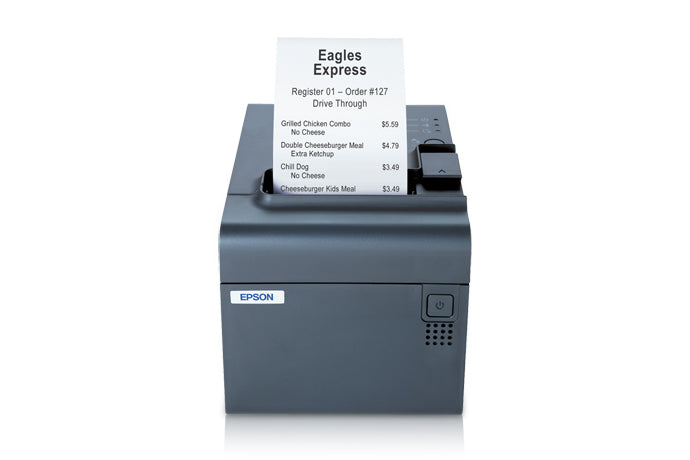

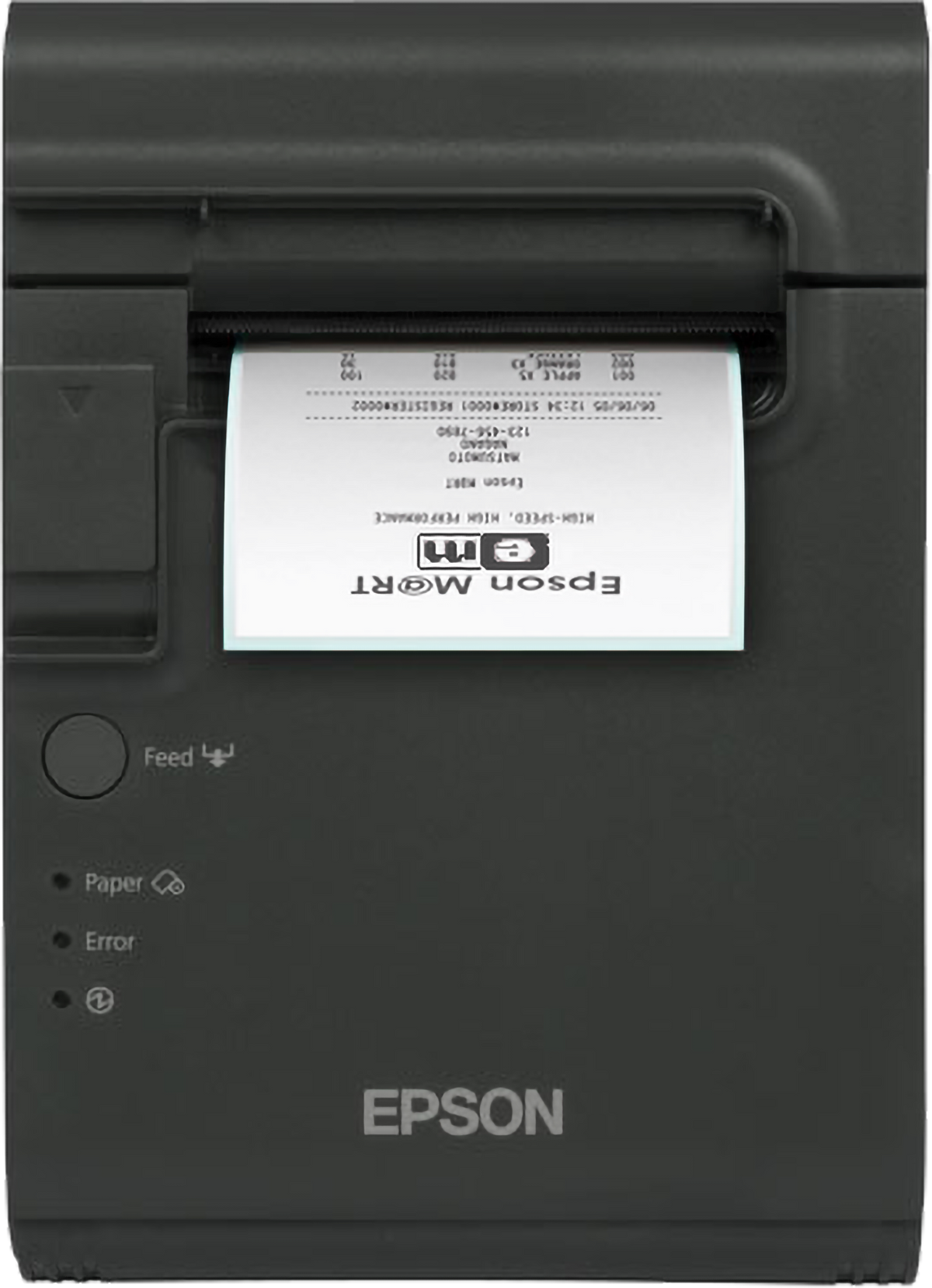

The Epson TM-L90LF is a compact, reliable thermal printer for liner-free labels and thermal receipts – ideal for quick-service restaurants, food delivery and takeaway, cafés, retail and logistics. Liner-free labels have no backing paper, so there is nothing to peel off and no liner waste to throw away. It prints receipts at up to 170 mm/s and liner-free labels at up to 90 mm/s in 203 dpi on 80, 58 or 40 mm media, takes rolls up to 102 mm in diameter, and its label-taken sensor prints the next label only when the previous one has been removed. This version, C31C412682, is the liner-free model with serial (RS-232) + built-in USB; it comes with an Epson PS-180 power supply – the power cord (C13) and interface cables are not included.

Key Features

• Liner-free labels – no backing paper, no waste – more labels per roll, nothing to peel off or dispose of, and variable label length, so every label is exactly as long as its content.
• Labels and receipts in one printer – prints liner-free labels (up to 90 mm/s) and standard thermal receipt paper (up to 170 mm/s) at 203 dpi on 80, 58 or 40 mm media, with automatic media type and paper width detection.
• One label at a time – the label-taken sensor prints the next label only after the previous one has been removed – perfect for busy kitchens and order stations.
• Media-saving features – the auto-cutter can cut through adhesive areas, automatic top-margin reduction, back feed and line-feed adjustment cut media consumption.
• Serial + built-in USB – connect it to a POS PC via USB or to POS systems via RS-232; the exchangeable Epson interface board (UIB) can later be swapped for Ethernet or parallel.
• Large 102 mm rolls – fewer roll changes at peak times.
• Upright, flat or on the wall – only 140 mm wide; install it vertically, horizontally or on a wall with the optional WH-10 bracket.
• Cash drawer support – the drawer kick-out port drives up to two cash drawers.
• Built for reliability – MTBF of 360,000 hours, a print head life of 150 km on receipt paper (75 km on liner-free labels) and a 12-month Epson warranty.

Ideal Applications

• Quick-service restaurants – kitchen order, cup and container labels as well as receipts
• Food delivery, takeaway and click & collect – bag and order labels with customer details
• Cafés, bakeries and canteens – product and allergen labels
• Retail – price and promotion labels plus receipts at the checkout
• Logistics – picking and parcel labels without liner waste

All TM-L90 / TM-L90LF Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which version should you choose? The TM-L90 (412) combines serial and built-in USB, the TM-L90 (465) adds Ethernet for network printing – both print labels with liner and receipts and include a starter label roll; 465A0 also includes a UK power cord. Choose the TM-L90LF (682) if you want to print liner-free labels. All versions include the PS-180 power supply; interface cables are ordered separately. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
