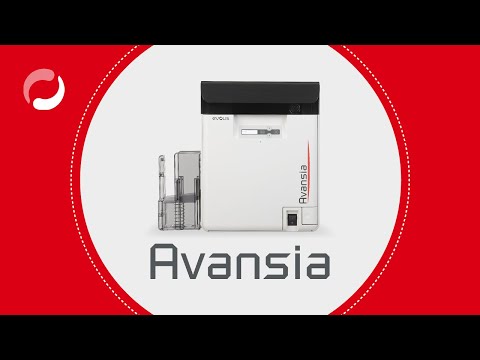

The Evolis Avansia AV1HB000BD is a dual-sided retransfer card printer for high-security, premium-quality cards: corporate and government ID, access-control and smart cards, university and membership cards. The image is printed at 600 dpi onto a transparent film and then fused onto the card, for true over-the-edge results – even on uneven surfaces such as chip or proximity cards and on PVC, PET, polycarbonate and ABS. It takes 250 cards per batch, prints up to 144 cards per hour and connects via USB and Ethernet. This version has a factory-fitted ISO magnetic stripe encoder (HiCo/LoCo, 3 tracks).
📦 What's in the box – AV1HB000BD
- ✅ Evolis Avansia card printer – 600 dpi, USB + Ethernet
- ✅ Factory-fitted encoder – ISO 7811 HiCo/LoCo, 3 tracks
- ✅ Power cord – the power supply is built into the printer – just plug it in
- ✅ USB cable – connect the printer straight to your PC (for Ethernet use a standard RJ45 patch cable – not included)
- ✅ Output hopper + reject tray
- ✅ Starter cleaning kit – for the first cleaning of the rollers and the card path
- ✅ Card design software licence – cardPresso XXS – design badges with photos, barcodes and database fields
- ✅ Quick installation guide – drivers (Evolis Premium Suite) and manuals are a free download from Evolis
- ❌ Ribbon – NOT included – choose a ribbon for the Avansia from the accessories below
- ❌ Retransfer film – NOT included – needed together with the colour ribbon (clear RT film, 500 prints)
- ❌ Blank cards – NOT included – CR80 cards to suit your application – see the accessories below
⚠️ Please note: no ribbon, no retransfer film and no blank cards are included. The Avansia needs a colour retransfer ribbon (e.g. Evolis color ribbon (YMCK) retransfer (RT4F010EAA)) plus the clear retransfer film Evolis retransfer film (RTCL009NAA), and blank cards such as Magnetic cards, HiCo (C4003).
💡 Useful extras: the Evolis S10293 lamination module for patches and varnish; the Evolis cleaning kit (ACL006) for regular cleaning; badge holders (Evolis Badge Holder (1455700)).
Key Features
- Retransfer printing at 600 dpi – photo-quality images, micro-text and fine guilloches, printed over the card edges
- Prints on almost any card – PVC, composite PVC, PET-F, PET-G, polycarbonate and ABS, even uneven chip and proximity cards
- Dual-sided as standard – 144 cards/hour single-sided (YMCK), 96 cards/hour dual-sided (YMCKK)
- Magnetic stripe encoder – ISO 7811, HiCo/LoCo, 3 tracks, encodes in the same pass
- 250-card feeder and output hopper – built for long print runs; integrated card flattener
- Secure consumables – RFID-keyed ribbons and film, UV printing with the YMCFK ribbon, Kensington® slot
- Lamination option – add the CLM module for patches, Smart Cut patches and varnish
- Lifetime print-head warranty – plus 3 years on the printer (with Evolis High Trust consumables)
Ideal Applications
- Government, corporate and high-security ID cards
- Smart cards and proximity cards for access control
- University, student and staff cards with photo-quality images
- Premium membership, loyalty and VIP cards
- Driving-licence-style and multi-layer secure documents with lamination
- Card bureaus producing small and medium card batches
All Evolis Avansia Versions
The highlighted row is the version you are currently viewing.
| Part Number | Encoder / option | Connectivity | |
|---|---|---|---|
| AV1H0000BD | – | USB, Ethernet | View product |
| AV1HB000BD (this version) | Magnetic stripe encoder | USB, Ethernet | Viewing |
Technical Specifications
| Part Number | AV1HB000BD |
|---|---|
| Model | Evolis Avansia Duplex Expert – magnetic stripe encoder |
| Printer Type | Retransfer plastic card printer (high-security ID cards) |
| Print Technology | Retransfer: dye-sublimation image printed onto a clear film, then heat-transferred to the card (over-the-edge) |
| Printing | Dual-sided as standard (duplex module) |
| Resolution | 600 dpi (23.6 dots/mm) |
| Print Speed | Up to 144 cards/hour single-sided (YMCK), 96 cards/hour dual-sided (YMCKK); with lamination module 133 / 79 cards/hour |
| Card Types | PVC, composite PVC, PET-F, PET-G, polycarbonate (PC) and ABS cards – including uneven chip and proximity cards |
| Card Thickness | 0.76 mm (30 mil) – capacities quoted for 30 mil cards |
| Card Format | ISO CR80 – ISO 7810 (85.6 × 54 mm) |
| Card Feeder / Hopper | Feeder 250 cards, output hopper 250 cards (0.76 mm); reject hopper 30 cards (models with encoders) |
| Encoding | Magnetic stripe encoder ISO 7811 (HiCo/LoCo, 3 tracks) – factory fitted |
| Ribbons | Evolis High Trust retransfer ribbons: YMCK 500, YMCKK 400, YMCKI 400 (chip / magnetic cards), YMCKH 400 (non-PVC), YMCFK 400 (UV); clear retransfer film 500 prints |
| Lamination | Optional Card Lamination Module for Avansia (S10293): clear patch, Smart Cut patch, varnish, holograms |
| Security | RFID-keyed ribbons and film; Kensington® slot; optional centralised lock for cards, ribbon and film; micro-text, guilloche and UV printing |
| Display | 2-line LCD with status LED |
| Interfaces | USB 2.0 (cable supplied), Ethernet 10/100 (TCP/IP) |
| Wireless | None |
| Drivers & Software | cardPresso XXS licence included; Evolis drivers for Windows |
| Power Supply | Mains powered: 90–125 V / 220–240 V AC, 50/60 Hz (power cord supplied) |
| Dimensions | 436 × 340 × 297 mm |
| Weight | 20 kg |
| Warranty | 3 years (printer), lifetime print-head warranty – with Evolis High Trust consumables |
| In the Box | Evolis Avansia retransfer card printer (dual-sided, 600 dpi, USB + Ethernet, factory-fitted magnetic stripe encoder ISO 7811 HiCo/LoCo), power cord, USB cable, output hopper + reject tray, cleaning materials, cardPresso XXS licence, drivers / quick-start guide – retransfer ribbon, retransfer film and blank cards NOT included (order separately) |
Looking for a lower-cost direct-to-card printer instead? See the Evolis Primacy 2. Compare other models in our Plastic Card Printers collection or contact our team for volume pricing.
Available Versions
| Part Number | Series | Price | ||
|---|---|---|---|---|
 |
AV1H0000BD | Standard | 3.851,35 €+VATOut of Stock | View |
 |
AV1HB000BDViewing | Magnetic stripe encoder | 4.301,80 €+VATOut of Stock |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
| Evolis color ribbon (YMCK) retransferRT4F010EAA | 172,48 €+VATIn Stock | ||
| Evolis color ribbon (YMCKK) retransferRT5F011EAA | 177,46 €+VATOut of Stock | View | |
| Evolis ribbon, YMCKIRT5F012NAA | 198,40 €+VATOut of Stock | View | |
| Evolis ribbon, YMCKH RTRT5F013NAA | 251,24 €+VATOut of Stock | View | |
| Evolis color ribbon (YMCFK) retransferRT5F014NAA | 182,44 €+VATOut of Stock | View | |
| Evolis retransfer filmRTCL009NAA | 51,84 €+VATIn Stock | ||
| Magnetic cards, HiCoC4003 | 111,52 €+VATOut of Stock | View | |
| Magnetic cards, LoCoC4004 | 88,09 €+VATOut of Stock | View | |
 |
Plastic cardsC4001 | 65,06 €+VATIn Stock | |
| Evolis cleaning kitACL006 | 34,02 €+VATOut of Stock | View | |
| Evolis UltraClean, cleaning kitA5011 | 17,82 €+VATOut of Stock | View | |
| Card Lamination Module (CLM)S10293 | 2.079,00 €+VATOut of Stock | View | |
| Evolis Clear PatchLPS032NAA | 111,17 €+VATOut of Stock | View | |
| Clear Smart Cut PatchLPS034NAA | 115,97 €+VATOut of Stock | View | |
| Evolis clear varnishLVA038NAA | 140,89 €+VATIn Stock | ||
| Cardpresso upgrade license, XXS - XSS-CP1005 | 168,40 €+VATIn Stock | ||
| Cardpresso upgrade license, XXS - XMS-CP1015 | 308,73 €+VATIn Stock | ||
| Cardpresso upgrade license, XXS - XLS-CP1025 | 776,51 €+VATIn Stock | ||
| Cardpresso upgrade license, XXS - XXLS-CP1035 | 1.805,61 €+VATIn Stock | ||
| Evolis Badge Holder1455700 | 30,71 €+VATIn Stock |
