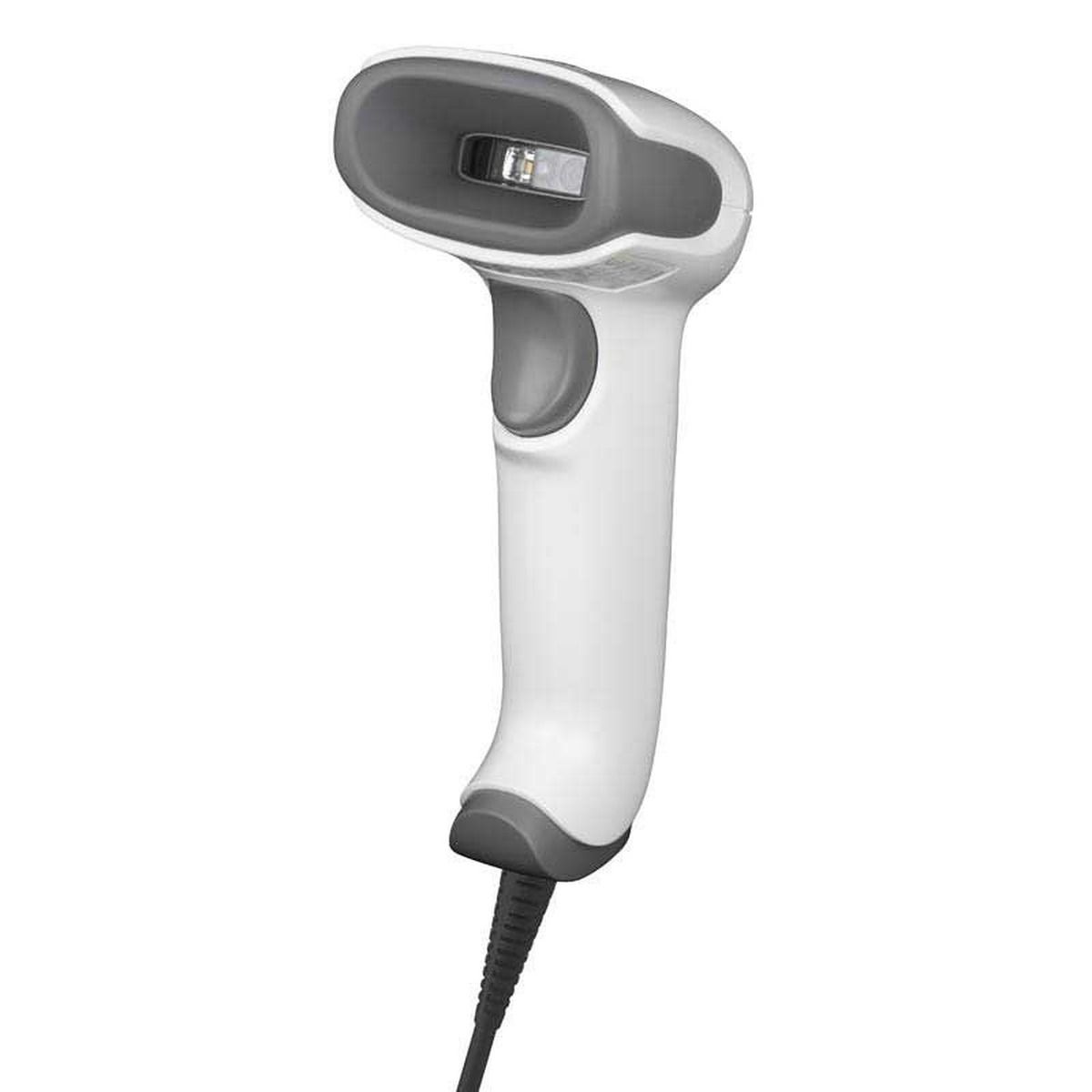

The Honeywell Voyager 1470g (Voyager XP 1470g) is a corded 2D handheld barcode scanner that reads damaged, poorly printed and on-screen barcodes – such as digital coupons and smartphone wallets – at the first attempt, with an extended scan distance that reaches items at the bottom of a shopping cart. It is backed by a 5-year Honeywell warranty. This version, 1470G2D-1USB-1-R, comes in white and is supplied with a 1.5 m USB cable and a Flex stand for hands-free scanning.
📦 What's in the box – 1470G2D-1USB-1-R
- ✅ Honeywell Voyager 1470g scanner – White
- ✅ USB cable – straight, 1.5 m, Honeywell CBL-500-150-S00

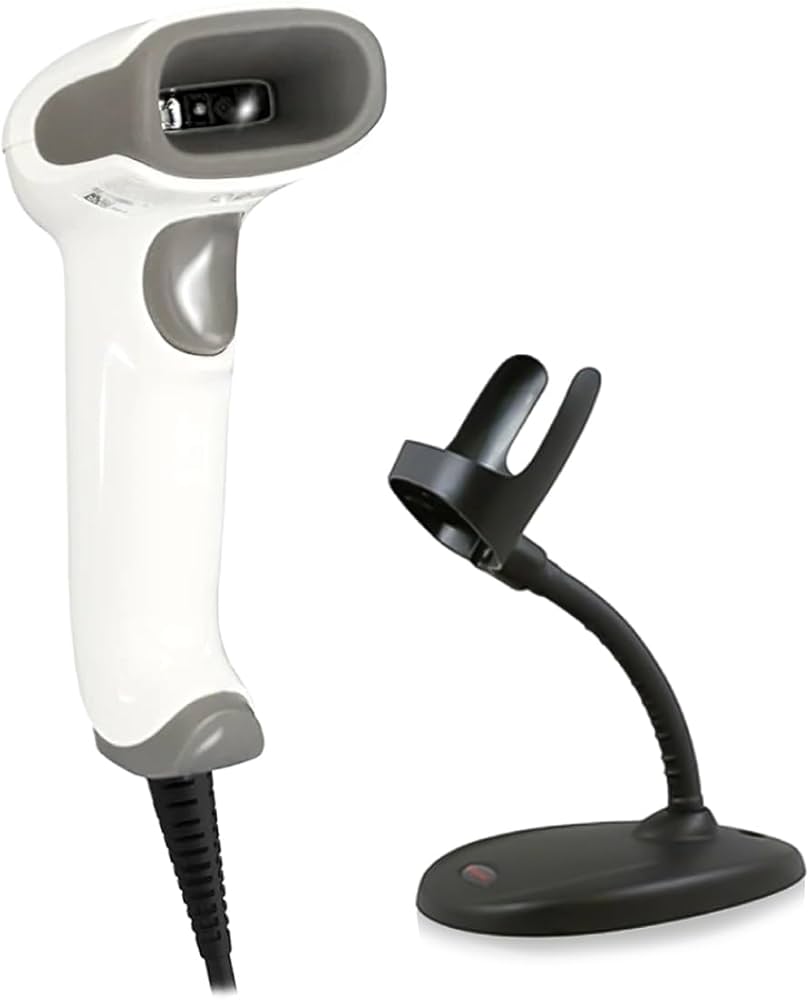

- ✅ Stand – for hands-free scanning
Key Features
- Reads damaged and on-screen barcodes – captures poorly printed, damaged and low-contrast 1D, PDF and 2D codes, plus codes on phone screens such as digital coupons and smartphone wallets.
- Extended scan distance – reads 13 mil UPC codes up to 40 cm away, so cashiers can reach items at the bottom of a cart without lifting them.
- Fast, intuitive scanning – omnidirectional 2D imaging with high motion tolerance (70 cm/s) keeps the checkout line moving.
- Built for busy counters – survives 30 drops from 1.8 m to concrete and 1,000 tumbles, IP52 sealed, with a 5-year (60-month) Honeywell warranty.
- Backward compatible – works with existing Voyager accessories such as stands and cables, protecting your investment.
- Easy management – Honeywell Scanner Management Utility (SMU) automates deployment and updates; Operational Intelligence provides device insights.
Ideal Applications
- Retail checkout and point of sale, including cart-based scanning
- Digital coupons, loyalty cards and mobile wallets on phone screens
- Pharmacies, healthcare desks and other frequently cleaned workplaces
- Service desks, ticketing and light warehouse tasks
All Voyager 1470g Versions
The highlighted row is the version you are currently viewing.
| Part Number | Color / Housing | Interface | Cable | Stand | |
|---|---|---|---|---|---|
| 1470G2D-2-R | Black | Multi-interface | ❌ Not included | — | View product |
| 1470G2D-2USB-R | Black | Multi-interface | USB, straight 1.5 m | — | View product |
| 1470G2D-2USB-EU | Black | USB only | USB, straight 1.5 m | — | View product |
| 1470G2D-2USB-1-R | Black | Multi-interface | USB, straight 1.5 m | ✅ Yes | View product |
| 1470G2D-6-R | Black, disinfectant-ready | Multi-interface | ❌ Not included | — | View product |
| 1470G2D-6USB-1-R | Black, disinfectant-ready | Multi-interface | USB, straight 1.5 m | ✅ Yes | View product |
| 1470G2D-1USB-R | White | Multi-interface | USB, straight 1.5 m | — | View product |
| 1470G2D-1USB-1-R (this version) | White | Multi-interface | USB, straight 1.5 m | ✅ Yes | Viewing |
Technical Specifications
| Part Number | 1470G2D-1USB-1-R |
|---|---|
| Model | Honeywell Voyager XP 1470g |
| Scanner Type | Corded handheld 2D area imager |
| Image Sensor | 1040 × 720 pixels |
| Field of View | 39.2° H × 27.4° V |
| Depth of Field (typical) | 5 mil Code 39: 20–205 mm; 13 mil UPC: 18–400 mm; 6.7 mil PDF417: 15–185 mm; 10 mil Data Matrix: 10–165 mm; 20 mil QR: 5–325 mm |
| Motion Tolerance | 70 cm/s (13 mil UPC at optimal focus) |
| Minimum Print Contrast | 15% |
| Roll / Pitch / Skew | ±180° / ±65° / ±70° |
| Symbologies | Standard 1D, PDF, 2D and DotCode (configuration dependent) |
| Host Interfaces | USB, Keyboard Wedge, RS-232, RS-485 (IBM 46xx) – interface depends on the cable used |
| Color | White |
| Housing | Standard |
| Dimensions | 62 × 169 × 82 mm (L × W × H) |
| Weight | 130 g |
| Input Voltage | 4.0–5.5 V DC |
| Current Draw | Operating: 2 W (400 mA at 5 V); standby: 0.45 W (90 mA at 5 V) |
| Environmental Sealing | IP52 |
| Drop / Tumble | 30 drops from 1.8 m to concrete; 1,000 tumbles at 0.5 m |
| Electrostatic Discharge | ±15 kV air, ±8 kV indirect |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 60 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Honeywell Scanner Management Utility (SMU), Honeywell Operational Intelligence |
| Warranty | 60 months |
| In the Box | Voyager 1470g scanner, USB cable (straight, 1.5 m, CBL-500-150-S00), stand |
Not sure which version you need? If you already have a compatible Honeywell cable, the scanner-only version is the most economical choice; for a new checkout, pick a USB kit – with the Flex stand if you also want hands-free scanning – and choose the disinfectant-ready housing for pharmacies and other frequently cleaned workplaces. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
Available Versions
1470G2D-1USB-1-R
Selected
Wired Interfaces
USB, RS232, Keyboard Wedge
Color
White
handheld scanner, 2D, imager, multi-interface (RS232, KBW, USB), IP40, incl.: cable (USB, straight, 1.5 m, black), stand, colour: white
163,22 €In Stock
1470G2D-1USB-R
Wired Interfaces
USB, RS232, Keyboard Wedge
Color
White
handheld scanner, 2D, imager, multi-interface (RS232, KBW, USB), IP40, incl.: cable (USB, straight, 1.5 m, black), colour: white
1470G2D-2-R
Wired Interfaces
USB, RS232, Keyboard Wedge
Color
Black
handheld scanner, 2D, imager, multi-interface (RS232, KBW, USB), IP40, order separately: interface cable, colour: black
1470G2D-2USB-1-R
Wired Interfaces
USB, RS232, Keyboard Wedge
Color
Black
handheld scanner, 2D, imager, multi-interface (RS232, KBW, USB), IP52, incl.: cable (USB, straight, 1.5 m), stand, colour: black
1470G2D-2USB-EU
Wired Interfaces
USB
Color
Black
handheld scanner, 2D, imager, connection: USB, incl.: cable (USB, 1.5 m, straight, black), IP40, colour: black
1470G2D-2USB-R
Wired Interfaces
USB, RS232, Keyboard Wedge
Color
Black
handheld scanner, 2D, imager, multi-interface (RS232, KBW, USB), IP52, incl.: cable (USB, straight, 1.5 m, black), colour: black
1470G2D-6-R
Wired Interfaces
USB, RS232, Keyboard Wedge
Color
Black
handheld scanner, 2D, imager, desinfectable housing, multi-interface (RS232, KBW, USB), IP40, order separately: interface cable, colour: black
1470G2D-6USB-1-R
Wired Interfaces
USB, RS232, Keyboard Wedge
Color
Black
handheld scanner, 2D, imager, desinfectable housing, multi-interface (RS232, KBW, USB), IP40, incl.: cable (USB), stand, colour: black
