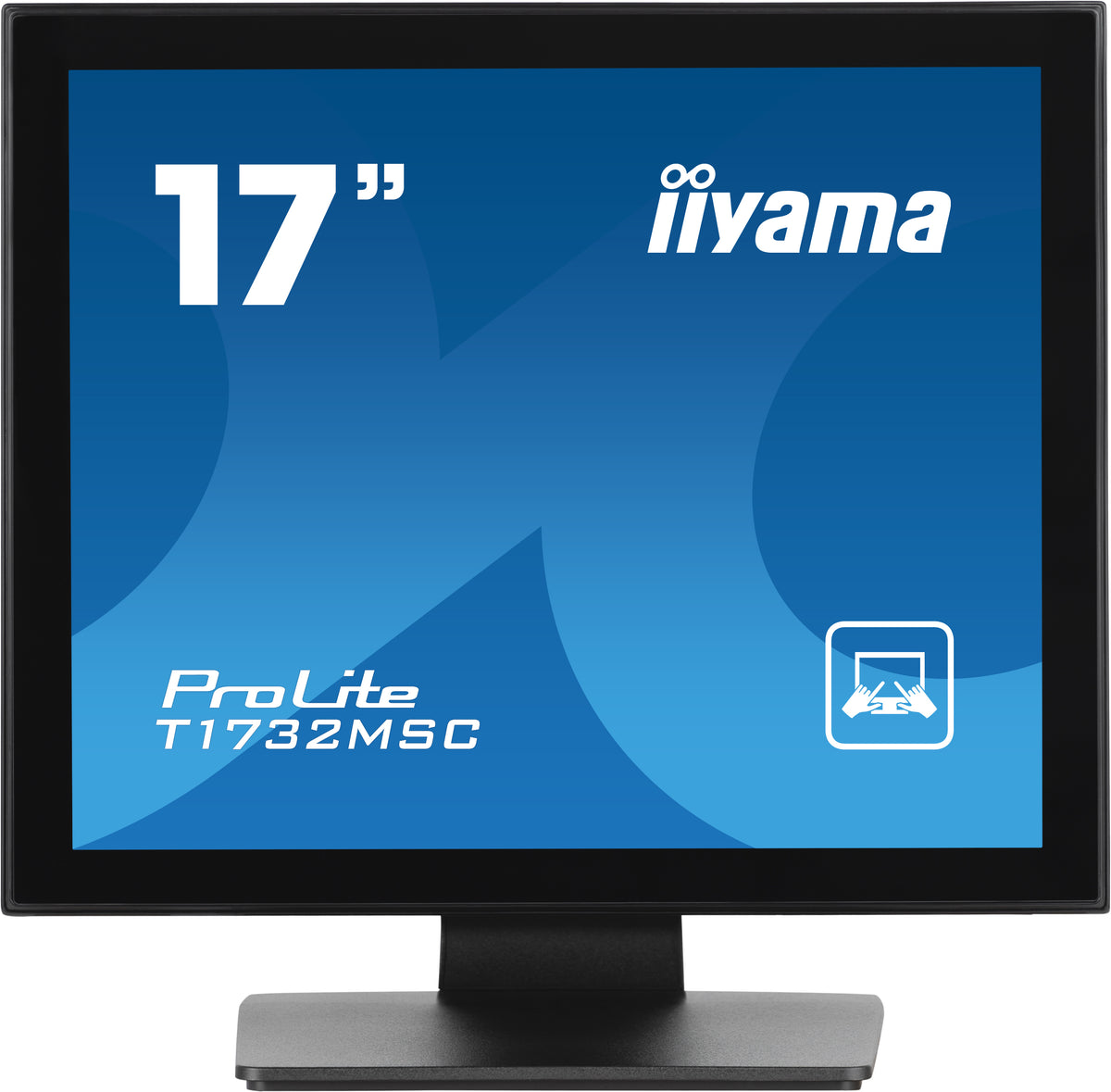

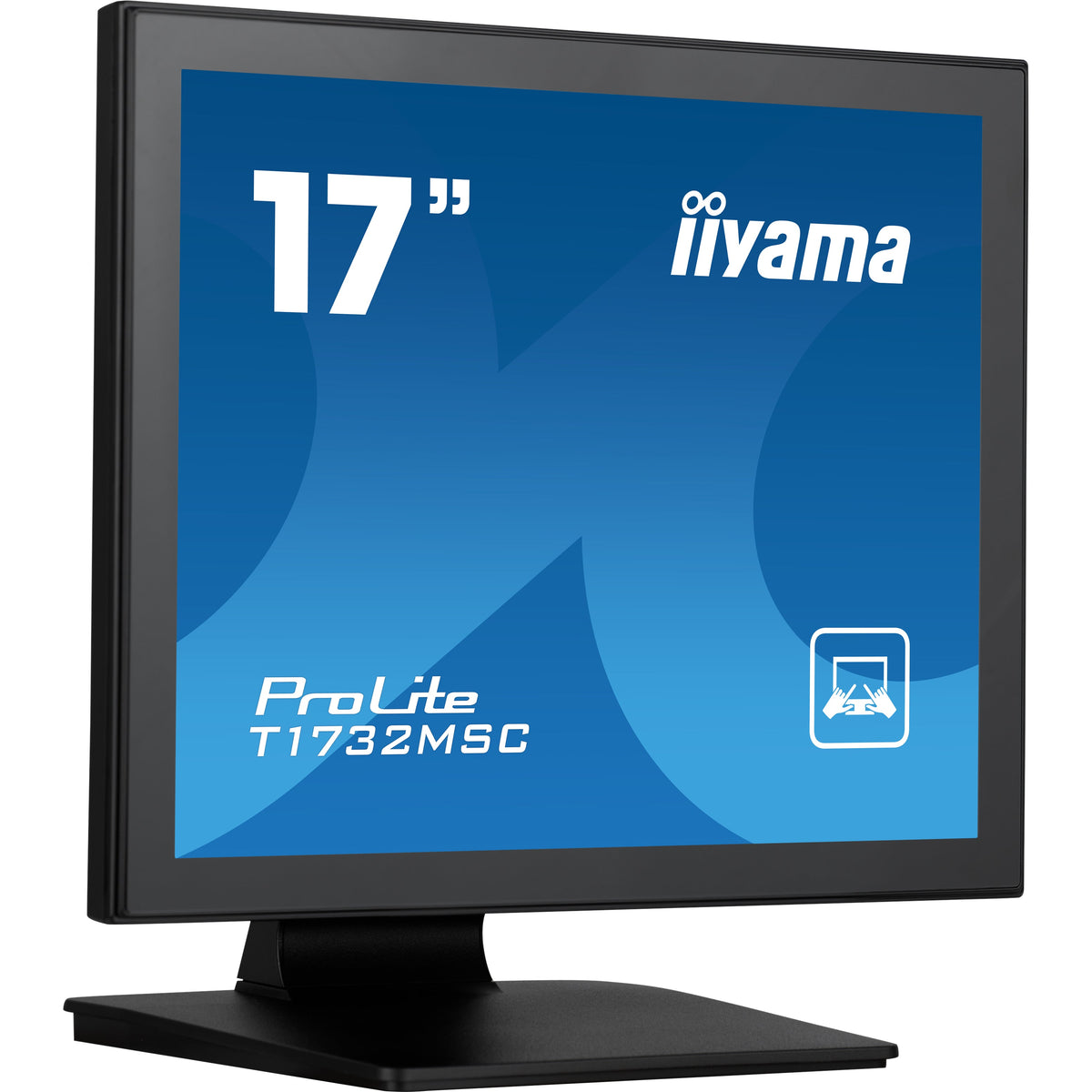

iiyama ProLite T1732MSC-B1S 17" Touch Monitor, PCAP 10-touch, SXGA 5:4, IP54 (T1732MSC-B1S)

The iiyama ProLite T1732MSC-B1S is a 17" professional touch monitor with 10-point projected capacitive (PCAP) touch and SXGA (1280 × 1024) resolution, built for POS counters, hospitality and self-service applications. Key specs at a glance – brightness 250 cd/m², contrast 1000:1, response time 5 ms, video inputs VGA, HDMI, DisplayPort. This version, T1732MSC-B1S, comes in the following configuration: black housing, flexible stand (tilt 90° up / 5° down) and built-in power supply. In the box: stand, power cable, USB cable, HDMI cable, audio cable, DisplayPort cable, cable cover and quick start/safety guides. A computer is not included – connect any PC, POS system or thin client via a video cable plus USB for touch.

Key Features

• 10-point PCAP touch – Projected capacitive touch reacts precisely to fingers, a capacitive stylus or latex gloves and supports Windows multi-touch gestures (HID, no driver needed on supported operating systems).
• IP54-sealed front – The front is protected against dust and splashing water, so the screen can be wiped down and disinfected daily in retail, hospitality or healthcare.
• Edge-to-edge glass – A flush, frameless glass front with no edges where dirt can collect – easy to clean and protecting the panel underneath.
• 5:4 aspect ratio – The classic 5:4 format with 1280 × 1024 resolution runs existing POS, ERP and industrial software without scaling or layout changes.

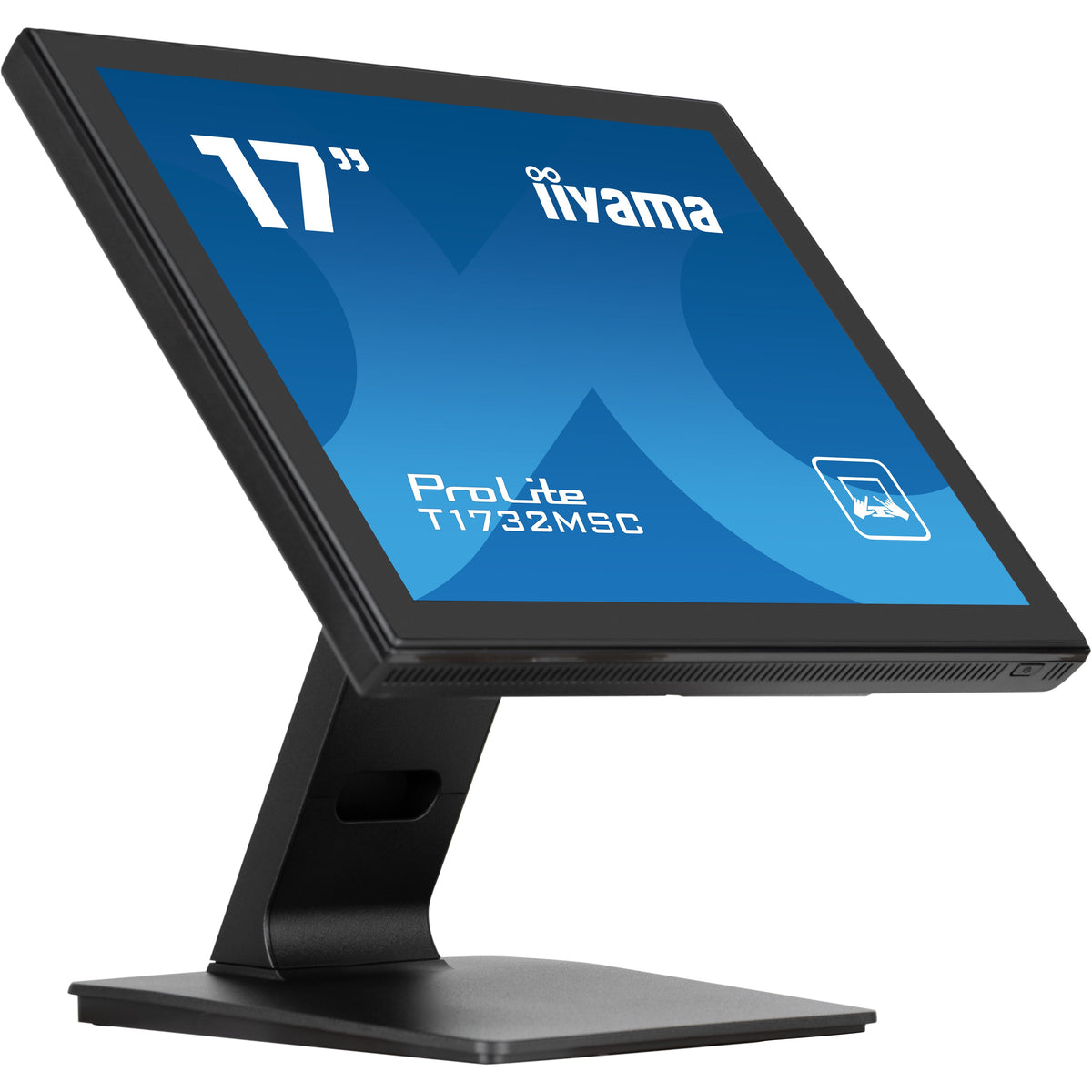

• Flexible stand, up to 90° tilt – The stand tilts from upright to almost flat (90° up / 5° down), so the monitor works at the counter, as a customer-facing screen or face-up on a desk; VESA 100 × 100 mm for mounting.
• Internal power supply – No external power brick under the counter – just one power cable, which simplifies installation and reduces clutter.
• Tamper-proof operation – Lockable menu buttons and OSD key lock prevent unauthorised changes, and the touch function can be switched off for cleaning.

Ideal Applications

• Retail POS & checkouts – cash-register and self-checkout screens that cope with constant touch and daily cleaning
• Hospitality – order entry in restaurants, bars and cafés, kitchen and bar terminals
• Self-service kiosks – ticketing, check-in, queue management and information terminals
• Healthcare & reception – patient registration and front desks that need frequent disinfection
• Industry & logistics – HMI panels, warehouse stations and production terminals

Technical Specifications

How to choose: the ProLite T-series spans 15" to 27". Pick a 4:3 or 5:4 model for existing POS software and Full HD or WQHD for modern applications; choose an IP54/IP65 front for daily wet cleaning, anti-glare (AG) glass for bright locations, and a height-adjustable or low-profile stand for signing and consultation. Browse the full range: Monitors – or contact us for volume pricing and project quotes.
