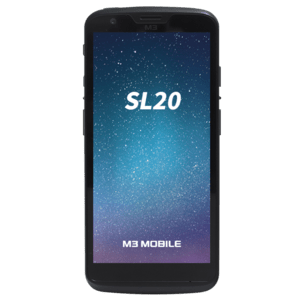

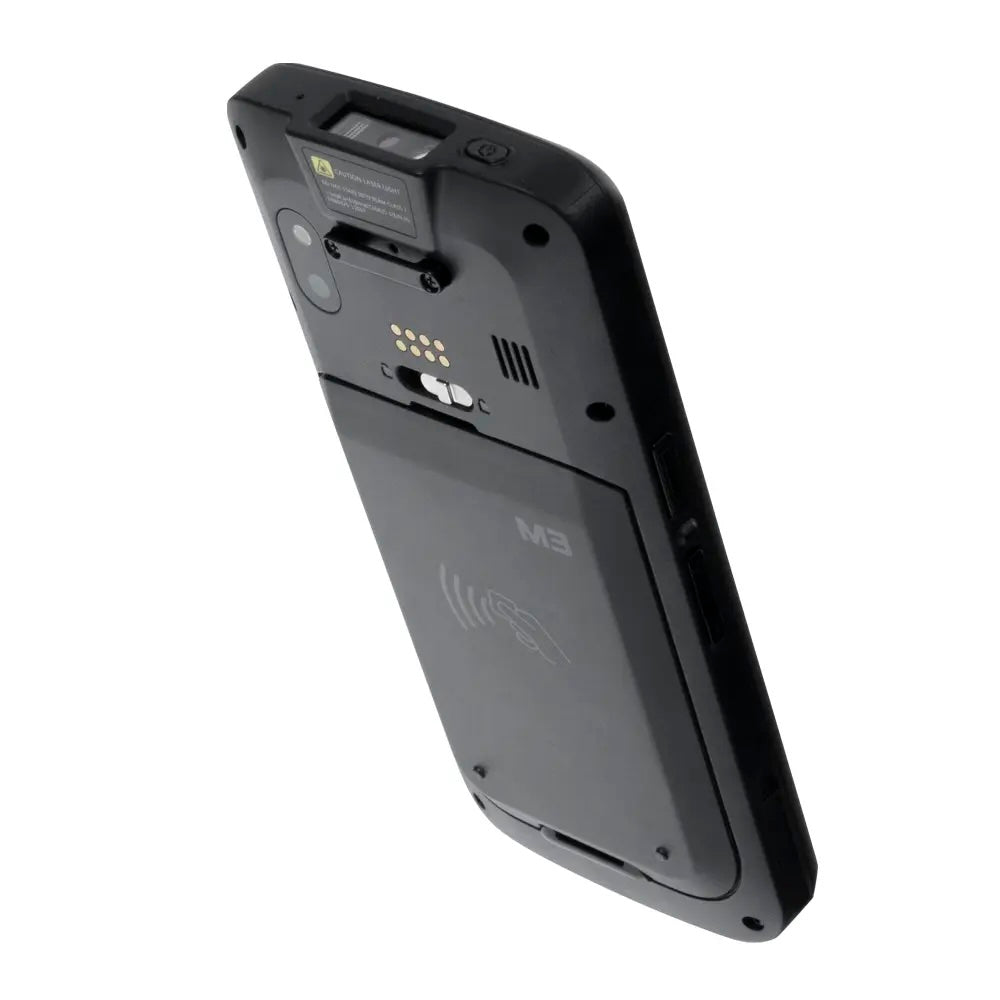

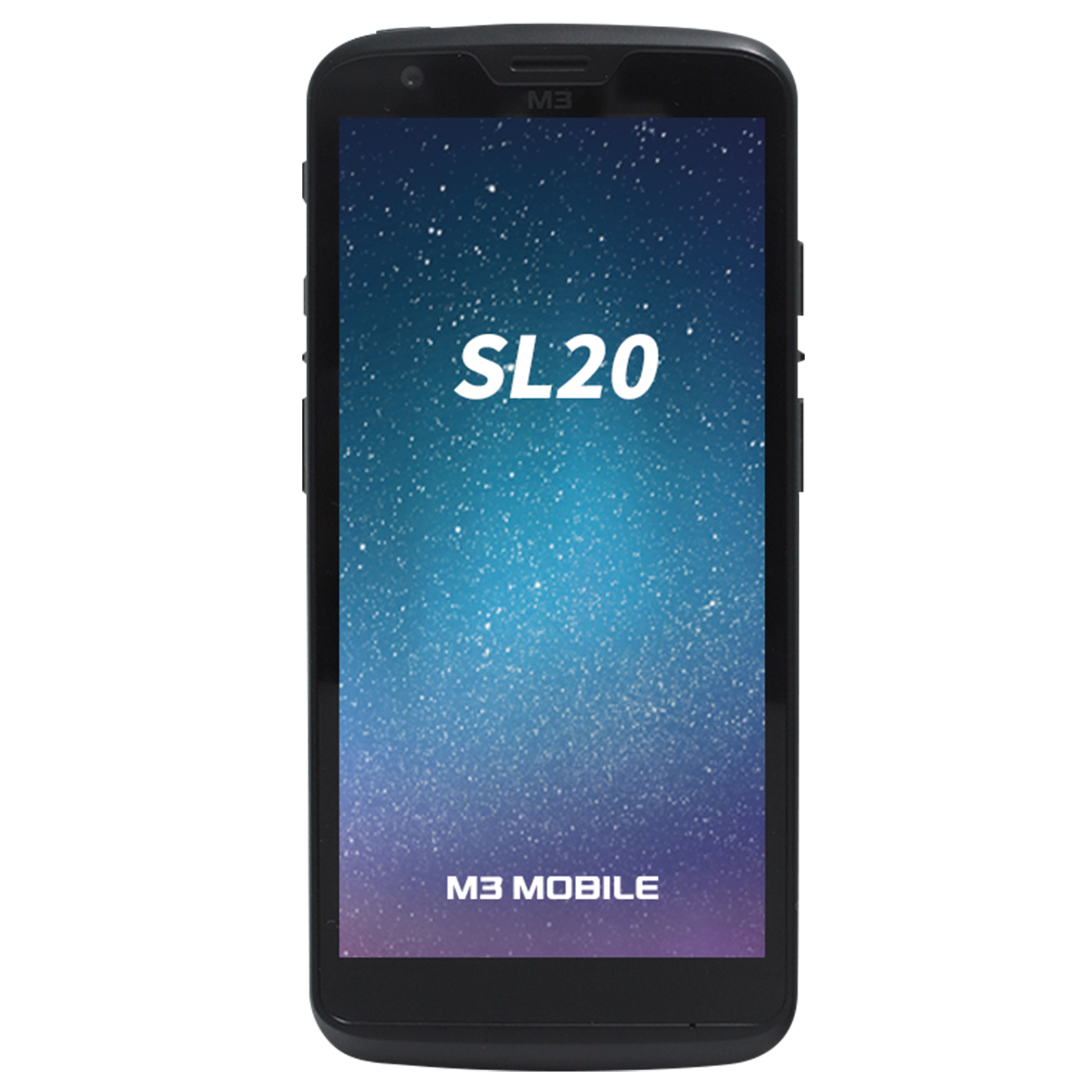

The M3 Mobile SL20+ is a slim, lightweight full-touch Android mobile computer with a 5.5" HD+ Gorilla Glass display, a built-in Zebra SE4710 2D imager, 4G LTE with GPS, Wi-Fi 5, NFC and a hot-swappable 5000 mAh battery – made for retail, delivery, field service and warehouse teams who want smartphone ergonomics with enterprise-grade scanning. This version, SL204C-T2CHSE-HF-01, is the current SL20+ with Android 13 (GMS, upgradeable up to Android 15), 4 GB RAM / 64 GB Flash and IP67 sealing.
📦 What's in the box – SL204C-T2CHSE-HF-01
- ✅ M3 Mobile SL20+ – mobile computer, black, 5.5" HD+, SE4710 2D imager, 4 GB / 64 GB
- ✅ Battery – 5000 mAh Li-ion polymer with battery cover, hot-swappable (SL20-BATT-E50)
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Hand strap
- ✅ Protective display film – fitted to the device
- ✅ Quick start guide – drivers, tools and user guides are a free download from M3 Mobile
- ❌ Charger / power supply – NOT included – needed to charge the battery – see the options below
- ❌ USB-C charging cable – NOT included
- ❌ Charging cradle – NOT included
- ❌ SIM card – NOT included – Nano SIM slot + eSIM – SIM card / data plan from your mobile operator
⚠️ Please note: no charger, charging cable or cradle is included. To charge the SL20+, please order separately: the M3 SL20-1CRD-C00 single-slot charging cradle with the M3 SL20-PWSP-2EU power supply (5 V / 3 A); the M3 SL20-2CRD-CC0 (USB) or M3 SL20-2CRD-EC0 (Ethernet) 2-slot cradle for the terminal plus a spare battery, with the same M3 SL20-PWSP-2EU power supply; or the M3 SL20-PWSP-CEU USB power adapter with a USB-A to USB-C cable (e.g. M3 UL20-CABL-UCA) – charges the SL20 directly.
💡 Useful extras: a spare battery for hot-swapping (M3 SL20-BATT-E50); 8-slot cradles for teams – M3 SL20-8CRD-C00 (charging) or M3 SL20-8CRD-E00 (Ethernet) with the M3 UNIV-PWSP-8EU power supply; the M3 SL20-TRIG-S00 trigger handle for scan-intensive work; the M3 SL20-BOOT-01 protective boot for extra drop protection; spare hand straps (M3 SL20-STRP-S10 or M3 SL20-STRP-S50); the M3 SL20-SCPR screen protector; the M3 SL20-VCRD-C01 vehicle charging cradle with a RAM mount (M3 UNIV-RAMT or M3 UNIV-RAMS); a service plan with fast repair and battery replacement (M3 SL20-SPST-FB2, M3 SL20-SPST-FB3 or M3 SL20-SPST-FB5).
Key Features
- Smartphone format, rugged build – only 17.55 mm thin and about 250 g, yet survives multiple 1.5 m drops to concrete (1.8 m with the rubber boot) and 1,000 tumbles at 0.5 m.
- SL20+ platform – 2.0 GHz octa-core processor, Android 13 with Google Mobile Services and an upgrade path up to Android 15, 4 GB RAM / 64 GB Flash and IP67 protection.
- Zebra SE4710 2D imager – fast reading of 1D and 2D barcodes (QR, Data Matrix, PDF417) from any angle, also from smartphone screens; five programmable side scan keys.
- 5.5" HD+ display (1440 × 720) – Corning Gorilla Glass, works with gloves and wet fingers; 13 MP rear and 5 MP front camera for photos and proof of delivery.
- Always connected – 4G LTE with VoLTE (nano SIM + eSIM), GPS/GLONASS/Galileo/BeiDou, dual-band Wi-Fi 5, Bluetooth 5.0 BLE and NFC with host card emulation.
- Hot-swappable 5000 mAh battery – up to 12 hours of operation; change the battery without switching off and without losing Wi-Fi, 4G or Bluetooth sessions.
- Complete accessory system – 1-, 2- and 8-slot charging cradles (USB or Ethernet), trigger handle, rubber boot, vehicle cradle and M3 service packages.
Ideal Applications
- Retail stores – stock and price checks, click & collect and mobile POS
- Parcel and courier delivery with photo proof of delivery and GPS
- Field service, maintenance and meter reading
- Warehouse picking, receiving and inventory
- Hospitality and events – order taking and ticket scanning
All SL20 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Version | Memory | Operating System | Sealing | |
|---|---|---|---|---|---|
| SL204C-R2CHSE-HF-01 | SL20 | 4 GB / 64 GB | Android 11 GMS | IP65 | View product |
| SL204C-T2CHSE-HF-01 (this version) | SL20+ | 4 GB / 64 GB | Android 13 GMS | IP67 | Viewing |
| SL204C-T2CHSE-HF-03 | SL20+ | 8 GB / 128 GB | Android 13 GMS | IP67 | View product |
Technical Specifications
| Part Number | SL204C-T2CHSE-HF-01 |
|---|---|
| Model | M3 Mobile SL20+ (SL20 Plus) – current SL20 generation, 4G LTE (X) model |
| Operating System | Android 13 with Google Mobile Services (GMS); upgradeable up to Android 15 (subject to technical feasibility); M3 StartUp for GMS control |
| Processor | Octa-core, 2.0 GHz |
| Memory (RAM / Flash) | 4 GB RAM / 64 GB Flash |
| Expansion | User-accessible microSD slot, up to 1 TB |
| Display | 5.5" HD+ colour display (1440 × 720), LED backlight, Corning Gorilla Glass |
| Touch Panel | Capacitive, dual input mode – finger and gloved finger; works with wet hands |
| Keypad | On-screen keypad; Back, Home and Menu keys |
| Buttons | 5 programmable side scan keys, power button |
| Scan Engine | Zebra SE4710 1D/2D imager (standard range); Code 39 20 mil: 5.1–76.2 cm, 4 mil: 8.4–22.4 cm |
| Rear Camera | 13 MP |
| Front Camera | 5 MP |
| Wi-Fi | Wi-Fi 5 – IEEE 802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, dual-band, 1×1 MU-MIMO; WPA/WPA2 Personal & Enterprise; fast roaming (PMKID, CCKM, 802.11r, OKC) |
| Bluetooth | Bluetooth 5.0 BLE, Class 2 |
| NFC | ISO 14443 A/B, ISO 15693, MIFARE, P2P, host card emulation (HCE) |
| Mobile Data (WWAN) | 4G LTE with VoLTE – LTE FDD B1/2/3/4/5/7/8/19/20/28, LTE TDD B38/40/41; UMTS/HSPA+ B1/2/3/4/5/8; GSM/GPRS/EDGE B2/3/5/8 |
| SIM | 1 nano SIM + 1 eSIM |
| GPS/GNSS | GPS, A-GPS, GLONASS, Galileo, BeiDou |
| Voice & Audio | 1 W speaker, two microphones with noise cancellation, speakerphone, VoLTE calls, Bluetooth headset support |
| Notifications | Audible tone, multi-colour LEDs, vibration |
| Ports | USB-C (USB 2.0 High Speed OTG, host/client) |
| Sensors | Ambient light, magnetometer (eCompass), accelerometer, gyroscope, proximity |
| Battery | 5000 mAh / 3.8 V Li-ion polymer (SL20-BATT-E50), hot-swappable with temporary WWAN/WLAN/Bluetooth session persistence |
| Battery Life | Up to 12 hours |
| Charging | Via USB-C (e.g. SL20-PWSP-CEU USB adapter) or in an SL20 charging cradle with SL20-PWSP-2EU – charger not included |
| Form Factor | Full-touch rugged mobile computer (smartphone format) |
| Dimensions | 72.7 × 156.8 × 17.55 mm (W × H × D) |
| Weight | 250 g (with battery) |
| Drop Spec | Multiple 1.5 m drops to concrete across the operating temperature range per MIL-STD-810G (1.8 m with rubber boot) |
| Tumble Spec | 1,000 tumbles at 0.5 m (1,000 at 1 m with rubber boot) |
| Sealing | IP67 |
| Operating Temperature | −20 °C to 55 °C |
| Storage Temperature | −30 °C to 80 °C |
| Humidity | 5–95% non-condensing |
| Colour | Black |
| Warranty | 12 months (M3 Mobile 1-year hardware warranty); 2-, 3- and 5-year M3 service packages available |
| In the Box | M3 Mobile SL20+ mobile computer (SL204C-T2CHSE-HF-01), 5000 mAh Li-ion polymer battery with battery cover (SL20-BATT-E50), Google Mobile Services (GMS) licence preinstalled, hand strap, protective display film, quick start guide – power supply / USB charger, USB-C cable, charging cradle and SIM card NOT included (order separately) |
Need more memory for demanding apps? The M3 Mobile SL20+ (SL204C-T2CHSE-HF-03) offers 8 GB RAM / 128 GB Flash. Prefer a physical keypad? The M3 Mobile SL20K (L2KX4C-T2CWAS-HF-01) is the 30-key keypad version of the SL20. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
SL204C-R2CHSE-HF-01
Operating System
Android 11 (GMS)
Memory
4 GB / 64 GB
portable data collection device, 2D, imager (SE4710), screen size: 14 cm (5.5''), resolution: 1440x720 pixels, GPS, speaker, Camera (13 MP), front camera (5 MP), USB (2.0), USB-C, Bluetooth (BLE, class 5.0), Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, 2.3 GHz, RAM: 4 GB, Flash: 64 GB, Android (11), incl.: Google Mobile Services, battery, extended, 5000 mAh, hand-strap, protective foil, order separately: power supply unit, interface cable, IP65
SL204C-T2CHSE-HF-01
Selected
Operating System
Android 13 (GMS)
Memory
4 GB / 64 GB
portable data collection device, 2D, imager (SE4710), screen size: 14 cm (5.5''), resolution: 1440x720 pixels, GPS, speaker, Camera (13 MP), front camera (5 MP), hot swappable, USB-C, Bluetooth (BLE, class 2), Wi-Fi (802.11ac), SIM, eSIM, 4G (LTE), NFC, Micro SD-Slot, Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (13), incl.: Google Mobile Services, battery, extended, 5000 mAh, hand-strap, QSG, protective foil, order separately: power supply unit, interface cable, IP67
601,73 €In Stock
SL204C-T2CHSE-HF-03
Operating System
Android 13 (GMS)
Memory
8 GB / 128 GB
portable data collection device, 2D, imager (SE4710), screen size: 14 cm (5.5''), resolution: 1440x720 pixels, GPS, speaker, Camera (13 MP), front camera (5 MP), hot swappable, USB-C, Bluetooth (BLE, class 2), Wi-Fi (802.11ac), eSIM, 4G (LTE), NFC, Micro SD-Slot, 2.0 GHz, RAM: 8 GB, Flash: 128 GB, Android (13), incl.: Google Mobile Services, battery, extended, 5000 mAh, hand-strap, QSG, protective foil, order separately: power supply unit, IP67
