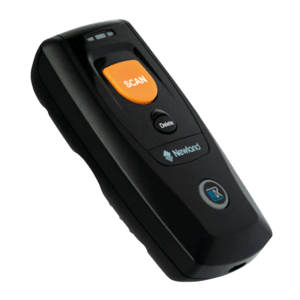

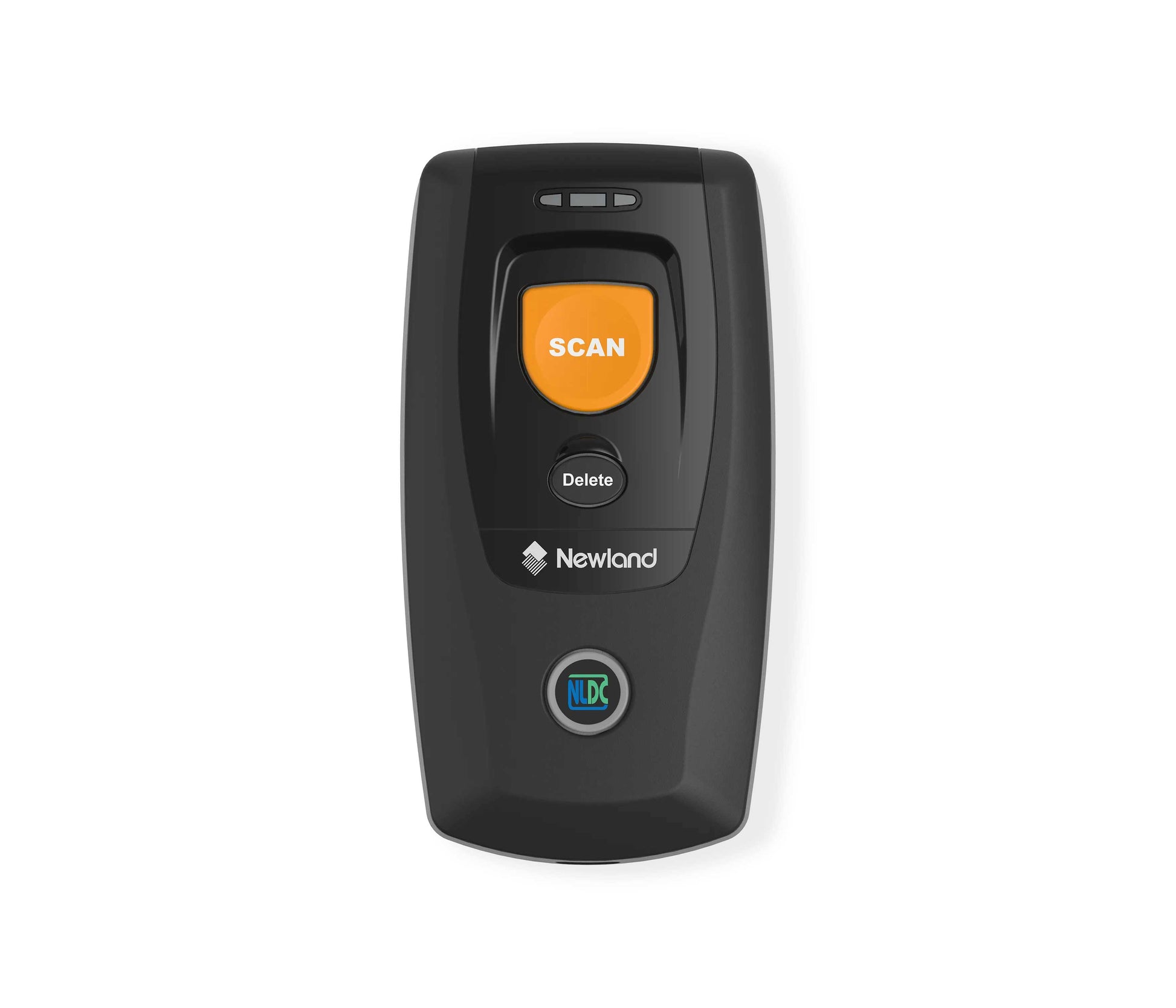

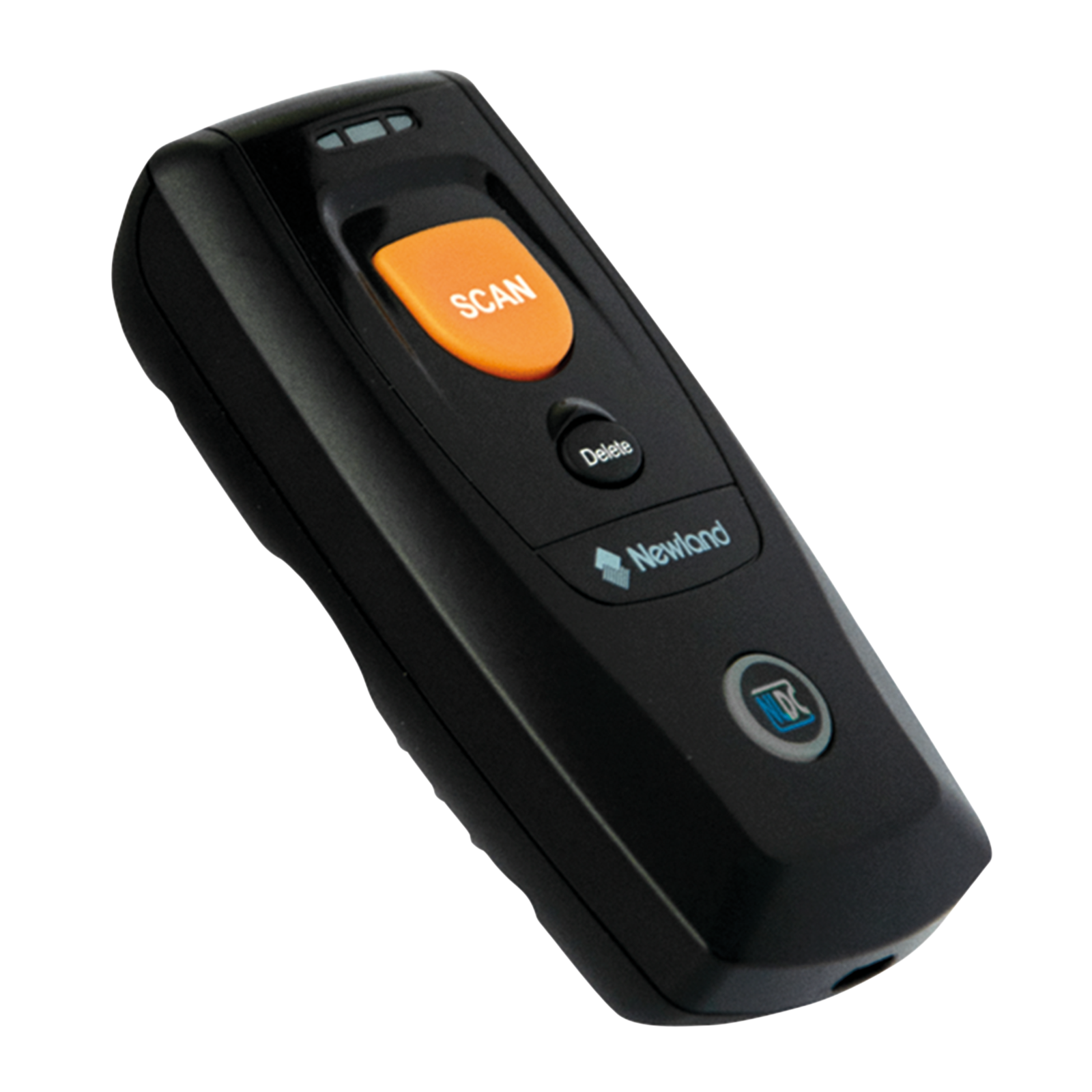

The Newland BS80 Piranha II is a pocket-size Bluetooth® barcode scanner: at just 88 × 46 × 24.5 mm and around 65 g it slips into a shirt pocket, yet it scans quickly from paper labels and screens alike. It pairs directly with Android, iOS and Windows devices via Bluetooth 4.0 (HID, SPP or BLE) – no base station needed – and its 1 MB memory stores thousands of codes offline in batch mode. Delete and Function buttons let you correct scans and recall the on-screen keyboard on iPhone and iPad. This version, NLS-BS8080-2D, has a 2D imager that reads 1D and 2D codes such as QR Code, Data Matrix and PDF417, and is supplied with a USB-C cable for charging – ready to pair and scan.
📦 What's in the box – NLS-BS8080-2D
- ✅ Newland BS80 Piranha II scanner – black, pocket-size cordless 2D imager (reads 1D and 2D codes), Bluetooth 4.0
- ✅ Rechargeable battery – Li-ion, 3.7 V, 900 mAh, built in – charge for 3–4 hours before first use
- ✅ USB-C cable – charges the scanner from a USB port on your PC, laptop or a USB charger; also works as a wired USB connection (keyboard or virtual COM mode) and for EasySet configuration
- ❌ Charging and communication cradle – not included – optional (NLS-CCC-BS80-01); not needed for Bluetooth scanning, as the scanner pairs directly with your device
- ❌ Power supply – not included – not needed, as the scanner charges from any USB port; a USB-C wall charger is available as an option
💡 How it connects: the BS80 pairs directly with your smartphone, tablet or PC via Bluetooth – as a keyboard (HID, no driver or app needed), a serial port (SPP) or Bluetooth Low Energy (BLE) device, with up to 50 m range in open space. Out of range, batch mode keeps your scans in memory for later upload via Bluetooth or the USB-C cable. On iPhone and iPad, the Function button shows or hides the on-screen keyboard while the scanner is connected.
💡 Want a tidy charging spot on the counter? Add the Newland NLS-CCC-BS80-01 charging and communication cradle – it charges the scanner via its pogo pins and connects to your PC over USB-C (no cable is supplied with the cradle; you can use the one included with the scanner). For several scanners, the Newland NLS-SCD80 2-slot charging cradle can be daisy-chained (up to 5 cradles, 10 scanners; separate power supply required). To charge from a wall socket, add the Newland ADP710 USB-C fast-charging power adapter.
Key Features
- Truly pocket-size – 88 × 46 × 24.5 mm and only 63 g: always at hand in a pocket, ideal for mobile scanning with a smartphone or tablet.

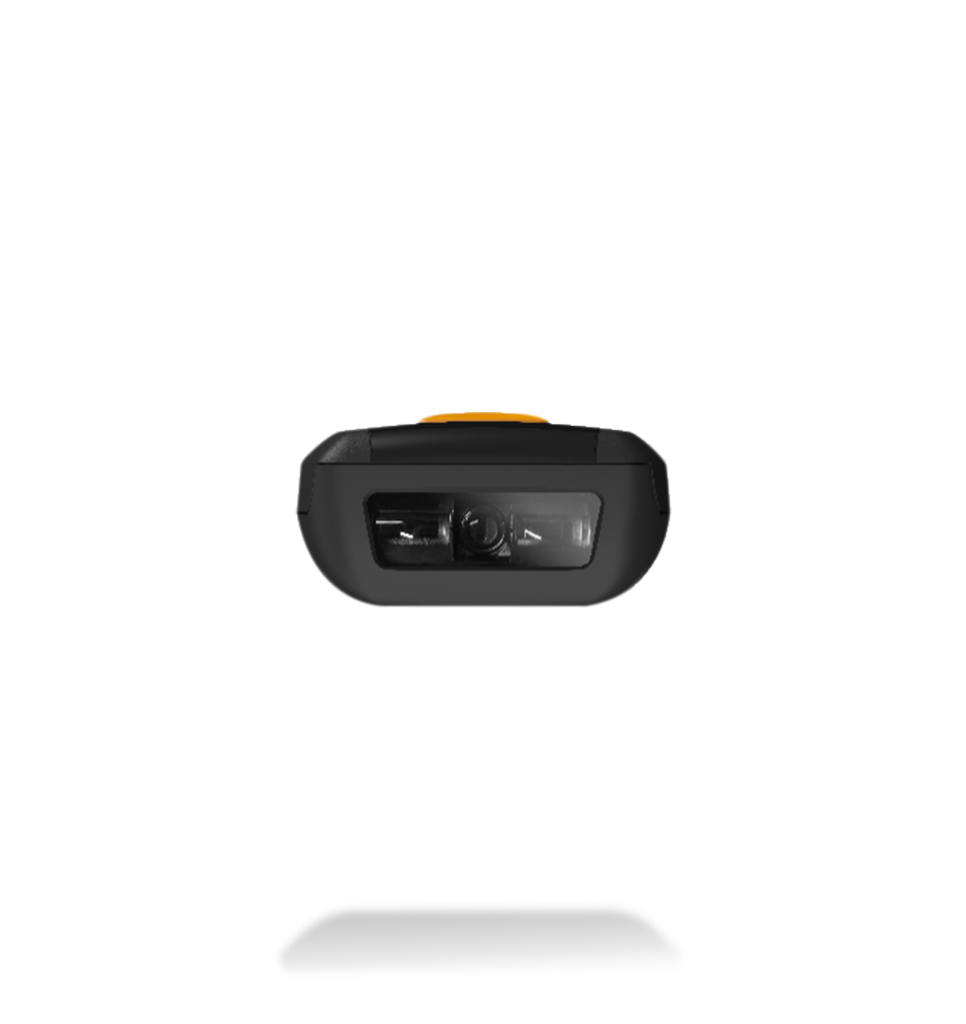

- 1D and 2D codes from paper and screens – a 1280 × 800 CMOS imager with red-cross laser aimer reads QR Code, Data Matrix, PDF417 and all major 1D barcodes; QR Code (15 mil) from 20 to 320 mm.
- Easy Bluetooth pairing – Bluetooth 4.0 (compatible with 3.0/2.1+EDR) with HID, SPP and BLE profiles connects directly to Android, iOS and Windows devices, up to 50 m in open space.
- Batch mode with 1 MB memory – store thousands of barcodes offline and upload them later via Bluetooth or cable; scans are sent in real time while connected.
- Edit on the go – the Delete button removes the last scanned barcode, and the Function button recalls the virtual keyboard on iOS devices for manual entry.
- Rechargeable 900 mAh battery – up to 5 hours of continuous operation (one scan every 6 s); charge via USB-C or the optional cradle.
- Flexible charging – the USB-C port handles charging, data and EasySet configuration; pogo pins fit the optional cradle, and the 2-slot charging cradles can be daisy-chained to charge up to ten scanners from one power supply.
- Clear feedback, built to last – beep, LED and vibration confirm every read; IP42 sealing, a 1.2 m drop rating and a 3-year Newland warranty.
Ideal Applications
- Retail – shelf price checks, stock taking and mobile POS with a tablet or smartphone
- Events and entertainment – ticket and wristband scanning at entrances (QR e-tickets with the 2D version)
- Hospitality – restaurants, cafés and hotels
- Healthcare – patient, medication and sample labels
- Small warehouses, field service and deliveries – scanning on the move with batch mode
All BS80 Piranha II Versions
The highlighted row is the version you are currently viewing.
| Part Number | Scan Engine | Reads | In the Box | |
|---|---|---|---|---|
| NLS-BS8080-1D | 1D linear imager | 1D barcodes | Scanner + USB-C cable | View product |
| NLS-BS8080-2D (this version) | 2D imager (1280 × 800) | 1D + 2D codes (QR, Data Matrix, PDF417) | Scanner + USB-C cable | Viewing |
Technical Specifications
| Part Number | NLS-BS8080-2D |
|---|---|
| Model | Newland BS80 Piranha II 2D |
| Scanner Type | Cordless pocket-size 2D area imager – reads 1D and 2D barcodes on paper and screens |
| Connectivity | Cordless – Bluetooth 4.0 (HID, SPP, BLE); pairs directly with Android, iOS and Windows devices |
| Image Sensor | 1280 × 800 CMOS |
| Light Source | Red-cross laser aimer |
| Maximum Resolution | ≥ 5 mil |
| Depth of Field (typical) | EAN-13 13 mil: 50–540 mm; Code 39 5 mil: 65–260 mm; Code 128 10 mil: 38–411 mm; Data Matrix 10 mil: 40–250 mm; QR Code 15 mil: 20–320 mm |
| Reading Angles | Pitch ±60°, skew ±60°, roll 360° |
| Minimum Print Contrast | 20% |
| 1D Symbologies | Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Codabar, ISSN, ISBN, Interleaved 2 of 5, Code 93, GS1-128 (UCC/EAN-128), GS1 DataBar and other major 1D symbologies |
| 2D Symbologies | PDF417, QR Code, Data Matrix and other major 2D symbologies |
| Wireless Communication | Bluetooth 4.0 (compatible with 3.0 / 2.1 + EDR), 2.4–2.5 GHz ISM band |
| Radio Range | Up to 50 m (open space) |
| Batch Mode (Memory) | 1 MB flash memory – stores thousands of barcodes offline; upload via Bluetooth or USB-C cable |
| Host Interfaces | Bluetooth HID, SPP, BLE; USB-C – USB HID keyboard or USB CDC (virtual COM) |
| Base Station | Not required and not included – optional charging and communication cradle NLS-CCC-BS80-01; 2-slot charging cradle NLS-SCD80 |
| Battery | Rechargeable Li-ion, 3.7 V, 900 mAh (built in) |
| Operating Time | 5 hours of continuous operation (1 scan every 6 s) |
| Charging Time | 3–4 hours (first full charge, via USB-C) |
| Current Draw | Operating: 280 mA (Bluetooth on); standby: 11 mA (at 5 VDC) |
| Reading Indicators | Beeper, LED, vibration |
| Color | Black |
| Dimensions | 88 × 46 × 24.5 mm |
| Weight | 63 g |
| Environmental Sealing | IP42 |
| Drop Resistance | 1.2 m |
| Electrostatic Discharge | ±4 kV (direct discharge), ±12 kV (air discharge) |
| Operating Temperature | −20 °C to 50 °C |
| Charging Temperature | 0 °C to 45 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% RH, non-condensing |
| Software & Management | Newland EasySet configuration software |
| Certifications | CE RED, CE UK, FCC, TELEC, IEC 62471, IEC 60825, RoHS |
| Warranty | 36 months |
| In the Box | BS80 Piranha II 2D scanner with built-in rechargeable Li-ion battery (3.7 V, 900 mAh), USB-C cable (charging and wired USB connection) – charging/communication cradle (NLS-CCC-BS80-01) and power adapter NOT included (optional); no base needed – pairs directly with phones, tablets and PCs via Bluetooth |
Not sure which version you need? Choose the NLS-BS8080-1D if you only scan 1D barcodes – it is the most affordable and runs longest per charge (6.5 h) – or the NLS-BS8080-2D to also read QR codes, Data Matrix, PDF417 and codes on phone screens. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
Available Versions
NLS-BS8080-1D
Scanner Type
1D linear imager
Bluetooth scanner, 1D, imager, connection: USB-C, Bluetooth, incl.: cable (USB-C), order separately: charging cradle, protection class: IP42, colour: black
NLS-BS8080-2D
Selected
Scanner Type
2D imager
Bluetooth scanner, 2D, imager, connection: USB-C, Bluetooth, incl.: cable (USB-C), order separately: charging cradle, protection class: IP42, colour: black
177,20 €In Stock
