RAM Mounts Double Socket Arm, D-Size, Long, 330 mm (RAM-D-201U-E)

142,80 € +VAT
Mount type
Double socket armDouble socket arm, jam nut
Arm length
130 mm214 mm330 mm
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAM-D-201U-E
RAM Mounts D-size long double socket arm (330 mm) RAM-D-201U-E – product photo
RAM MOUNT
RAM Mounts Double Socket Arm, D-Size, Long, 330 mm (RAM-D-201U-E)
142,80 € +VAT

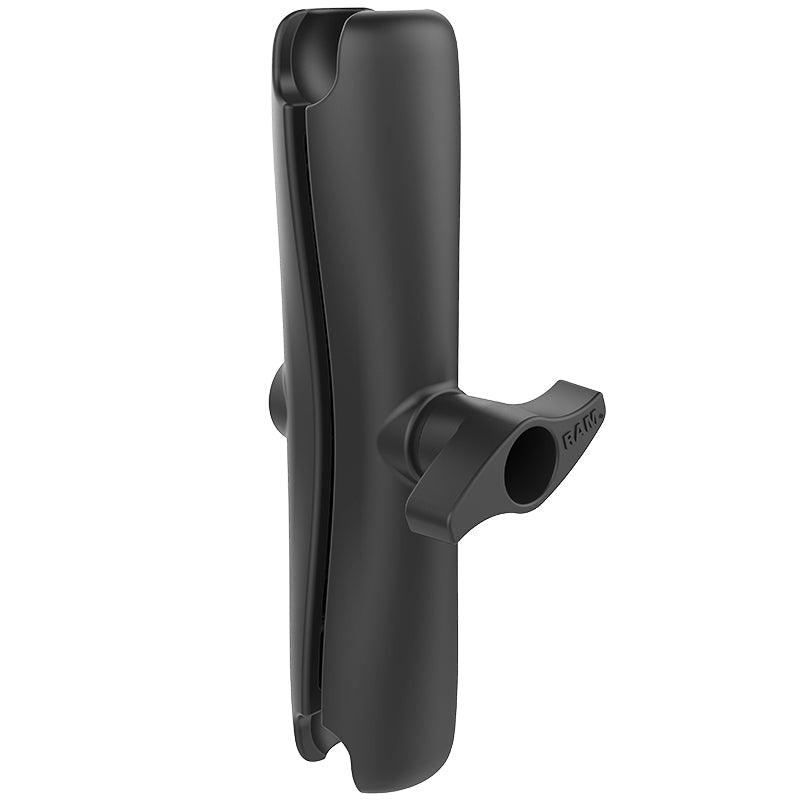

RAM Mounts Double Socket Arm, D-Size, Long, 330 mm (RAM-D-201U-E) is the connecting link of the RAM ball-and-socket system: it joins two RAM D-size (2.25") ball components – typically a ball base fixed in a vehicle, on a forklift or at a workstation and a device holder or cradle with a matching ball. With 329.7 mm (12.98") overall and 289.8 mm (11.41") between the sockets, the long arm gives the mount extra reach. A spring inside the arm keeps the sockets open for easy fitting, and turning the knob clamps both ball joints firmly at the angle you need.

📦 What's in the box – RAM-D-201U-E

  • Double socket arm – D-size (2.25"), long, 329.7 mm (12.98") overall
  • T-knob – for D-size socket arms

💡 You might also consider a D-size round ball base for the mounting surface and a D-size VESA 75 ball plate to attach a terminal or display with a VESA 75 pattern.

View accessories →

Key Features

  • Length – 329.7 mm (12.98") overall, 289.8 mm (11.41") socket to socket
  • D-size (2.25") sockets – fit any RAM D-size ball base, adapter or device holder, with near-infinite adjustment
  • Load rating – up to 2.7 kg (6 lb) standard use; 2.3 kg (5 lb) heavy-duty use
  • Material – powder-coated marine-grade aluminium
  • Lifetime warranty – backed by RAM Mounts

Compatibility

  • All RAM D-size (2.25") ball bases, ball adapters and device holders

Technical Specifications

Part Number RAM-D-201U-E
Product Type Double socket arm, long
Connection 2 × D-size (2.25") sockets
Load Capacity 2.7 kg (6 lb) standard use; 2.3 kg (5 lb) heavy-duty use
Material Powder-coated marine-grade aluminium

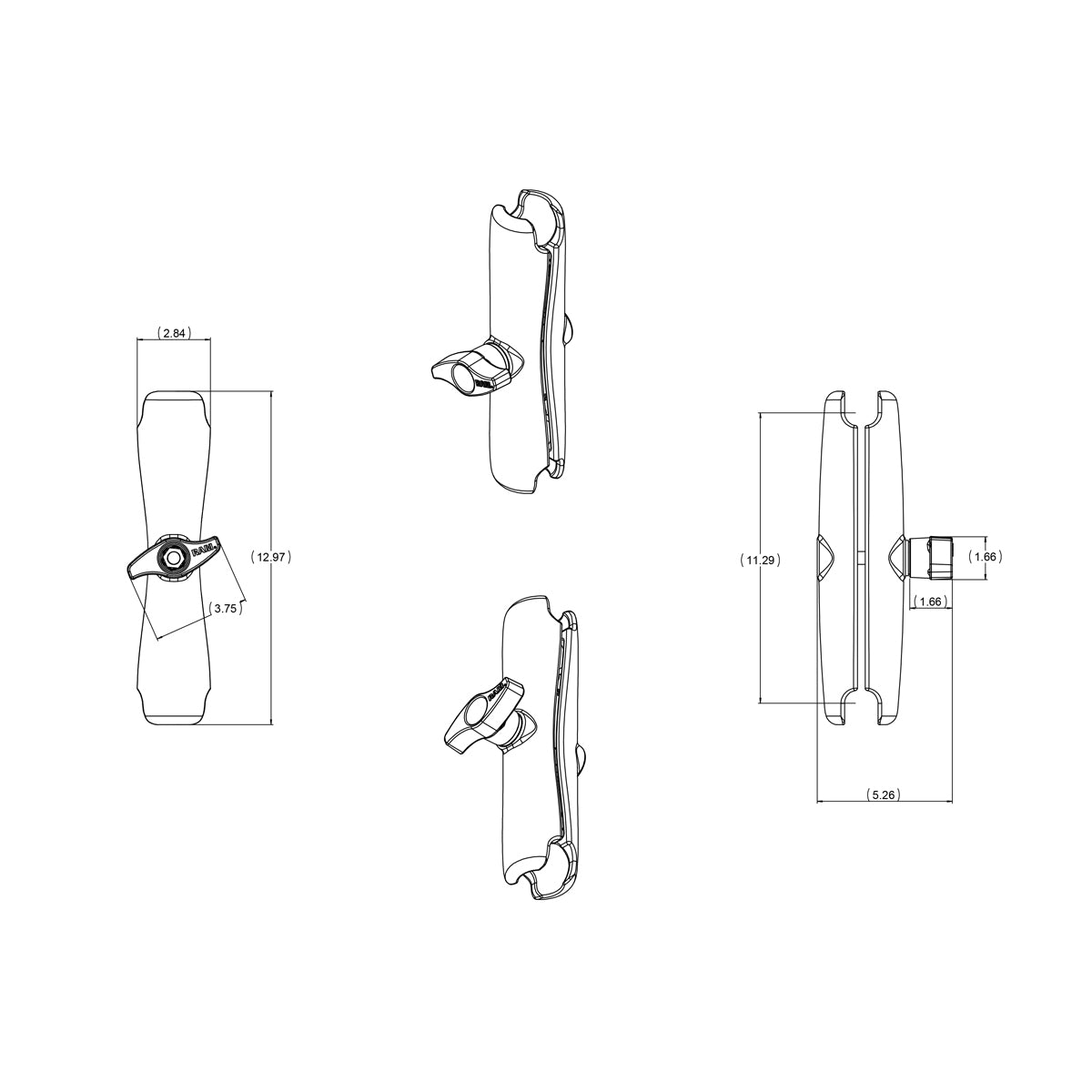

Dimensions Overall length 329.7 mm (12.98"); socket to socket 289.8 mm (11.41")
Weight 1.72 kg (3.79 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box Double socket arm, T-knob for D-size socket arms

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberMount typeArm lengthPrice
RAM Mounts Double Socket Arm, D-Size, Medium, 214 mm (RAM-D-201U) RAM-D-201UDouble socket arm214 mm93,10 €+VATIn Stock
RAM Mounts Double Socket Arm, D-Size, Short, 130 mm (RAM-D-201U-C) RAM-D-201U-CDouble socket arm130 mm63,09 €+VATIn Stock
RAM Mounts Double Socket Arm with Jam Nut, D-Size, Short, 130 mm (RAM-D-201U-C-MI1) RAM-D-201U-C-MI1Double socket arm, jam nut130 mm67,99 €+VATOut of Stock View
RAM Mounts Double Socket Arm, D-Size, Long, 330 mm (RAM-D-201U-E) RAM-D-201U-EViewingDouble socket arm330 mm142,80 €+VATOut of Stock
RAM Mounts Double Socket Arm with Jam Nut, D-Size, Medium, 214 mm (RAM-D-201U-MI1) RAM-D-201U-MI1Double socket arm, jam nut214 mm101,88 €+VATOut of Stock View

Accessories

ProductPrice
RAM Mounts Large Round Plate with Ball, D-Size (RAM-D-202U) RAM Mounts Large Round Plate with Ball, D-SizeRAM-D-202U38,50 €+VATIn Stock
RAM Mounts 75 × 75 mm VESA Plate with Ball, D-Size (RAM-D-2461U) RAM Mounts 75 × 75 mm VESA Plate with Ball, D-SizeRAM-D-2461U35,19 €+VATIn Stock
RAM Mounts 100 × 100 mm VESA Plate with Ball, D-Size (RAM-D-246U) RAM Mounts 100 × 100 mm VESA Plate with Ball, D-SizeRAM-D-246U42,04 €+VATIn Stock
RAM Mounts Round AMPS Plate with Ball, D-Size (RAM-D-254U) RAM Mounts Round AMPS Plate with Ball, D-SizeRAM-D-254U30,06 €+VATIn Stock
RAM Mounts Square Post Clamp Base for Posts up to 4" Wide, D-Size (RAM-D-247U-4) RAM Mounts Square Post Clamp Base for Posts up to 4" Wide, D-SizeRAM-D-247U-463,11 €+VATIn Stock
RAM Mounts Hi-Torq Wrench for D-Size Socket Arms (RAM-KNOB9HU) RAM Mounts Hi-Torq Wrench for D-Size Socket ArmsRAM-KNOB9HU31,77 €+VATIn Stock
RAM Mounts Pin-Lock 4-Pin Security Nut for D & E-Size Socket Arms (RAP-S-NUT5-4U) RAM Mounts Pin-Lock 4-Pin Security Nut for D & E-Size Socket ArmsRAP-S-NUT5-4U9,25 €+VATIn Stock
