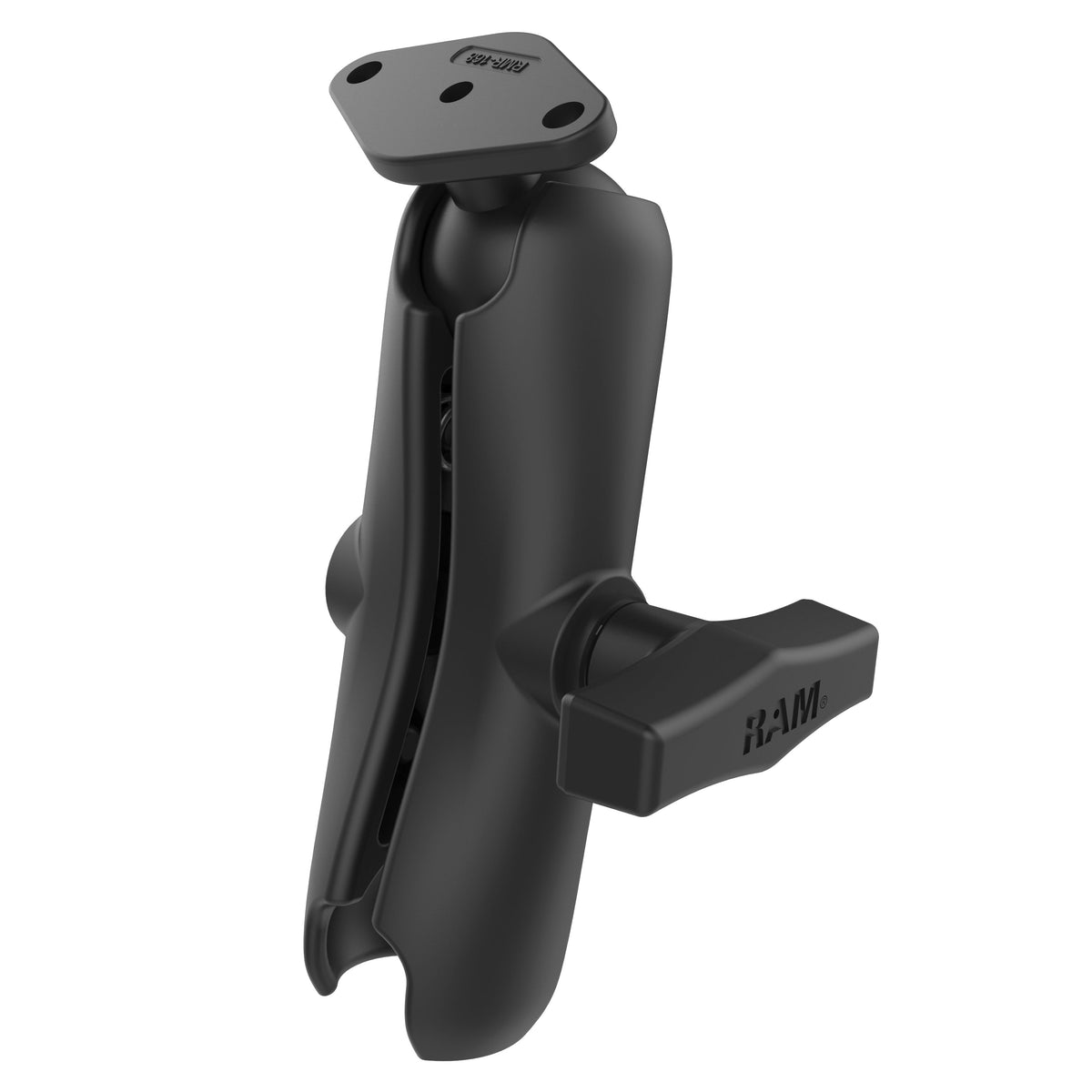

RAM Mounts Double Socket Arm with Diamond Ball Plate, C-Size, Medium (RAM-103-238U)

RAM Mounts Double Socket Arm with Diamond Ball Plate, C-Size, Medium (RAM-103-238U) is a C-size (1.5") ball-and-socket assembly with one open socket end. The medium double socket arm (145 mm overall, 118 mm socket to socket) holds a diamond ball base with the AMPS 2-hole pattern, which serves as an adapter for a device holder or as a drill-down base. Attach the open socket to any C-size RAM base or cradle with a 1.5" ball to complete the mount.

Key Features

• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• One open socket – attaches to any C-size base or cradle with a 1.5" ball, so you can build exactly the mount you need
• Medium double socket arm – 145 mm overall, 118 mm socket to socket, with an easy-to-adjust knob
• AMPS 2-hole pattern – the diamond plate has two holes 48.6 mm apart and fits most RAM cradles
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• All RAM C-size (1.5") ball bases, adapters and holders
• Cradles with the AMPS 2-hole pattern (48.6 mm)

Technical Specifications
