RAM Mounts Double Socket Arm with Diamond Plate, B-Size, Medium (RAM-B-103-238U)

26,62 € +VAT
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAM-B-103-238U
RAM Mounts B-size medium double socket arm with diamond plate (RAM-B-103-238U) – product photo
RAM MOUNT
RAM Mounts Double Socket Arm with Diamond Plate, B-Size, Medium (RAM-B-103-238U)
26,62 € +VAT

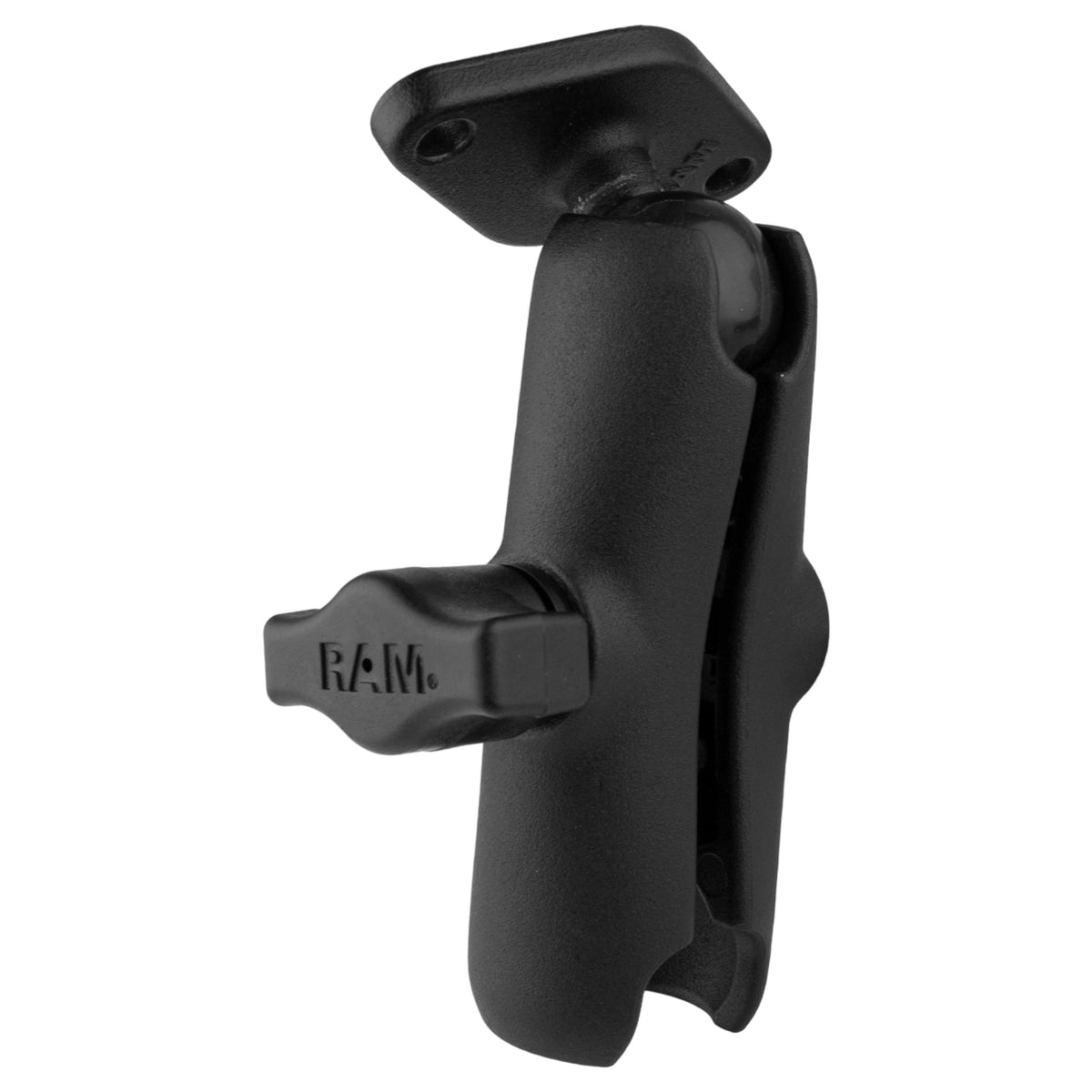

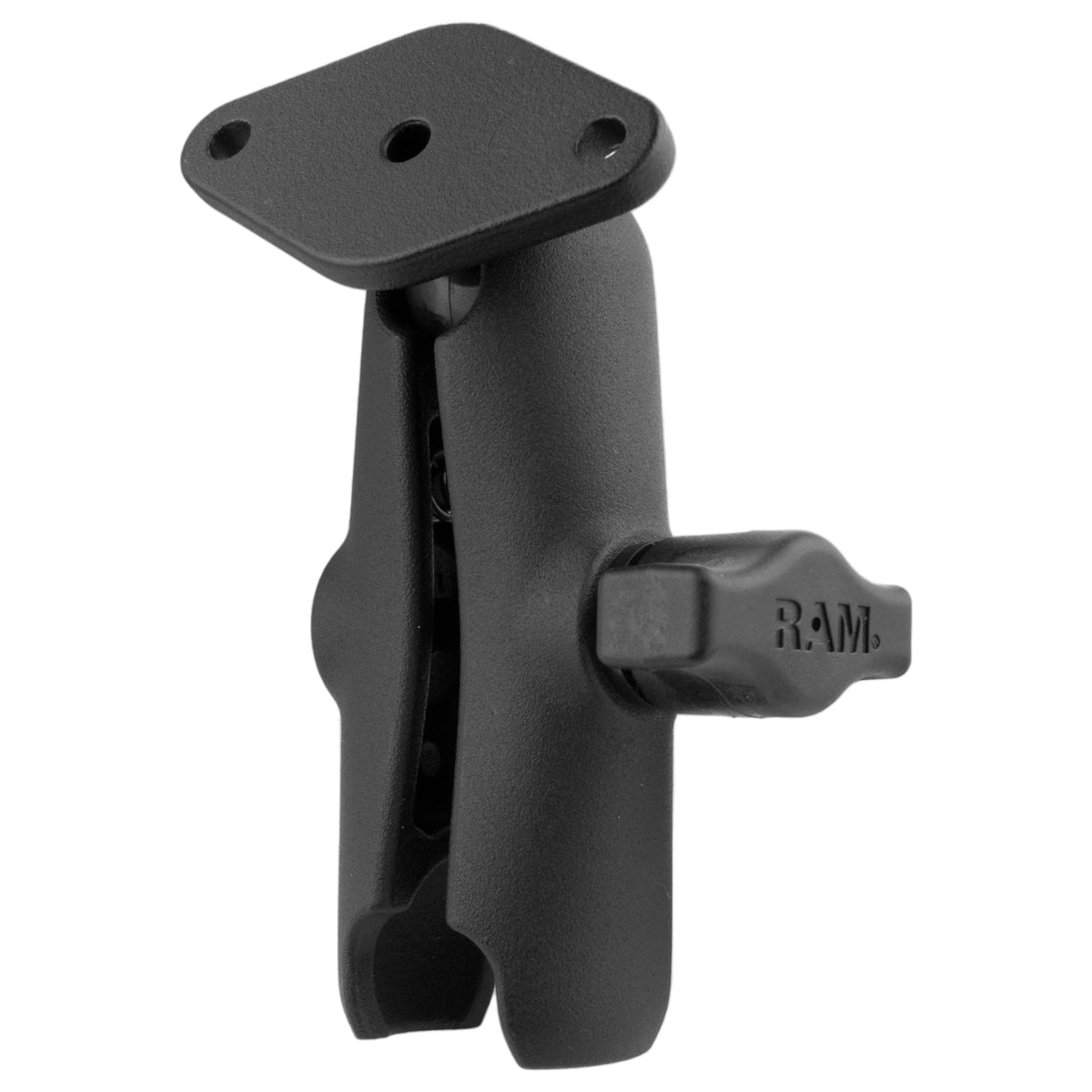

RAM Mounts Double Socket Arm with Diamond Plate (RAM-B-103-238U) combines a medium B-size double socket arm (95 mm overall, 76 mm socket to socket) with a 62 × 33 mm diamond ball base. The diamond plate carries the industry-standard 2-hole AMPS pattern (48.6 mm) used by many RAM and third-party cradles, while the free socket attaches to any B-size ball base – a suction cup, clamp, rail or drill-down base. Turn the knob to set the viewing angle.

📦 What's in the box – RAM-B-103-238U

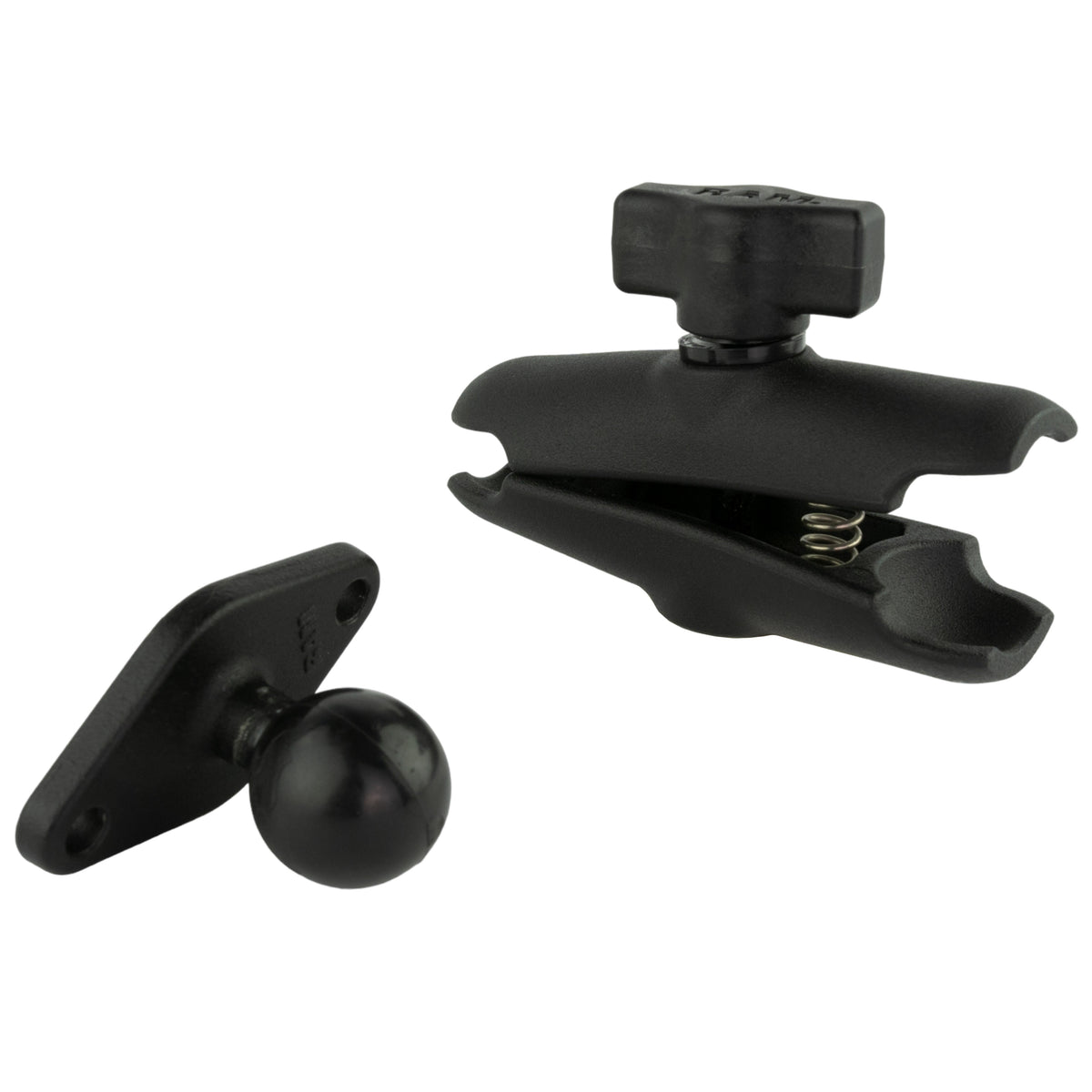

  • Double socket arm – B-size, medium, 95 mm overall, 76 mm socket to socket (RAM-B-201U)
  • Diamond ball base – 62 × 33 mm, 2-hole AMPS, B-size ball (RAM-B-238U)

💡 To get started, you might also consider a B-size ball base such as the Twist-Lock suction cup base and a device holder with the 2-hole AMPS pattern, such as the universal small-device holder with diamond pattern.

View accessories →

Key Features

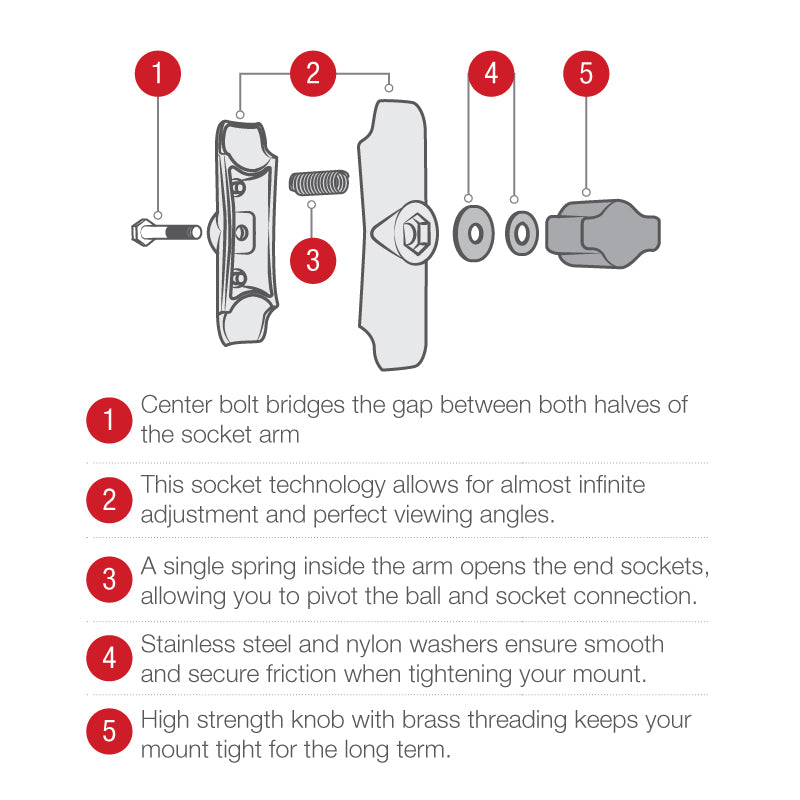

  • Adjustable at both ends – medium arm, 95 mm overall; one knob locks both ball joints
  • 2-hole AMPS diamond plate – 62 × 33 mm plate with 48.6 mm hole spacing fits most RAM cradles
  • Shock and vibration damping – the patented rubber ball-and-socket system cushions the mounted device
  • Load rating – up to 2 lb (0.9 kg) in standard use and 1 lb (0.45 kg) in heavy-duty use; ideal for phones, GPS units, scanners and small tablets
  • Built for harsh conditions – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

  • All RAM B-size (1") ball bases and device holders with a B-size ball
  • Device holders with the 2-hole AMPS pattern (48.6 mm hole spacing)

Technical Specifications

Part Number RAM-B-103-238U
Product Type Double socket arm with plate, B-size
Connection B-size (1" / 25.4 mm) ball; diamond plate 62 × 33 mm with 2-hole AMPS pattern (48.6 mm)
Arm Length 95 mm (3.73") overall; 76 mm (3") socket to socket
Load Capacity 2 lb (0.9 kg) standard use; 1 lb (0.45 kg) heavy-duty use
Dimensions Diamond plate 62 × 33 mm (2.43" × 1.31")
Material Powder-coated marine-grade aluminium
Weight 0.18 kg (0.4 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box Double socket arm, diamond ball base

You will find matching cradles, holders and more RAM mounting parts in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
