RAM Mounts Diamond Ball Base with 2-Hole AMPS Pattern, B-Size (RAM-B-238U)

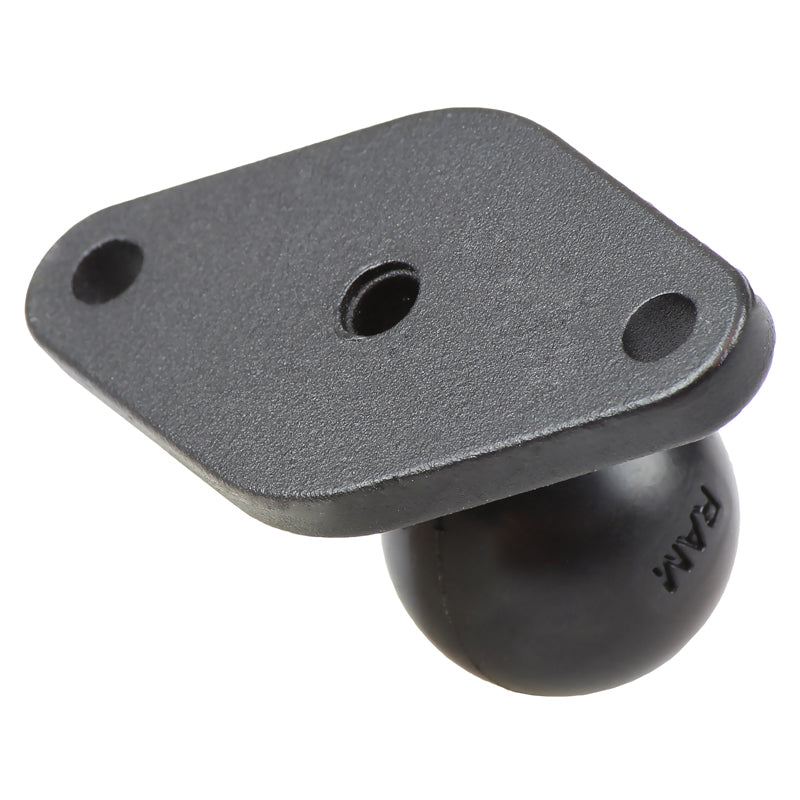

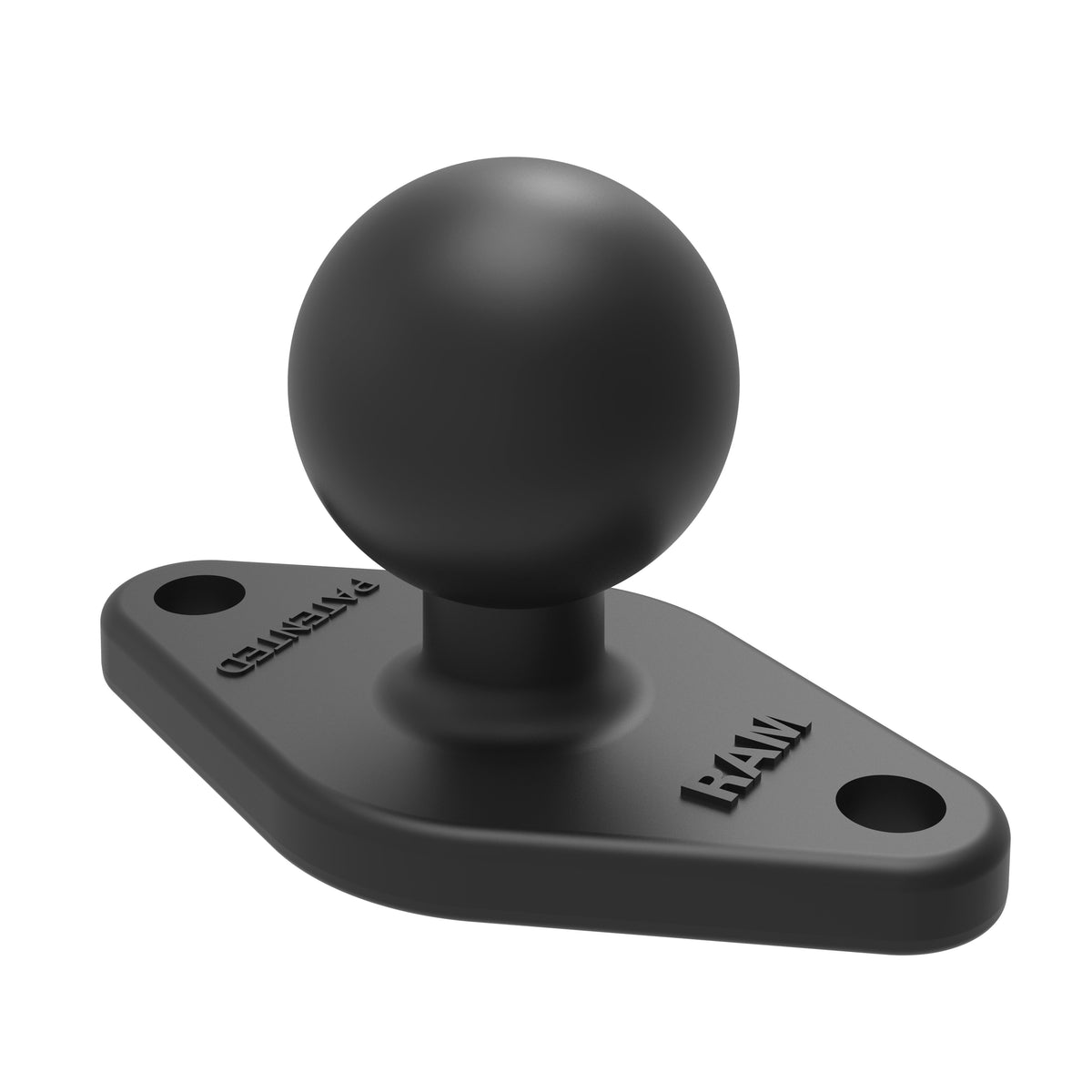

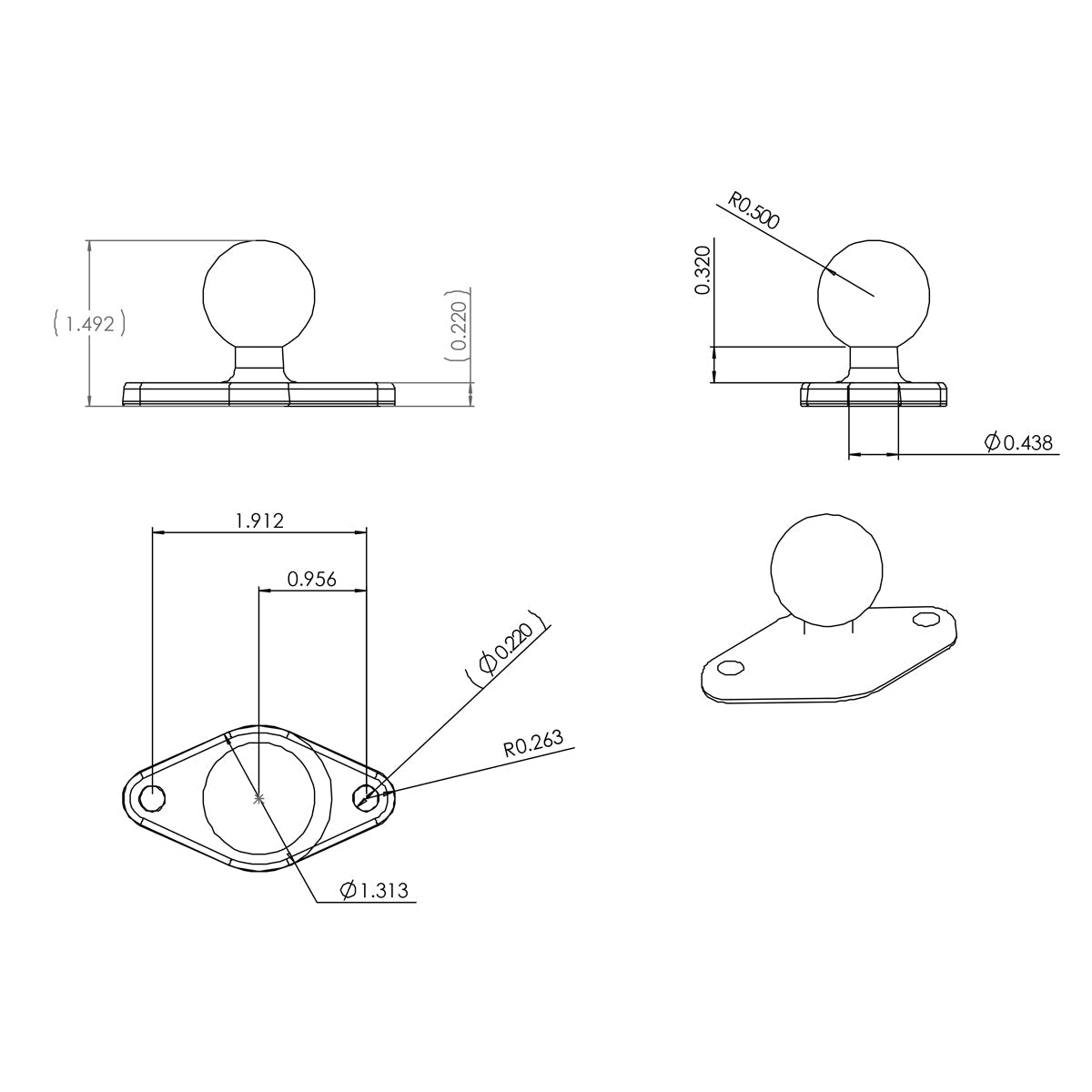

RAM Mounts Diamond Ball Base, B-Size (RAM-B-238U) is a compact 62 × 33 mm (2.43" × 1.31") diamond plate with a 1" rubber ball. The two holes, 48.6 mm (1.912") apart, follow the industry-standard 2-hole AMPS pattern used on many RAM device holders and cradles, and the plate also works as a small drill-down base. It is the base used in many RAM B-size kits and Twist-Lock suction mounts.

Key Features

• B-size 1" ball – connects to any RAM B-size double socket arm for near-infinite adjustment
• 2-hole AMPS diamond – industry-standard 48.6 mm (1.912") hole spacing on a slim 62 × 33 mm plate
• Load rating – up to 2 lb (0.9 kg) in standard use and 1 lb (0.45 kg) in heavy-duty use; ideal for phones, GPS units, scanners and small tablets
• Shock and vibration damping – the patented rubber ball-and-socket system cushions the mounted device
• Built for harsh conditions – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

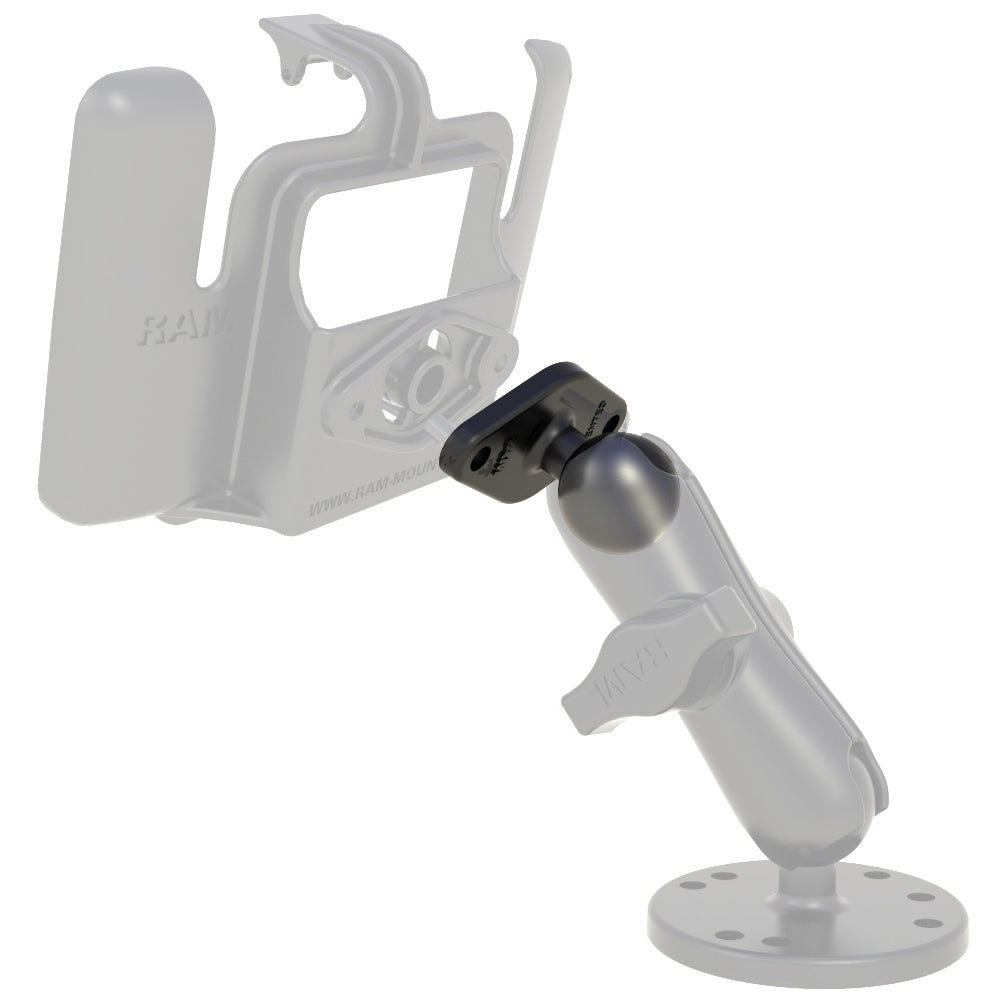

• All RAM B-size (1") double socket arms and ball components
• Device holders with the 2-hole AMPS pattern (48.6 mm hole spacing)
• Flat surfaces such as dashboards, consoles, panels and walls (drill-down)

Technical Specifications
