RAM Mounts Ball Adapter with AMPS Plate, B-Size (RAM-B-347U)

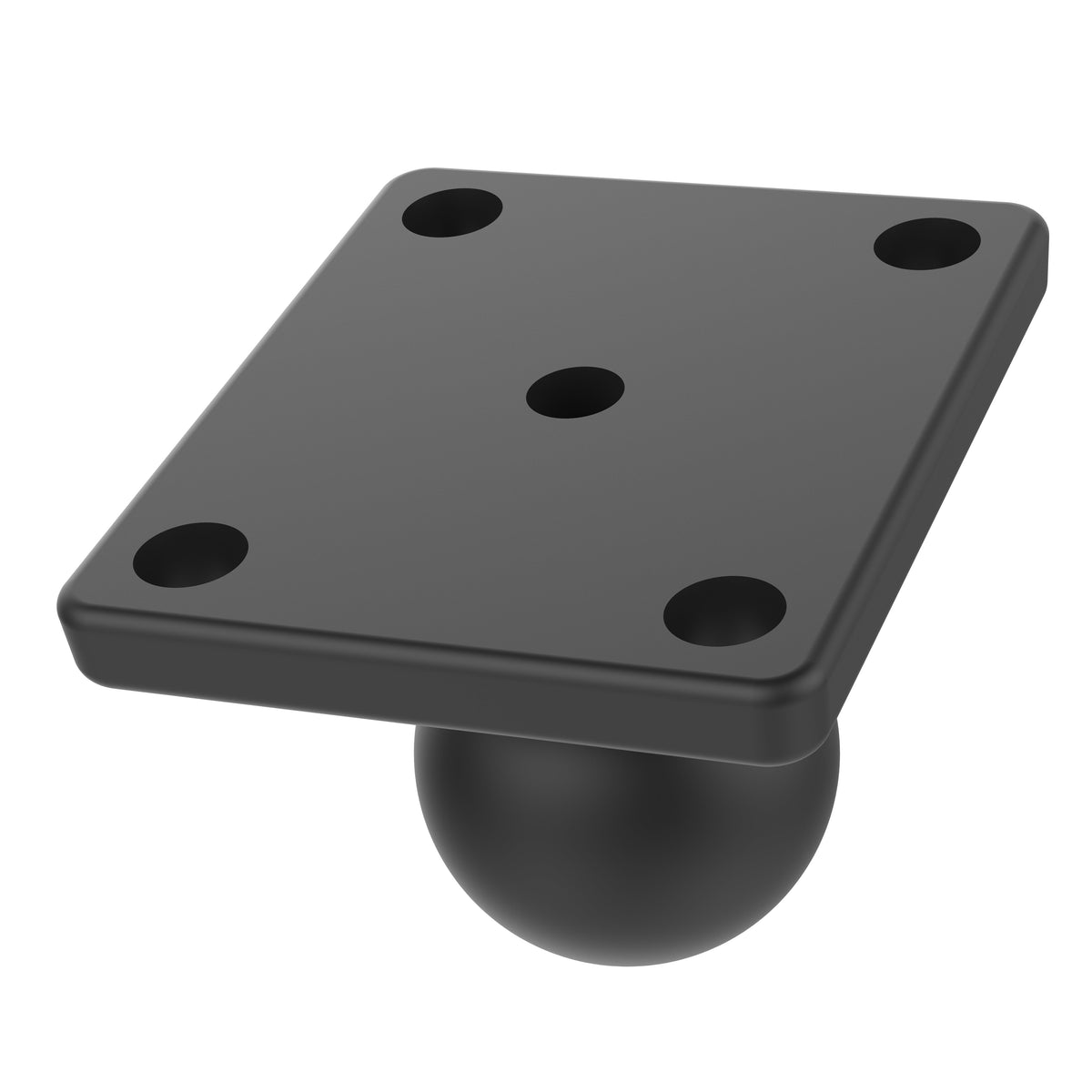

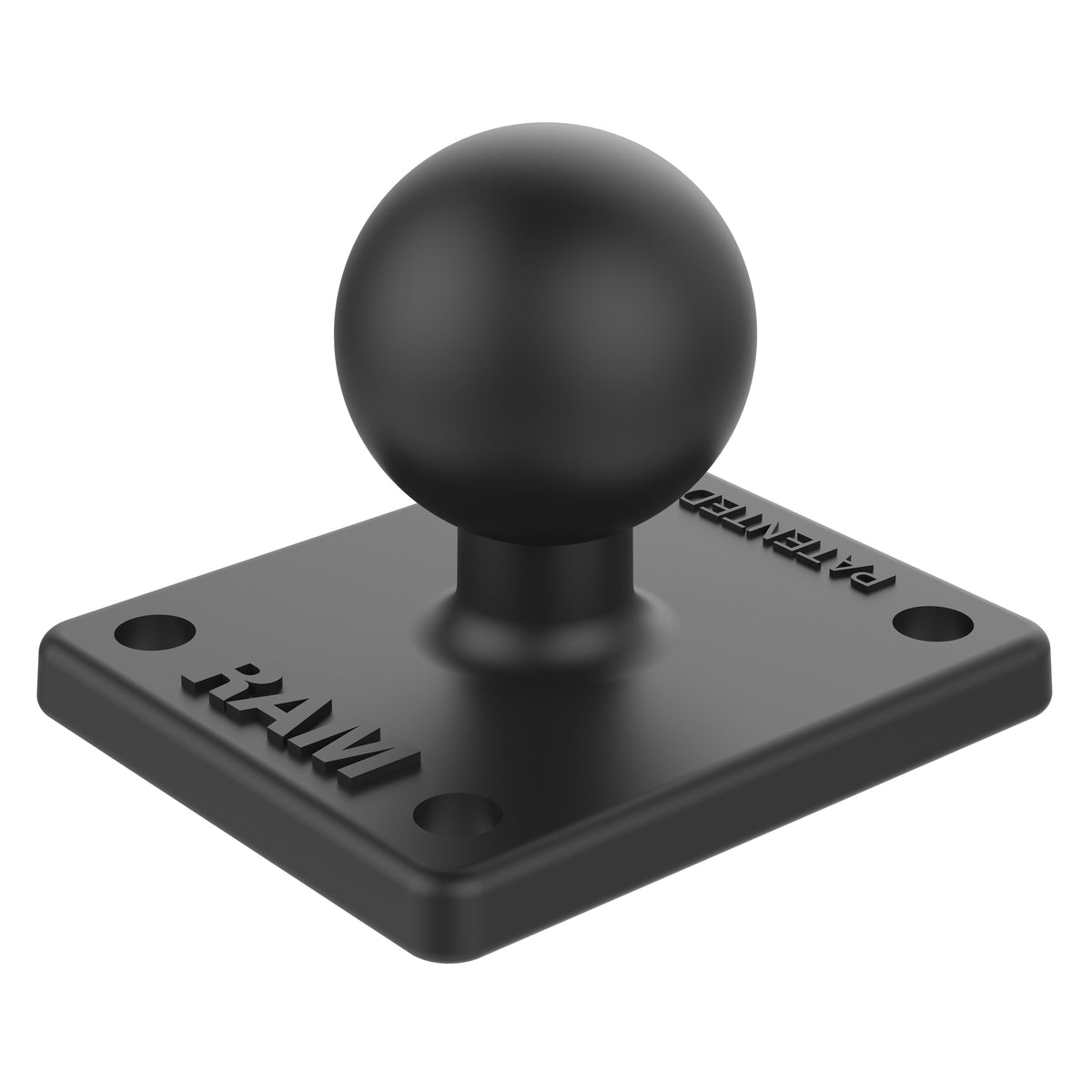

RAM Mounts Ball Adapter with AMPS Plate, B-Size (RAM-B-347U) puts a 1" rubber ball on a compact 51 × 43 mm (2" × 1.7") square plate with a pre-drilled hole in each corner in the universal 4-hole AMPS pattern. Bolt it to any AMPS cradle, GPS or device holder to connect it to the RAM B-size system, or screw it to a flat surface as a low-profile base. A popular, inexpensive building block for vehicle, forklift and desk installations.

Key Features

• B-size 1" ball – connects to any RAM B-size double socket arm for near-infinite adjustment

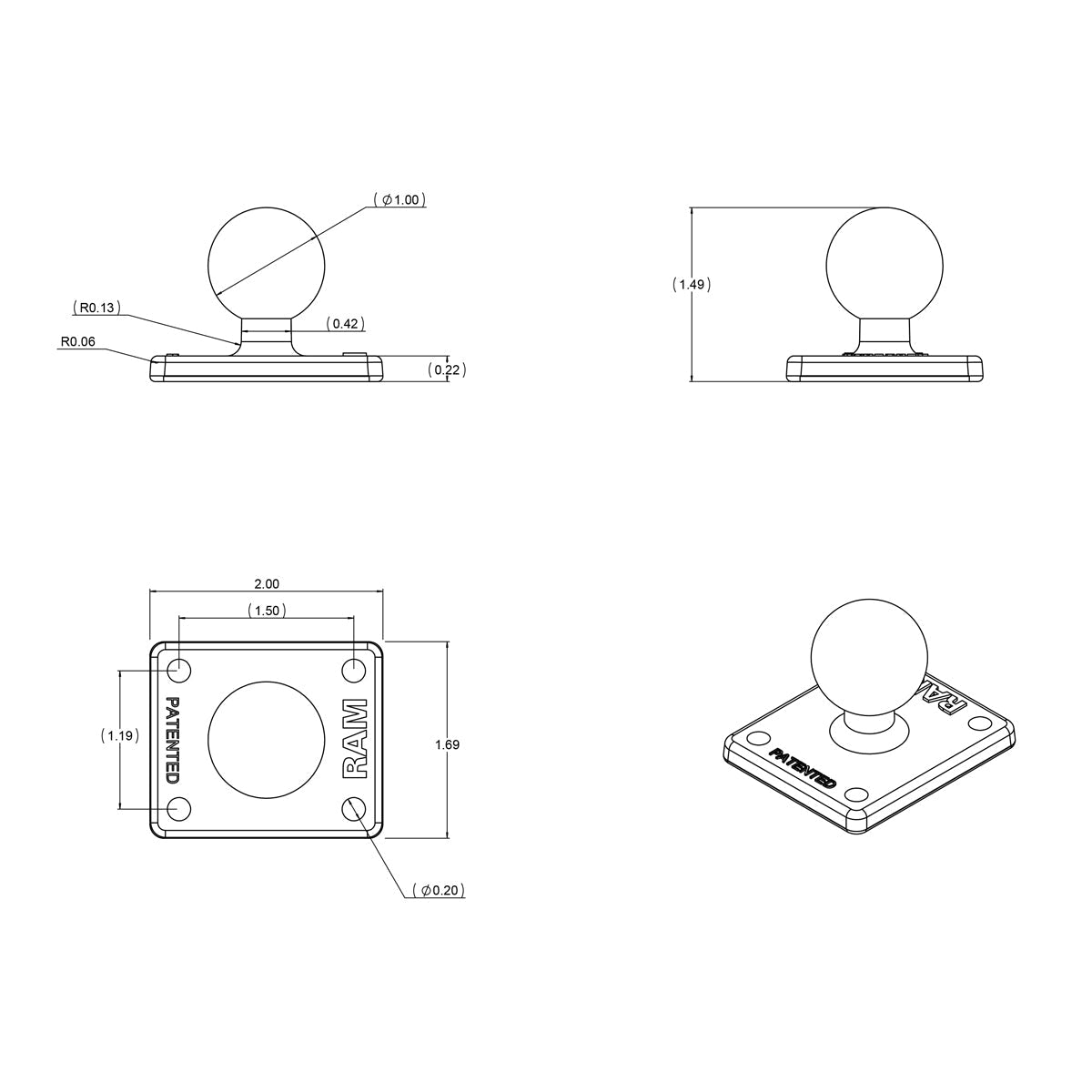

• 4-hole AMPS plate – pre-drilled 30 × 38 mm pattern on a compact 51 × 43 mm (2" × 1.7") plate

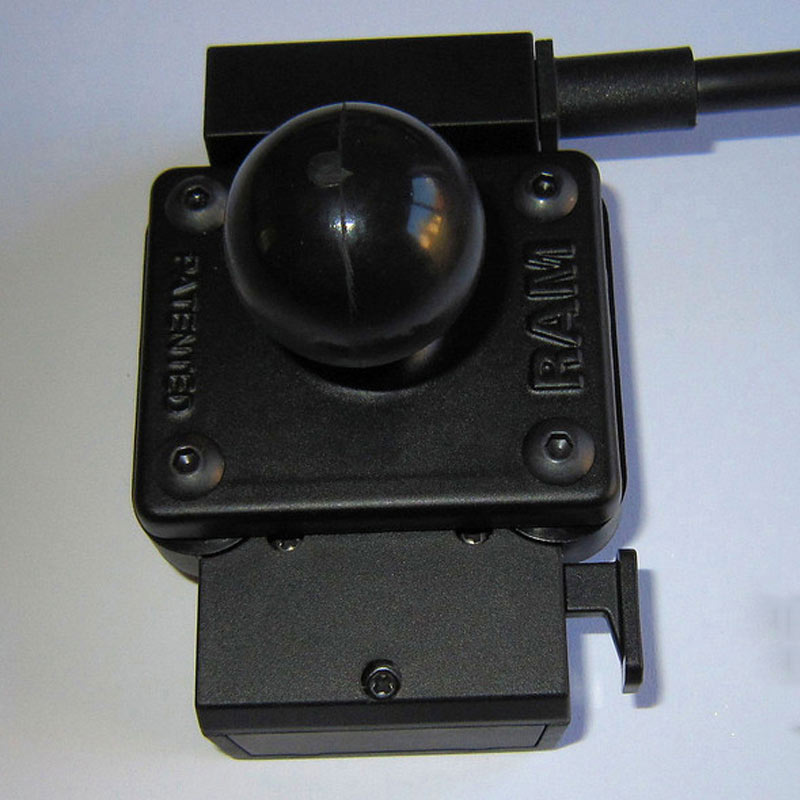

• Adapter or base – adds a B-size ball to AMPS cradles and GPS units, or serves as a drill-down base
• Load rating – up to 2 lb (0.9 kg) in standard use and 1 lb (0.45 kg) in heavy-duty use; ideal for phones, GPS units, scanners and small tablets
• Built for harsh conditions – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• All RAM B-size (1") double socket arms and ball components
• Device holders and cradles with the 4-hole AMPS pattern (30 × 38 mm)
• Flat surfaces such as dashboards, consoles, panels and walls (drill-down)

Technical Specifications

You will find matching cradles, holders and more RAM mounting parts in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
