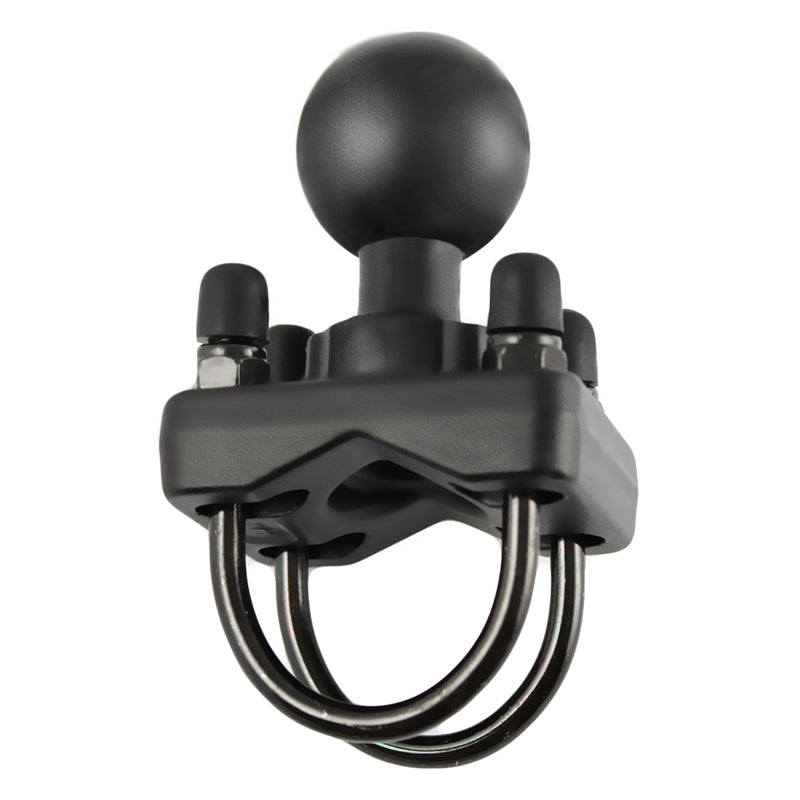

RAM Mounts C-size double U-bolt ball base for 1.25"–1.5" rails RAM-235-1U – product photo
RAM Mounts C-size double U-bolt ball base for 1.25"–1.5" rails RAM-235-1U – product photo
RAM Mounts C-size double U-bolt ball base for 1.25"–1.5" rails RAM-235-1U – product photo
RAM Mounts C-size double U-bolt ball base for 1.25"–1.5" rails RAM-235-1U – product photo

RAM Mounts Double U-Bolt Ball Base for 1.25"–1.5" (32–38 mm) Rails, C-Size (RAM-235-1U)

30,12 € +VAT
Mount type
Double U-bolt, rails 25–32 mmDouble U-bolt, rails 32–38 mmStrap hose clamp
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAM-235-1U
RAM Mounts C-size double U-bolt ball base for 1.25"–1.5" rails RAM-235-1U – product photo
RAM MOUNT
RAM Mounts Double U-Bolt Ball Base for 1.25"–1.5" (32–38 mm) Rails, C-Size (RAM-235-1U)
30,12 € +VAT

RAM Mounts Double U-Bolt Ball Base for 1.25"–1.5" (32–38 mm) Rails, C-Size (RAM-235-1U) clamps a RAM C-size (1.5") ball securely to round rails and tubes of 31.8–38.1 mm (1.25"–1.5") diameter – for example ATV and side-by-side frames, wheelchair seat and leg rails or other tubular structures. Two zinc-coated 1/4"-20 U-bolts go around the rail and are tightened with nyloc nuts, and rubber caps cover the thread ends. The base is made of powder-coated marine-grade aluminium; add any RAM C-size double socket arm and a holder to complete the mount.

📦 What's in the box – RAM-235-1U

  • Double U-bolt base – with C-size (1.5") ball
  • U-bolts 1/4"-20 – 2 pcs, zinc-coated, for rails 31.8–38.1 mm (1.25"–1.5")
  • Nyloc nuts 1/4"-20 – 4 pcs
  • Rubber caps – 4 pcs

💡 You might also consider a C-size double socket arm to connect it to your device holder, or an X-Grip holder for 7" tablets with C-size ball as a ready-to-use universal holder.

View accessories →

Key Features

  • Rail diameter – Ø 31.8–38.1 mm (1.25"–1.5")
  • U-bolts – zinc-coated, 1/4"-20, with nyloc nuts and rubber caps
  • C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
  • Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
  • Material – powder-coated marine-grade aluminium
  • Lifetime warranty – backed by RAM Mounts

Compatibility

  • All RAM C-size (1.5") double socket arms
  • Round rails and tubes Ø 31.8–38.1 mm (1.25"–1.5")

Technical Specifications

Part Number RAM-235-1U
Product Type Double U-bolt ball base
Connection C-size (1.5") ball; double U-bolt Ø 31.8–38.1 mm (1.25"–1.5")
Load Capacity 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
Material Powder-coated marine-grade aluminium
Weight 0.25 kg (0.55 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box Double U-bolt base, U-bolts 1/4"-20, nyloc nuts 1/4"-20, rubber caps

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
