RAM Mounts GDS Hardwire Charger, USB-C PD 25 W, 10–30 V Input (RAM-GDS-CHARGE-V21CU)

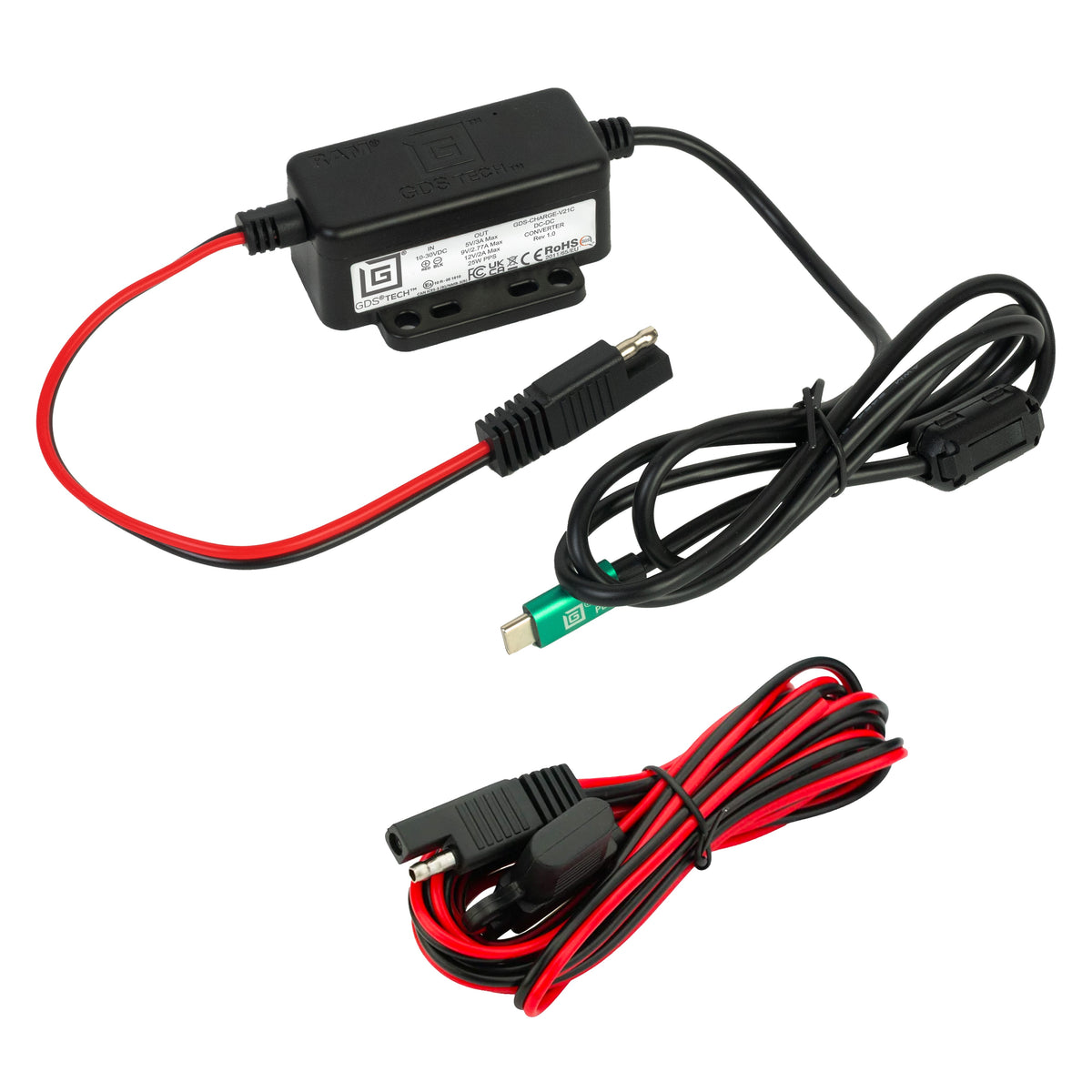

RAM Mounts GDS Hardwire Charger, USB-C PD 25 W, 10–30 V Input (RAM-GDS-CHARGE-V21CU) is a GDS hardwire charger that is wired directly to the vehicle's power supply and delivers USB-C Power Delivery at 5–12 V (max. 2.5 A, 25 W) to GDS vehicle docks and other docks with a USB-C power input. Its 10–30 V DC input range covers 12 V and 24 V systems, making it suitable for most cars, vans and trucks. The 0.2 m bare-wire input cable connects to the on-board supply, and the 1 m output cable ends in a male USB-C connector that plugs into the dock. When devices change, simply unplug the connector and attach new charger components – no rewiring needed.

Key Features

• USB-C Power Delivery – 5–12 V, max. 2.5 A (25 W) via male USB-C connector
• Direct vehicle connection – 10–30 V DC input via 0.2 m bare-wire cable; 1 m output cable
• Modular design – unplug the USB-C connector and fit new charger components when devices change – no rewiring
• Built-in protection – over-voltage, over-current and short-circuit protection; SAE J1113-5a load dump
• Rugged and certified – operating −20 to +70 °C, storage −40 to +85 °C; FCC, CSA, CE, UKCA, RCM, E-Mark, RoHS and WEEE
• 3-year warranty – backed by RAM Mounts

Compatibility

• GDS vehicle docks and RAM docks with a female USB-C power input
• GDS Uni-Conn spring-loaded docks (RAM-GDS-DOCK-V12-U1… / DOCKL-V12-U1… series)
• GDS key-locking vehicle dock for Honeywell CT37 (RAM-GDS-DOCKL-V15-CU)
• Vehicle electrical systems with 10–30 V DC

Technical Specifications

More RAM and GDS docks, chargers and mounting parts are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
