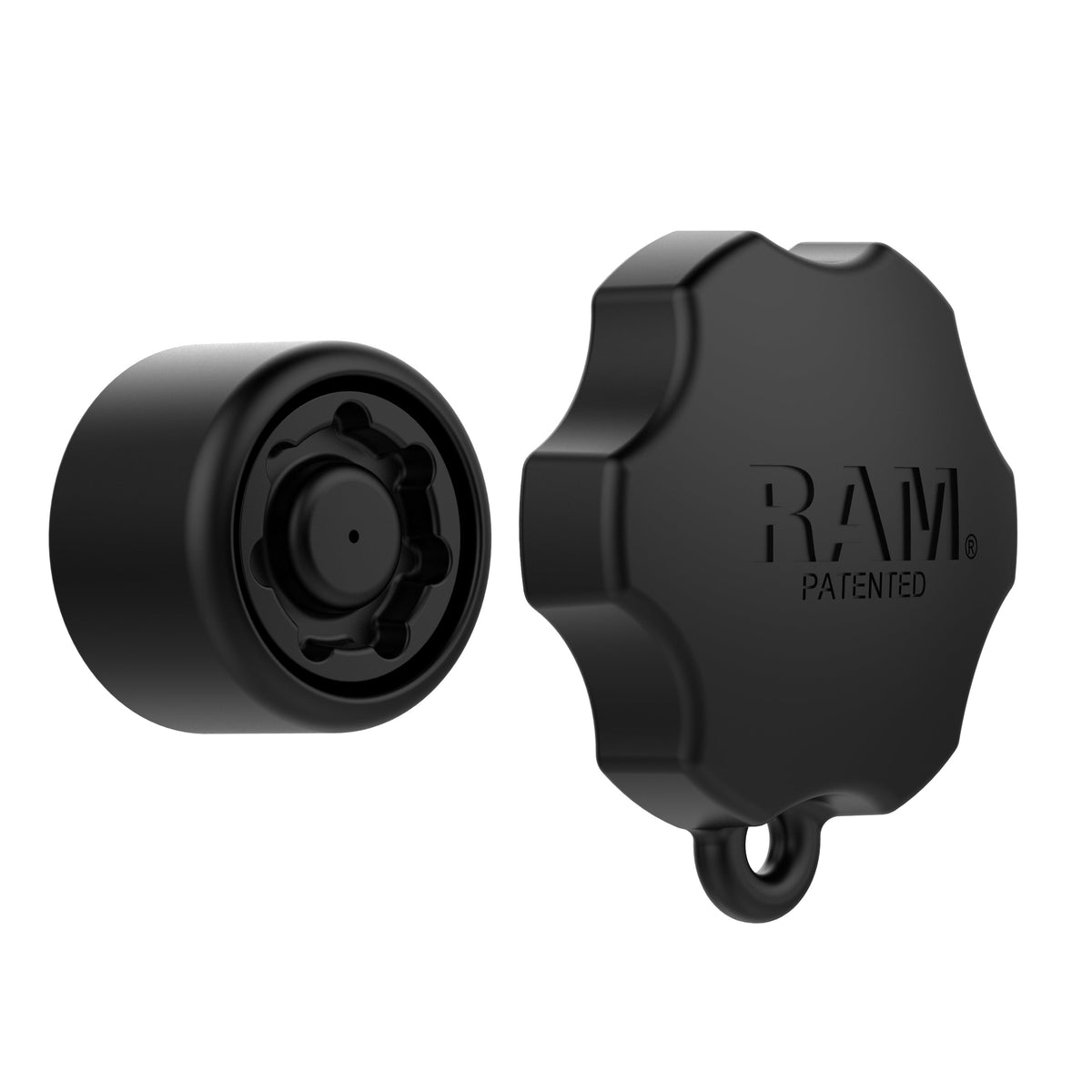

RAM Mounts Pin-Lock security knob for C-size socket arms – product photo

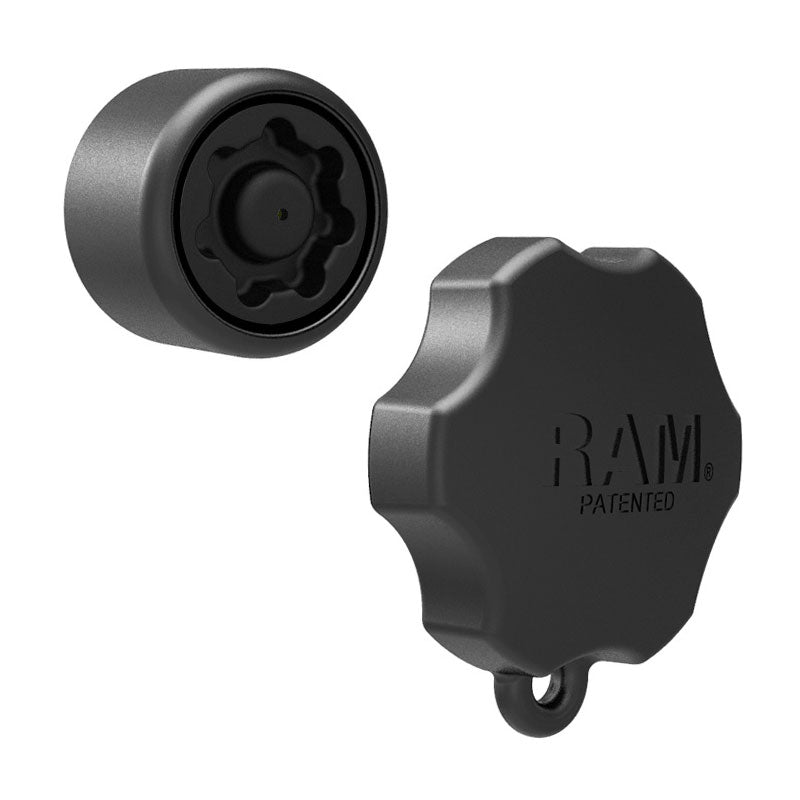

RAM Mounts Pin-Lock security knob with key – alternative view

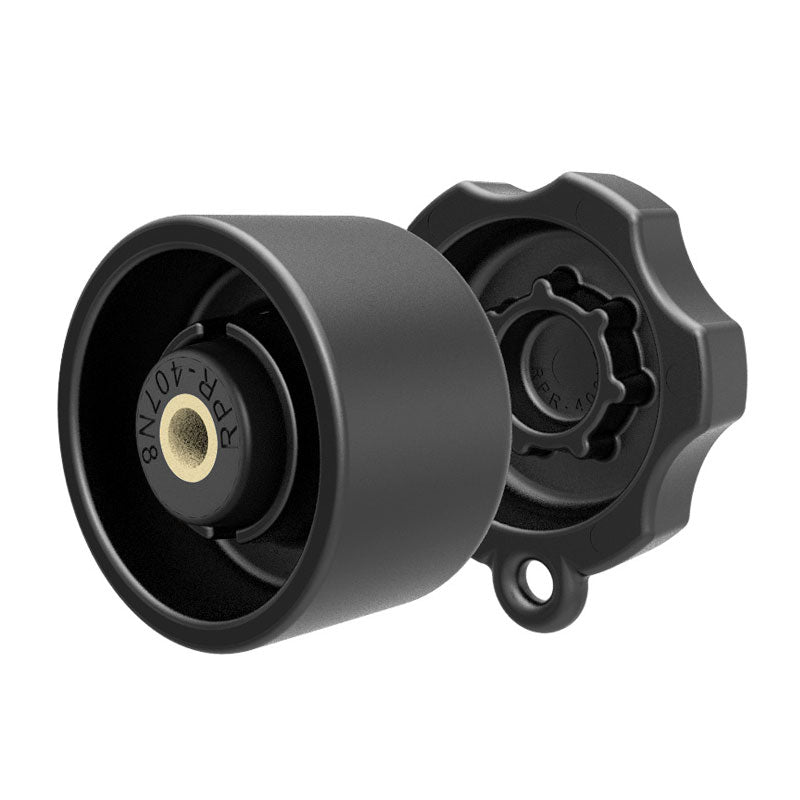

RAM Mounts Pin-Lock security knob RAP-S-KNOB5U – detail

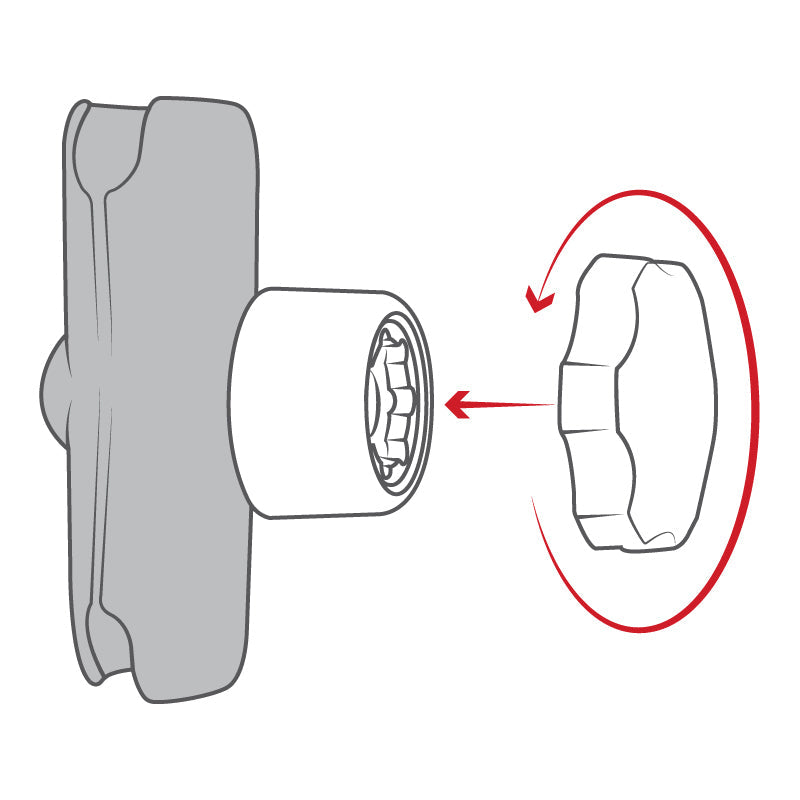

RAM Mounts Pin-Lock knob for C-size RAM arms – further view
RAM Mounts Pin-Lock security knob for C-size socket arms – product photo
RAM Mounts Pin-Lock security knob with key – alternative view
RAM Mounts Pin-Lock security knob RAP-S-KNOB5U – detail
RAM Mounts Pin-Lock knob for C-size RAM arms – further view
RAM Mounts Pin-Lock security knob for C-size socket arms – product photo
RAM Mounts Pin-Lock security knob with key – alternative view
RAM Mounts Pin-Lock security knob RAP-S-KNOB5U – detail
RAM Mounts Pin-Lock knob for C-size RAM arms – further view
RAM Mounts Pin-Lock security knob for C-size socket arms – product photo
RAM Mounts Pin-Lock security knob with key – alternative view
RAM Mounts Pin-Lock security knob RAP-S-KNOB5U – detail
RAM Mounts Pin-Lock knob for C-size RAM arms – further view

RAM Mounts Pin-Lock Security Knob for C-Size Socket Arms (RAP-S-KNOB5U)

13,36 € +VAT
Locking
Key-lockingPin-Lock
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Barcode: RAP-S-KNOB5U
RAM Mounts Pin-Lock security knob for C-size socket arms – product photo
RAM MOUNT
RAM Mounts Pin-Lock Security Knob for C-Size Socket Arms (RAP-S-KNOB5U)
13,36 € +VAT

RAM Mounts Pin-Lock Security Knob (RAP-S-KNOB5U) replaces the standard knob on RAM C-size (1.5") arms and mounts with a low-profile security knob that is tightened and loosened with the included Pin-Lock key knob. It deters theft and tampering of mounted devices at a lower cost than most keyed locking knobs, while still giving enough leverage to tighten the mount securely in heavy chop or high-vibration environments. Pin patterns are randomised; fixed-pattern versions are available separately for fleets that want one key for every mount.

📦 What's in the box – RAP-S-KNOB5U

  • Pin-Lock security knob – 5/16"-18 female thread, for C-size arms
  • Pin-Lock security key – key knob for tightening and loosening

💡 You might also consider a RAM C-size double socket arm for a new installation, or the key lock knob with brass insert if you prefer a classic key lock.

View accessories →

Key Features

  • Theft deterrent – only the matching Pin-Lock key knob turns the security knob
  • Low profile – adds very little bulk compared with the standard knob
  • Strong leverage – tightens the mount securely in heavy chop and high-vibration environments
  • Cost-effective – lower cost than most keyed locking knobs; randomised pin patterns

Compatibility

  • All RAM C-size (1.5") arms and mounts with the standard knob, e.g. RAM-201U

Technical Specifications

Part Number RAP-S-KNOB5U
Product Type Security knob (Pin-Lock)
Connection RAM C-size (1.5") socket arms and mounts
Thread 5/16"-18 female
Locking Pin-Lock, 1 security key included (randomised pin pattern)
Weight 0.10 kg (0.22 lb)
In the Box Pin-Lock security knob, Pin-Lock security key

More RAM mounting parts and accessories are waiting in our Mobile Terminal Accessories range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberLockingPrice
RAM Mounts Key Lock Knob with Brass Insert for C-Size Socket Arms (RAM-KNOB5LU) RAM-KNOB5LUKey-locking37,25 €+VATOut of Stock View
RAM Mounts Pin-Lock Security Knob for C-Size Socket Arms (RAP-S-KNOB5U) RAP-S-KNOB5UViewingPin-Lock13,36 €+VATOut of Stock

Accessories

ProductPrice
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mm (RAM-201U) RAM Mounts Double Socket Arm, C-Size, Medium, 145 mmRAM-201U29,32 €+VATIn Stock
RAM Mounts Double Socket Arm, C-Size, Short, 90 mm (RAM-201U-B) RAM Mounts Double Socket Arm, C-Size, Short, 90 mmRAM-201U-B26,91 €+VATIn Stock
RAM Mounts Double Socket Arm, C-Size, Long, 232 mm (RAM-201U-D) RAM Mounts Double Socket Arm, C-Size, Long, 232 mmRAM-201U-D54,73 €+VATIn Stock
RAM Mounts Composite Double Socket Arm, C-Size, Medium, 140 mm (RAP-201U) RAM Mounts Composite Double Socket Arm, C-Size, Medium, 140 mmRAP-201U25,38 €+VATOut of Stock View
RAM Mounts Key Lock Knob with Brass Insert for C-Size Socket Arms (RAM-KNOB5LU) RAM Mounts Key Lock Knob with Brass Insert for C-Size Socket ArmsRAM-KNOB5LU37,25 €+VATOut of Stock View
