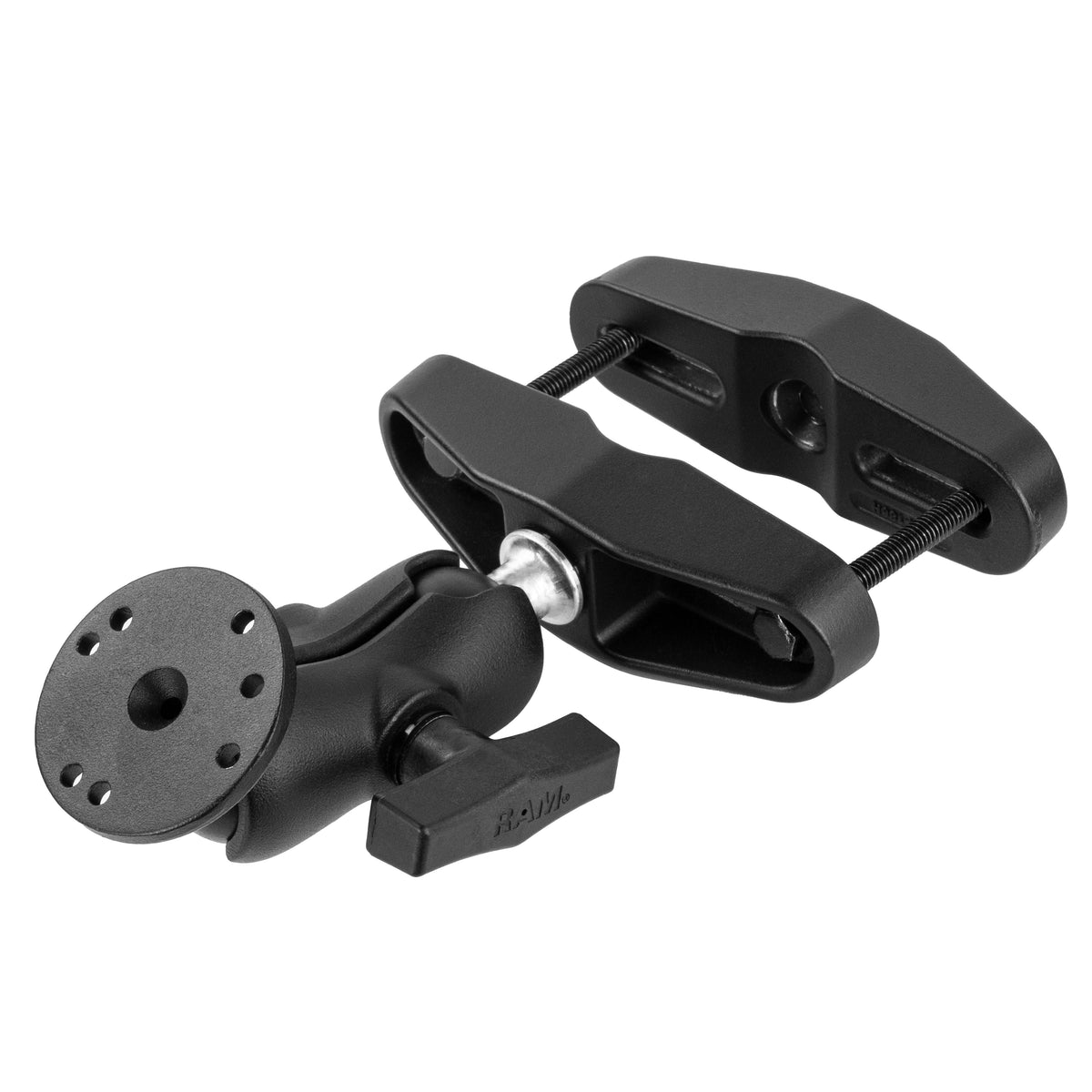

RAM Mounts Universal Post Clamp Mount (44–102 mm) with Round Plate, C-Size, Short (RAM-101U-B-247)

RAM Mounts Universal Post Clamp Mount (44–102 mm) with Round Plate, C-Size, Short (RAM-101U-B-247) is built for forklifts and other vehicles with square cab posts. The clamp base wraps around posts 44–102 mm wide and is tightened with the included bolts and nuts, so there is no drilling into the frame. A short 90 mm C-size (1.5") double socket arm connects it to a 63.5 mm round plate with the universal AMPS pattern for handheld terminals, tablets and other device cradles.

Key Features

• Square post clamp – clamps around square posts 44–102 mm wide – such as forklift cab frames – and is tightened with the included bolts and nuts, no drilling needed
• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• Short double socket arm – 90 mm overall, 64 mm socket to socket, with an easy-to-adjust knob
• Universal AMPS pattern – the Ø 63.5 mm round plate has the 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns used by most RAM and third-party cradles
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• Square posts 44–102 mm wide, e.g. forklift cab frames
• Cradles and devices with the AMPS 4-hole pattern (30 × 38 mm)
• Holders with the 3-hole 120° pattern (Ø 46 mm)
• All RAM C-size (1.5") ball bases, adapters and holders

Technical Specifications
