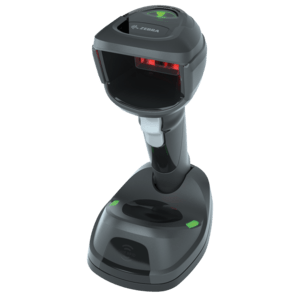

Zebra DS9900 Series Presentation Scanner (DS9908-SR4U2100AZW)

The Zebra DS9908 is a corded hybrid 2D presentation scanner – one of a kind, designed from the ground up for both hands-free and handheld scanning. It stands on its own integrated adjustable stand for fast hands-free scanning, switches to handheld mode the moment it is picked up and reads virtually every 1D and 2D barcode, on labels and on phone screens. It is backed by a 5-year (60-month) Zebra warranty. This version, DS9908-SR4U2100AZW, has the Standard Range (SR) imager for retail checkouts, comes in Midnight Black and is supplied with a USB cable, ready to plug in and scan.

Key Features

• Two scanners in one – a one-of-a-kind hybrid design built from the ground up for hands-free and handheld use: a capacitive touch sensor and an accelerometer switch modes instantly when the scanner is picked up or put down, with no mechanical parts to wear out.
• Scans it all – with virtually no exceptions – an 800 MHz processor, a megapixel sensor and Zebra's PRZM Intelligent Imaging capture dense, poorly printed, damaged, crinkled, faded, low-contrast and glossy barcodes, as well as electronic barcodes on dimly lit phone screens.
• Made for the checkout – reads Digimarc barcodes as well as mobile coupons, loyalty cards and e-tickets on phone screens, so shoppers and associates spend less time positioning items.
• Rapid-fire scanning – the widest field of view in its class (48° × 30.6°) and swipe speeds of up to 610 cm/s (13 mil UPC) keep lines moving; in presentation mode the range is limited to prevent accidental scans, and when the scanner is picked up the range extends automatically to reach items on the counter or in the cart.
• Hybrid ergonomics – the comfortably weighted, well-balanced handle is easy to aim, and the integrated adjustable stand is a sturdy, compact solution for crowded counters.
• Intelligent Document Capture and OCR – captures high-resolution images of documents, cheques and forms with a single trigger press, reads OCR-A/OCR-B/MICR text, and Multi-Code Data Formatting and Preferred Symbol read several barcodes at once or only the one you need.
• Built for everyday use – a single circuit board design, a double-sealed optical system and a recessed scan window; IP52 sealing with elevated electronics, multiple 1.5 m drops to concrete and 2,000 tumbles.
• Plug and play – connects via USB, RS232, Keyboard Wedge or IBM 46xx (RS485) with auto-host-detect Zebra cables, supports more than 90 international keyboards and is compatible with Zebra DS9808 cables.
• Zebra DataCapture DNA – program the scanner with 123Scan, update firmware remotely with Scanner Management Service (SMS), spot poor barcodes with ScanSpeed Analytics and integrate it with the Scanner SDKs for Windows, Android, iOS and Linux; 5-year Zebra warranty.

Ideal Applications

• Supermarkets, convenience stores and other busy checkouts – hands-free scanning with a quick pick-up for bulky items
• Mobile payments, coupons, loyalty apps and e-tickets on customer phones
• Department and fashion stores – with the EAS version, scanning and Checkpoint EAS tag deactivation in one step
• Pharmacies and service desks – document capture and OCR for forms and IDs
• Returns and customer service counters

All DS9908 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a retail checkout choose the Standard Range DS9908: the USB kit DS9908-SR4U2100AZW is ready to plug in and scan, the RS232 kit DS9908-SR4R0110AZE includes the serial cable and the power supply, and DS9908-SR00004ZZWW is the scanner-only version if you already have a compatible Zebra cable (e.g. CBA-U21-S07ZBR – DS9808 cables fit too). DS9908-SR00004ZCWW adds Checkpoint EAS deactivation, the white DS9908-HD4000WZZWW is the high density version for labs and pharmacies, and DS9908-SRR0004ZZEU adds a UHF RFID reader. Compare other hands-free models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
