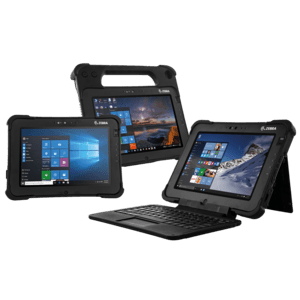

Zebra L10 Tablet Terminal (RTL10B1-H2AS0P0000A6)

The Zebra XPAD L10 is a fully rugged 10.1" tablet from Zebra's L10 platform (originally developed by Xplore Technologies) – IP65-sealed even with the port doors open, tested for 1.8 m drops to plywood over concrete and operating from −20 °C to 60 °C. Built for oil and gas, utilities, public safety, construction, warehousing and manufacturing, it offers a sunlight-readable 1000-nit View Anywhere display, a hot-swappable battery with internal bridge battery and a three-year Zebra warranty. This version, RTL10B1-H2AS0P0000A6, is the XPAD version with integrated carry handle and an integrated 1D/2D barcode imager, running Android on a Qualcomm Snapdragon 660 with 4 GB RAM and 128 GB Flash, plus 4G LTE, GPS, NFC and an RF pass-through antenna connection for vehicle docks.

Key Features

• Fully rugged – IP65 with port doors open or closed, 1.8 m drops to plywood over concrete and 1.2 m to concrete (MIL-STD-810G), magnesium-alloy frame and elastomer corner bumpers; many L10 models are certified for C1D2 hazardous locations.
• Readable anywhere – 10.1" WUXGA (1920 × 1200) display with 1000-nit View Anywhere technology and Corning Gorilla Glass 3; auto-sensing finger, glove and wet touch, optional active pen.
• Power for long shifts – hot-swappable main battery with internal bridge battery: up to about 10 hours with the standard 36 Wh battery and up to 26 hours with the extended 98 Wh battery.
• Real PC connectivity – USB ports, USB-C with DisplayPort out, RJ-45 Gigabit Ethernet, microSDXC and a docking connector; optional true serial port or HDMI.
• Android with Zebra Mobility DNA – LifeGuard security updates, pre-licensed PTT Express, Device Diagnostics, Enterprise Home Screen and StageNow; Qualcomm Snapdragon 660 with Adreno 512 graphics.
• One platform, three forms – XSLATE (slate), XPAD (integrated handle, optional barcode imager) and XBOOK (2-in-1 with keyboard) share batteries, docks and accessories.
• Mix-and-match accessories – industrial, office and vehicle docks, companion keyboard, kickstand with rotating hand strap, soft handle, shoulder strap, carry cases and pens.
• Cameras for documentation – 13 MP rear autofocus camera with flash for proof-of-condition photos and video, plus a front camera for video calls with remote experts.

Ideal Applications

• Oil and gas, mining and utilities: inspections, maintenance and work orders in harsh environments
• Public safety and first responders: in-vehicle computing, reporting and mapping
• Construction and engineering: plans, punch lists and site documentation
• Warehousing and manufacturing: forklift-mounted and shop-floor applications
• Field service, telecommunications and military logistics

All L10 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The L10 series was developed by Xplore Technologies (acquired by Zebra in 2018) and is discontinued – remaining stock is available while supplies last; its successor is the Zebra L10ax series. For a current rugged Windows 2-in-1, see the Zebra ET80/ET85; for a rugged Android tablet, see the Zebra ET60/ET65. Compare all models in our Tablet Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
