| Tootekood | SLP-TX223BG |

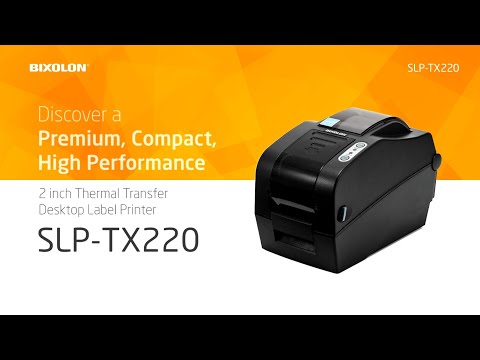

| Mudel | BIXOLON SLP-TX223 (SLP-TX220 Series) |
| Printeri tüüp | 2-inch desktop thermal transfer label printer |
| Printimismeetod | Thermal transfer and direct thermal |
| Eraldusvõime | 300 dpi (12 dots/mm) |
| Printimiskiirus | Up to 100 mm/s (4 ips) |
| Max prindilaius | 56.9 mm (2.24") |
| Max prindipikkus | 2,000 mm (78.7") |
| Meediumi laius | 15–60 mm (0.59"–2.36"); 15–58 mm with peeler |
| Meediumi paksus | 0.06–0.20 mm |
| Rulli läbimõõt | Up to 130 mm (5.12") OD |
| Südamiku läbimõõt | 12.5–38.1 mm (0.5"–1.5") |
| Meediumi tüübid | Gap (die-cut), black mark, notch, continuous, fanfold |
| Andurid | Transmissive gap sensor, reflective black-mark sensor (adjustable), head-open sensor; Smart Media Detection™ |
| Lint (ribbon) | Wax, wax/resin, resin; ink OUTSIDE only; max. 58 mm wide, up to 74 m on 0.5" (12.7 mm) core |
| Liidesed | USB (Type B), USB host (Type A) for optional WLAN dongle |
| Juhtmevaba ühendus | Bluetooth 5.0 (MFi iAP2 certified, Smart Bluetooth Auto Switch); optional WLAN USB dongle (802.11a/b/g/n/ac) |
| Mobiilne printimine | Label Artist™ Mobile (Android, iOS), mPrint (iOS, Android); Android, iOS, Windows, Linux, Chrome, Xamarin and Web Print SDKs |
| Mälu | 64 MB SDRAM, 128 MB Flash |
| Reaalajakell | Optional |
| Printerikeeled | SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible) |
| Fondid / märgistikud | Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E), scalable fonts (1 SLCS, 1 BPL-Z), 23 code pages, Unicode (UTF-8, UTF-16LE/BE) |
| Ribakoodid | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, UPC/EAN extensions, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Ekraan | No LCD – status LED, feed, pause and cancel keys |
| Meediumi käsitlemine | Tear-off (standard); peeler and auto cutter (optional, field-installable) |
| Lisavarustus | Peeler, auto cutter, external paper supply (LES-400G), WLAN USB dongle (E/B versions), real-time clock, USB cable, serial cable |
| Draiverid ja tarkvara | Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM USB/Ethernet, utility program, OPOS/JPOS driver, BarTender® UltraLite for BIXOLON, Label Artist™-II, SAP® device driver, Network Auto Installer; XPM™/XCM™ (BIXOLON Profile Manager) |
| Toide | External AC/DC power adapter 24 V DC / 2.5 A, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified |
| Mõõtmed (L × S × K) | 144 × 252 × 173 mm |
| Kaal | 1.71 kg |
| Värv | Dark grey |
| Töötemperatuur | 5–40 °C |
| Hoiutemperatuur | −20–60 °C |
| Niiskus | Operating 10–80% RH, storage 10–90% RH (non-condensing) |
| Garantii | 36 months |
| Pakendi sisu | BIXOLON SLP-TX223 printer (300 dpi, USB, Bluetooth 5.0, USB host), external AC/DC power adapter (24 V DC, 100–240 V AC), power cord (plug type not specified), empty 0.5" ribbon core, quick manual; drivers and Label Artist-II / BarTender UltraLite software as free download – USB cable NOT included (optional BIXOLON USB-KAB-G); labels and ribbon NOT included |
