| Tootekood | 1472G2D-6USB-5-R |

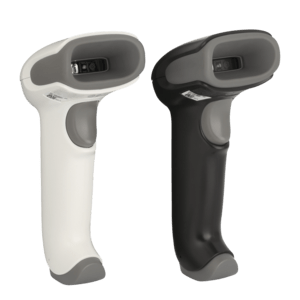

| Mudel | Honeywell Voyager XP 1472g |
| Skanneri tüüp | Cordless handheld 2D area imager (reads 1D, PDF417 and 2D barcodes) |
| Ühendus | Bluetooth v4.2, 2.4–2.5 GHz ISM band, adaptive frequency hopping; direct connection via Bluetooth HID or SPP possible |
| Raadioside ulatus | Up to 100 m (300 ft) line of sight (Honeywell datasheet); with the CCB01-010BT-V1N base typically up to 10 m (33 ft), depending on the environment |
| Pildisensor | 1040 × 720 pixels |
| Vaateväli | 39.2° H × 27.4° V (nominal) |
| Teravussügavus (tüüpiline) | 5 mil Code 39: 20–205 mm; 13 mil UPC: 18–400 mm; 6.7 mil PDF417: 15–185 mm; 10 mil Data Matrix: 10–165 mm; 20 mil QR: 5–325 mm |
| Liikumistaluvus | 70 cm/s (13 mil UPC at optimal focus) |
| Minimaalne trükikontrast | 15% |
| Pööre / kallak / kalle | ±180° / ±65° / ±70° |
| Sümboolikad | Standard 1D, PDF, 2D and DotCode symbologies (configuration dependent) |
| Liidesed | Via CCB01-010BT-V1N base: USB, Keyboard Wedge, RS-232, RS-485 (IBM 46xx) – interface depends on the cable used; direct Bluetooth: HID, SPP |
| Indikaatorid | Decode LEDs, rear-view LEDs, beeper (adjustable tone and volume) |
| Värv | Black |
| Korpus | Disinfectant-ready |
| Aku | Li-ion, 2,400 mAh minimum, replaceable (Honeywell BAT-SCN01A) |
| Skannimisi ühe laadimisega | Up to 50,000 scans per charge |
| Tööaeg | Up to 14 hours |
| Laadimisaeg | Approx. 4.5 hours |
| Mõõtmed | Scanner: 62 × 173 × 82 mm (L × W × H); CCB01-010BT-V1N base: 132 × 102 × 81 mm |
| Kaal | Scanner: 210 g; base: 179 g |
| Toide | Base: 5 W (1 A at 5 V) with power supply, 2.5 W (0.5 A at 5 V) via USB; standby 0.5 W (0.1 A at 5 V) |
| Kaitseklass | IP52 |
| Kukkumine / trummel | 30 drops from 1.8 m to concrete; 1,000 tumbles at 0.5 m |
| Elektrostaatiline lahendus | ±15 kV air, ±8 kV indirect |
| Taluvus ümbritseva valguse suhtes | 0–100,000 lux |
| Töötemperatuur | Scanner and base: 0 °C to 50 °C; charging: 5 °C to 40 °C |
| Hoiutemperatuur | Scanner: −40 °C to 60 °C; base: −40 °C to 70 °C |
| Niiskus | 0–95% RH, non-condensing |
| Tarkvara ja haldus | Honeywell Scanner Management Utility (SMU), Honeywell Operational Intelligence |
| Garantii | 36 months (3-year Honeywell factory warranty) |
| Pakendi sisu | Voyager XP 1472g 2D scanner (black, disinfectant-ready housing), Li-ion battery 2,400 mAh (BAT-SCN01A), charge and communication base (Bluetooth, CCB01-010BT-V1N), USB cable (straight, 3 m, CBL-500-300-S00) – no power supply included (base is USB-powered; optional 46-00526) |
