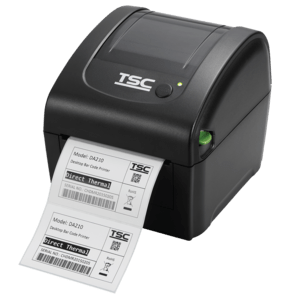

TSC DA220W (DA220W-A001-1102) on kompaktne 4-tolline otsetermiline lauaetiketiprinter tervishoiu jaoks, mis prindib eraldusvõimega 203 dpi ja kiirusega kuni 152 mm/s (6 ips) – linti pole vaja. Topeltseinaga avatav korpus mahutab kuni 114 mm laiuseid 127 mm etiketirulle, TSPL-EZD püsivara emuleerib EPL-, ZPL- ja DPL-keelt ning printer ühendub USB 2.0, USB-hostpordi, RS-232 ja 10/100 Etherneti kaudu. Komplektis on toiteplokk, EL-pistikuga toitejuhe ja USB-kaabel – valmis printimiseks. Valge desinfitseeritav antibakteriaalne korpus ja IEC 60601-1 nõuetele vastav toiteplokk sobivad kliinilisse keskkonda.
📦 Pakendi sisu – DA220W-A001-1102
- ✅ Etiketiprinter TSC DA220W – 203 dpi, USB 2.0, USB host, RS-232, Ethernet 10/100
- ✅ Toiteplokk – IEC 60601-1 meditsiiniklassi toiteplokk, 100–240 V AC → 24 V DC, 60 W
- ✅ Toitejuhe – EL pistik (Schuko)
- ✅ USB-kaabel – USB 2.0 A–B – ühendage ja printige kohe
- ✅ Windowsi draiverid ja etiketitarkvara – TSC draiver ja etiketitarkvara (CD või tasuta allalaadimine TSC veebilehelt)
- ✅ Paigaldusjuhend
- ❌ Etiketid – EI kuulu komplekti – tellige oma kasutusotstarbele sobivad etiketid (vt ühilduvaid etikette allpool)
- ❌ Etherneti (LAN) kaabel – EI kuulu komplekti – sobib mis tahes tavaline RJ45 võrgukaabel
✅ Valmis printimiseks: toiteplokk, toitejuhe ja USB-kaabel on komplektis – vaja on vaid otsetermilisi etikette (linti pole vaja).
💡 Kasulikud lisad: otsetermilised etiketid, nt TSC 38-T100150-12LF (100 × 150 mm saatmisetiketid); giljotiinlõikur TSC CUT-DA210-0001 (täis-/osaline lõige) või etiketieraldaja TSC PEL-DA210-0001; klaviatuur TSC KP-200 Plus iseseisvaks printimiseks ilma arvutita.
Peamised omadused
- Otsetermiline printimine 203 dpi juures – kuni 152 mm/s (6 ips), max prindilaius 108 mm; linti pole vaja osta ega vahetada
- Kompaktne topeltseinaga avatav korpus (172 × 195 × 165 mm, 1,5 kg) ja lihtne meediumi sisestamine
- 127 mm (5") etiketirullid 25,4–38 mm südamikul, meediumi laius 19–114 mm; pidev, vahedega, mustamärgiga, leporello- ja sälkudega meedium
- 32-bitine RISC-protsessor, 64 MB DRAM, 128 MB Flash ja reaalajakell
- TSPL-EZD püsivara EPL-, ZPL/ZPL II- ja DPL-emulatsiooniga – asendab olemasolevad etiketiprinterid ilma ümberseadistamiseta
- USB 2.0, RS-232 jadaliides ja 10/100 Ethernet ühiseks võrguprintimiseks ning USB-hostport skanneri või klaviatuuri jaoks
- Läbivalgusega vaheandur, mustamärgiandur ja avatud prindipea andur
- Valge, desinfitseeritav antibakteriaalne korpus ja IEC 60601-1 nõuetele vastav toiteplokk kliinilisse keskkonda
- Lihtne prindipea ja survevõlli vahetus; TSC 3-aastane garantii EMEA piirkonnas
Sobib ideaalselt
- Proovide ja laborianalüüside etiketid
- Apteegi- ja ravimietiketid
- Patsientide jälgimise ja tuvastamise etiketid
- Verepanga, osakonna ja voodiäärne märgistamine
- Tervishoiu logistika-, vara- ja dokumendietiketid
Kõik DA seeria versioonid
Esiletõstetud rida on praegu vaadatav versioon.
| Tootekood | Mudel | Eraldusvõime | Liidesed | Juhtmevaba | Toitejuhe | Värv | Meediumi käsitlemine | |
|---|---|---|---|---|---|---|---|---|
| 99-158A001-0002 | DA210 | 203 dpi | USB | — | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A001-0003 | DA210 | 203 dpi | USB | — | UK | Must | Rebimisserv | Vaata toodet |
| 99-158A005-0202 | DA210 | 203 dpi | USB | Bluetooth (MFi) | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A002-0002 | DA310 | 300 dpi | USB | — | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A013-1102 | DA220 | 203 dpi | USB, USB host, RS-232, Ethernet | — | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A028-1502 | DA220 | 203 dpi | USB, USB host, RS-232, Ethernet | Bluetooth 4.0 | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A015-2102 | DA220 | 203 dpi | USB, Ethernet | — | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A025-2702 | DA220 | 203 dpi | USB, Ethernet | Wi-Fi | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A015-2152 | DA220 | 203 dpi | USB, Ethernet | — | EL (Schuko) | Must | Alusetu lõikur | Vaata toodet |
| 99-158A016-2102 | DA320 | 300 dpi | USB, USB host, RS-232, Ethernet | — | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A020-1702 | DA320 | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | EL (Schuko) | Must | Rebimisserv | Vaata toodet |
| 99-158A020-20LF | DA320 | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | UK | Must | Rebimisserv | Vaata toodet |
| DA220W-A001-1102 (see versioon) | DA220W | 203 dpi | USB, USB host, RS-232, Ethernet | — | EL (Schuko) | Valge | Rebimisserv | Vaatate |
| DA220W-A001-2102 | DA220W | 203 dpi | USB, Ethernet | — | EL (Schuko) | Valge | Rebimisserv | Vaata toodet |
| DA220W-A001-21C2 | DA220W | 203 dpi | USB, Ethernet | — | EL (Schuko) | Valge | Väline rullihoidik | Vaata toodet |
Tehniline spetsifikatsioon
| Tootekood | DA220W-A001-1102 |
|---|---|
| Mudel | TSC DA220W (DA Series, healthcare) |
| Printeri tüüp | 4-inch desktop direct thermal label printer for healthcare |
| Printimismeetod | Direct thermal (no ribbon) |
| Eraldusvõime | 203 dpi (8 dots/mm) |
| Printimiskiirus | Up to 152 mm/s (6 ips) |
| Max prindilaius | 108 mm (4.25") |
| Max prindipikkus | 25,400 mm (1,000") |
| Meediumi laius | 19–114 mm (0.7"–4.5") |
| Meediumi paksus | 0.055–0.19 mm (2.16–7.48 mil) |
| Rulli läbimõõt | 127 mm (5") OD inside the printer; up to 214 mm (8.4") OD on 1" core with the external roll mount (option) |
| Südamiku läbimõõt | 25.4–38 mm (1"–1.5") |
| Meediumi tüübid | Continuous, die-cut (gap), black mark, fanfold, notched (outside wound); direct-thermal media; label length 10 mm – 25,400 mm |
| Andurid | Transmissive gap sensor, black-mark reflective sensor, head-open sensor |
| Liidesed | PCBA1: USB 2.0 (high speed), USB host, RS-232 serial, Ethernet 10/100 Mbps |
| Juhtmevaba ühendus | None |
| Protsessor | 32-bit RISC CPU |
| Mälu | 64 MB DRAM, 128 MB Flash |
| Reaalajakell | Standard |
| Printerikeeled | TSPL-EZD (EPL, ZPL, ZPL II and DPL compatible) |
| Fondid / märgistikud | 8 alphanumeric bitmap fonts; Monotype true-type engine with CG Triumvirate Bold Condensed scalable font; 0/90/180/270° rotation |
| Ribakoodid | 1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC 2(5)-digit add-on, MSI, Plessey, Postnet, RSS-Stacked, GS1 DataBar, Code 11, China Post; 2D: PDF417, MicroPDF417, MaxiCode, DataMatrix, QR Code, Aztec |
| Ekraan | No LCD – 1 three-colour status LED (green/amber/red), 1 feed button, power switch |
| Meediumi käsitlemine | Tear-off (standard); dealer options: peel-off module, guillotine cutter (full or partial cut), linerless cutter / linerless tear kits |
| Lisavarustus | 1.5" core adaptor; external roll mount (214 mm OD, 1" core); KP-200 Plus keyboard display unit (serial) |
| Draiverid ja tarkvara | Windows drivers and TSC labeling software (CD / free download), TSC Console |
| Toide | IEC 60601-1 compliant power supply: 100–240 V AC, 50–60 Hz input; 24 V DC, 2.5 A, 60 W output |
| Mõõtmed (L × S × K) | 172 × 195 × 165 mm (W × D × H) |
| Kaal | 1.5 kg |
| Värv | White |
| Korpus | Double-walled, disinfectant-ready antibacterial plastic |
| Töötemperatuur | 5–40 °C, 25–85% RH non-condensing |
| Hoiutemperatuur | −40–60 °C, 10–90% RH non-condensing |
| Sertifikaadid | FCC Class A, CE Class A, CB, TÜV/Safety; RoHS, WEEE |
| Garantii | Printer: 3 years (TSC EMEA, purchases from 1 June 2024); printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first) |
| Pakendi sisu | TSC DA220W printer (203 dpi, USB 2.0, USB host, RS-232, Ethernet 10/100), IEC 60601-1 compliant power supply (24 V DC, 60 W), power cord (EU Schuko plug), USB cable, Windows labeling software (CD or download), quick start guide – labels NOT included |
Vajate teistsugust liidest, eraldusvõimet, pistikut või tervishoiuversiooni? Kõik DA seeria versioonid on toodud ülal. Võrrelge teisi mudeleid meie kollektsioonis Lauaetiketiprinterid või küsige meie meeskonnalt hulgihinda.
Saadaval versioonid
99-158A001-0002
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A001-0003
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), label design software, QSG
99-158A002-0002
Resolution (dpi)
300
Wireless
None
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A005-0202
Resolution (dpi)
203
Wireless
Bluetooth
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Bluetooth (iOS), EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A013-1102
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, USB Host, RS232, Ethernet, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A015-2102
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Ethernet, emulation: EPL, ZPL, ZPLII, DPL, RAM: 128 MB, Flash: 64 MB, real time clock, incl.: cable (USB), power supply unit, power cable (EU), label design software
99-158A015-2152
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
Yes
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Ethernet, emulation: EPL, ZPL, ZPLII, DPL, RAM: 128 MB, Flash: 64 MB, cutter, linerless platen, real time clock, incl.: cable (USB), power supply unit, power cable (EU), label design software
99-158A016-2102
Resolution (dpi)
300
Wireless
None
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB (Host), RS232, Ethernet, EPL, ZPL, ZPLII, TSPL-EZ, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A020-1702
Resolution (dpi)
300
Wireless
Wi-Fi
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB (Host), USB Host, RS232, Ethernet, Wi-Fi (802.11a/b/g/n), EPL, ZPL, ZPLII, TSPL-EZ, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A020-20LF
Resolution (dpi)
300
Wireless
Wi-Fi
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB (Host), RS232, Ethernet, Wi-Fi (802.11a/b/g/n), EPL, ZPL, ZPLII, TSPL-EZ, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), label design software, QSG
99-158A025-2702
Resolution (dpi)
203
Wireless
Wi-Fi
Wired Interfaces
USB, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Ethernet, Wi-Fi (802.11a/b/g/n), emulation: EPL, ZPL, ZPLII, DPL, RAM: 64 MB, Flash: 128 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable
99-158A028-1502
Resolution (dpi)
203
Wireless
Bluetooth
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, RS232, Bluetooth, Ethernet, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
DA220W-A001-1102
Valitud
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
White
label printer, healthcare, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB (2.0), USB Host, RS232, Ethernet, RAM: 64 MB, Flash: 128 MB, desinfectable housing, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable, design software, QSG, colour: white
421,79 €Otsas
DA220W-A001-2102
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
No
Color
White
label printer, healthcare, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB (2.0), Ethernet, RAM: 64 MB, Flash: 128 MB, desinfectable housing, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable, design software, QSG, colour: white
DA220W-A001-21C2
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
No
Color
White
label printer, healthcare, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB (2.0), Ethernet, RAM: 64 MB, Flash: 128 MB, desinfectable housing, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable, design software, QSG, colour: white
