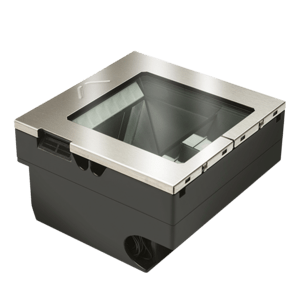

Datalogic Magellan 3550HSi Counter Scanner (M3551-010210-07604)

The Datalogic Magellan 3550HSi is a high-performance horizontal in-counter barcode scanner for busy, high-volume checkouts. Installed flush with the counter, its 1.3 MP digital imager matches the speed and large field of view of laser scanners while also reading 2D codes – from paper labels and phone screens alike – with both fast sweep and presentation scanning. Every unit has multiple interfaces, a powered USB port for the optional Customer Service Scanner and Checkpoint/Sensormatic EAS compatibility, and it comes with a 3-year Datalogic warranty. This version, M3551-010210-07604, is the complete USB kit: sapphire glass platter, Standard Counter Mount, a 4.5 m USB Type A cable, a 12 V power supply and an EU power cord – ready to install and connect to any PC or POS USB port.

Key Features

• High-performance digital imaging – a 1.3 MP (1280 × 1024) sensor processes up to 39 million pixels per second and matches the speed and large field of view of laser scanners, supporting both fast sweep and presentation scanning; even truncated, out-of-spec and poorly printed codes are read with ease.
• 1D, 2D and mobile codes – reads all standard 1D codes, GS1 DataBar, PDF417, Data Matrix, QR and Aztec codes from paper and phone screens; support for Digimarc digital watermarks is available as an option.
• Multiple interfaces in every unit – OEM (IBM) USB, RS-232, USB Keyboard and USB COM, selected by the cable; on IBM/Toshiba POS terminals the scanner is powered through the OEM (IBM) USB cable, on a standard USB or RS-232 port through the 12 V power supply.
• Made for high-volume checkouts – compact 15.2 × 15.2 cm top and only 8.7 cm depth below the counter; cables, mounts and tops are shared with the Magellan 35xxHSi series, and the version without a platter lets you reuse the top of an existing scanner.
• Customer Service Scanner ready – a powered USB auxiliary port for the optional Magellan Customer Service Scanner (CSS), so shoppers can scan phone screens, coupons and loyalty cards while the cashier keeps scanning items.
• Loss prevention – compatible with Checkpoint Systems and Tyco Sensormatic EAS systems.
• Software-driven and easy to manage – flexible, upgradeable firmware, image capture (BMP, JPEG), micro SD card slot, diagnostics reporting, host download and Magellan ULE scripting; remote management via OPOS, JavaPOS, Toshiba Remote Management (IBM Systems Director) and Wavelink Avalanche.
• Comfortable and reliable – subtle, adaptive illumination is easy on the eyes, solid-state electronics work silently, and the speaker plays adjustable tones or custom .wav files; IP52 sealing, a 3-year Datalogic factory warranty and optional EASEOFCARE service plans.

Ideal Applications

• High-volume supermarket and grocery checkout lanes (installed in the counter)
• Convenience stores, pharmacies and specialty retail
• Self-checkouts and kiosks
• Mobile coupons, loyalty cards and mobile marketing
• Age verification by reading 2D codes on ID documents

All Magellan 3550HSi Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? All Magellan 3550HSi versions contain the same high-performance in-counter imager. M3551-… versions have the highly scratch-resistant sapphire glass platter, while M3550-… versions come without a platter so you can reuse the top of your existing Magellan 35xxHSi. For a new installation, choose a version with the Standard Counter Mount or the complete USB kit M3551-010210-07604 with cable, power supply and EU power cord. Looking for a more economical scanner that runs from a single USB port without a power supply? See the Magellan 3510HSi. Compare other models in our In-Counter Barcode Scanners collection or contact our team for volume pricing.
