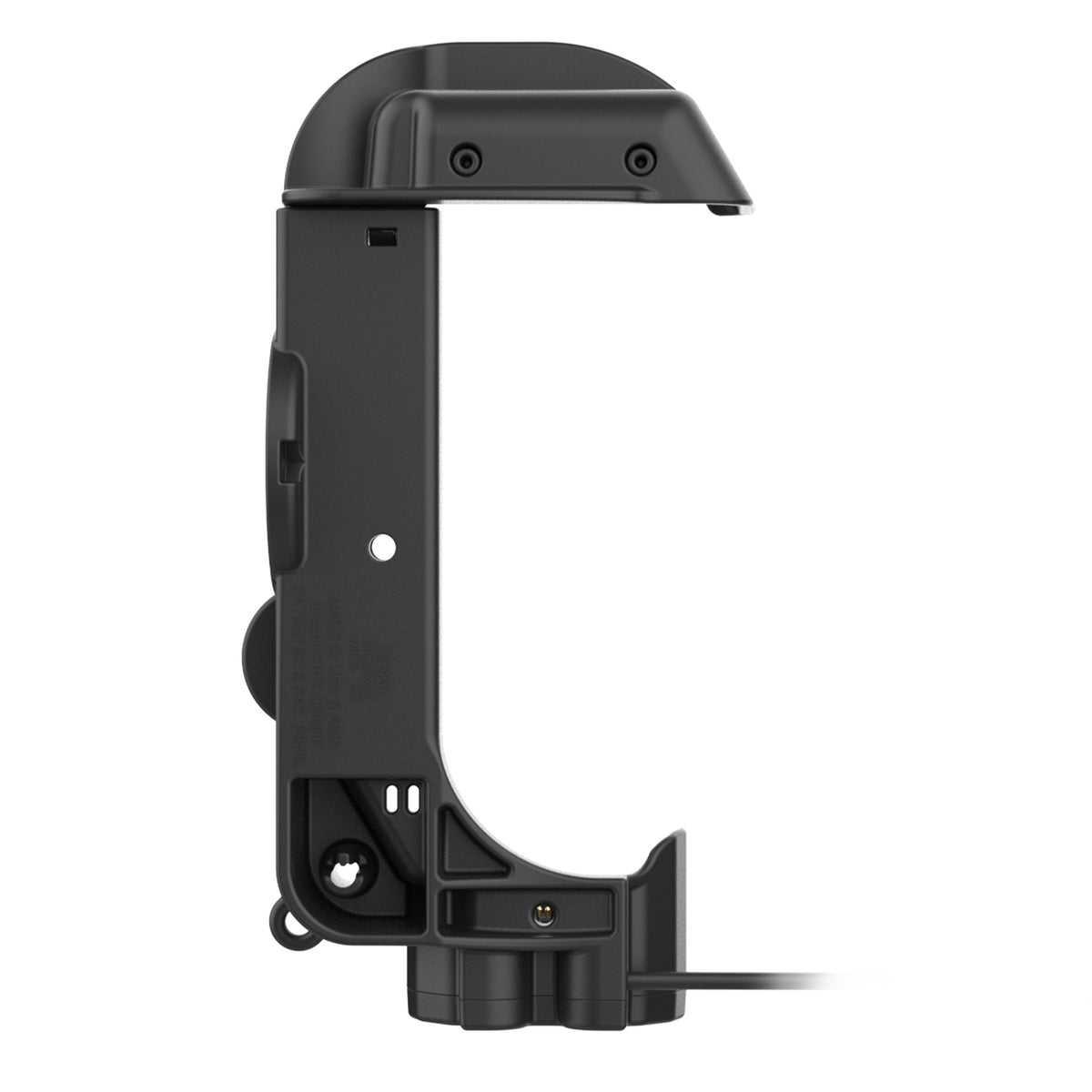

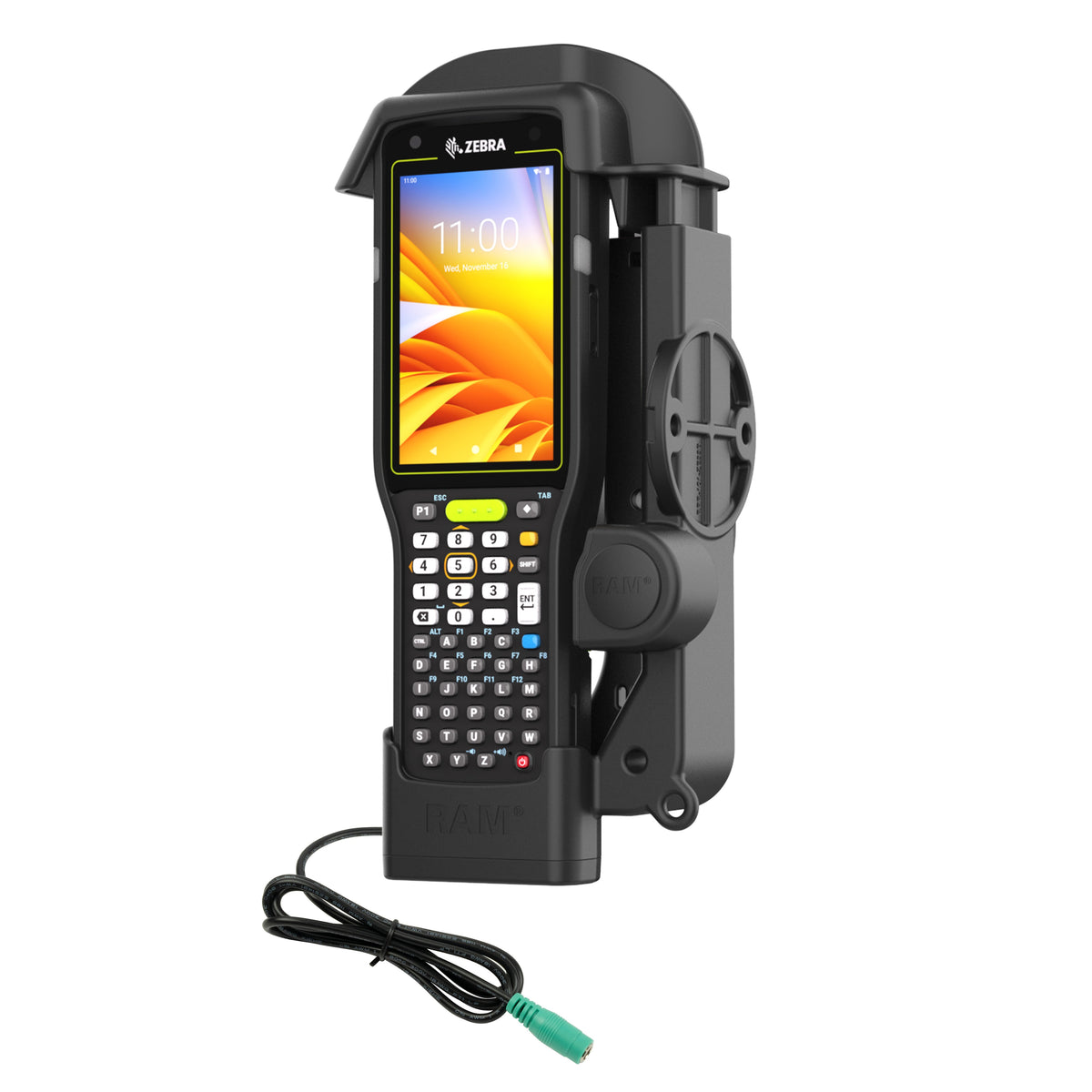

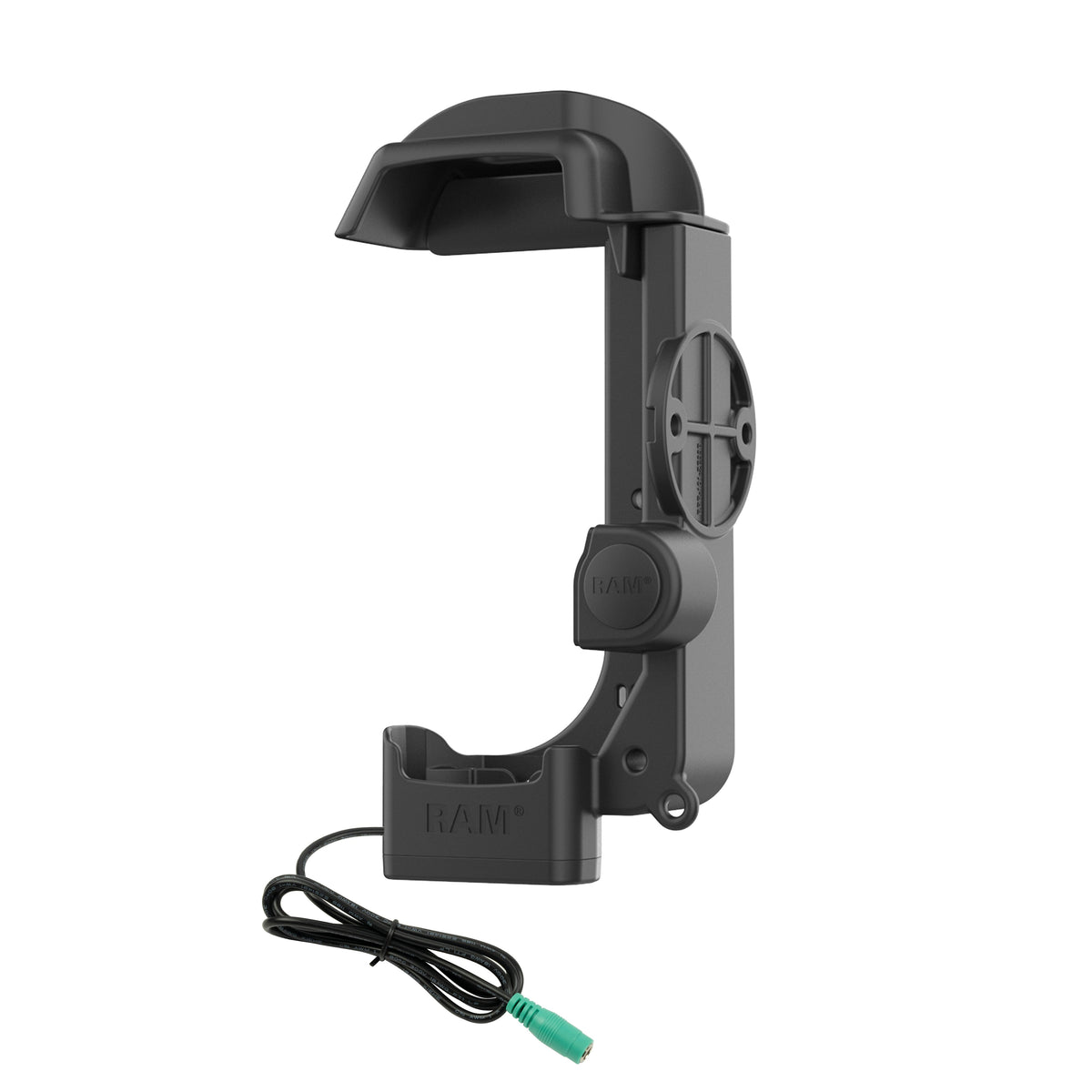

RAM Mounts Form-Fit Powered Dock for Zebra MC3300/MC3400/MC3450 (RAM-HOL-ZE33PU)
Regular price
100,22 € +VAT
RAM Mounts Form-Fit Powered Dock (RAM-HOL-ZE33PU) is shaped for the Zebra MC3300, MC3400 and MC3450 mobile computers and suits forklifts, warehouse vehicles and other mobile workplaces. The spring-loaded cradle takes the device with one hand and charges it through pogo-pin contacts with self-aligning pads; power comes in through a 5.5 mm DC pigtail connector. An included shim insert provides a secure fit for the MC3400 and MC3450 (not needed for the MC3300), and the device can be used for scanning while docked.
📦 What's in the box – RAM-HOL-ZE33PU
- Form-Fit Powered Dock – for Zebra MC3300, MC3400 & MC3450, 5.5 mm DC pigtail input
- Insert kit for MC3400 – shim for a secure fit of the MC3400 and MC3450
- Mounting hardware – machine screws (2× #8-32 x 5/8") and nyloc nuts (2× #8-32)
💡 To get started, you might also consider a B-size diamond ball base and a B-size double socket arm, or a C-size diamond ball base and a C-size double socket arm for heavier-duty use, plus a GDS hardwire charger with a 5.5 mm DC plug.
Key Features

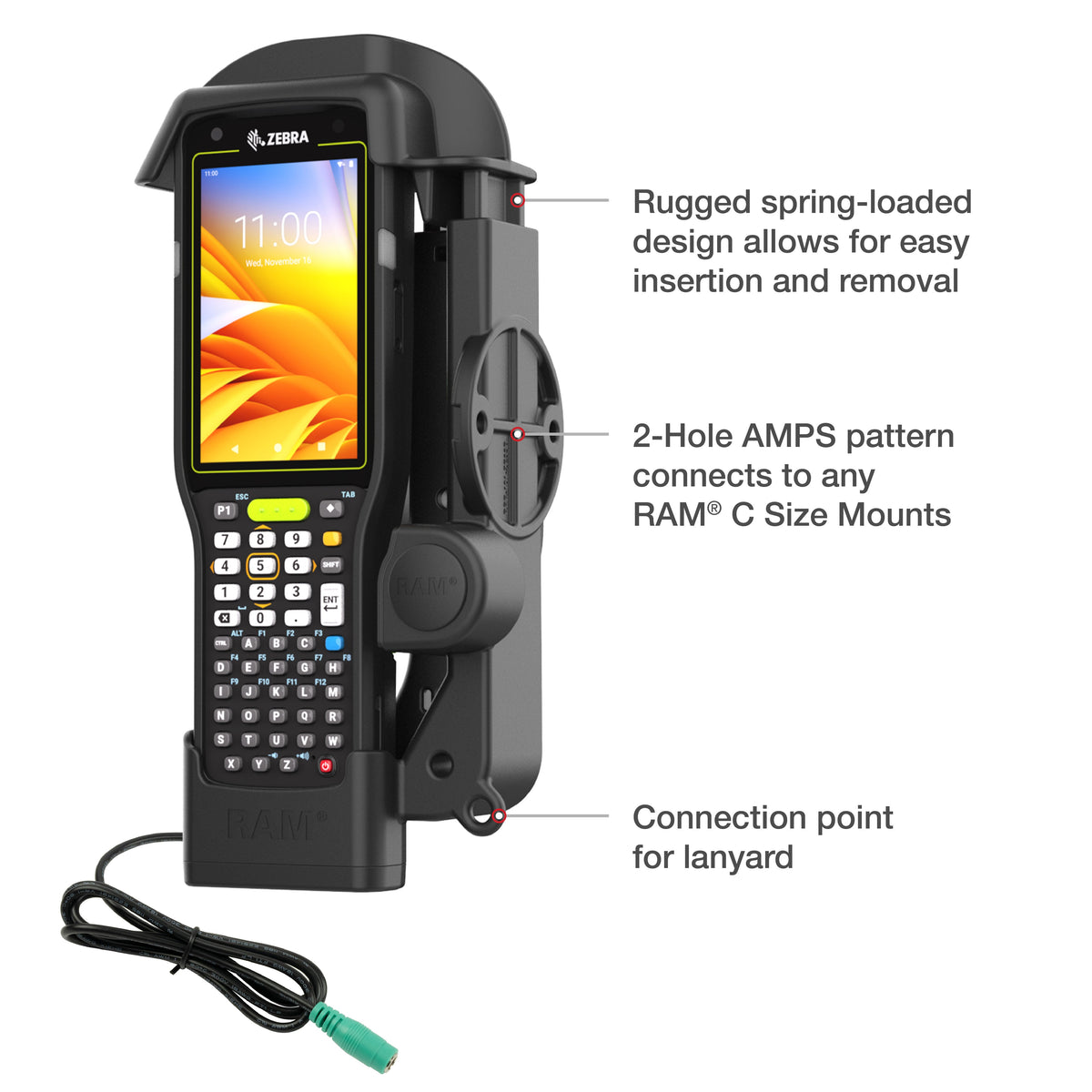

- Spring-loaded Form-Fit dock – shaped for the Zebra MC3300, MC3400 and MC3450; included shim insert for the MC3400/MC3450; scanning while docked

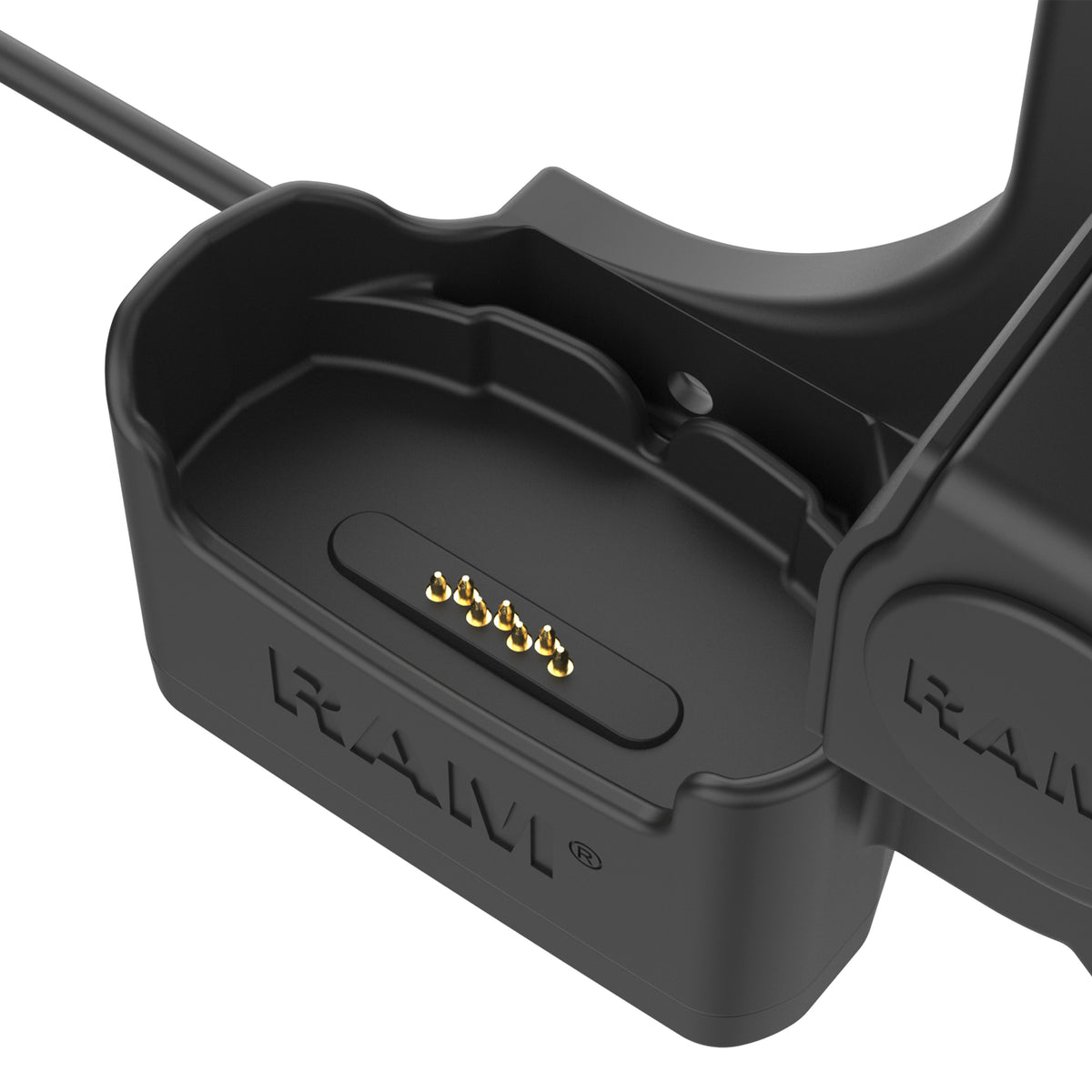

- Pogo-pin charging – 5.5 mm DC pigtail input; self-aligning docking pads
- Mounting & build – 2-hole AMPS (48.6 mm) pattern for RAM diamond ball bases and double socket arms; high-strength composite, 3-year RAM warranty
Compatibility
- Zebra MC3300
- Zebra MC3400 – with the included shim insert
- Zebra MC3450 – with the included shim insert
- RAM diamond ball bases (2-hole AMPS, 48.6 mm)
Technical Specifications
| Part Number | RAM-HOL-ZE33PU |
|---|---|
| Product Type | Form-Fit powered charging dock (5.5 mm DC) |
| Compatible Devices | Zebra MC3300, Zebra MC3400, Zebra MC3450 |
| Connection | RAM diamond ball bases (2-hole AMPS, 48.6 mm) |
| Locking | Non-locking |
| Power / Charging | 5.5 mm DC pigtail input; charging via pogo pins with self-aligning pads; charger sold separately |
| Material | High-strength composite |
| Weight | 0.37 kg (0.81 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | Form-Fit Powered Dock, insert kit for MC3400, mounting hardware |
You will find the device and more matching accessories in our Zebra MC3400 collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
