RAM Mounts Tough-Claw Large Clamp Ball Base for 1–2.2" Rails, C-Size (RAP-401U)

69,71 € +VAT
Ball size
B (1") + C (1.5")C (1.5")
Clamp range
15.9–29 mm (0.625–1.14")25.4–40.6 mm (1–1.6")25.4–55.9 mm (1–2.2")
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAP-401U
RAM Mounts Tough-Claw large clamp ball base, C-size, for 1–2.2 inch rails – product photo
RAM MOUNT
RAM Mounts Tough-Claw Large Clamp Ball Base for 1–2.2" Rails, C-Size (RAP-401U)
69,71 € +VAT

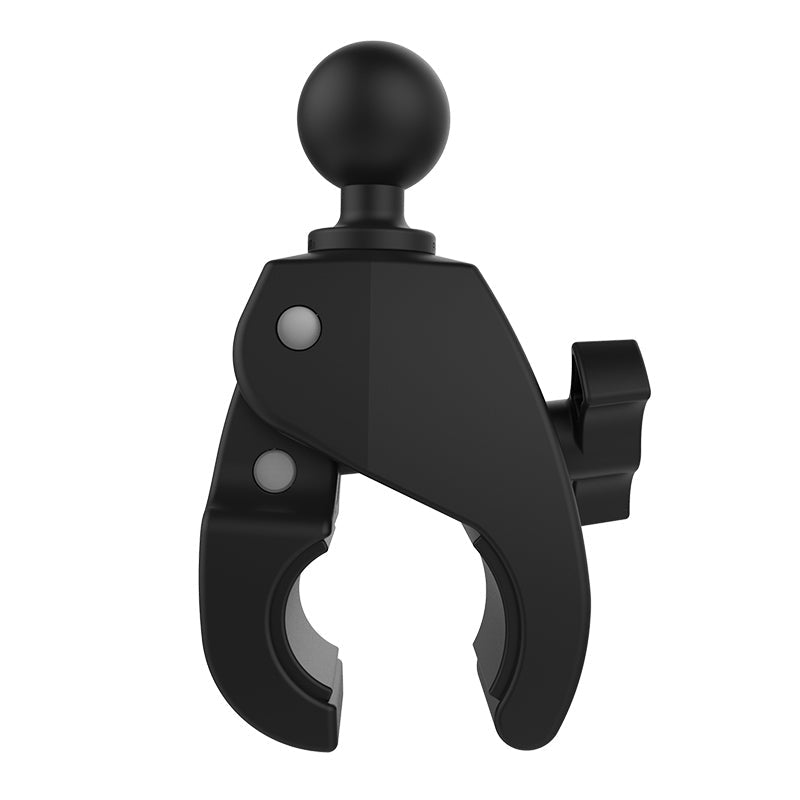

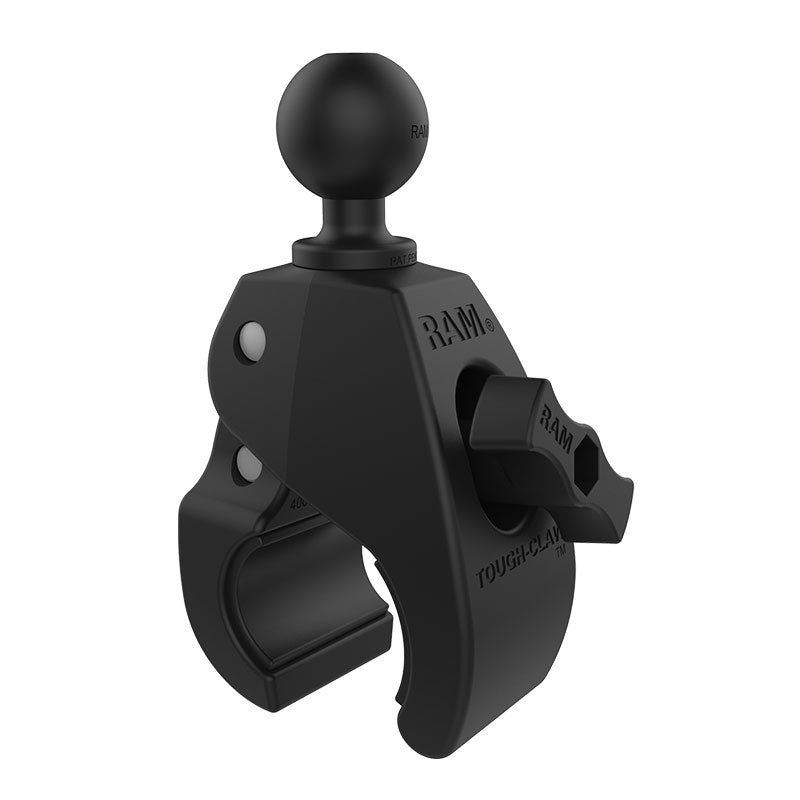

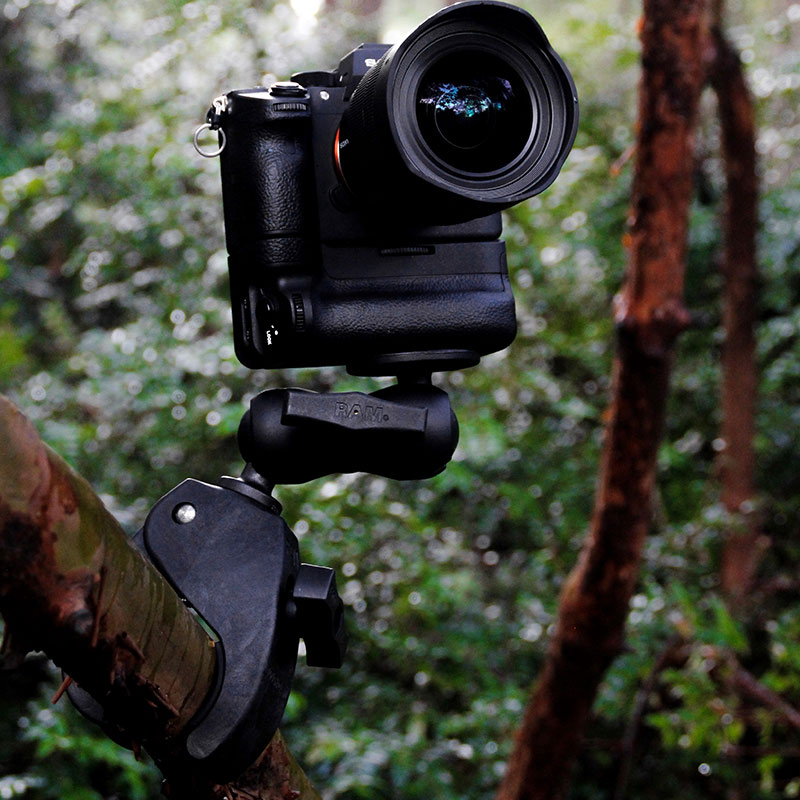

RAM Mounts Tough-Claw Large Clamp Ball Base (RAP-401U) clamps tool-free onto round, square and odd-shaped rails and bars 1–2.2" (25.4–55.9 mm) in outer diameter. Rubber pads grip firmly and protect the mounting surface, and the C-size 1.5" (38 mm) ball connects to any RAM C-size double socket arm. Because it installs and releases in seconds, it moves easily between vehicles and equipment – from handlebars and seat posts to roll bars, kayak rails or an aircraft yoke – and suits tablets, smartphones, action cameras and rod holders. It is made of high-strength composite with stainless steel hardware.

📦 What's in the box – RAP-401U

  • Tough-Claw large clamp base – with rubber pads
  • Tough-Claw ball adapter – C-size 1.5" ball (RAP-351-2U)

💡 To get started, you might also consider a C-size double socket arm and a holder with a C-size ball such as the X-Grip holder for 7" tablets, or a round AMPS ball plate for holders with an AMPS pattern.

View accessories →

Key Features

  • Tool-free Tough-Claw clamp – fits round, square and odd-shaped rails 1–2.2" (25.4–55.9 mm) in outer diameter; rubber pads grip and protect the surface
  • Quick to move – installs and releases in seconds, ideal for switching between vehicles, carts and equipment
  • C-size ball – 1.5" (38 mm) rubber ball fits any RAM C-size double socket arm; the ball-and-socket joint allows near-infinite adjustment
  • Load rating – 4 lb (1.8 kg) standard use, 3 lb (1.4 kg) heavy-duty use
  • Rugged build – high-strength composite with stainless steel hardware, backed by RAM's lifetime warranty

Compatibility

  • Round, square and odd-shaped rails and bars 1–2.2" (25.4–55.9 mm) outer diameter
  • All RAM C-size (1.5") double socket arms and C-size ball components

Technical Specifications

Part Number RAP-401U
Product Type Tool-free clamp ball base (Tough-Claw)
Connection RAM C-size ball, 1.5" (38 mm)
Clamp Range Outer diameter 1–2.2" (25.4–55.9 mm)
Dimensions Height 167 mm (6.56") × width 57 mm (2.25")
Load Rating 4 lb (1.8 kg) standard use, 3 lb (1.4 kg) heavy-duty use
Material High-strength composite with stainless steel hardware
Weight 0.48 kg (1.06 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box Tough-Claw large clamp base, Tough-Claw ball adapter

Looking for a device to mount? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberBall sizeClamp rangePrice
RAM Mounts Tough-Claw Small Clamp Ball Base for 0.625–1.14" Rails, C-Size (RAP-400U) RAP-400UC (1.5")15.9–29 mm (0.625–1.14")46,56 €+VATOut of Stock View
RAM Mounts Tough-Claw Large Clamp Ball Base for 1–2.2" Rails, C-Size (RAP-401U) RAP-401UViewingC (1.5")25.4–55.9 mm (1–2.2")69,71 €+VATOut of Stock
RAM Mounts Tough-Claw Medium Clamp Ball Base for 1–1.6" Rails, C-Size (RAP-404U) RAP-404UC (1.5")25.4–40.6 mm (1–1.6")51,29 €+VATIn Stock
RAM Mounts Tough-Claw Small Clamp Ball Base with B- and C-Size Balls (RAP-BC-400U) RAP-BC-400UB (1") + C (1.5")15.9–29 mm (0.625–1.14")56,85 €+VATOut of Stock View
