RAM Mounts GDS Key-Locking Dock + USB-A for Zebra TC2x/TC5x in IntelliSkin, Heated Pins (RAM-GDS-DOCKL-V12-ZE2434CPDHU)

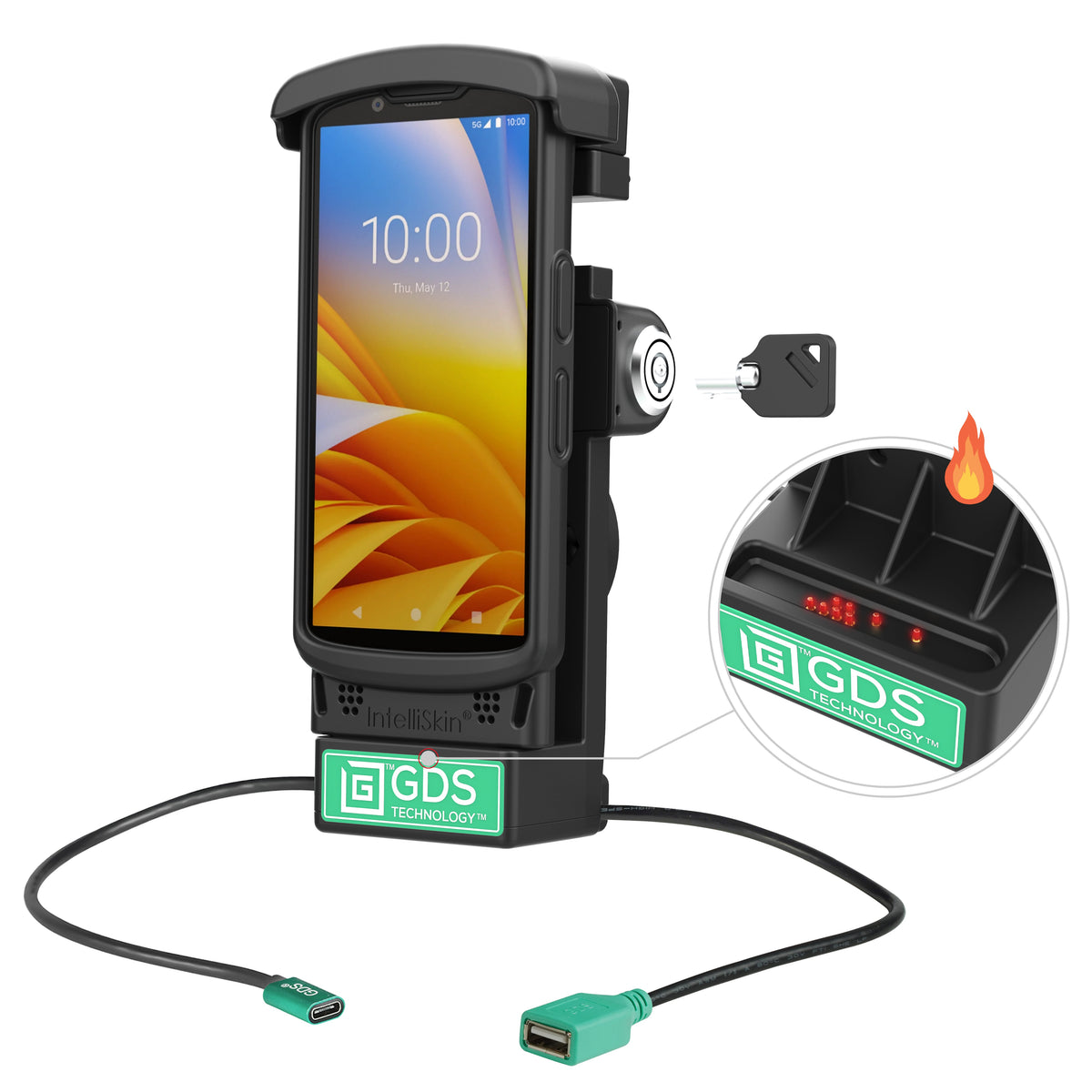

RAM Mounts GDS Key-Locking Powered Dock + USB-A with Heated Pins (RAM-GDS-DOCKL-V12-ZE2434CPDHU) is made for the Zebra TC22, TC27, TC53 and TC58 mobile computers in a RAM IntelliSkin sleeve and suits vehicles, forklifts and other mobile workstations. Power comes in through a 1 m USB-C cable and reaches the device via built-in pogo-pin contacts, while a USB-A pigtail (500 mA) connects one additional peripheral. One-handed operation makes docking quick, and the top cutout leaves the buttons, ports and scanner accessible without removing the device. Built-in heating elements keep the pogo pins from locking up in wet and freezing conditions, and a key lock adds theft deterrence.

Key Features

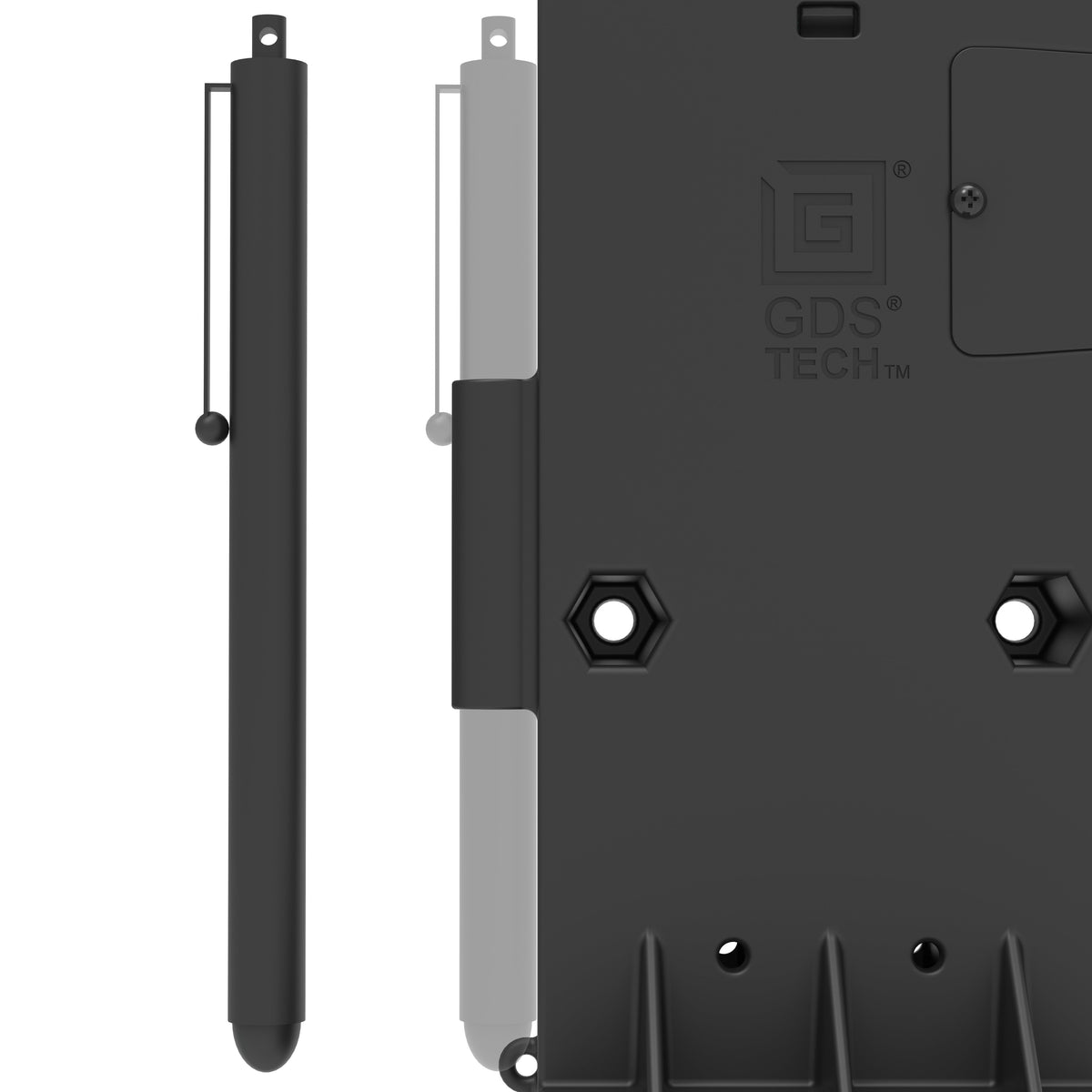

• GDS docking for IntelliSkin – designed for the TC22/TC27/TC53/TC58 in IntelliSkin; spring-loaded, one-handed insertion and removal; integrated stylus holder
• USB-C power – 1 m USB-C input cable; charging through pogo-pin docking contacts

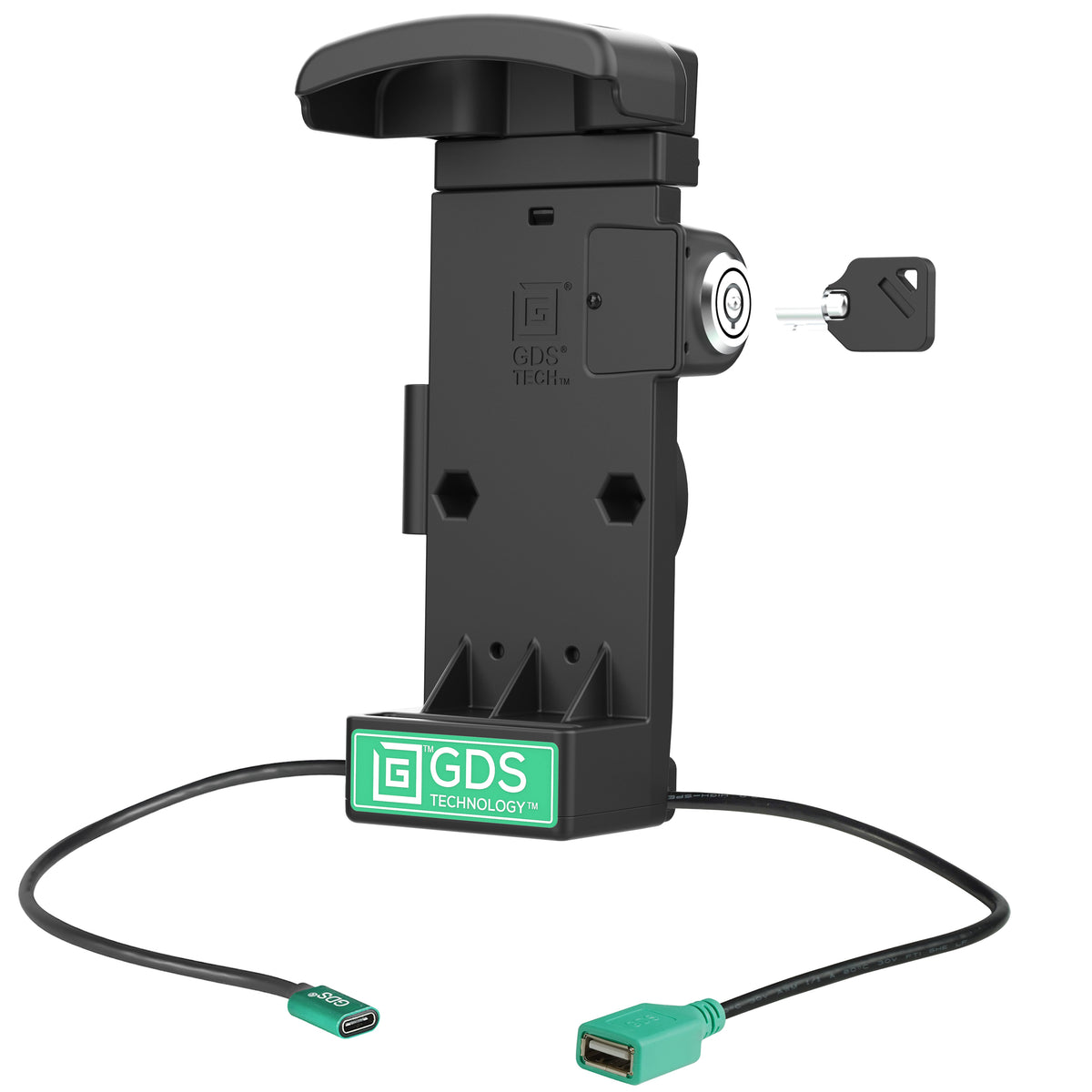

• USB-A peripheral port – pigtail connector for one additional peripheral, 500 mA output

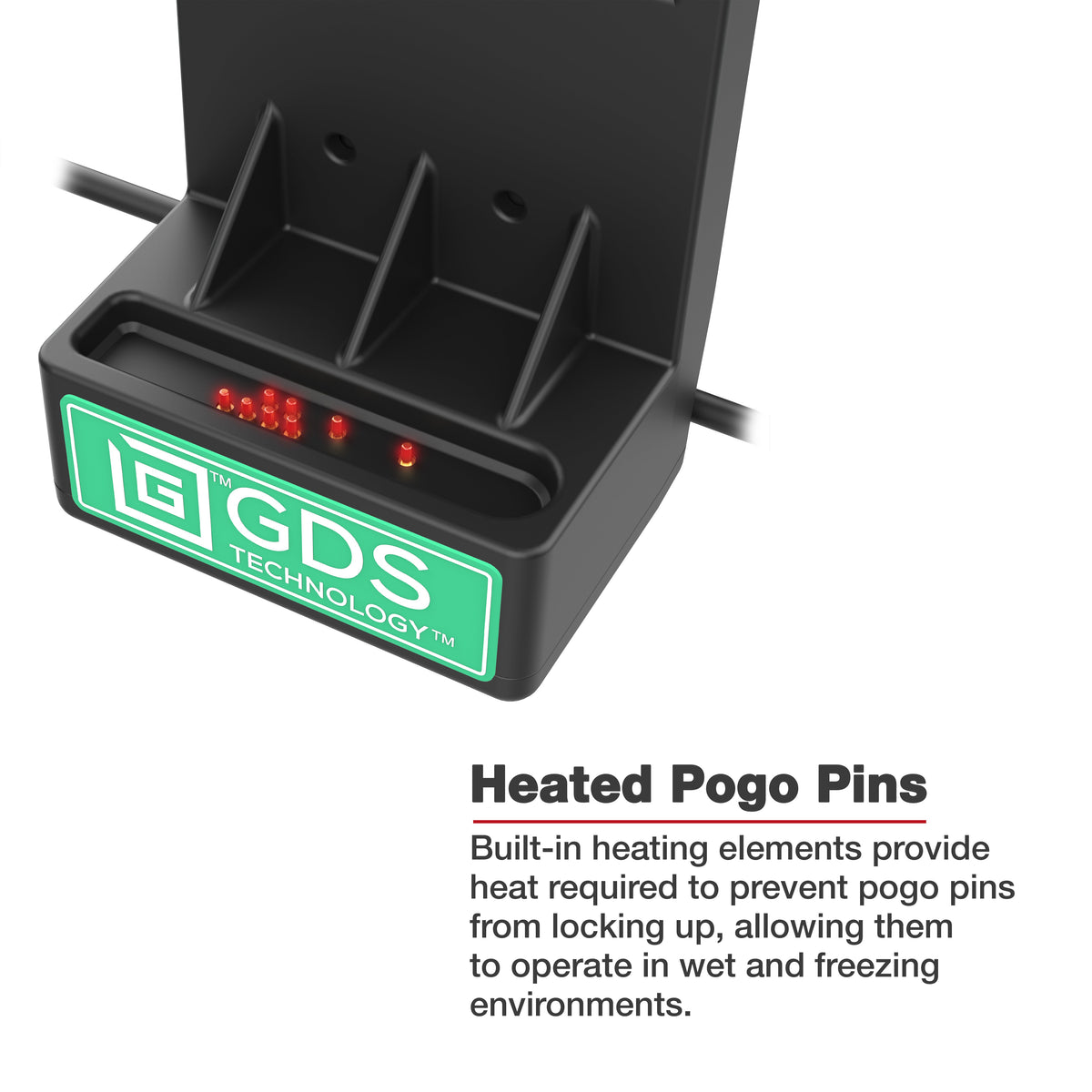

• Heated pogo pins – built-in heating elements keep the pins from locking up in wet and freezing environments

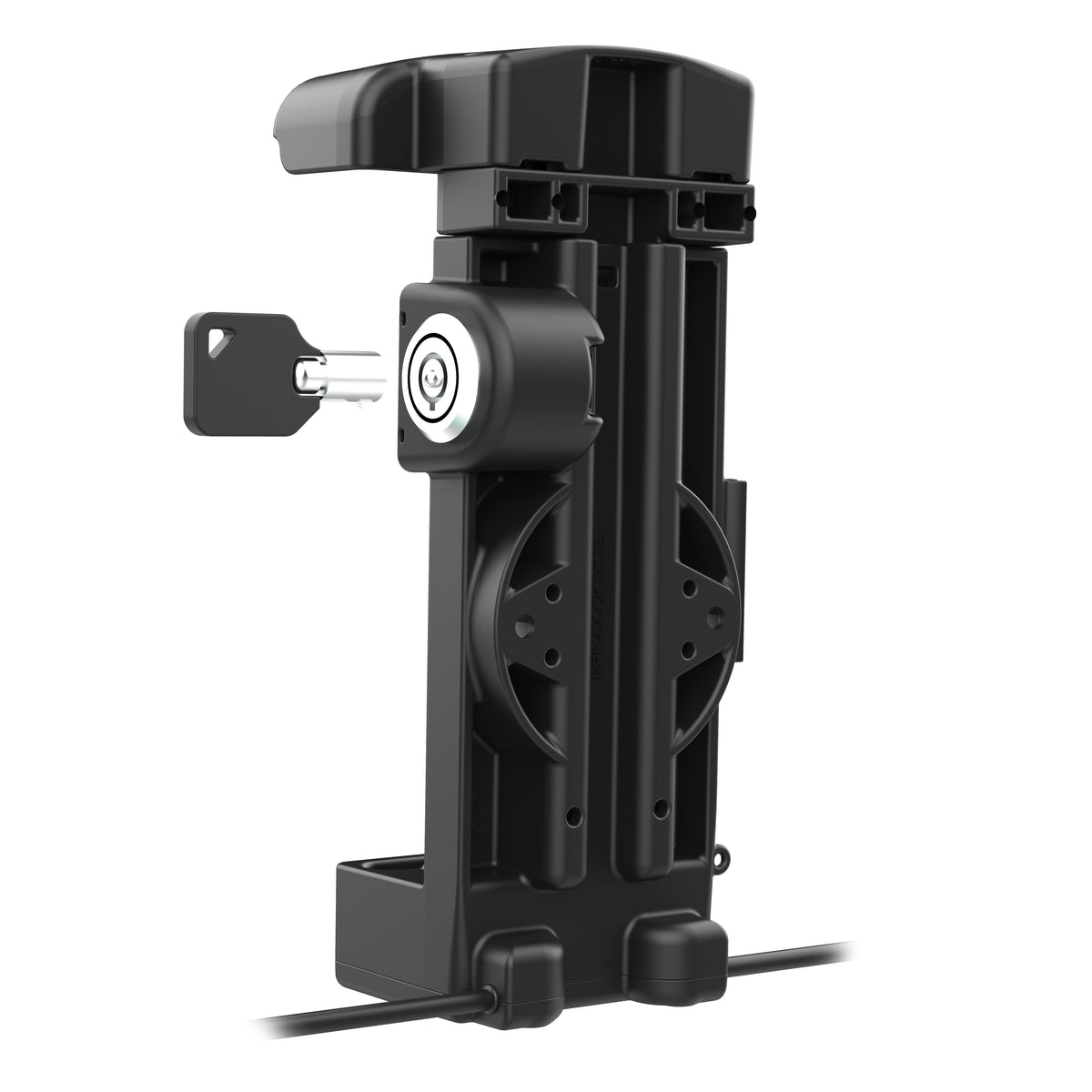

• Key lock – deters theft; 2 keys included
• Mounting & build – 2-hole AMPS (48.6 mm) pattern for RAM diamond ball bases; high-strength composite, 3-year RAM warranty

Compatibility

• Zebra TC22 in IntelliSkin (RAM-GDS-SKIN-ZE24)
• Zebra TC27 in IntelliSkin (RAM-GDS-SKIN-ZE24)
• Zebra TC53 in IntelliSkin (RAM-GDS-SKIN-ZE34)
• Zebra TC58 in IntelliSkin (RAM-GDS-SKIN-ZE34)
• RAM diamond ball bases (2-hole AMPS, 48.6 mm)

Technical Specifications

Looking for the device itself? Browse our Handheld Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
